| Model NO. | XHZ5061JGKJ5 Aerial Work Truck | Type | Z |
| Certification | ISO9000, CCC, TS16949, EPA, EEC, RoHS, CE | Emission Standard | Euro 3 |
| Horsepower | 150-250hp | Payload | 30T |
| Fuel | Gasoline | Transmission | Automatic |
| Drive Wheel | 8x4 | Condition | Used |

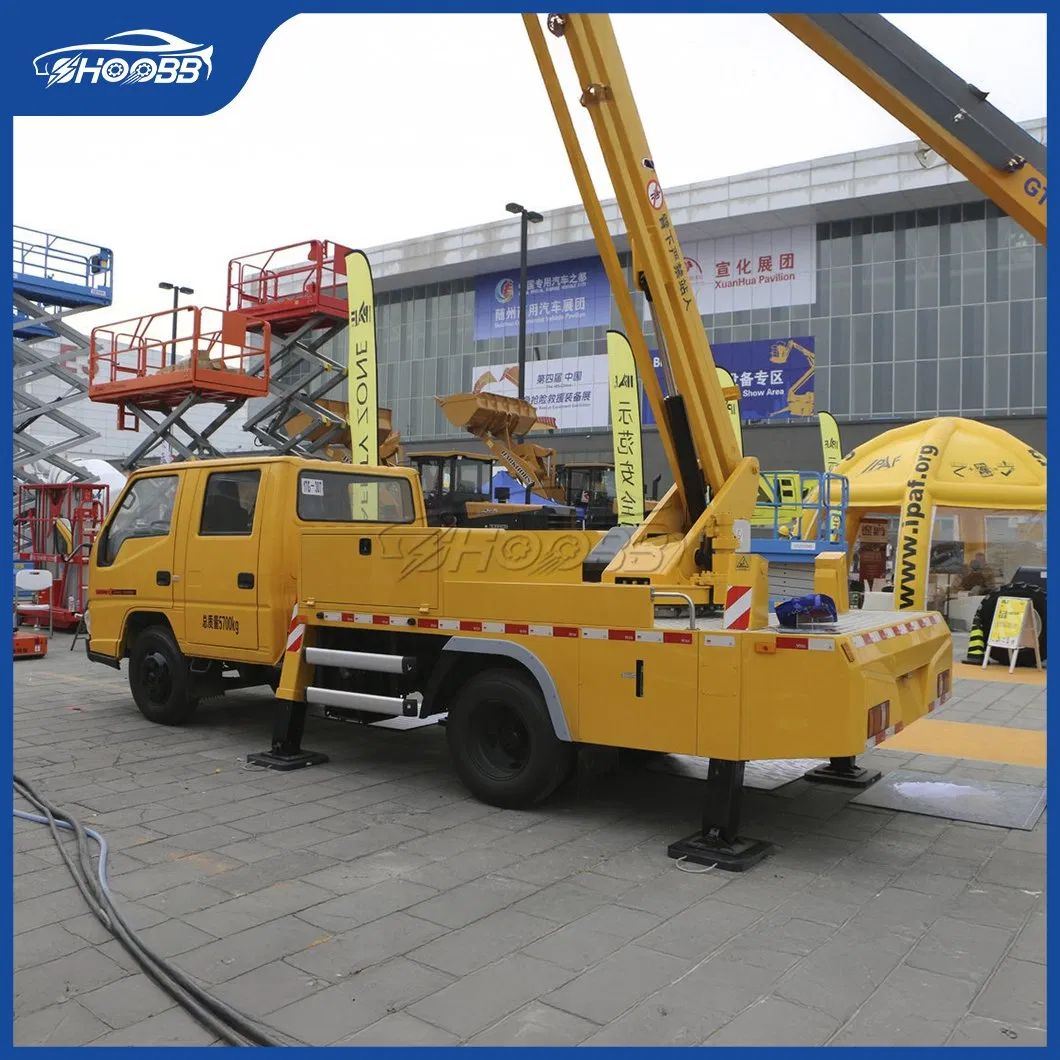

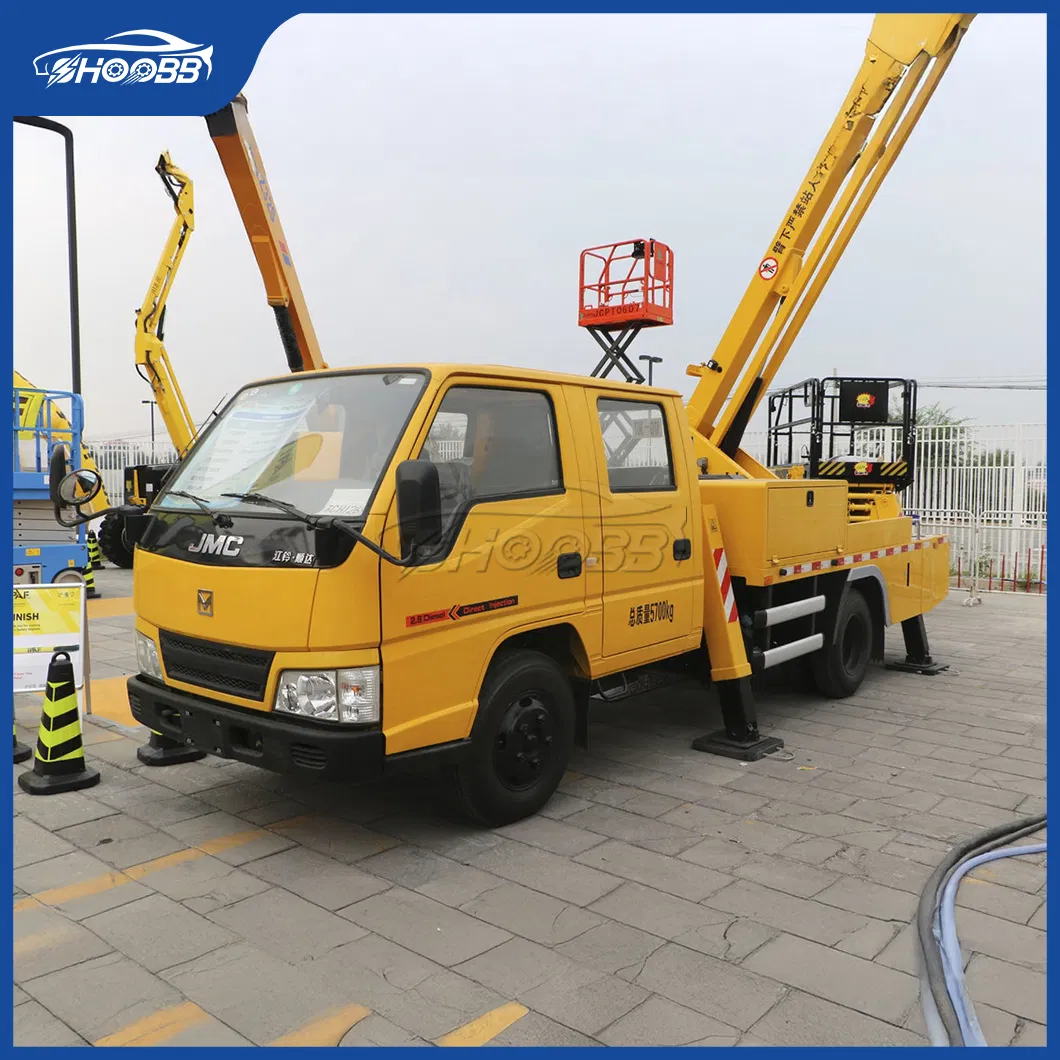

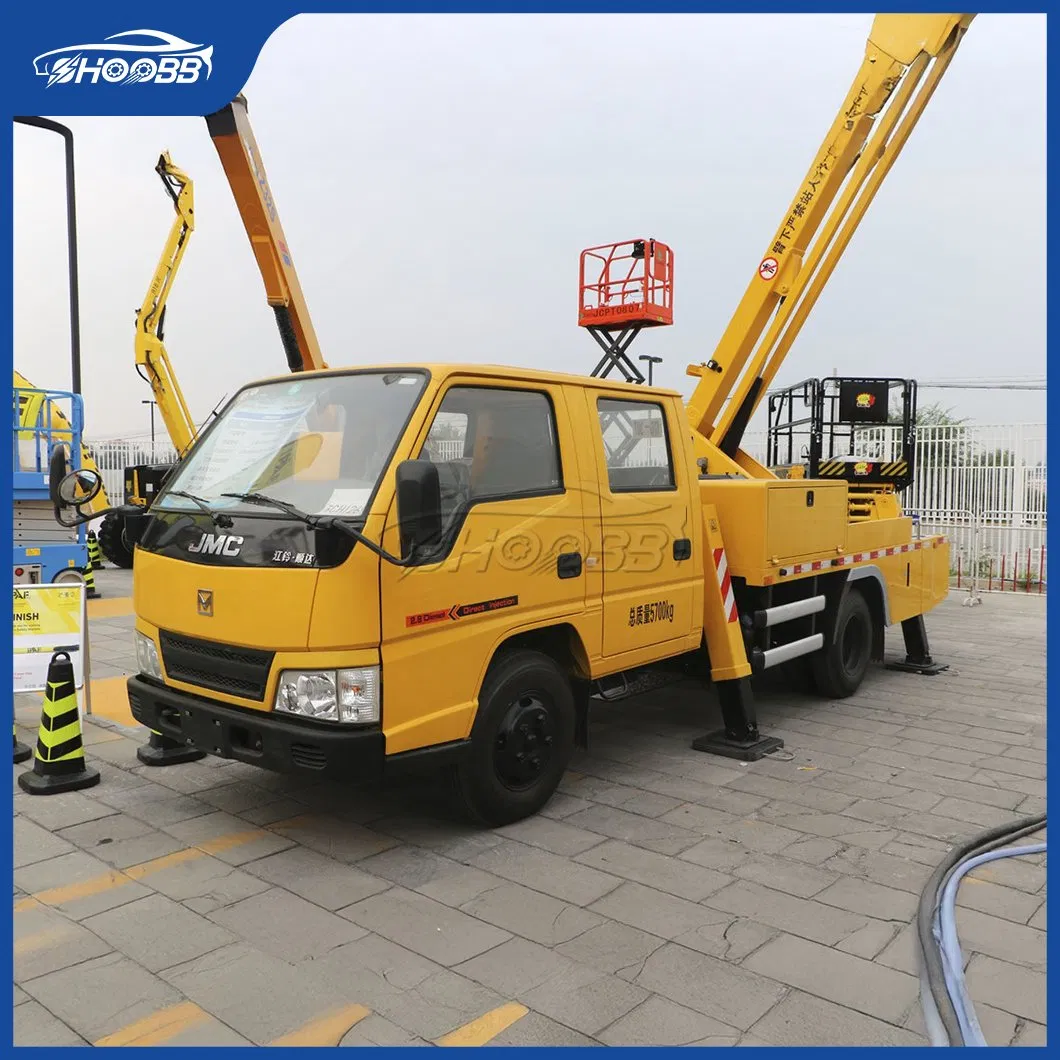

Aerial Work Truck Overview: An aerial work truck refers to a special vehicle that transports workers and equipment to the site and performs aerial work. Also called mobile lifting work platforms, they are used for temporary maintenance, construction, and fire evacuation. Unlike cranes, the workload is typically under 1 ton.
The hydraulic chassis of this platform is a self-propelled unit with independent intellectual property rights, utilizing electromechanical and hydraulic integration for superior reliability.
| Technical Specifications | |
|---|---|
| Drive Type | 4X2 |
| Wheelbase | 3360 mm |

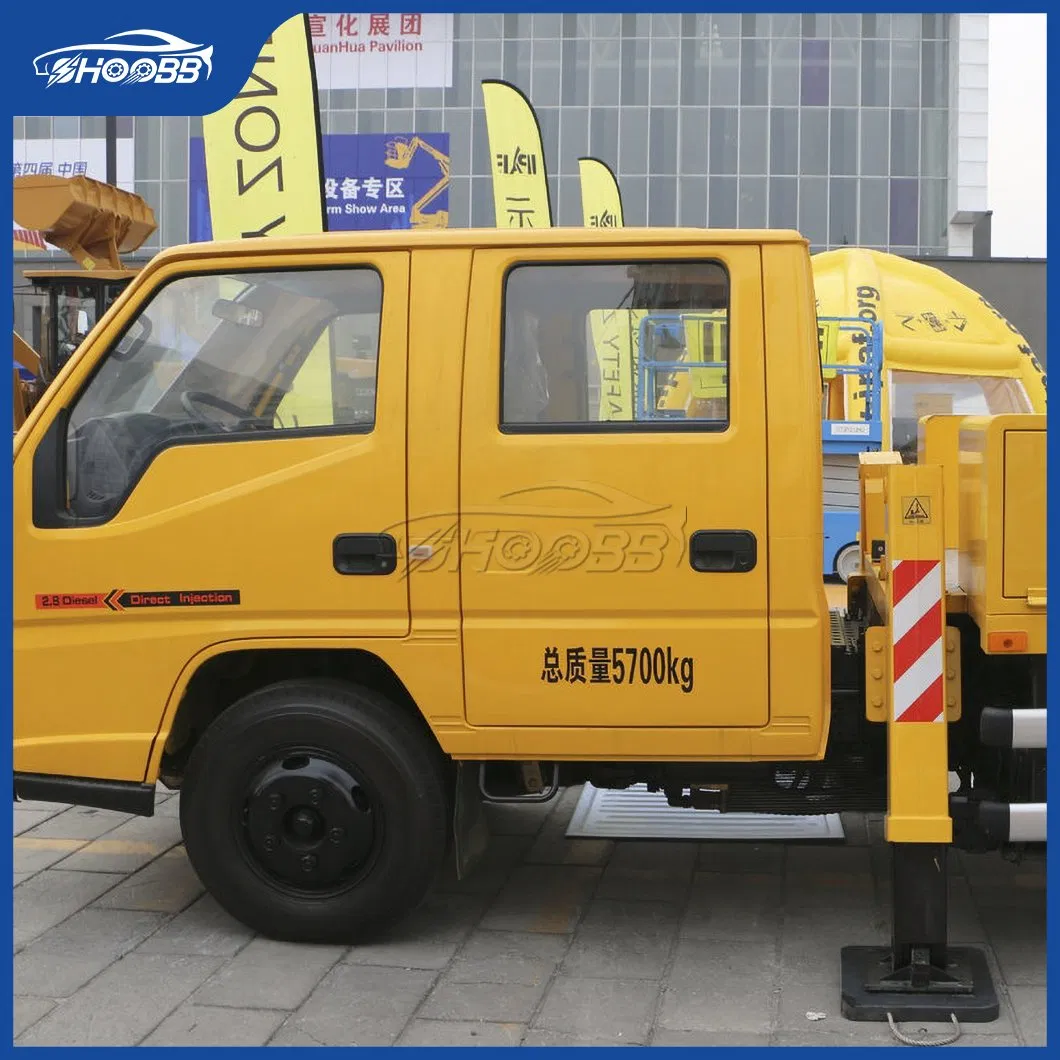

| Total Mass | 5.7 T |
| Body Dimensions | 7.1 x 2 x 2.4 m |
| Vehicle Weight | 5.375 T |
| Maximum Horsepower | 116 HP |
| Maximum Output Power | 85 KW |
| Displacement | 2.771 L |
| Tire Specifications | 7.00R16LT 10PR |
Equipped with telescopic lifting arms and built-in hydraulic brake hoisting winches. Maximum capacity of 1-2 tons for landscaping and emergency rescue.

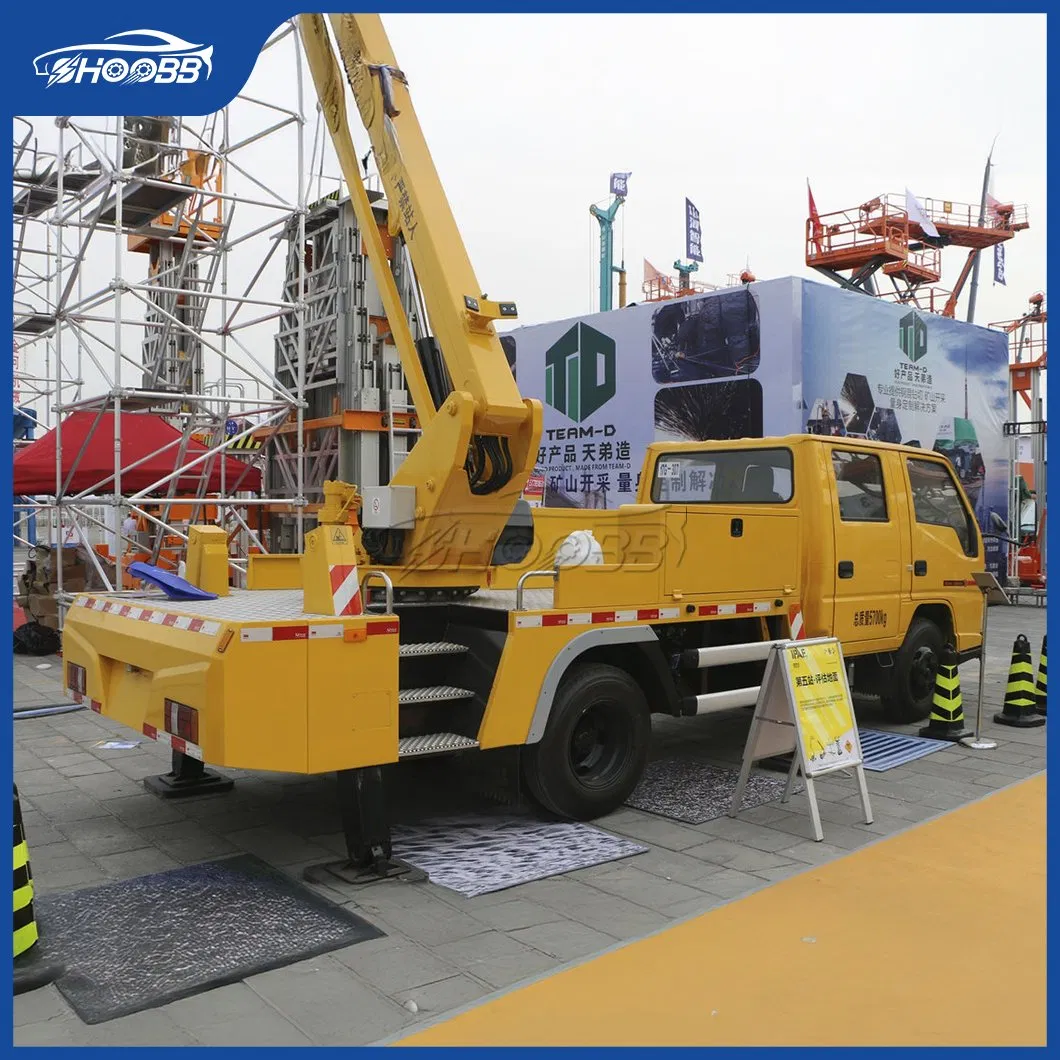

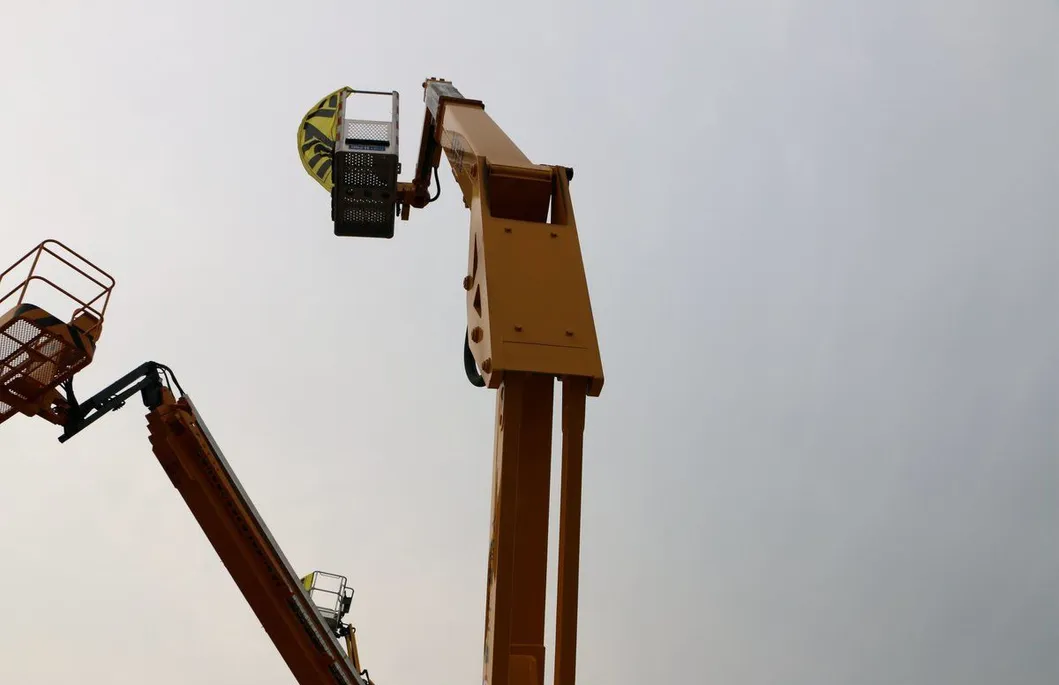

Based on a two or three-section boom structure. Each section is hinged and can unfold separately to explore and cross obstacles in the air.

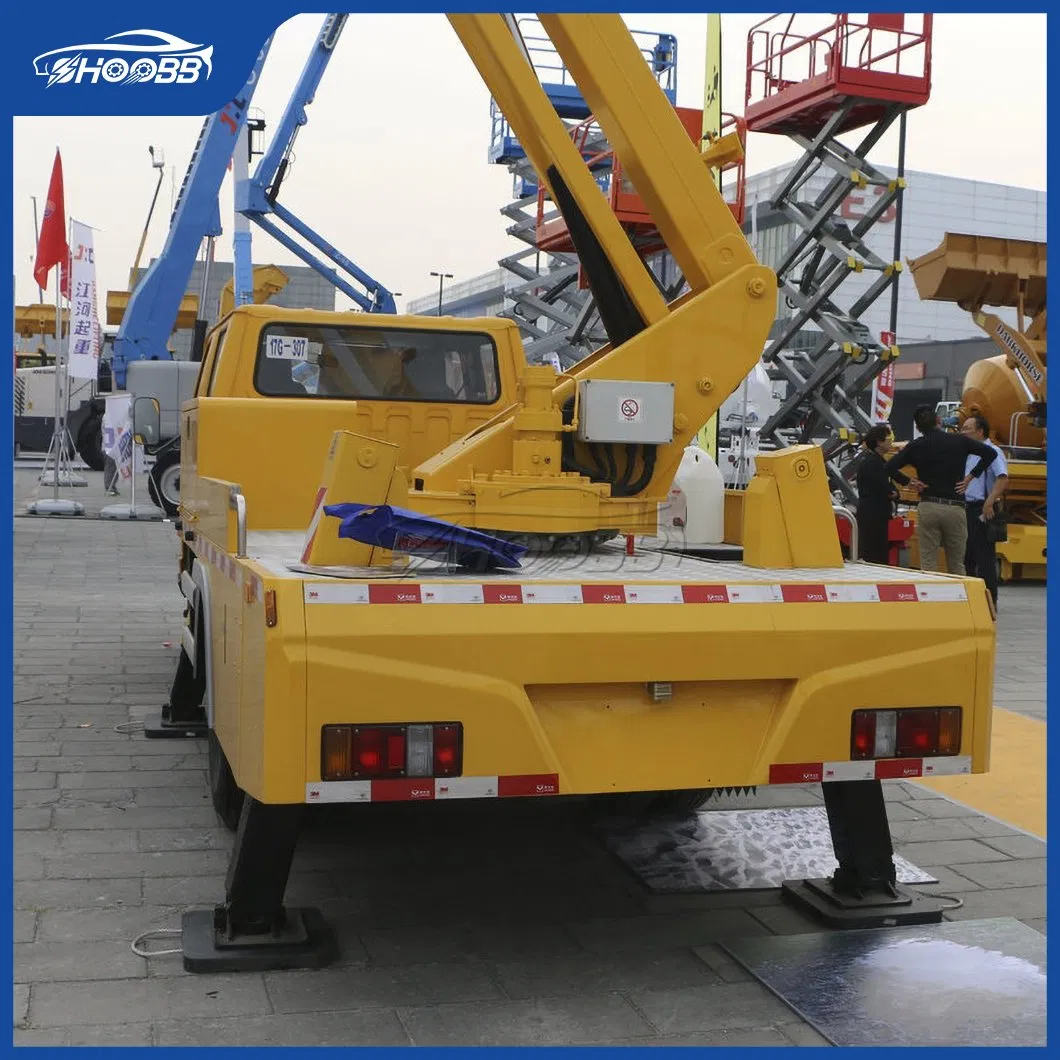

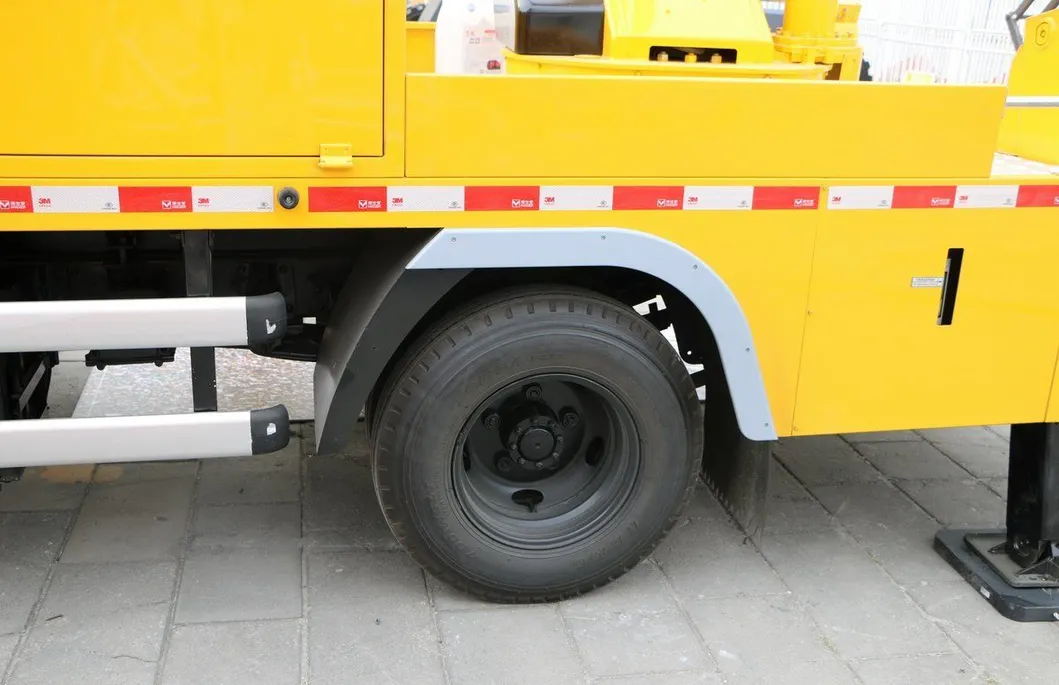

Large span outriggers for stability. Hydraulic cylinders include safety valves and self-locking devices to prevent misoperation.
1. Power Take-off: Converts vehicle power to hydraulic energy via an oil pump and flexible shaft cable.
2. Rotating Mechanism: Uses a hydraulic motor and planetary gear reducer to rotate the turntable via slewing bearings.
3. Swivel Joint: Solves the connection between the stationary subframe and rotating upper part, transmitting oil and electricity.
4. Hydraulic System: Operated by a main pump with a working pressure of 14MPa, controlled by overflow valves for precise movement.
