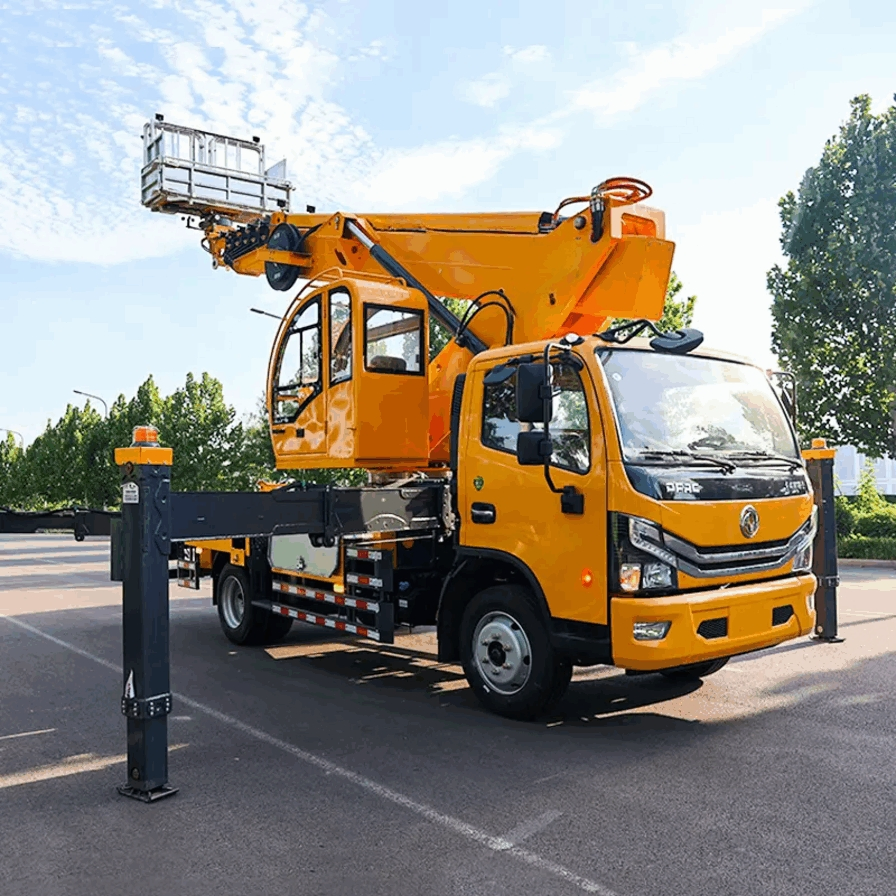

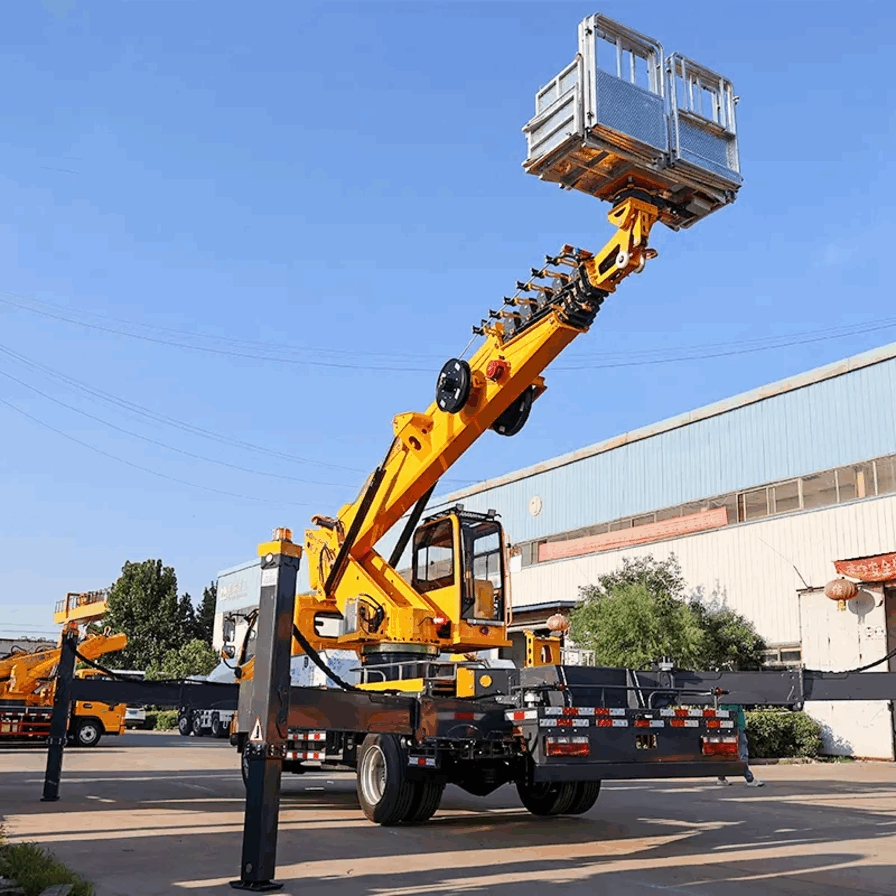

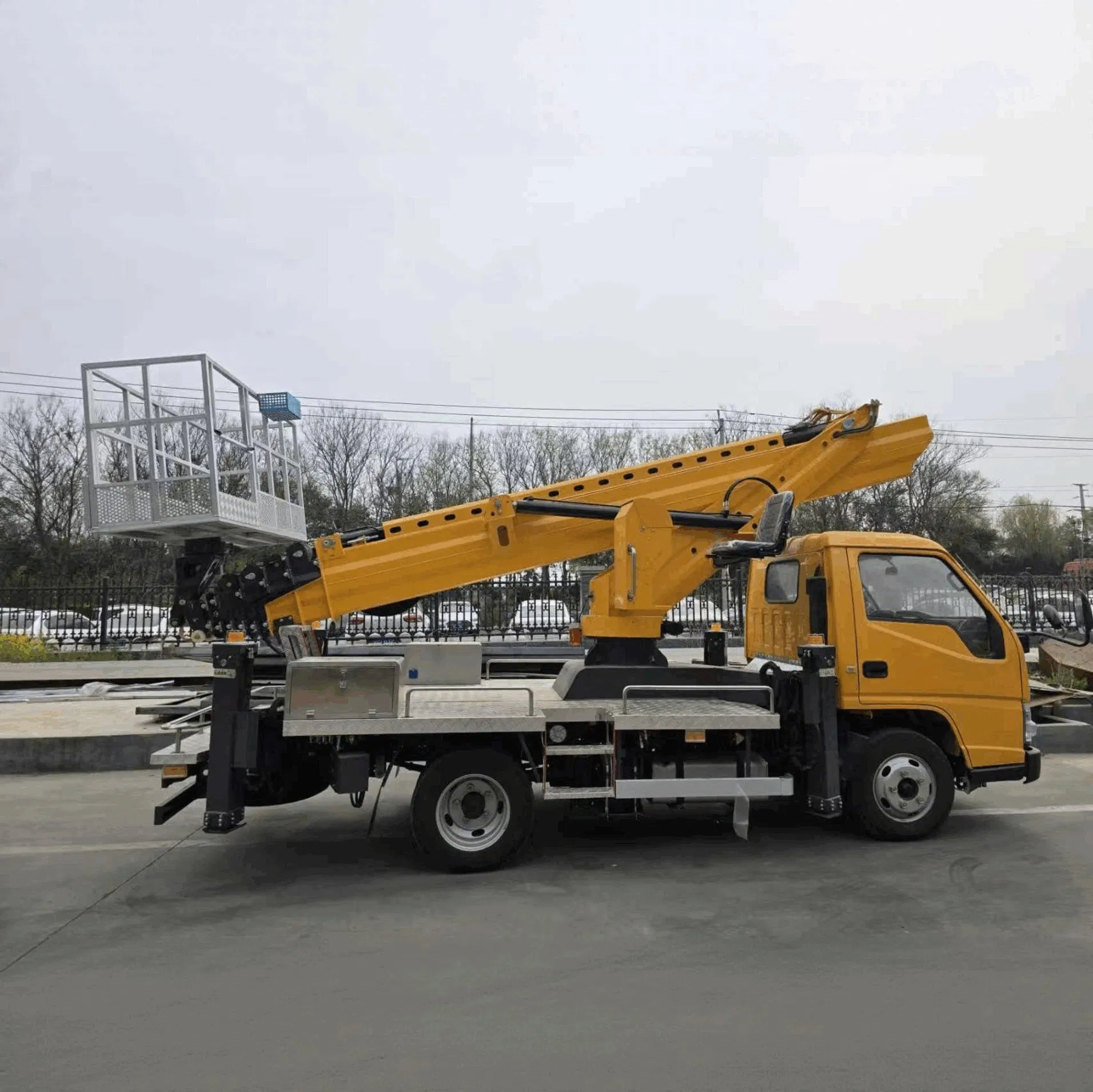

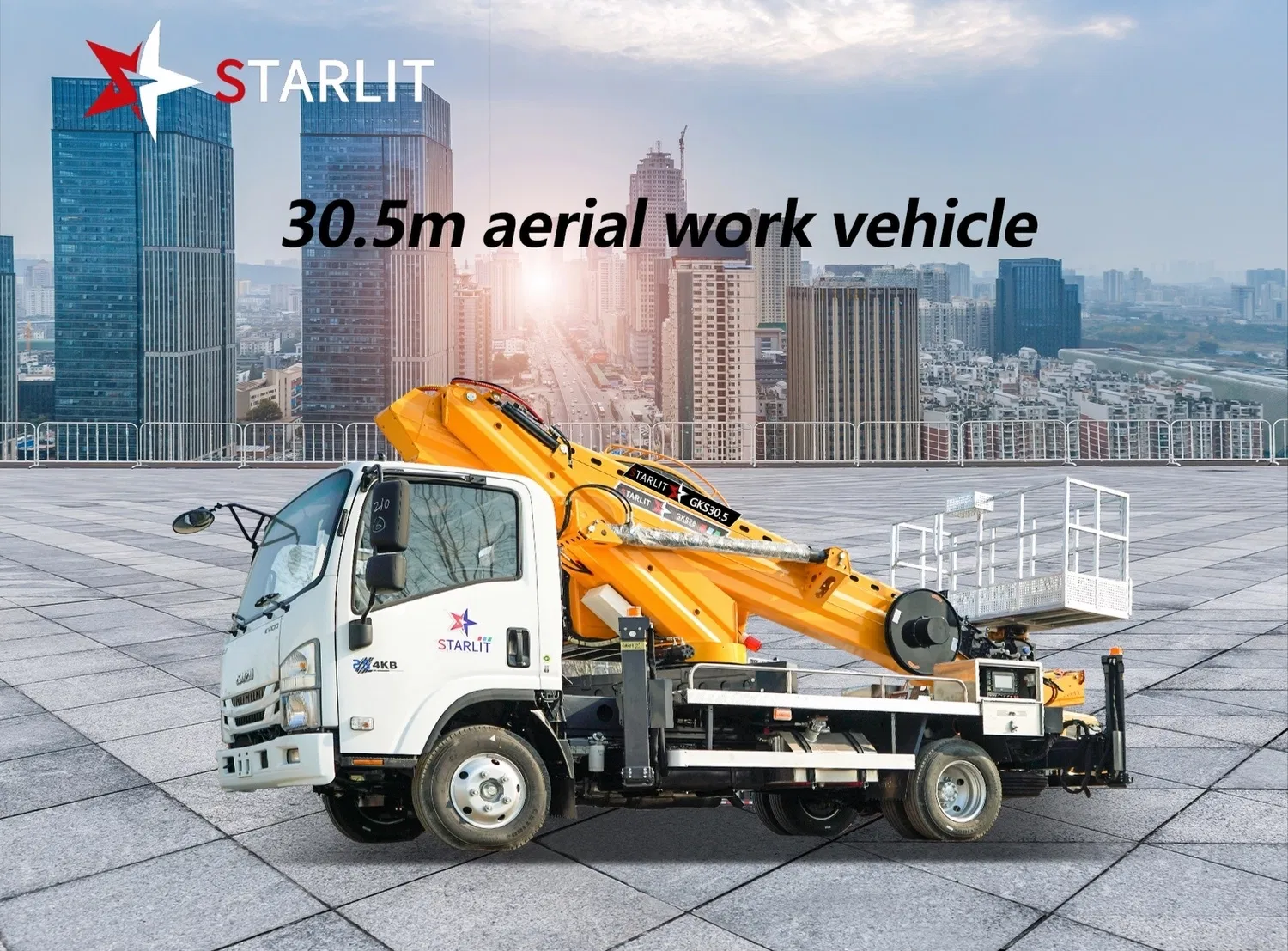

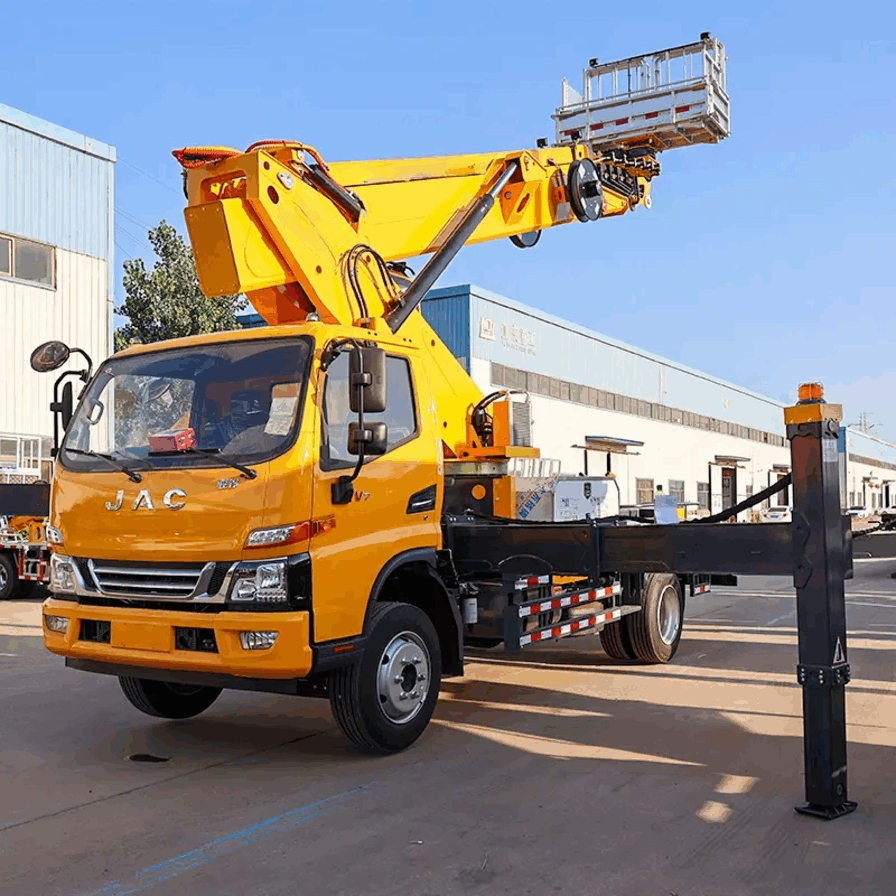

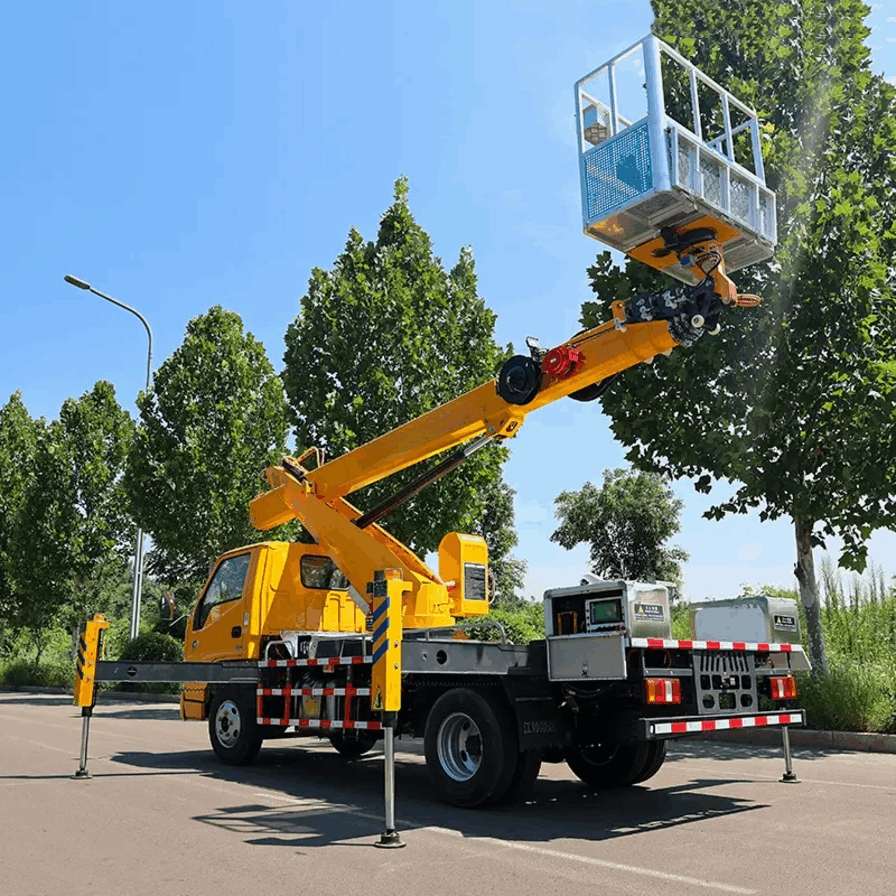

The 30.5-meter aerial work vehicle is a high-performance, high-efficiency self-propelled straight-arm aerial work device, specifically designed for industrial, construction, municipal, and equipment installation and maintenance sectors requiring mid-height and large-range operations.
| Dimensions (L x W x H) | 5920 x 2000 x 3050 (mm) | Gross Vehicle Weight | 4495 Kg |
| Max. Speed | 98 Km/h | Emission Standard | Euro VI |
| Aerial Work Platform Details | |||
| Platform Size | 1400 x 710 x 1200 mm | Rated Load | 200 Kg |
| Max. Working Height | 30.5m | Max. Operating Range | 16m |
| Working Boom | Seven section hexagonal work Boom | ||

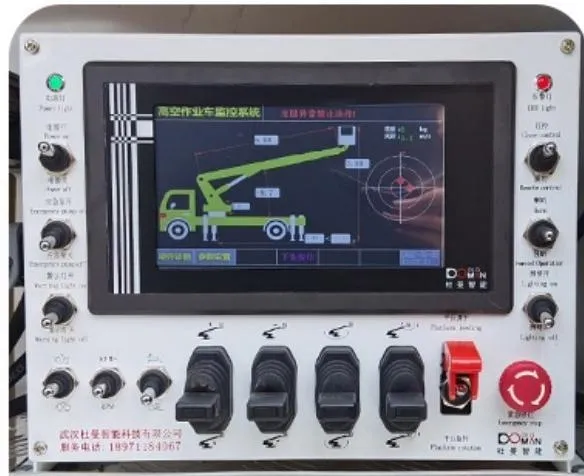

| Control System | CAN bus control system / Liquid automatic leveling | ||

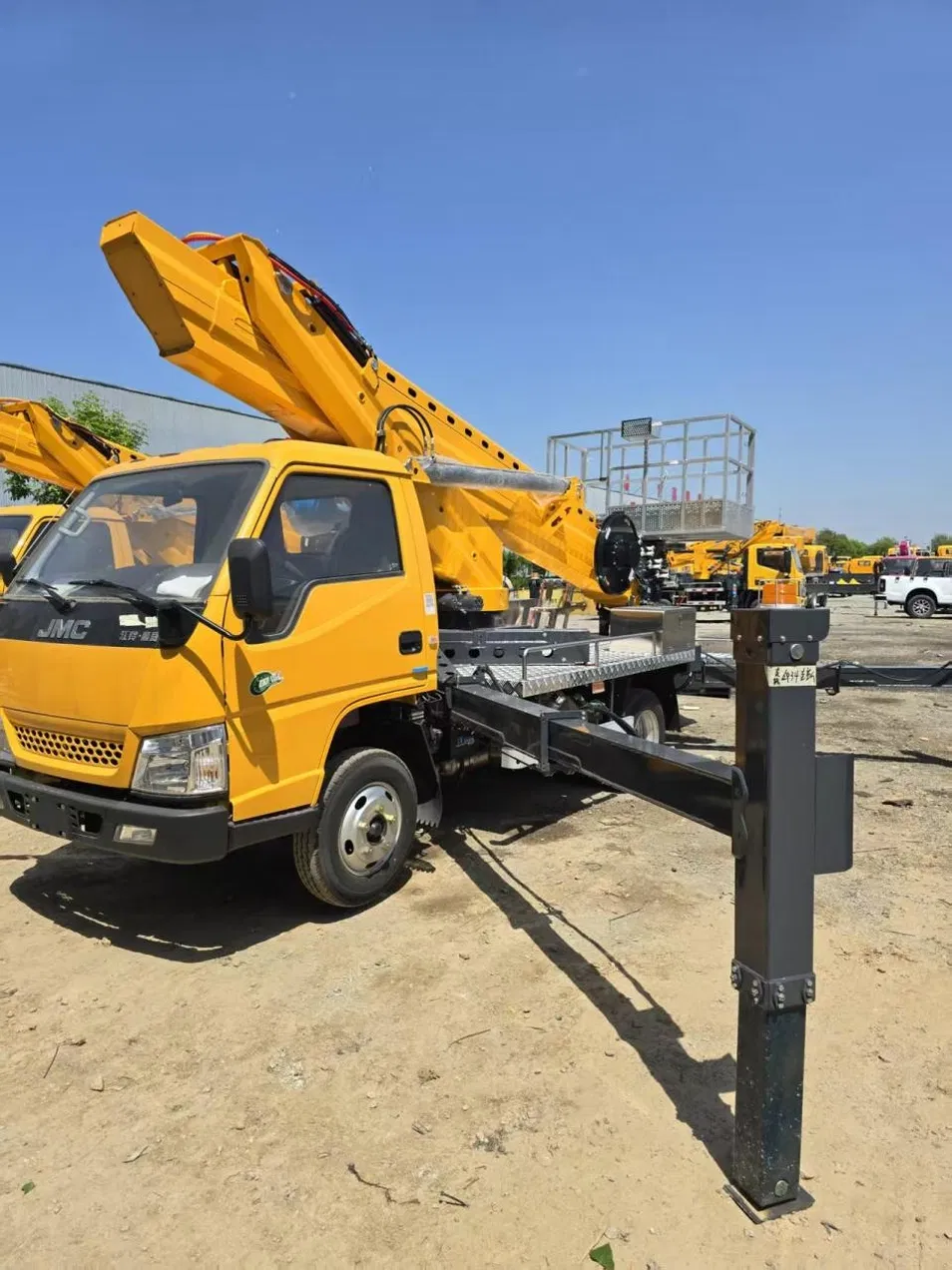

Outrigger Stability-Linked Restriction: If outriggers fail to land stably, the lifting boom movement is restricted for safety.
Automatic Interlock Device: Prevents misoperation by interlocking outriggers and upper working mechanisms.

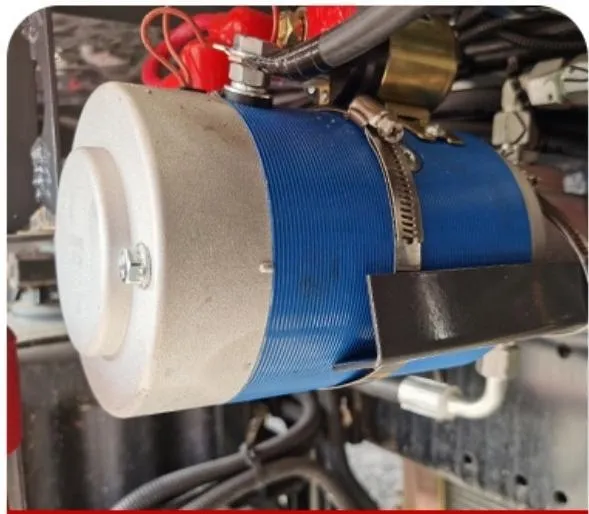

Emergency Pump: Enables personnel to safely descend manually in case of system malfunction.

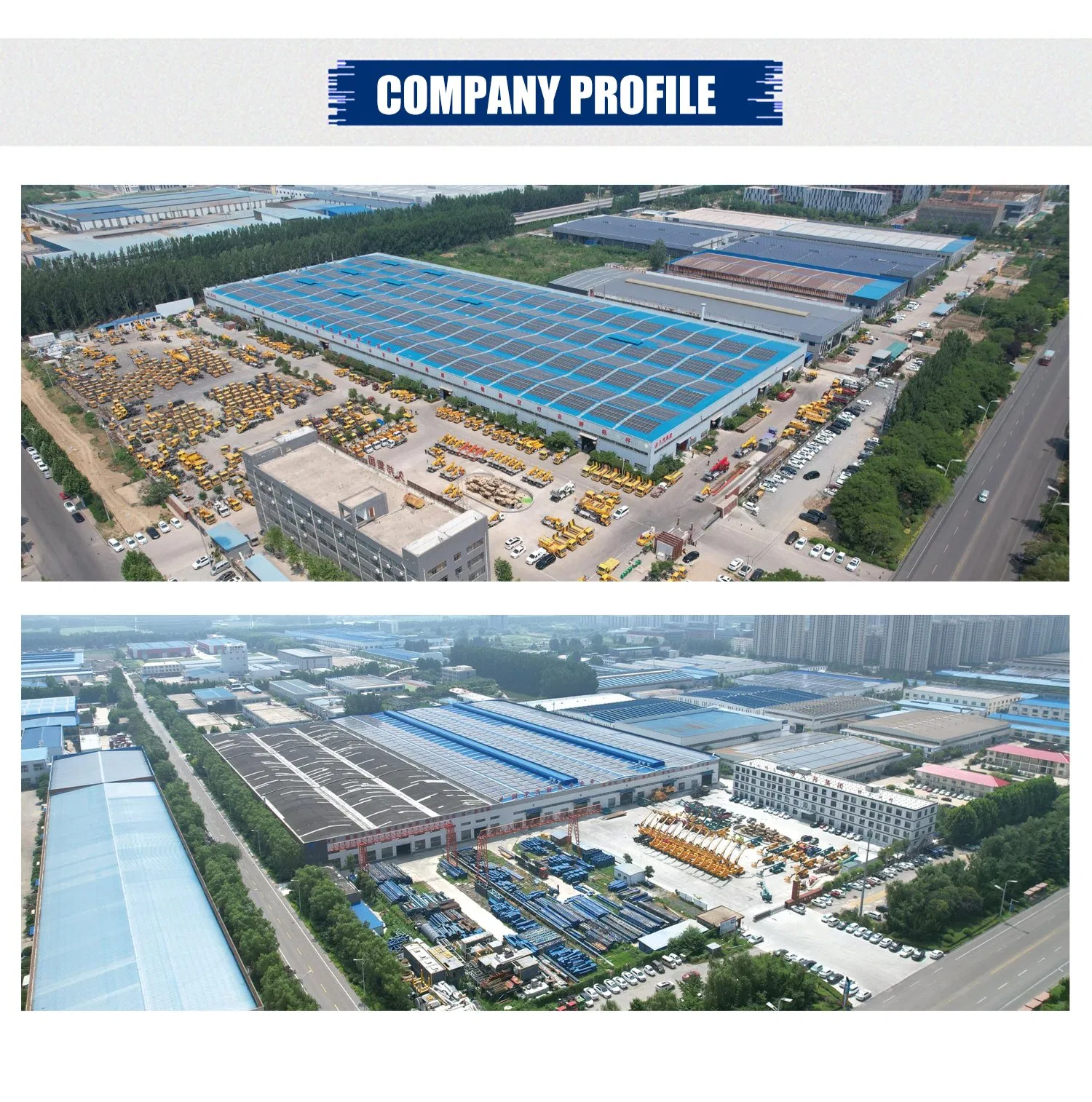

The production facility spans nearly 170,000 square meters, integrating research, development, and production of high-altitude work equipment. With global recognition through ISO9001:2015, SGS, CE, and EAC certifications, the products meet the highest international standards.
