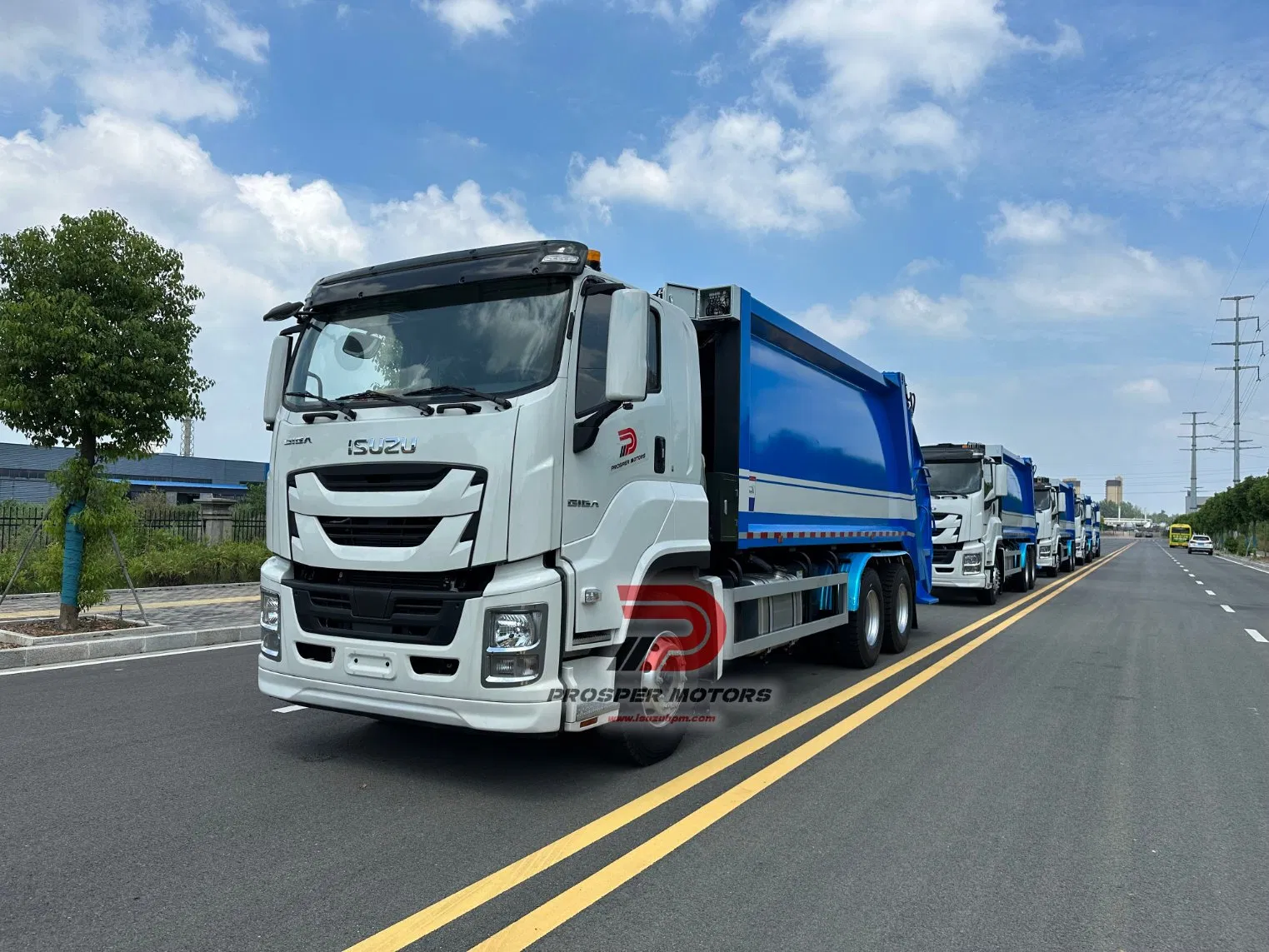

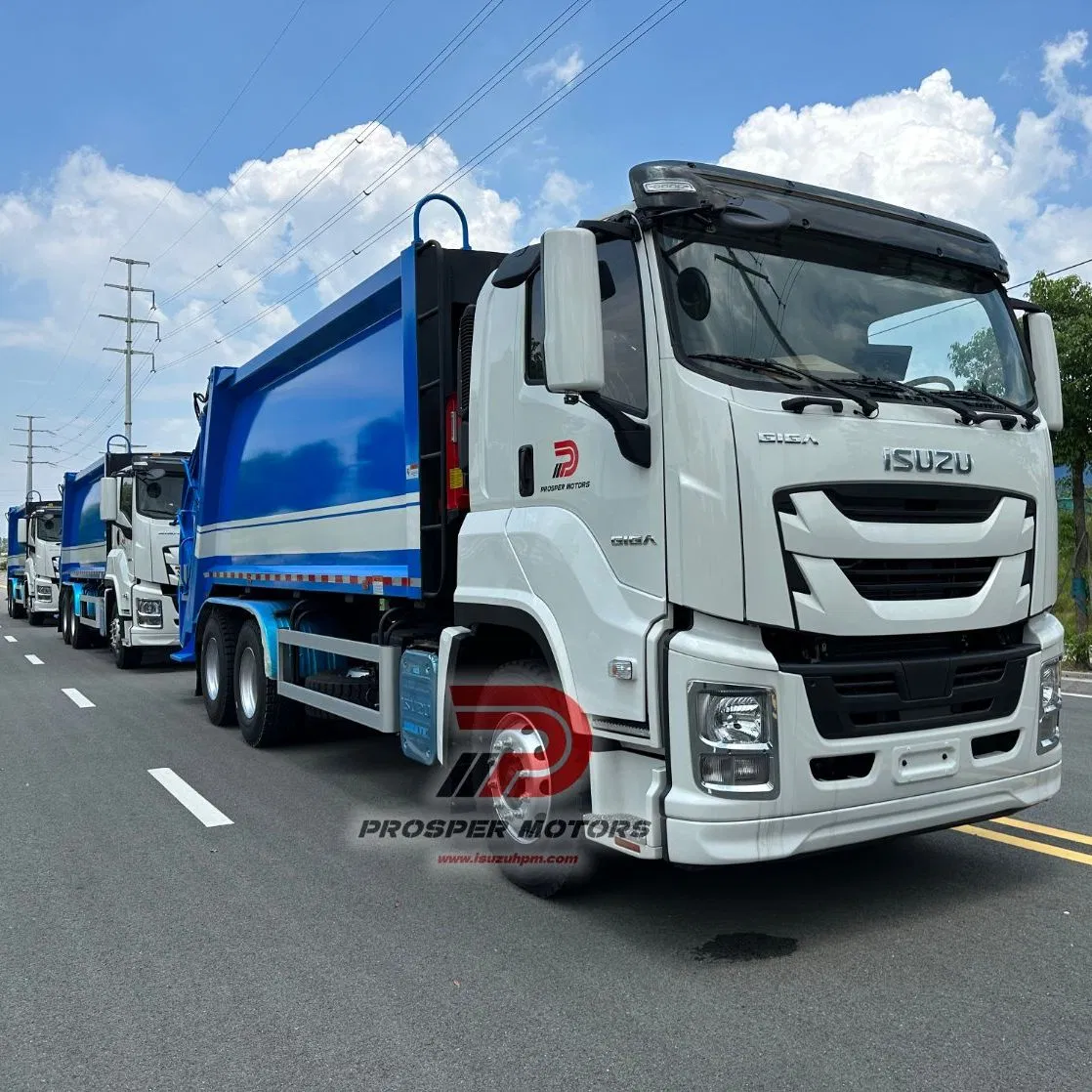

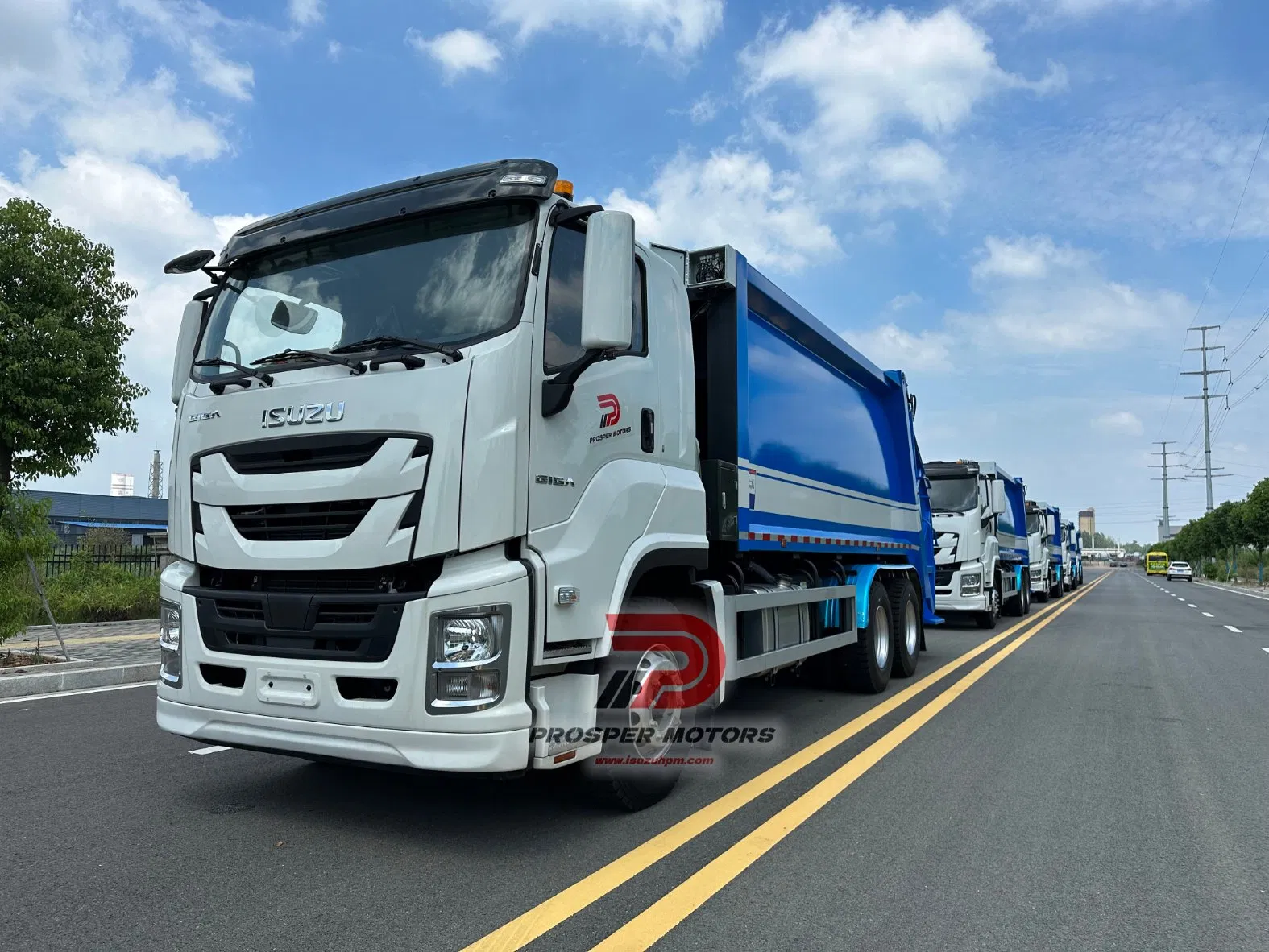

Isuzu Cyh Qingling Vc61 Giga 6X4 10W 20m3 20ton Compactor Garbage Truck

1 / 5

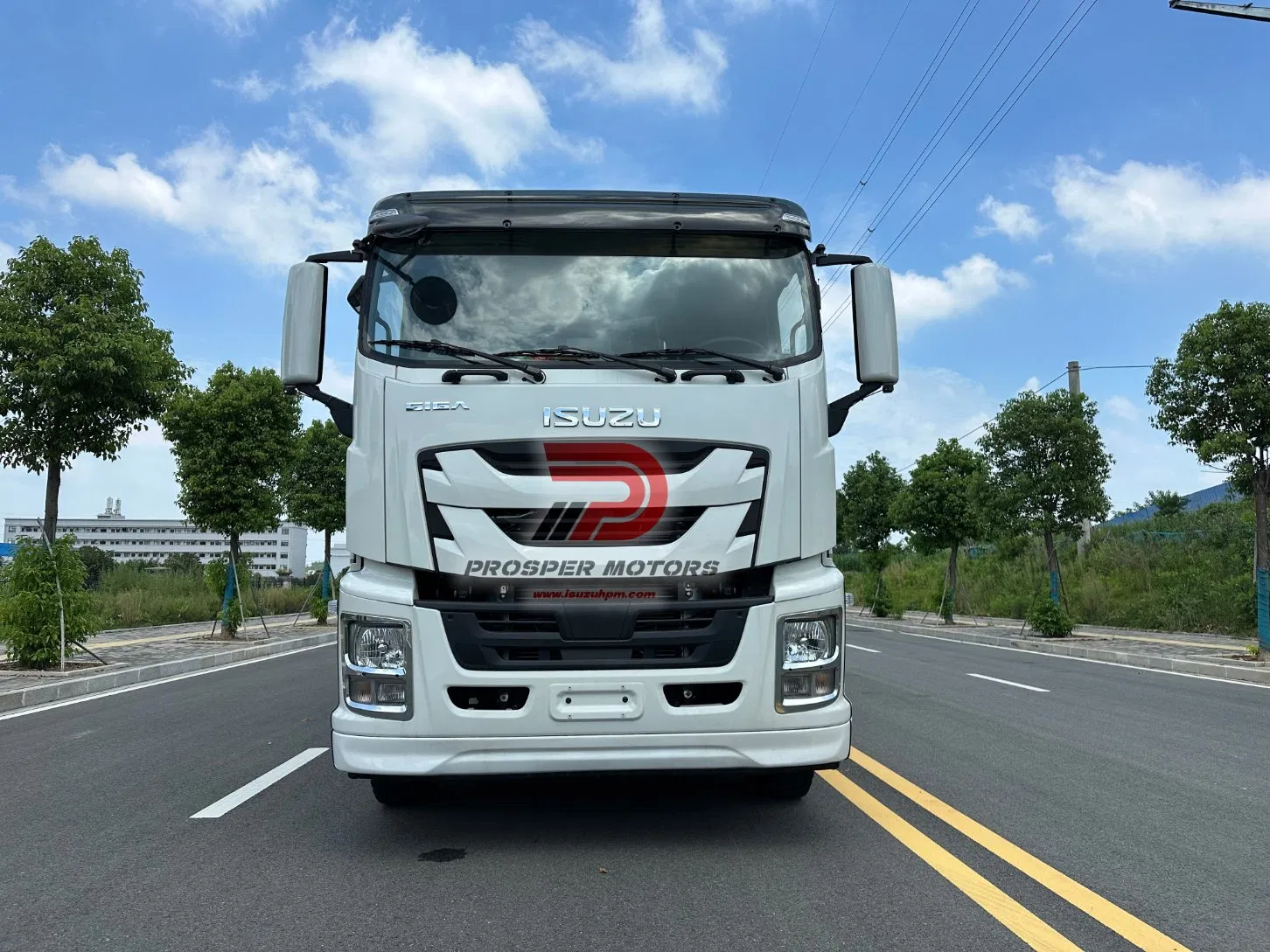

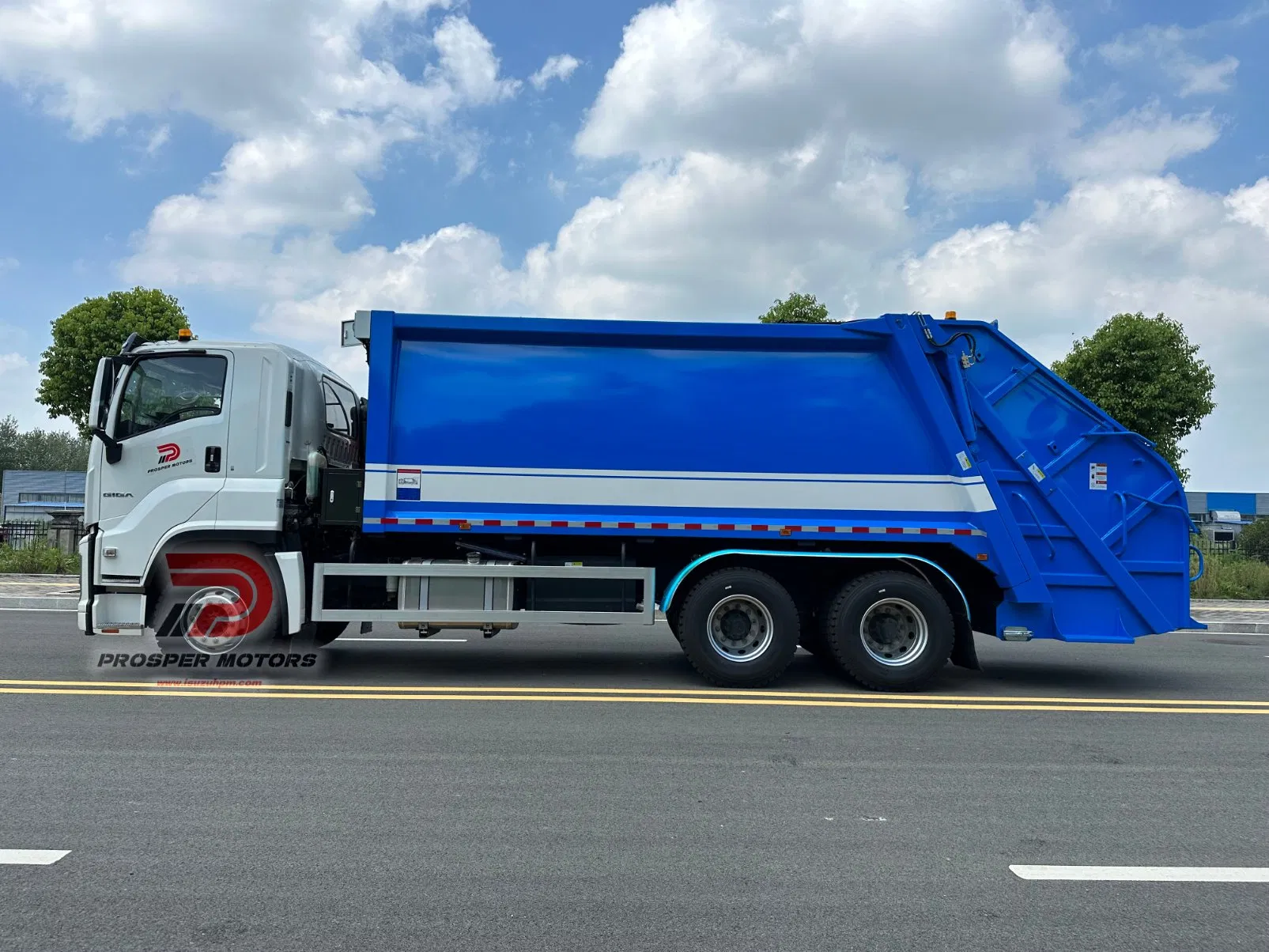

Isuzu Cyh Qingling Vc61 Giga 6X4 10W 20m3 20ton Compactor Garbage Truck

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.ISUZU CYH VC61

TypeCompactor

CertificationISO9000, CCC, CE

Volume20-22 Cbm

Emission StandardEuro 3 to Euro 6

Payload20T

Drive Wheel6×4

Fuel TypeDiesel

Truck Dimension10350*2550*3000(mm)

MaterialCarbon Steel, Hardox

Product Description

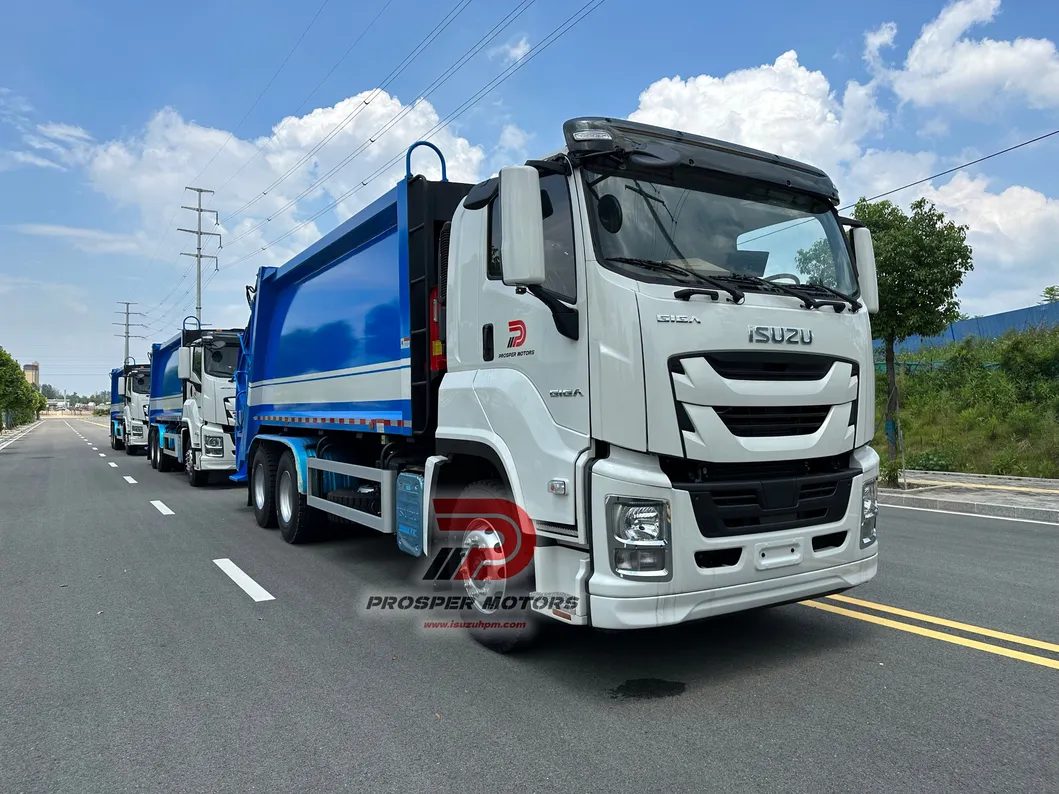

ISUZU CYH VC61 GIGA 6X4 10W 20m3 20ton Compactor Garbage Truck

🚛 Industrial & Municipal Waste Management Solution

A Compactor garbage truck is a specialized heavy-duty vehicle engineered for the efficient collection, compaction, and transportation of municipal solid waste. The versatility of this truck makes it indispensable in urban and suburban settings, designed to streamline the collection process, enhance crew safety, and maintain cleaner streets.

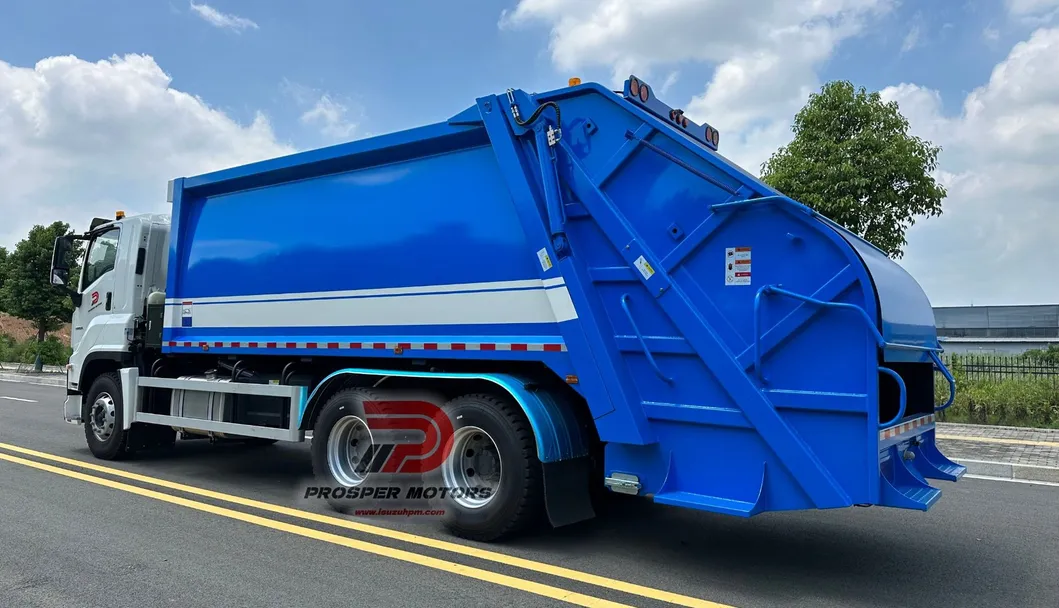

⭐ Key Advantages

Reliable Truck Chassis: Powered by an Isuzu 6UZ1 six-cylinder diesel engine (9.8L), delivering 380 PS and 1800 N·m torque. Handles complex urban conditions and slopes effortlessly.
Unique Body Design: Built with high-strength steel plate T420 (Side 4mm, Bottom 5mm) with interior anti-corrosion coating.

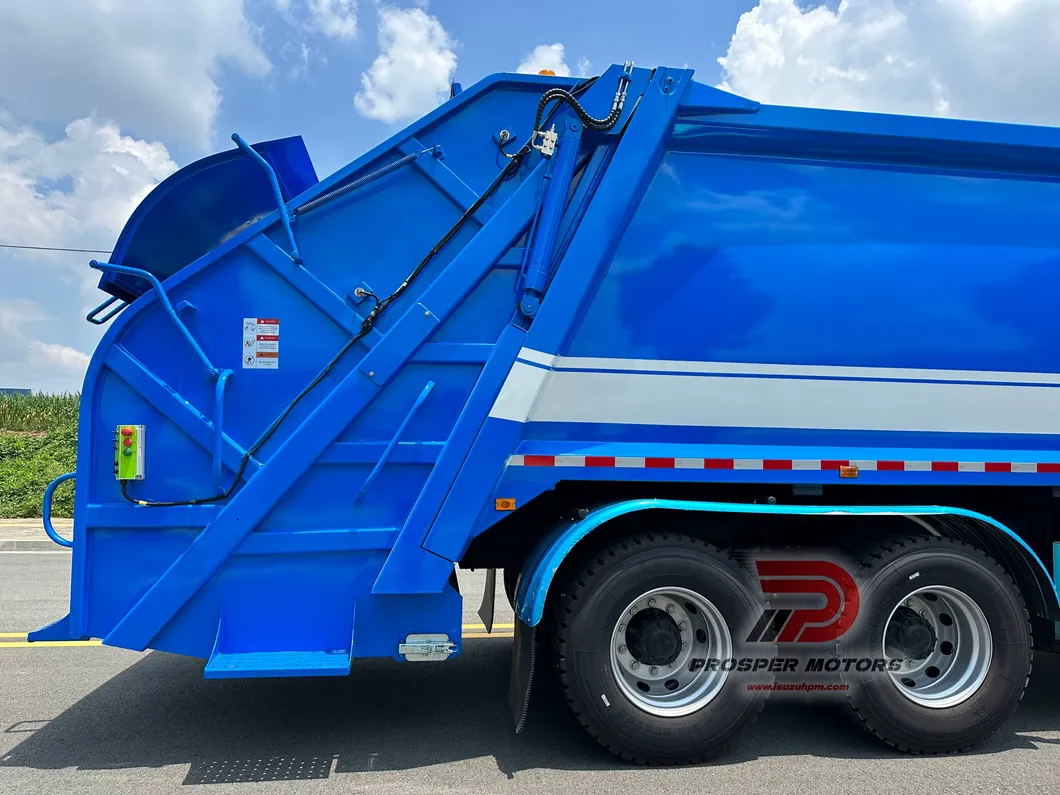

Advanced Hydraulics: Equipped with YINHUA cylinders offering high reliability and contamination resistance.
Intelligent Control: Utilizes a CANBUS system for automatic engine power management, optimizing fuel consumption.

Product Parameters

CHASSIS SPECIFICATION
Truck Model	ISUZU CYH series -- GIGA 6X4
GVW / Payload	34,000 KGS / 25,000 KGS
Engine Model	6UZ1-TCG series (6 cylinders, Vertical in-line)
Displacement	9,839 ml
Transmission	FAST, 12 gears forwards and 2 reverse
Tires	315/80R22.5 (Front 2, Rear 8 + 1 Spare)
Brake System	Air brake with ABS

Hydraulic System

GARBAGE TANK TECHNICAL SPECIFICATION
Volume	22 cbm
Material	Carbon steel, inner epoxy anticorrosive
Thickness	Side: 4mm; Bottom: 5mm
YINHUA Brand (Chinese Best)
Control System	ZOOMLION CAN system

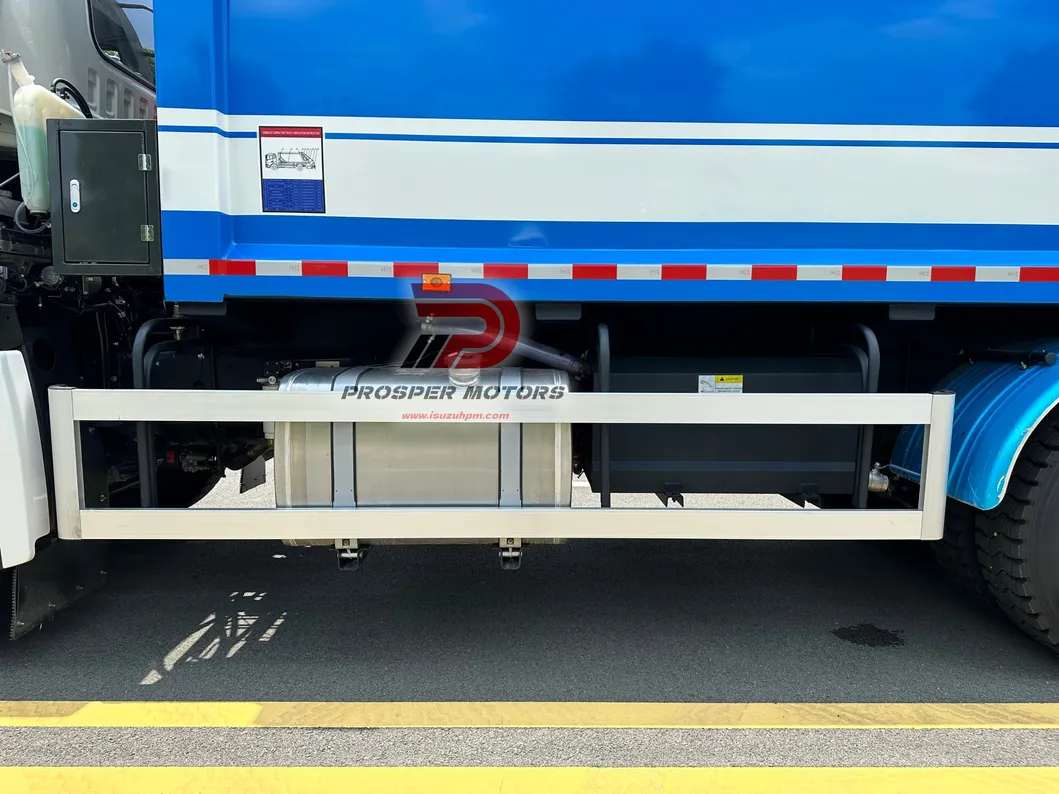

Sewage Tank	304 Stainless Steel (800L total)

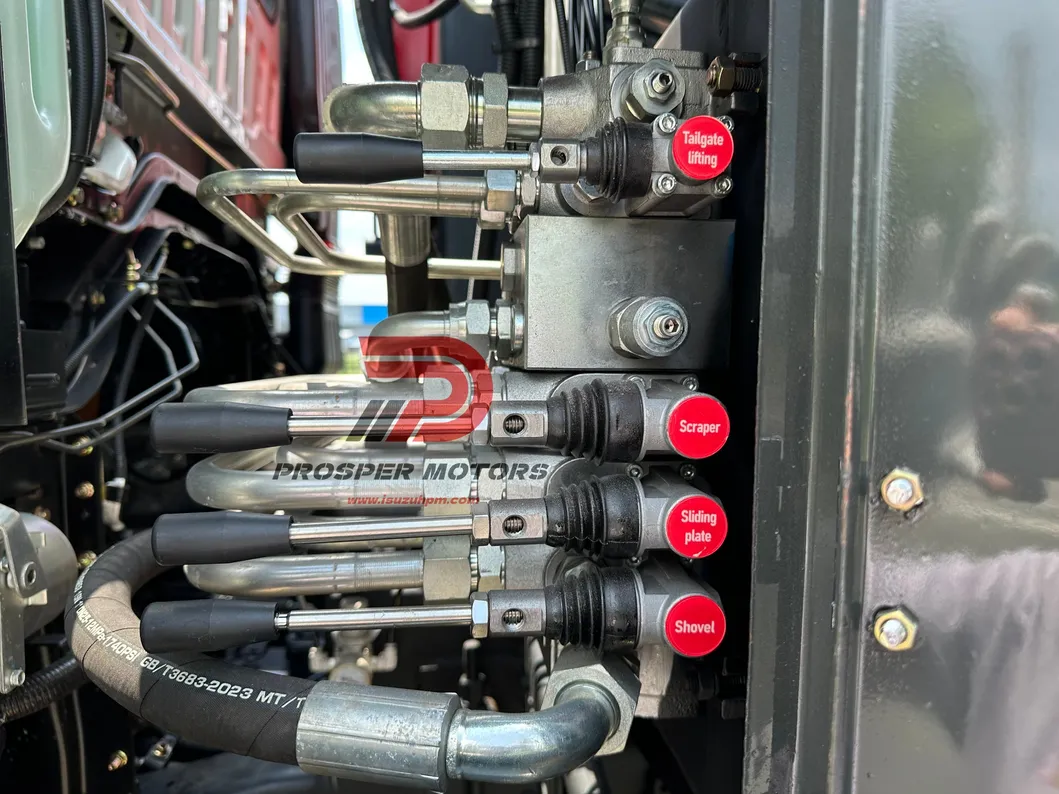

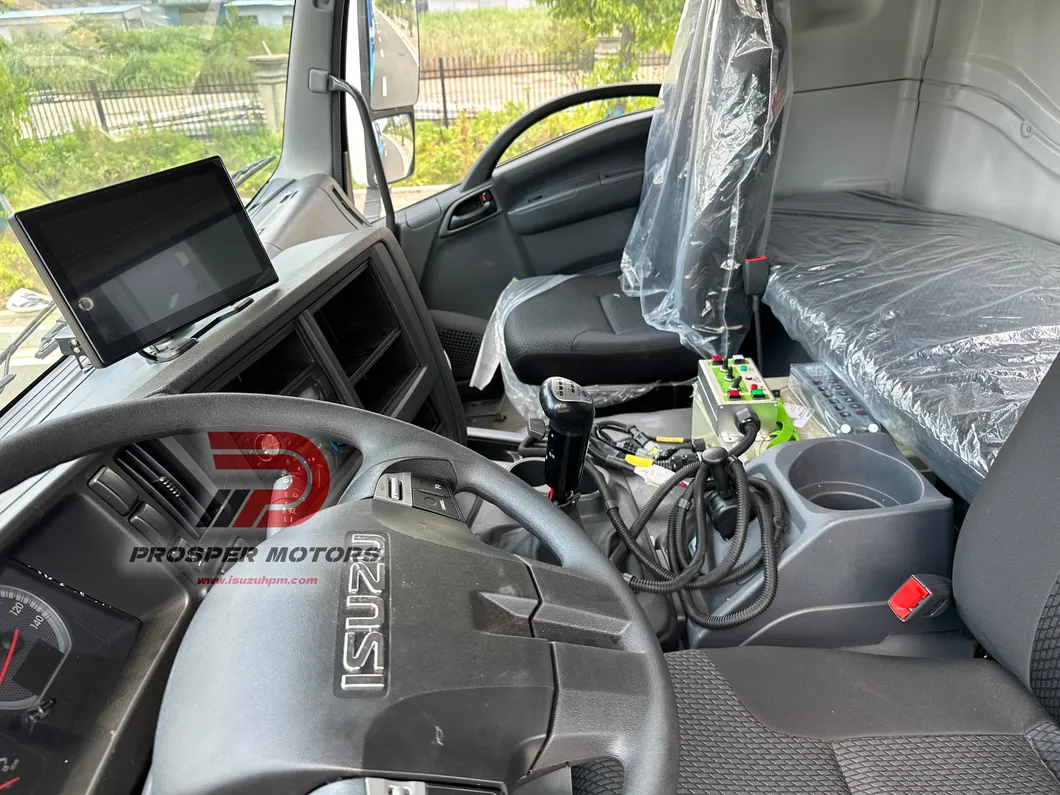

Operation	Manual, Remote, and Dual Board (Cabin/Rear)

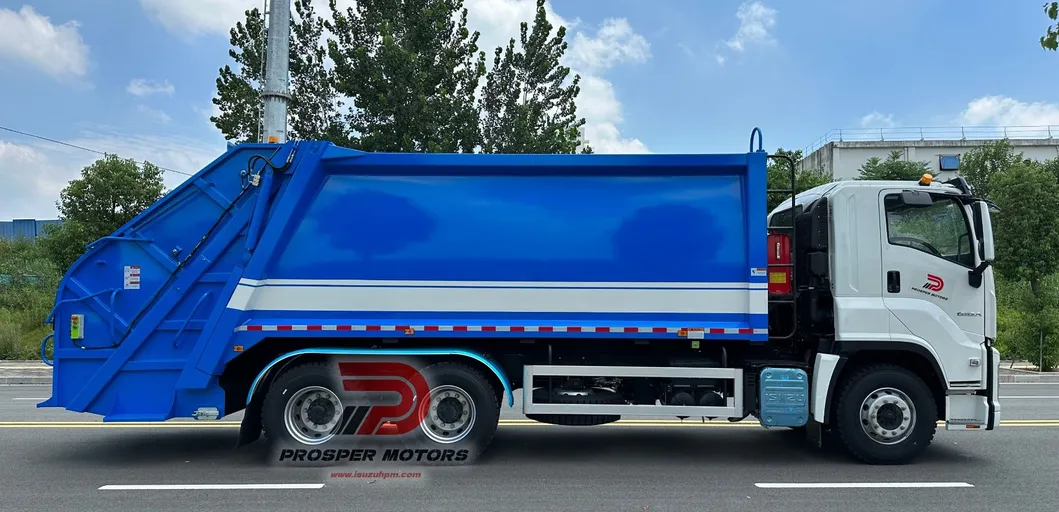

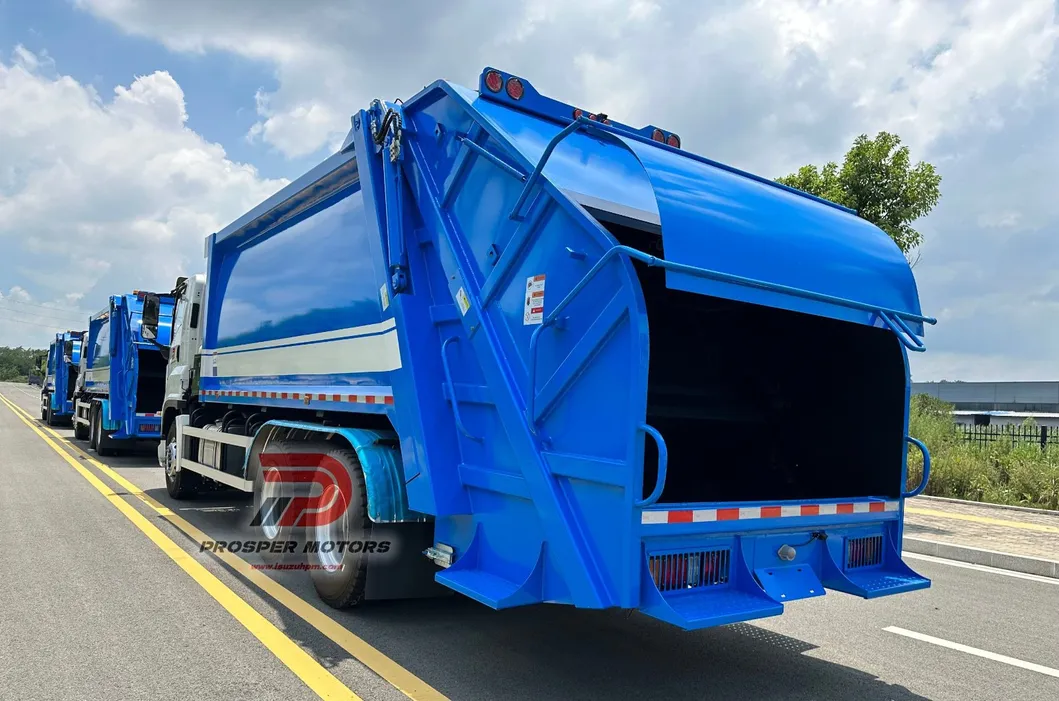

Detailed Photos

Our Advantages

🛡️ Why Choose Our Vehicle Solutions?

Direct Access to Full Lineup: Complete range of industry-leading commercial vehicles tailored to your business needs.
Expertise & Collaboration: Decades of experience in recommending the perfect vehicle solutions to boost efficiency and reduce costs.
End-to-End Support: Comprehensive after-sales service, genuine parts, and maintenance programs.
OEM-Level Standards: High-quality modification using genuine chassis for optimal powertrain-frame integration.
Advanced Production: Robotic welding stations and modular smart production lines ensuring precision and durability.

Packaging & Shipping

We offer flexible shipping solutions including Container (40HQ/40FR), Bulk Shipping, and RORO (Roll-on/Roll-off) to ensure cost-effective and secure delivery.

FAQ

Q: What is the typical lead time for an order? A: Standard models take 30 to 35 working days. Special models (e.g., All-Wheel Drive) require 50 to 60 working days.

Q: What warranty coverage do you provide? A: We offer a one-year warranty for the chassis core components (transmission, axle, cabin) and a one-year warranty for the bodywork and equipment.

Q: How do I make a warranty claim? A: Contact your local authorized dealer for assessment. Our technical team also provides remote assistance and guidance for efficient resolution.

Q: What shipping methods are available? A: Options include Container Shipping (40HQ/40FR), Bulk Shipping, and RORO. We recommend the most cost-effective method based on your destination.

Q: What payment methods do you accept? A: We primarily support secure international payment methods such as T/T (Telegraphic Transfer) and L/C (Letter of Credit).

Q: What kind of after-sales support can I expect? A: Support includes a local service network, real-time remote technical guidance via video calls, and prompt parts procurement assistance.
