Working Principle
The road sweeper is equipped with four brushes and a rear suction nozzle. The left and right front brushes concentrate garbage from the outside to the inside. The middle brush sweeps the garbage to the front of the suction nozzle, where it is sucked into the garbage bin. To reduce secondary dust pollution, water nozzles are equipped above the sweepers to generate spray for dust suppression.
Applicable Environment
Road sweepers are ideal for urban main roads, highways, ring roads, airports, and docks where dust levels are moderate. They are designed to maintain cleanliness while minimizing secondary dust discharge from the fan outlet.

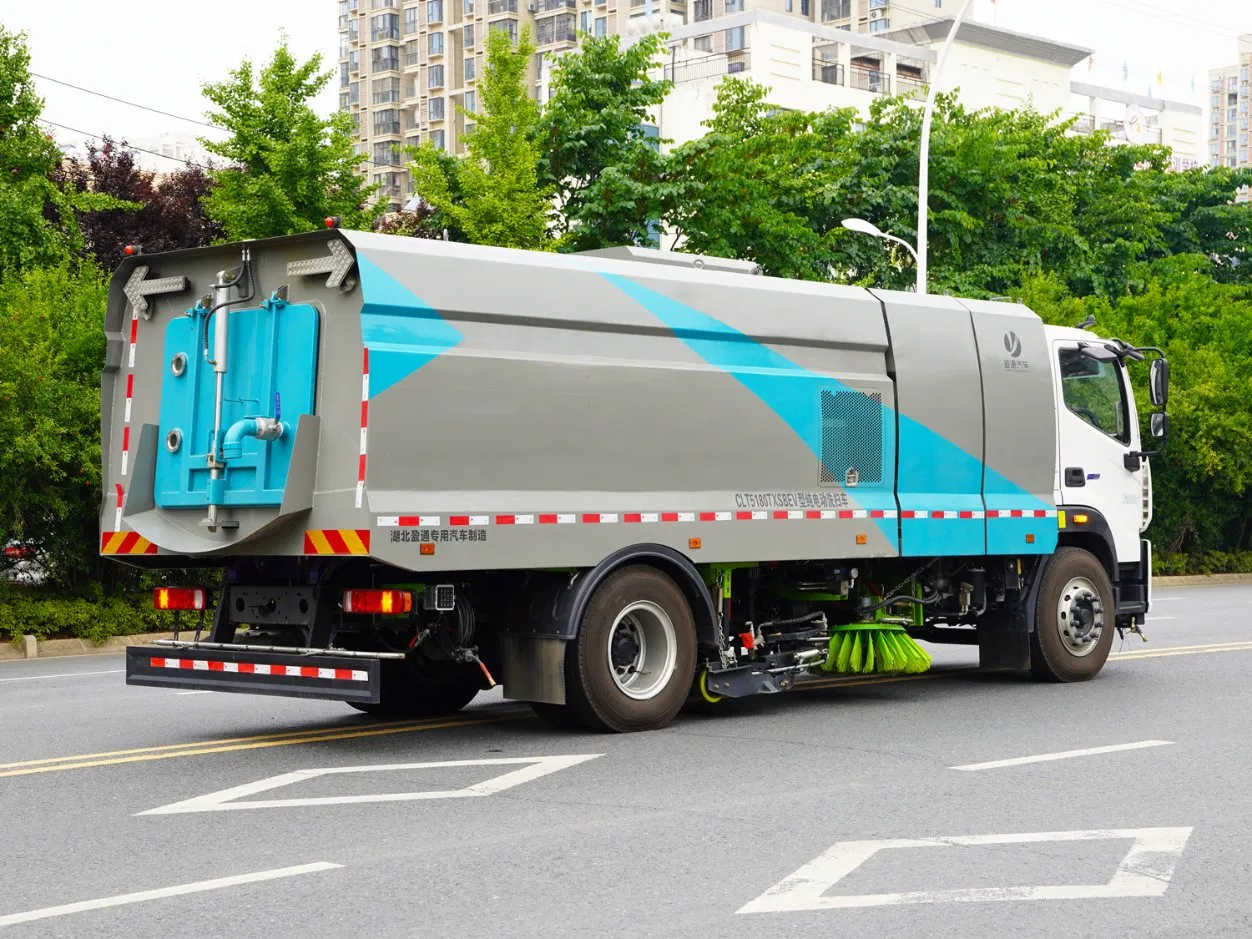

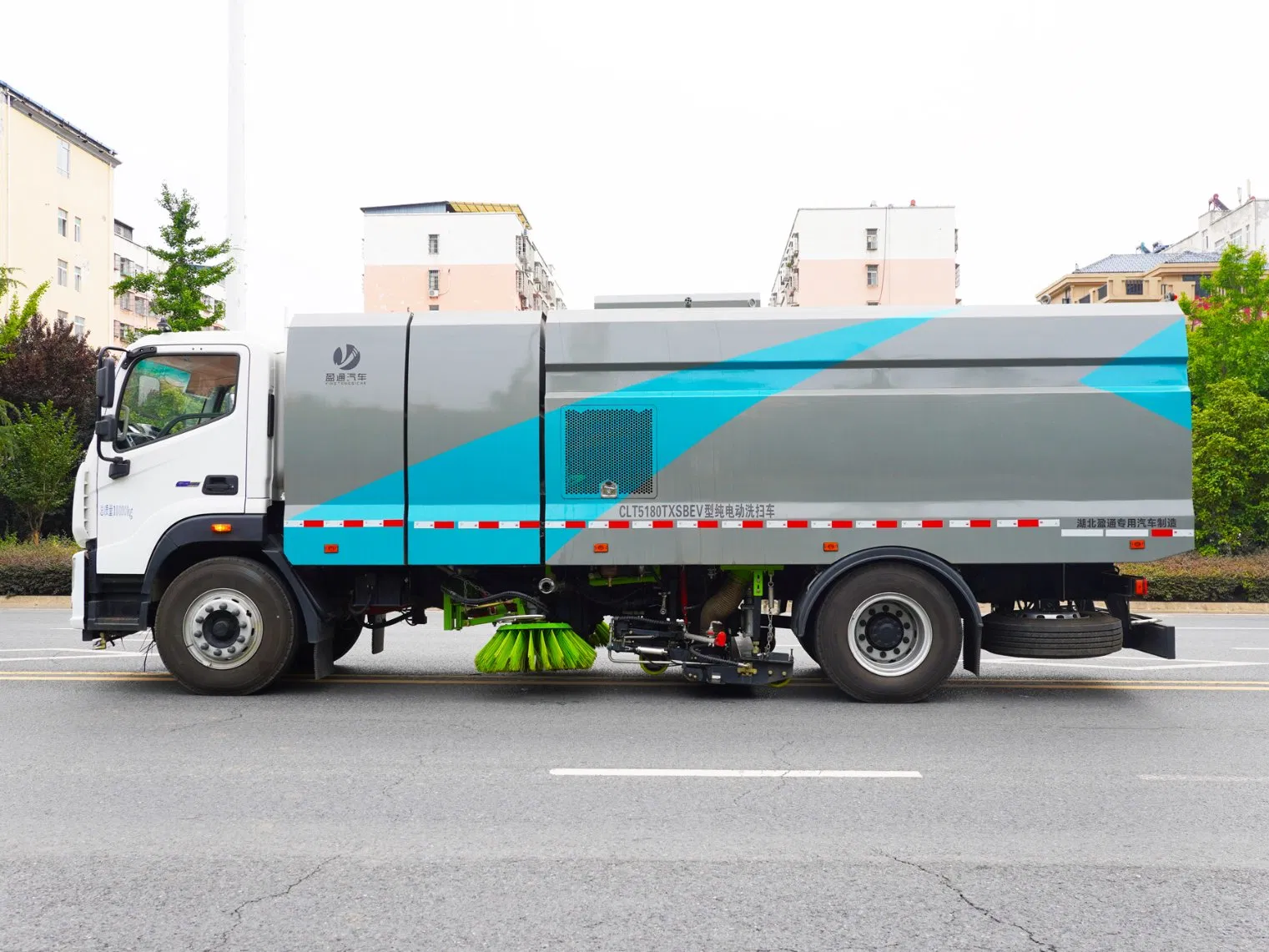

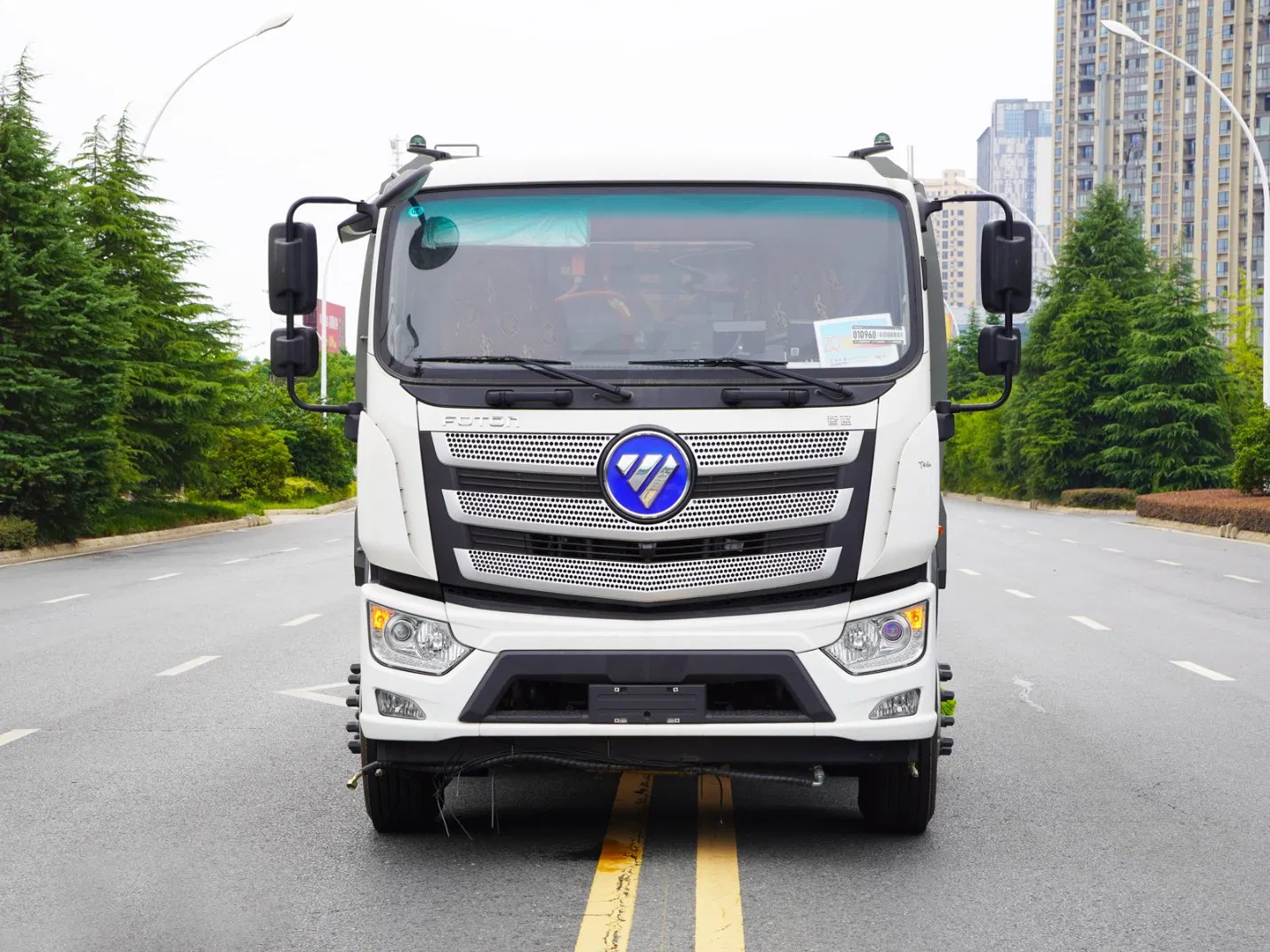

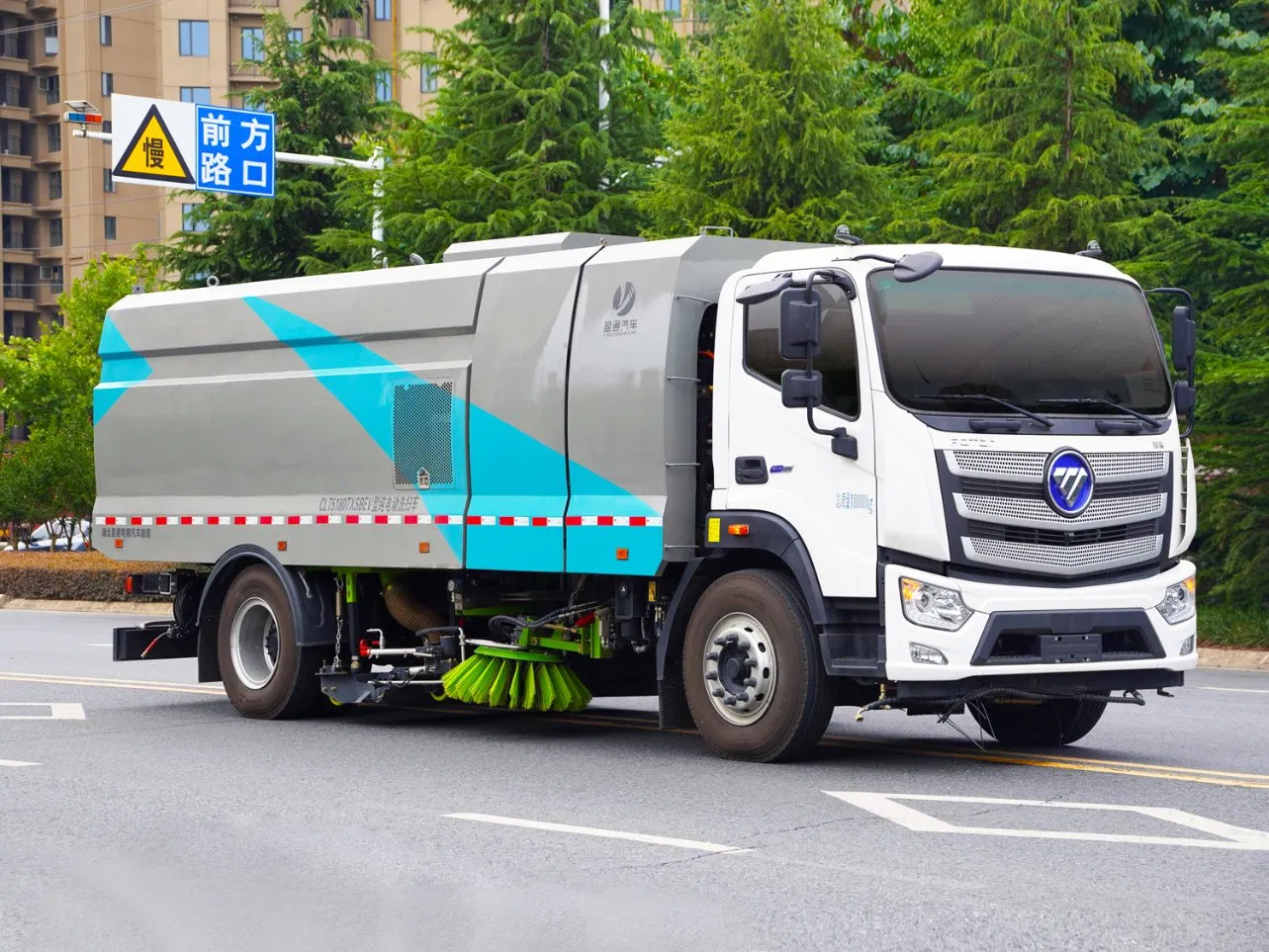

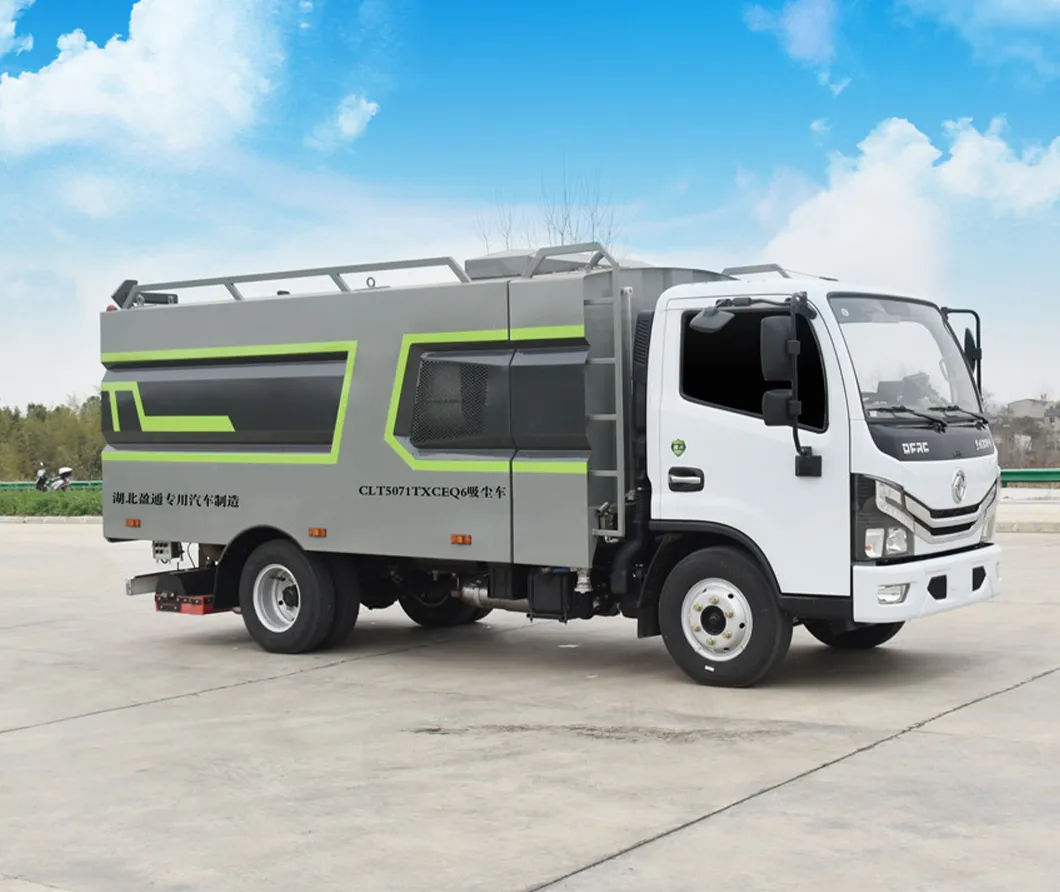

This high-efficiency vacuum street sweeper is a new generation of specialized equipment for pavement cleaning, sweeping, and dust suppression. It combines the features of a street cleaning vehicle and a high-pressure cleaning vehicle.
-

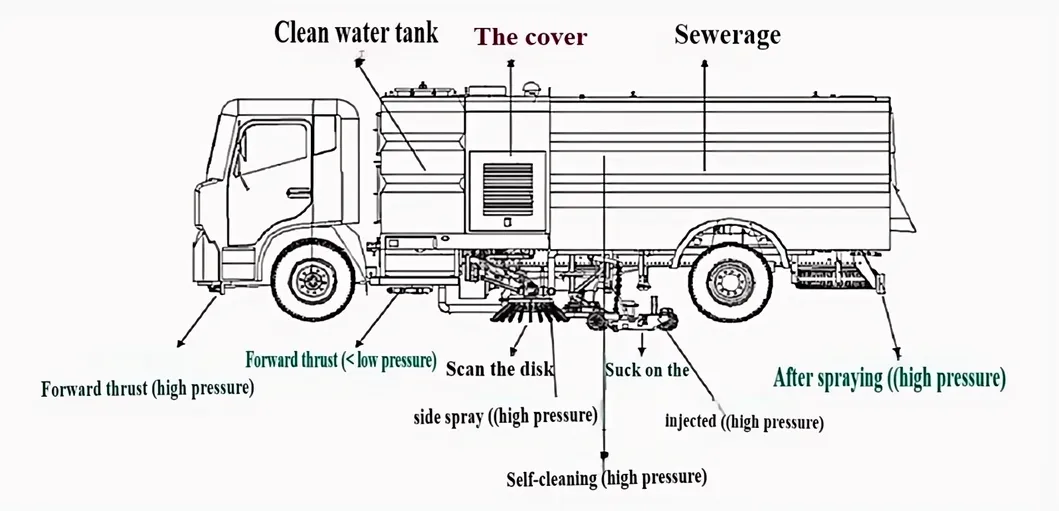

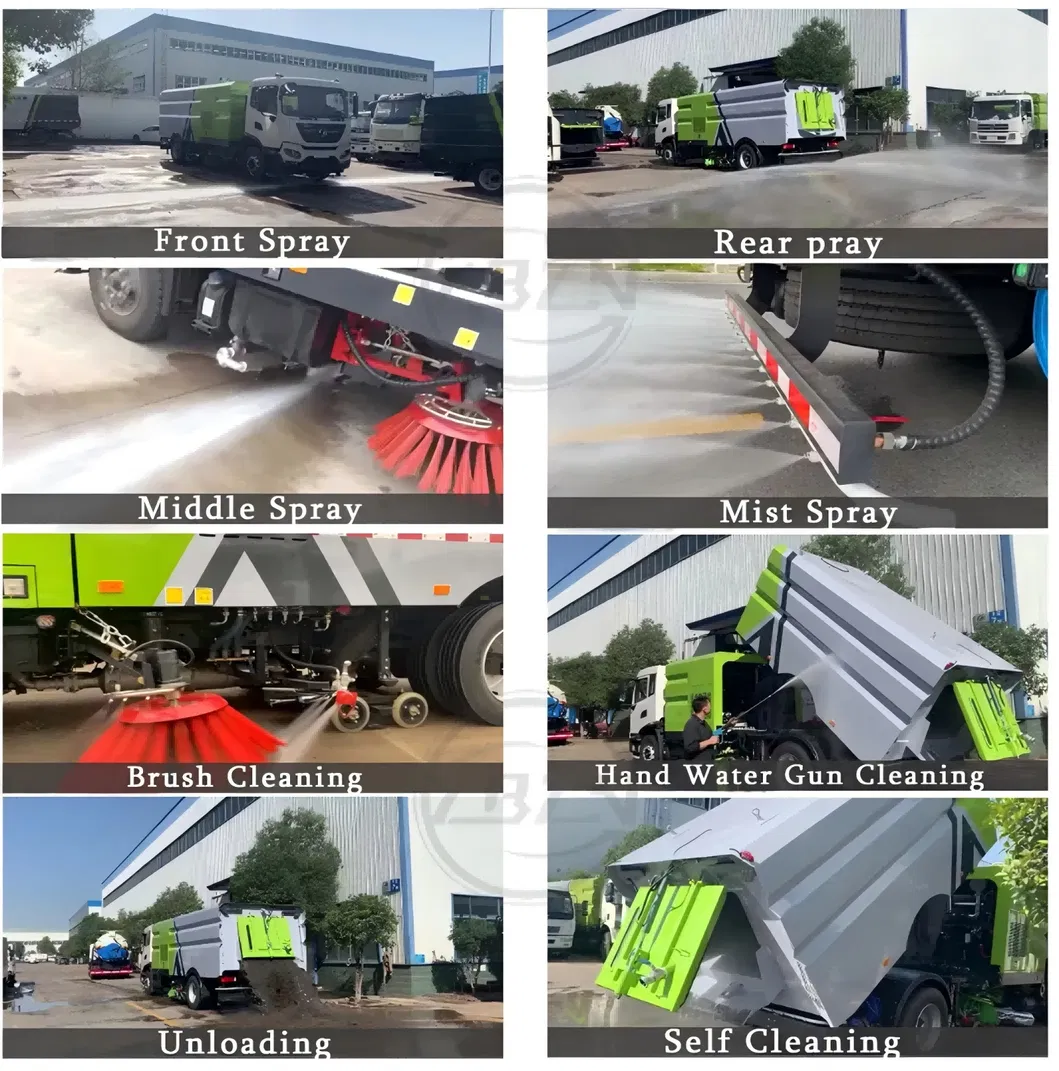

Washing and Sweeping: The auxiliary engine drives the hydraulic system and high-pressure water pump. High-pressure nozzles form a U-shaped water knife (3.5m width) to dislodge ground attachments.
-
Curbstone Washing: Specialized spray arms can wash sidewalk vertical walls and curbstones using high-pressure water curtains.
-

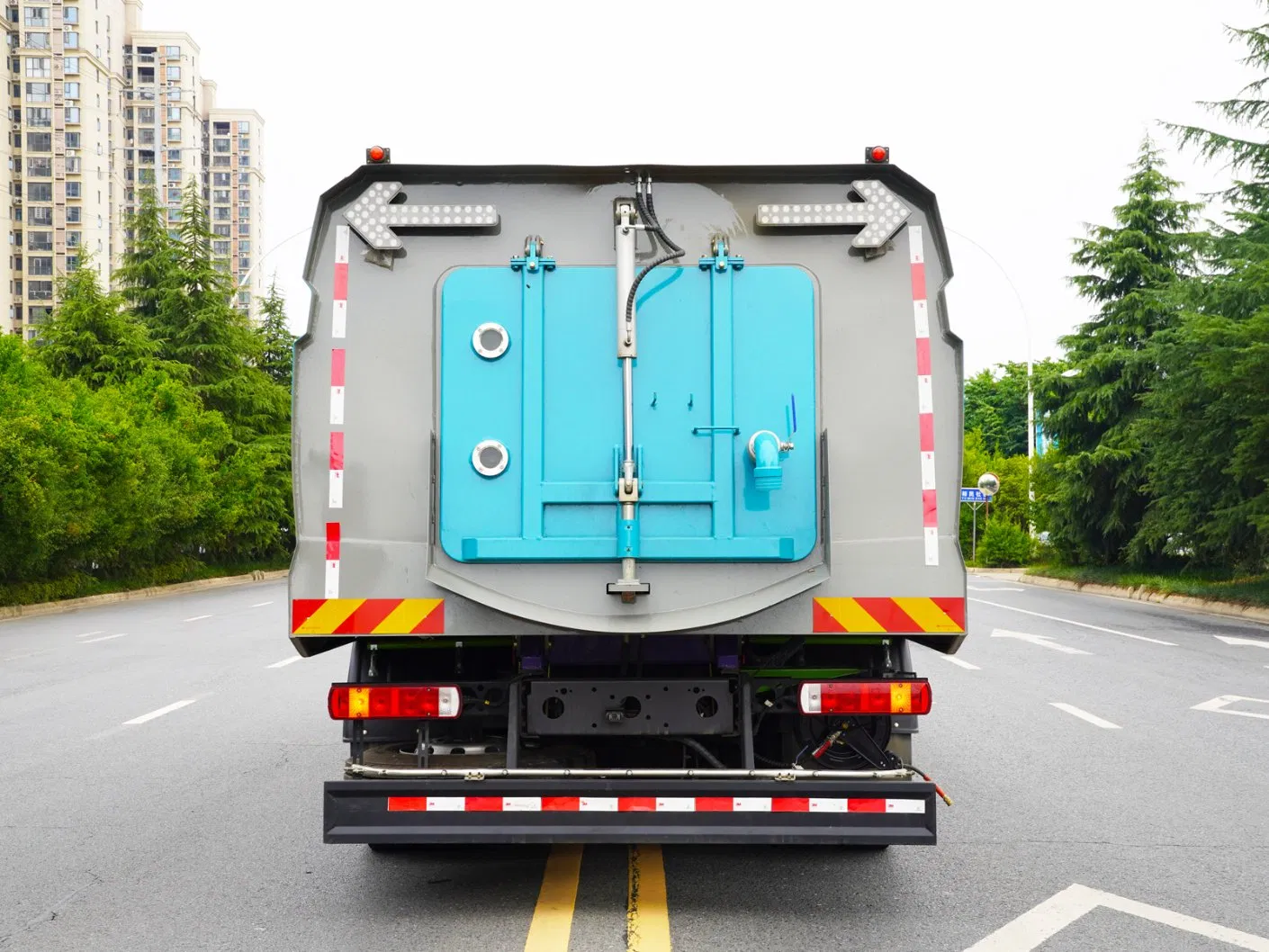

Rear Spray Dust Suppression: Multiple nozzles under the rear bin settle dust and purify the air during operation.
-
Low-Pressure Washing: Capable of standard water spraying vehicle functions for cleaner pavements.
-
High-Pressure Cleaning: Equipped with a 20-meter automatic winding reel and high-pressure lance for vehicle self-maintenance.
-
Self-Cleaning Function: Internal nozzles flush waste residues out of the garbage bin to prevent corrosion and blockages.
High-performance and Environmentally Friendly: The cleaning efficiency reaches over 98% in a single operation. The process is based on physical principles, producing no chemical waste. The centrally positioned suction cup and side spray rods effectively handle dust and garbage in gutters, bends, and on curbstones.
❓ Frequently Asked Questions
What is the cleaning efficiency of this street sweeper?
The vehicle achieves a high cleaning efficiency of over 98% in a single operation, effectively handling dust, garbage, and stubborn attachments.
How many operational modes does the truck support?
It offers 6 operational modes: Full Sweep, Left Sweep, Right Sweep, Full Clean, Left Clean, and Right Clean, allowing for flexible cleaning based on the environment.
Does the vehicle prevent secondary dust pollution?
Yes, it is equipped with water spray nozzles above the sweepers and a rear spray bar to generate mist, which effectively settles dust and purifies the air.
Can this truck clean curbstones and sidewalks?
Yes, it features specialized high-pressure spray arms that create a water curtain specifically designed to wash curbstones and vertical walls.
What is the payload and tank material?

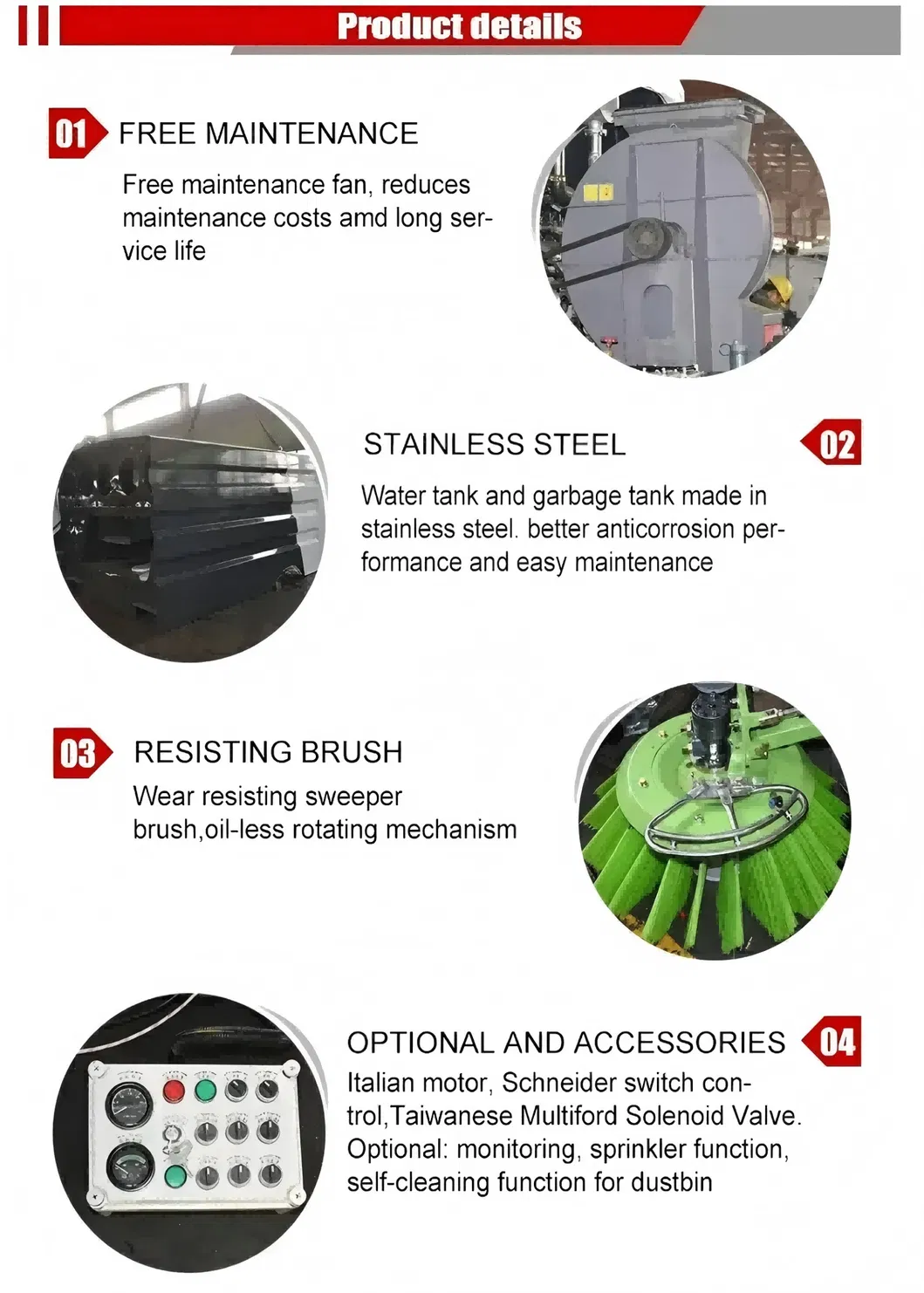

The truck has a payload capacity of 8 tons and utilizes stainless steel for the garbage bin and water tanks to ensure a long service life and corrosion resistance.
Is there a self-cleaning feature for the garbage bin?
Yes, a self-cleaning nozzle is installed inside the bin to flush out all waste residues after tipping, preventing corrosion and maintaining hygiene.
