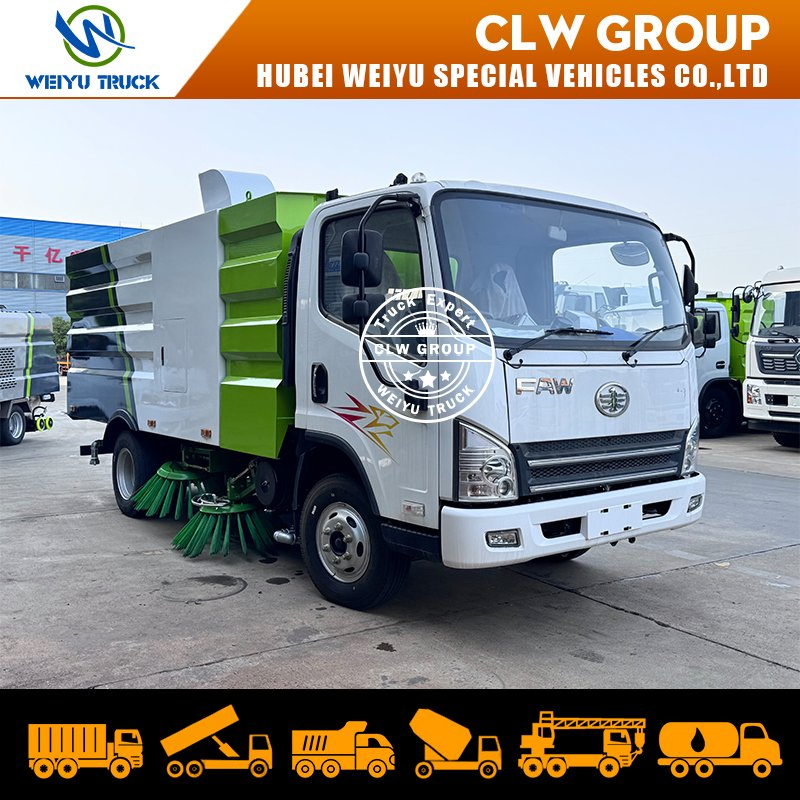

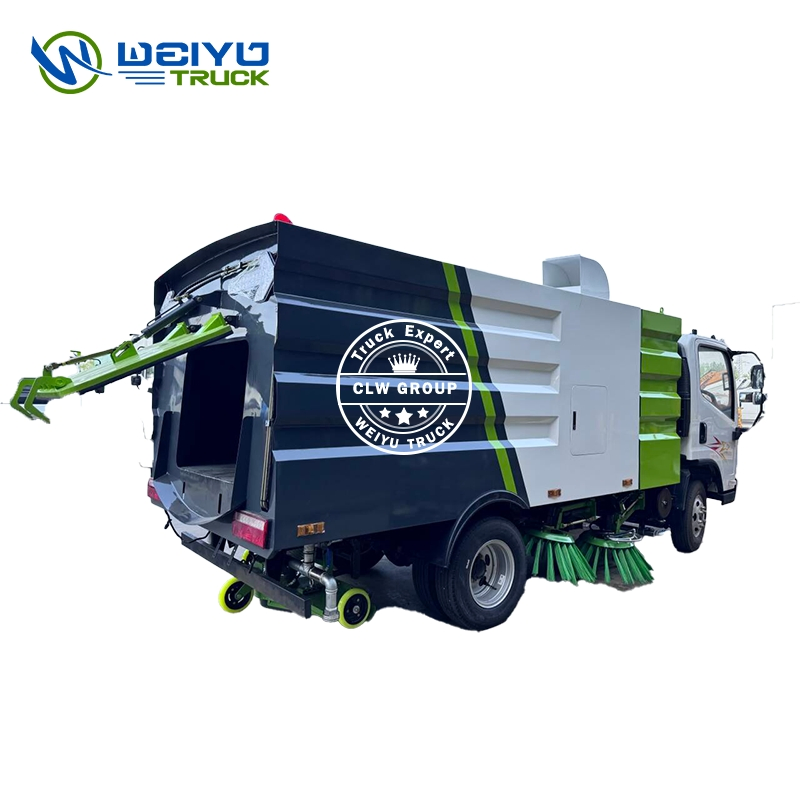

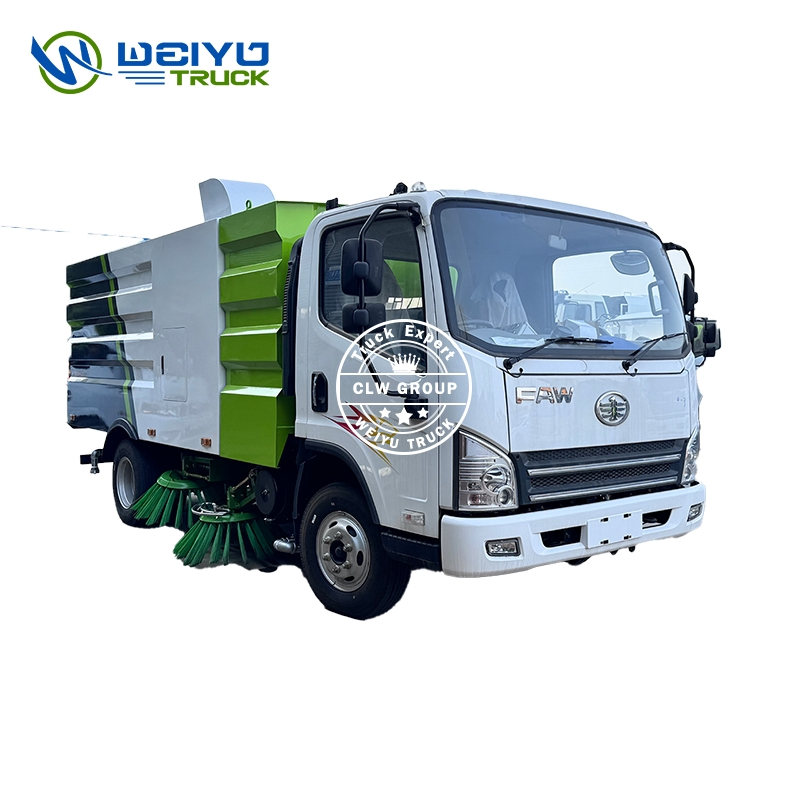

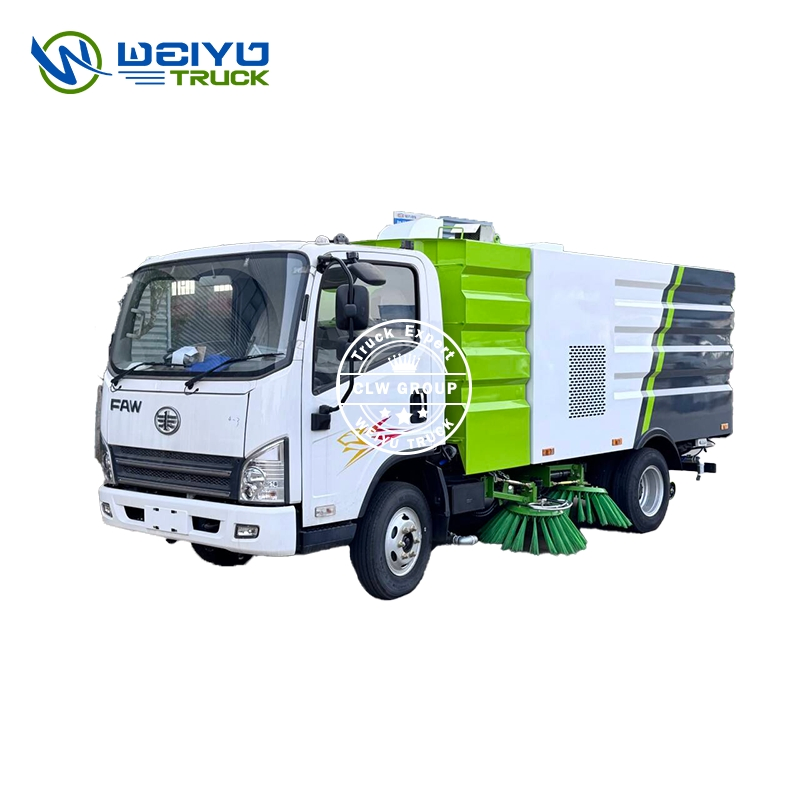

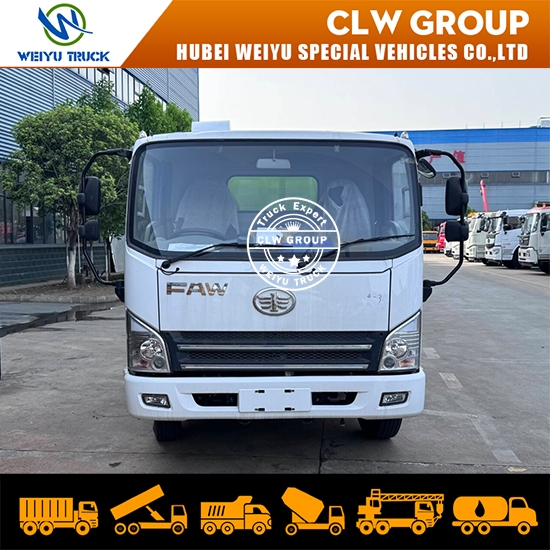

FAW 5m³ Municipal Street Sweeper Dust Cleaning Truck
FAW 5m³ Municipal Street Sweeper Dust Cleaning Truck
FAW 5m³ Municipal Street Sweeper Dust Cleaning Truck
FAW 5m³ Municipal Street Sweeper Dust Cleaning Truck
FAW 5m³ Municipal Street Sweeper Dust Cleaning Truck
1 / 5
FAW 5m³ Municipal Street Sweeper Dust Cleaning Truck
FAW 5m³ Municipal Street Sweeper Dust Cleaning Truck
FAW 5m³ Municipal Street Sweeper Dust Cleaning Truck
FAW 5m³ Municipal Street Sweeper Dust Cleaning Truck
FAW 5m³ Municipal Street Sweeper Dust Cleaning Truck

FAW 5m³ Municipal Street Sweeper Dust Cleaning Truck

Customization: Available
After-sales Service: with After Sales Service
Warranty: 1 Year
Send Inquiry

Product Description

Basic Information
Model NO.
Sweeper Truck
Type
Dry-type
Certification
ISO9000, CCC
Transmission Type
Manual
Emission Standard
Euro 2
Fuel
Diesel
Payload
5 tons
Engine Power
120HP
Condition
New
GVW(Kg)
7360kgs
Sweeping Width
2.7m~3.0m
Garbage Box Material
Stainless Steel
Product Description

FAW 5m³ 120HP Municipal Road Street Sweeper Truck With High Pressure

●
Efficient Cleaning System
- Dual-brush + Vacuum Design: 4 main sweeping brushes loosen debris.
- High-power centrifugal fan ensures strong suction.
- Water Spray Dust Control: Water tank with 8 nozzles to suppress dust.
●
Smart Operation
- Real-time monitoring of engine RPM, hydraulic pressure and fault alerts.
●
Durability & Adaptability
- Hopper Material: Anti-corrosion for wet/dry waste.
- High-quality Axles: 2.4T front axle + 4.2T rear axle.
- Terrain Modes: Adjustable brush pressure for asphalt/concrete surfaces.
Applications:

--- Urban Roads: Daily maintenance of narrow streets
--- Industrial Parks: Coal / cement dust removal

Technical Parameters
Chassis Specifications
BrandFAW
Wheelbase3300 mm
Dimensions5965 x 1932 x 2225 mm
Engine Power120 HP
Displacement2500 ml/cc
Tire7.00R16 (6+1 spare)
Upper Body Specifications
Water Tank MaterialCarbon steel
Water Tank Capacity2 m³
Garbage Tank MaterialStainless steel
Garbage Tank Capacity3.5 m³
Auxiliary Engine87 HP (Diesel)
Max Sweeping Capacity40,000 m²/h
Product Features Showcase

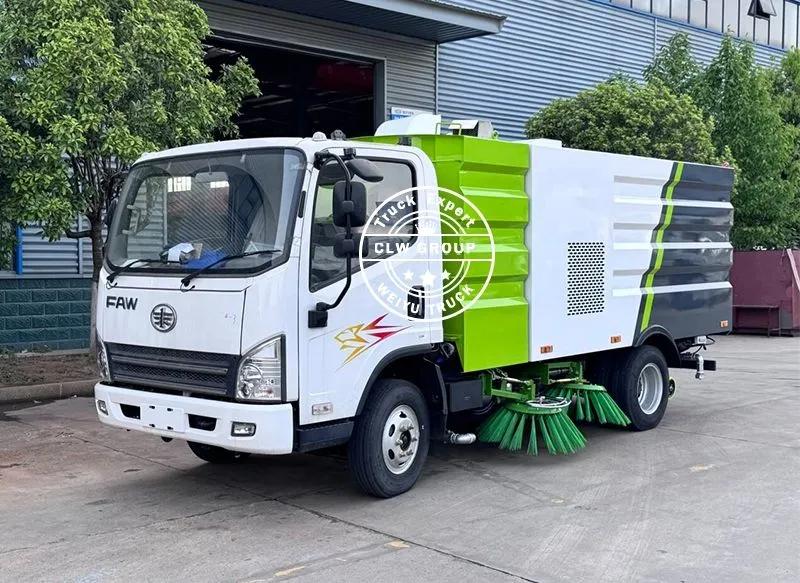

Water Tank System

Water & Waste System

Water Tank System: 2m³ capacity with anti-corrosion treatment and low-level alerts.

Waste Collection System: 3.5m³ stainless steel unit with integrated filtration mesh to prevent blockages.

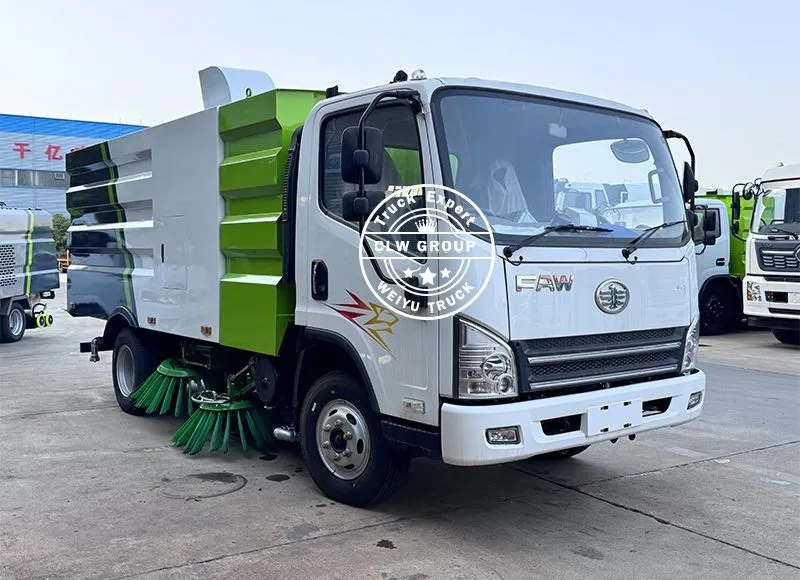

Cleaning Mechanism

Cleaning Mechanism

Quadruple rotation brush system with smart collision avoidance technology. Integrated high-pressure stainless steel nozzles ensure effective dust suppression.

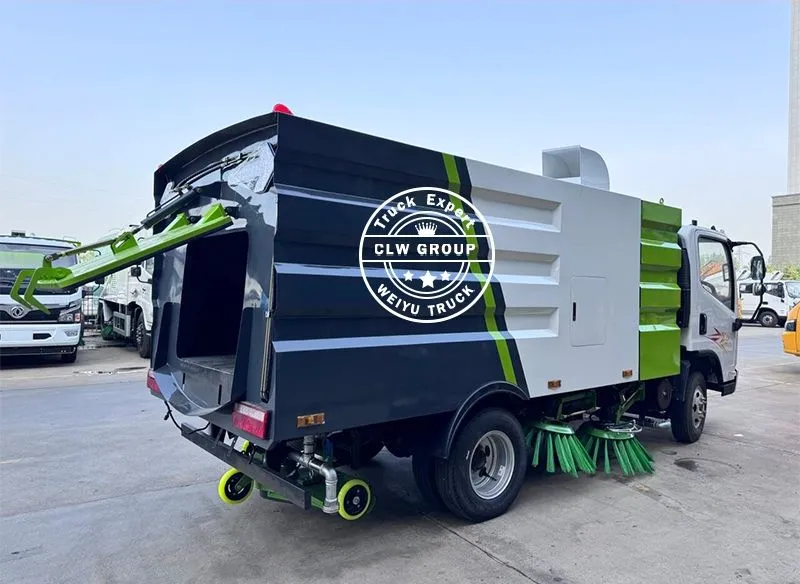

Discharge System

Discharge System

Hydraulic dump mechanism with twin cylinder actuation. The rear door features hydraulic operation and optimized inclined plane for efficient flow.

Detailed Views

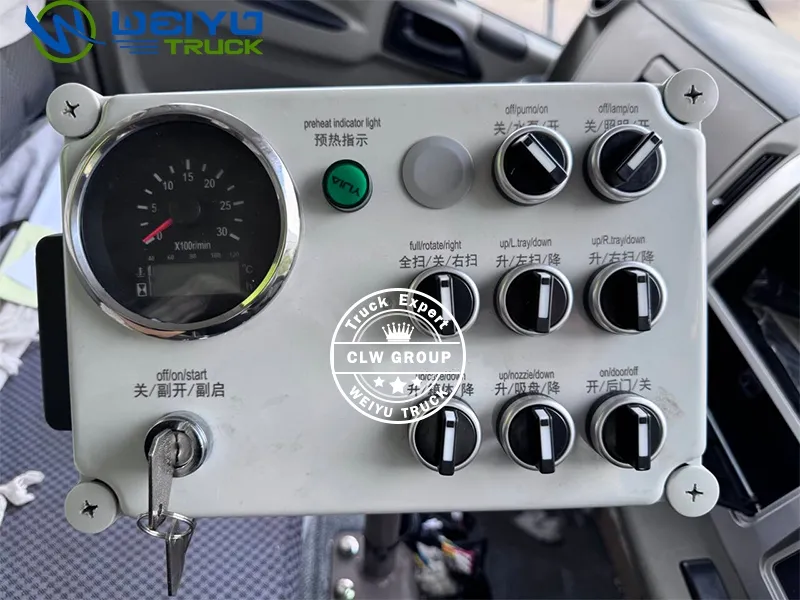

Operation Panel

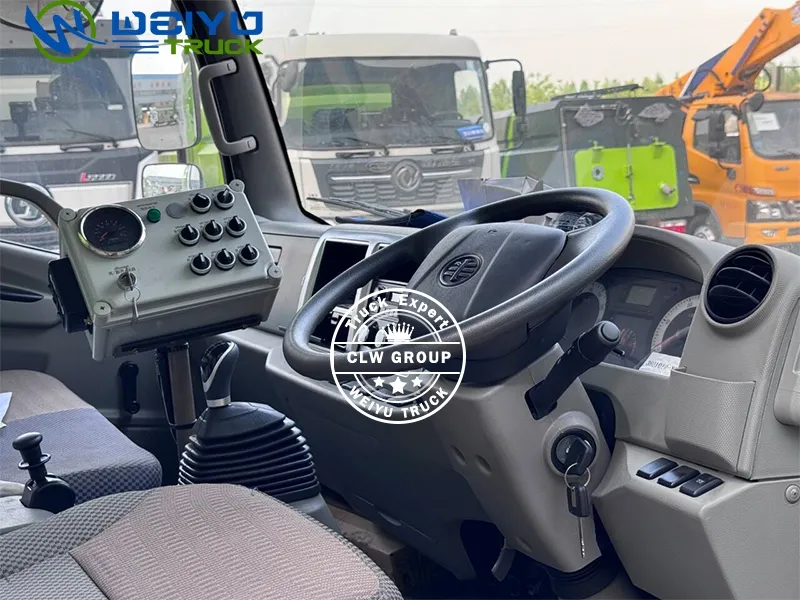

Internal Cab

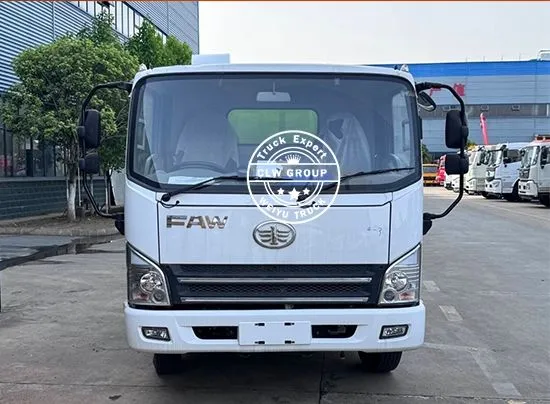

Safety Features
Operation Panel | Internal Cab | Safety Indicators

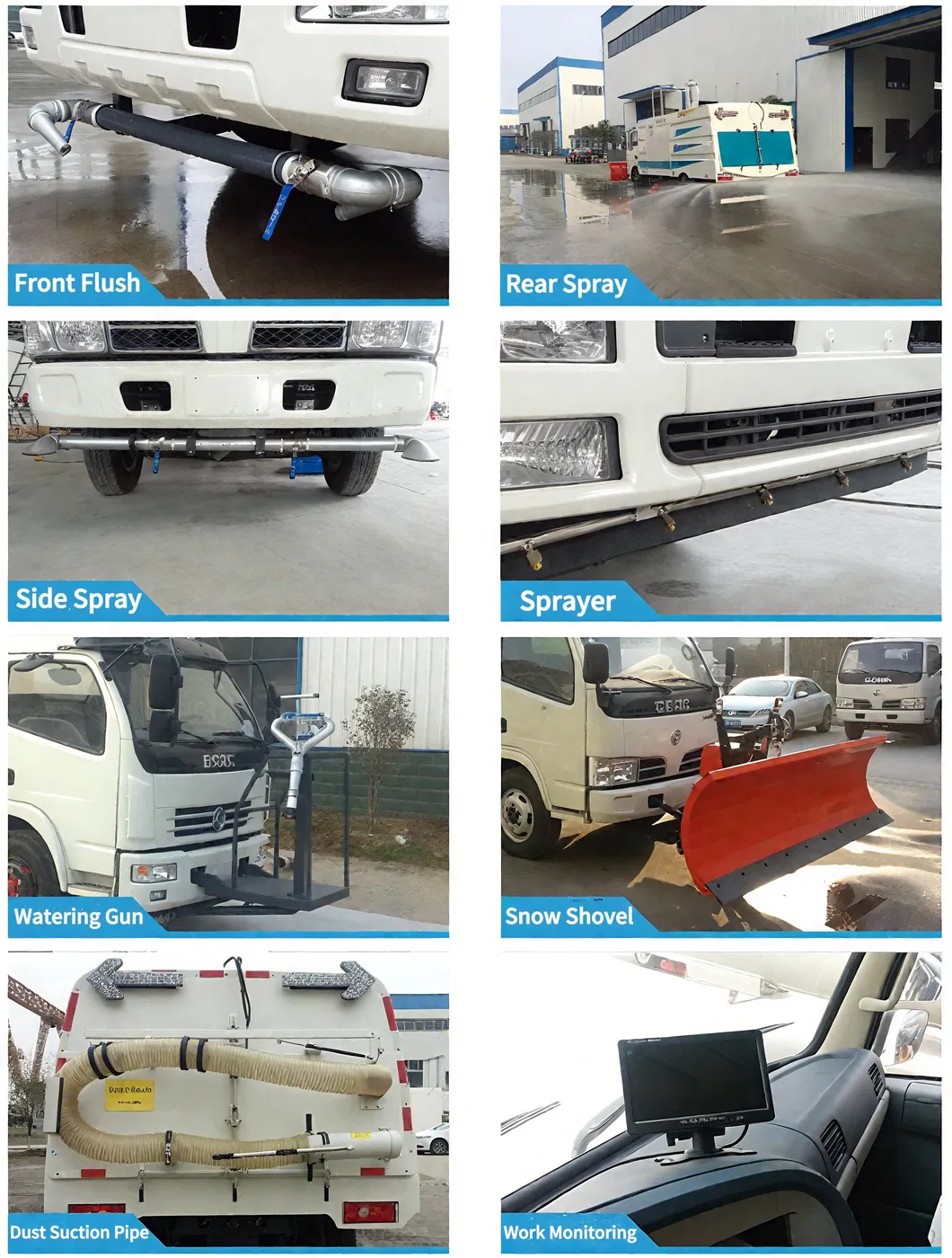

Optional Configuration

Optional Configuration
Batch Delivery & Factory

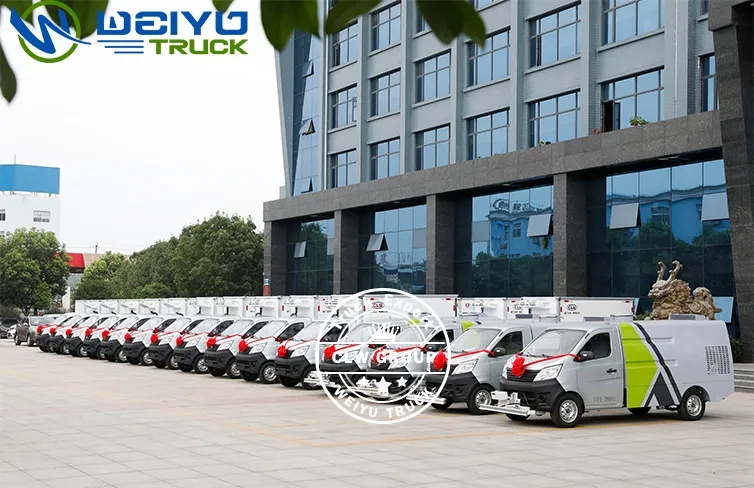

Delivery 1

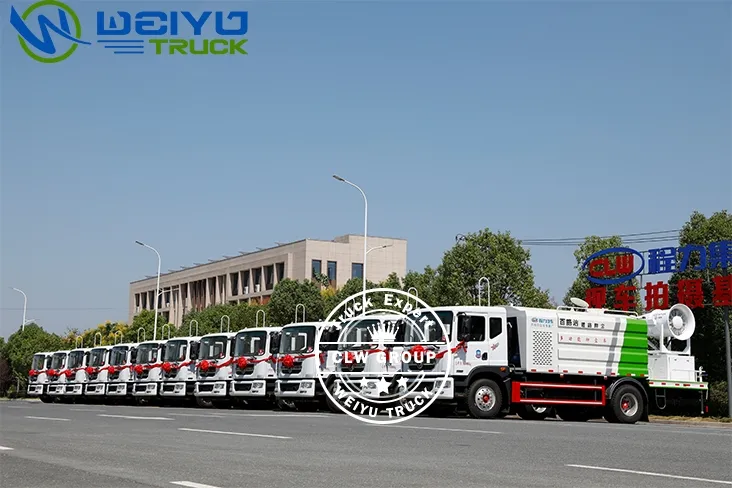

Delivery 2

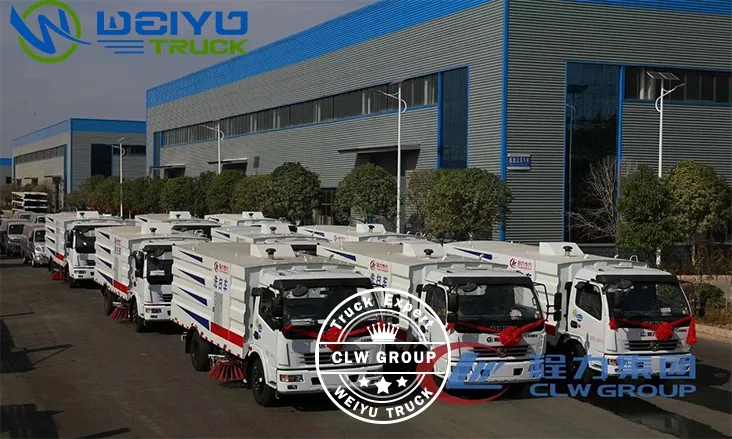

Delivery 3

We are 100% Straight Factory Manufacturer

Quality Assurance | Global Export

Frequently Asked Questions
What is the total capacity of the tanks?
The truck is equipped with a 2m³ fresh water tank and a 3.5m³ stainless steel garbage/waste tank, providing a total 5.5m³ effective capacity.
How wide can this truck sweep in one pass?
The sweeping width is adjustable between 2.7 meters and 3.0 meters, making it highly efficient for both narrow streets and wide boulevards.
Does the sweeping system have obstacle protection?
Yes, the brushes are equipped with smart collision avoidance technology. They automatically retract when encountering obstacles and reset to their original position afterward.
Is the garbage tank resistant to corrosion?
Absolutely. The garbage tank is made of high-quality stainless steel, ensuring durability and long-term resistance to corrosion from wet waste or acidic debris.
Can the color and logo be customized?
Yes, we provide fully customizable painting services. Customers can choose the vehicle color and provide their own logo designs for the final finish.
What is the maximum sweeping capacity per hour?
The truck can clean up to 40,000 square meters per hour, depending on road conditions and travel speed (recommended 5-20km/h during cleaning).
