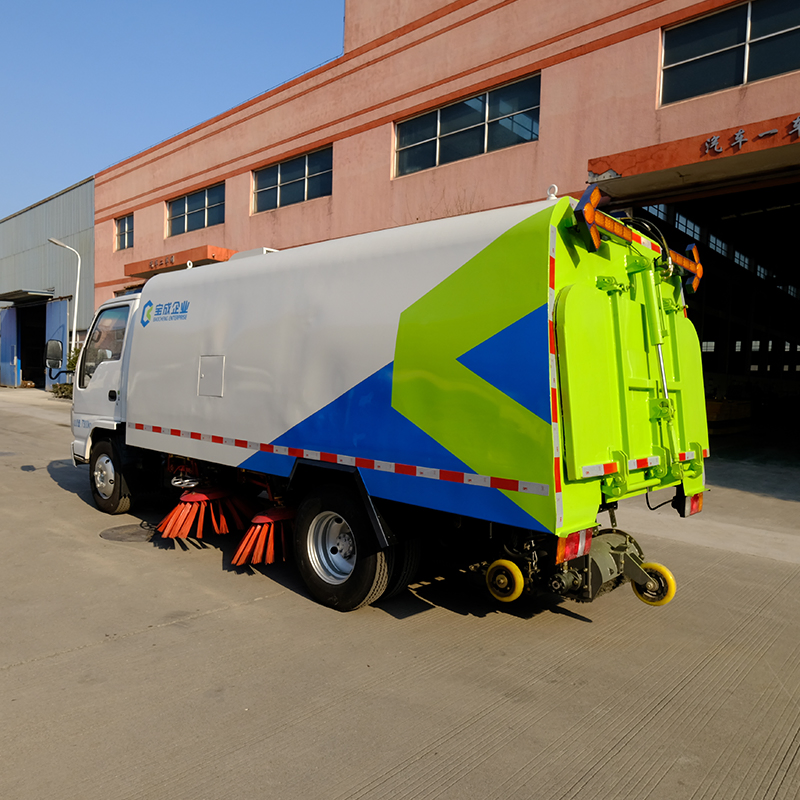

2.5m³ dongfeng street wholesale transport sweeping cleaning road sweeper truck

1 / 5

2.5m³ dongfeng street wholesale transport sweeping cleaning road sweeper truck

Customization:	Available
After-sales Service:	Comprehensive Support
Warranty:	Standard Warranty

Send Inquiry

Product Description

Basic Specifications

Model NO.

ZBJ5071TSLC

Type

Sweep and Suck Type

Certification

ISO9000, CCC, CE

Transmission

Automatic

Emission Standard

Euro 6

Fuel Type

Gasoline

Payload

Cleaning Process

Cold Water Cleaning

Dimensions

5815×2100×2400(mm)

Chassis

QL1070BUHACY

Engine

4KH1CN6LB

Second Engine

4JB1

Curb Weight

4590kg

Sweeping Efficiency

93%

Dustbin Volume

1.5m³

Tank Volume

4m³

Sweeping Width

3.2m

Tank Material

Stainless Steel

Packaging & Delivery

Package Size

600.00cm * 230.00cm * 260.00cm

Gross Weight

30.000kg

Product Description

🚚 Industrial Road Sweeper Vehicle

This cleaning and sweeping vehicle is an efficient sanitation vehicle. The vehicle adopts a second-class chassis and is equipped with a secondary engine and its transmission device, garbage bin, clean water tank, cleaning device, dust reduction system, suction nozzle, low-pressure flushing system, high-pressure cleaning system, hydraulic system, pneumatic system, and electrical system.

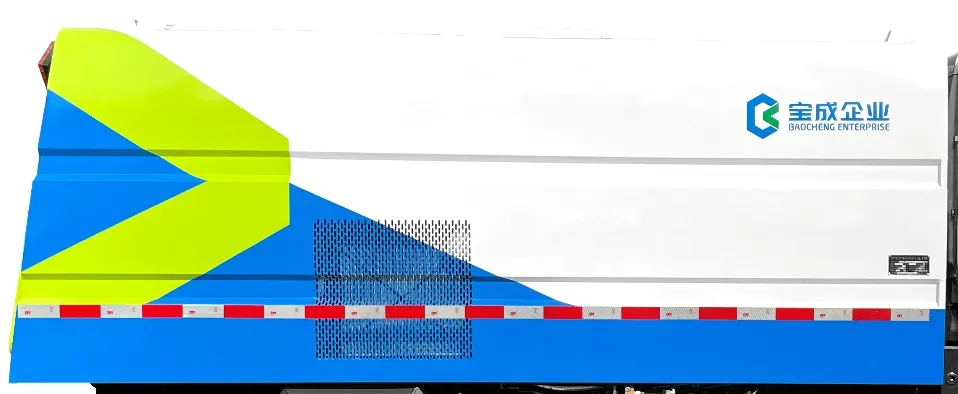

🗑️ Advanced Garbage Bin Structure

The garbage bin is made of high-quality steel and adopts a full-plate, skeleton-free structure. This enhances strength and rigidity while reducing weight. The inner layer is smooth, corrosion-resistant, and does not stick to garbage, making it convenient for unloading. The volume reaches 1.5 cubic meters.

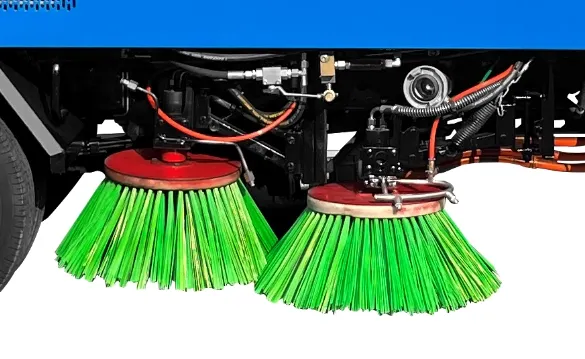

⚙️ Efficient Sweeping Discs

Equipped with an automatic obstacle avoidance protection function and an automatic reset function. When the sweeping discs encounter an obstacle, they will automatically retract and reset after passing, effectively preventing damage and reducing maintenance costs.

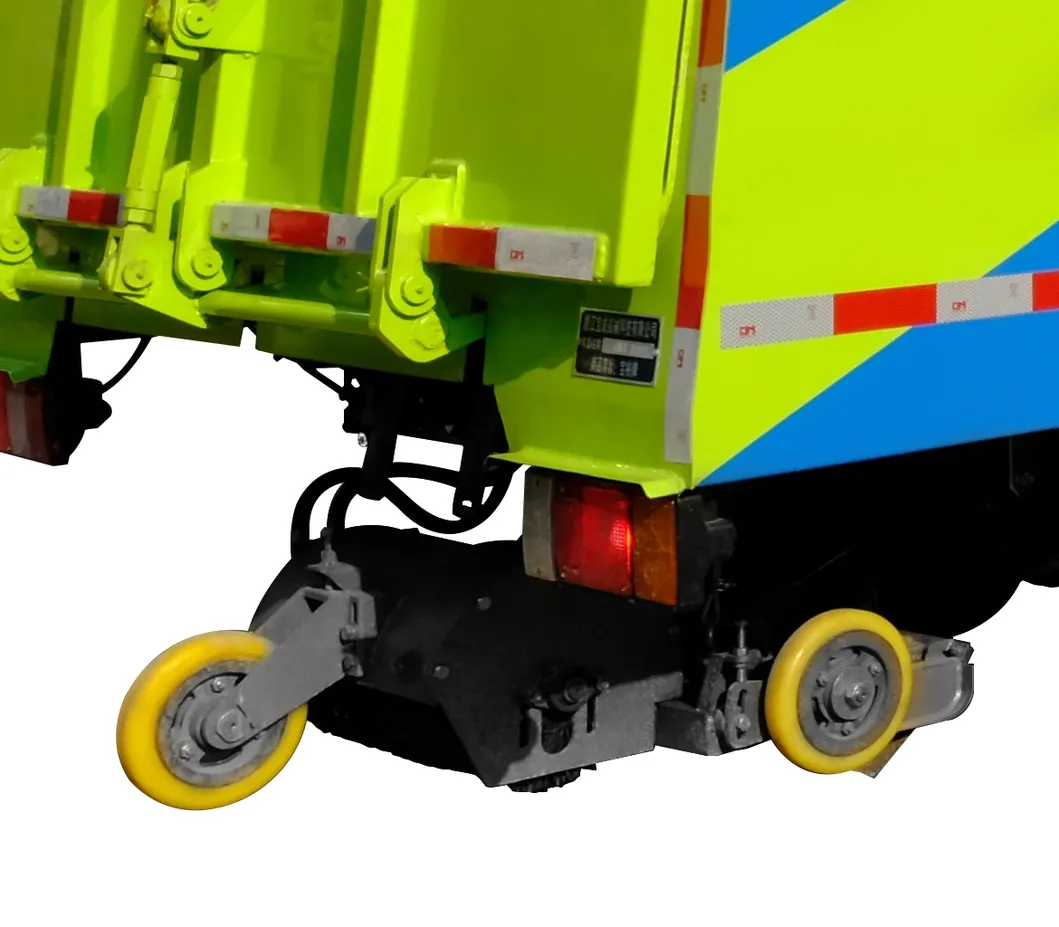

🌀 Suction Nozzle and Fan System

The pneumatic conveying system features a high-efficiency dedicated fan and suction nozzle with strong power. It can thoroughly suck up road surface garbage, sand, small stones, and light floating objects. The fan impeller is directly installed on the motor shaft for simplified transmission.

🛡️ Safe and Reliable Operation

Equipped with a voice alarm system for operation and unloading. Includes a safety strut for the garbage bin and a balance valve to prevent accidental falling during maintenance, ensuring dual protection for operators.

Technical Components

Component	Detailed Description
Chassis & Engine	Well-known brand second-class chassis with strong bearing capacity. Diesel engine provides powerful driving force.
Auxiliary Engine	Dedicated gasoline engine used to drive cleaning and suction mechanisms independently.
Suction Nozzle	Horseshoe-shaped follow-up nozzle that levels automatically based on ground conditions for high-speed cleaning.
Garbage Bin	Full 304 stainless steel construction. Corrosion-resistant and non-stick inner layer for easy cleaning.

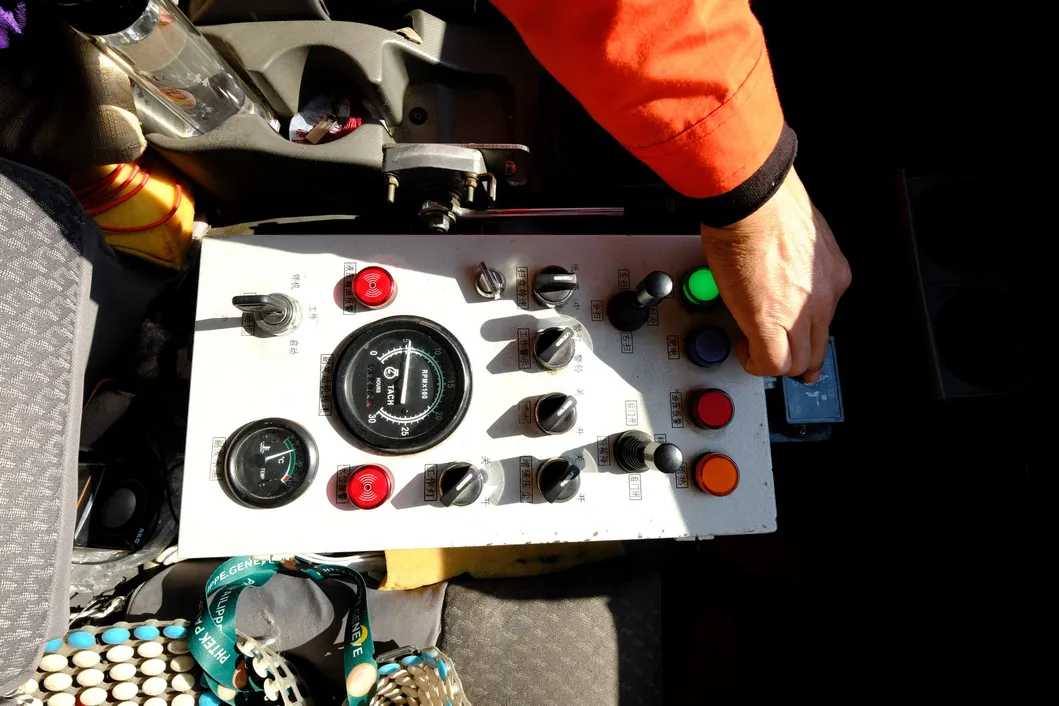

Operation Mode	CAN bus control panel with one-key operation for motor speed, nozzle lifting, and disc extension.

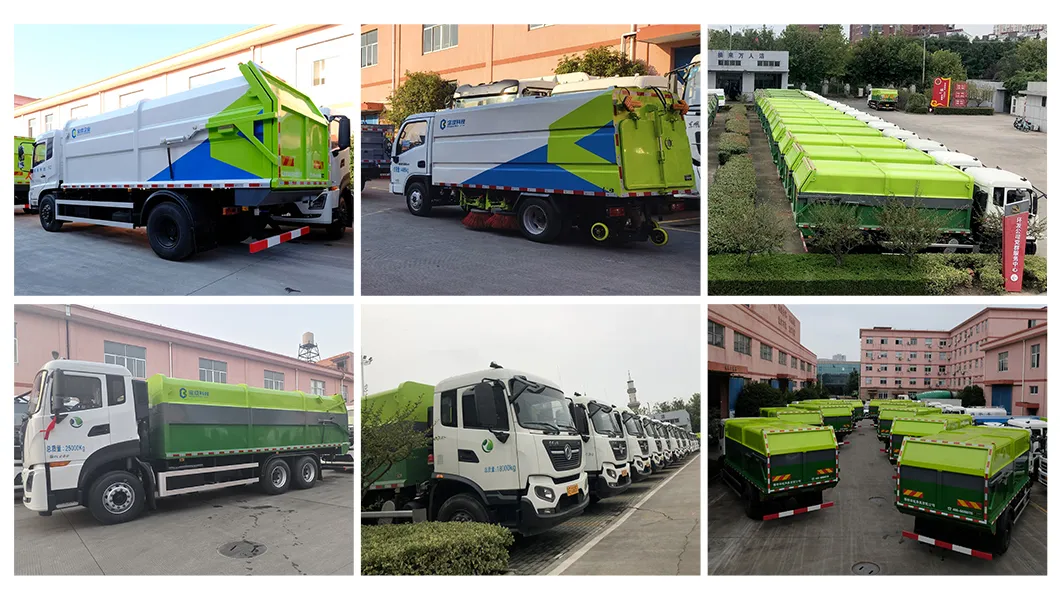

Product Gallery

Frequently Asked Questions

Q1: What are the payment terms for the road sweeper? A: We typically require a T/T 30% deposit, with the 70% balance paid before delivery. Photos of products and packages are provided before final payment.

Q2: What is the minimum order quantity (MOQ)? A: The minimum quantity is 1 set.

Q3: How is the vehicle packaged for international shipping? A: We use naked packing and transport via bulk cargo carrier, RO-RO, or 40/45 HQ containers depending on the destination.

Q4: What is the estimated delivery time? A: Generally, it takes 30 workdays after receiving the down payment. Specific time depends on the order quantity and product specifications.

Q5: Why should we choose your environmental sanitation products? A: We are a core supplier with strong production capacity, competitive pricing, and extensive experience in after-sales service, working with many famous brands.

Q6: Is the garbage bin durable against corrosion? A: Yes, the garbage bin is constructed from full 304 stainless steel, which is highly corrosion-resistant and designed for easy cleaning.
