Euro 4/5 Small Forland/Dongfeng Street Sweeper Truck for Sale in South America

Customization:	Available
After-sales Service:	Available
Warranty:	One Year

Send Inquiry

Product Description

📋 Basic Information Overview

Model NO.

CLW5043KLT

Type

Sweep and Suck Type

Certification

ISO9000, CCC, TS16949, CE

Transmission

Manual

Emission

Euro 4

Fuel Type

Diesel

Sweeping Speed

3-20 Km/H

Sweep Width

2.8m

Water Tank

0.8 Cbm, Stainless Steel 304

Dust Tank

1.7 Cbm, Stainless Steel 304

Cleaning Cap.

40000m2/H

Fan

Maintenance-Free Centrifugal Fan

🚚 Product Description

Euro 4 Small Forland/Dongfeng Street Sweeper Truck

Heavy Duty Dust Tank with different size options: 2000L to 18000L (2CBM to 18CBM).
Advanced Hydraulic Control Loading & Unloading System.
Leakage Proof Devise to contain dirty water inside safely.
Automatic Key Control & Hydraulic Handle Control for easy operation.
The ultimate choice for urban garbage transportation and street cleaning.

General Technical Parameters
Overall Dimension			5210×1760×2280 (mm)
Gross Vehicle Weight			4294(Kg)
Curb Weight			3880(Kg)
Chassis Specification
Drive model		4*2
Cabin		Single row, LHD, with air condition
Engine Power		78HP
Gearbox		5 Forwards & 1 Reverse, manual operation
Tire		7.00R16, 6pc with 1 spare tire
Upperstructure Specification
Water Tank	0.8 cbm, Stainless steel 304
Dust Tank	1.7 cbm, Stainless steel 304
Auxiliary Engine	57KW
Sweep Width	2.8m

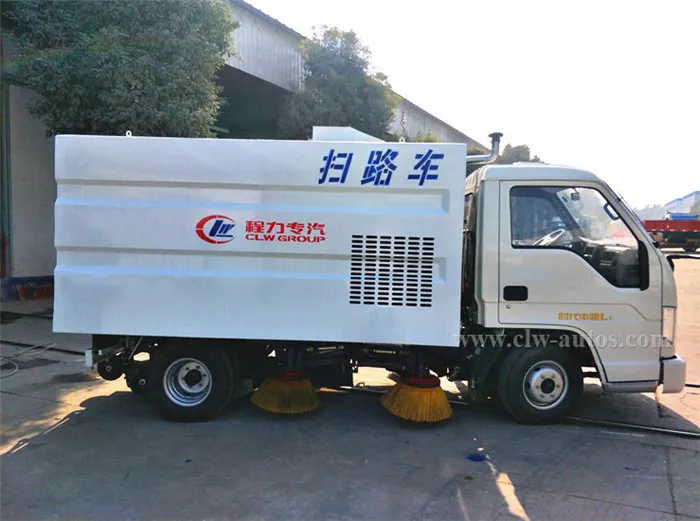

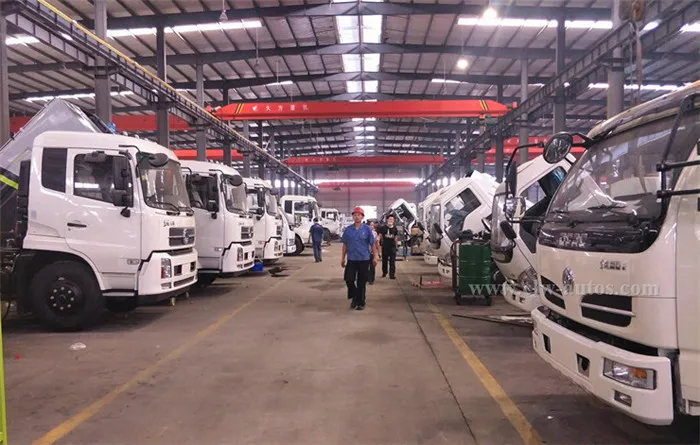

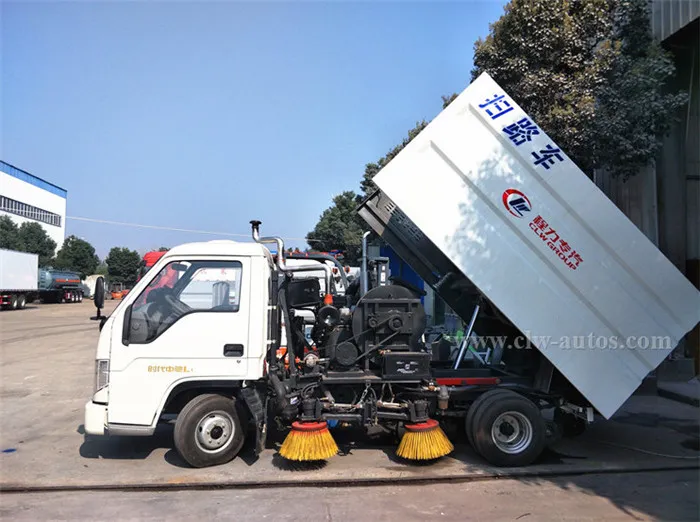

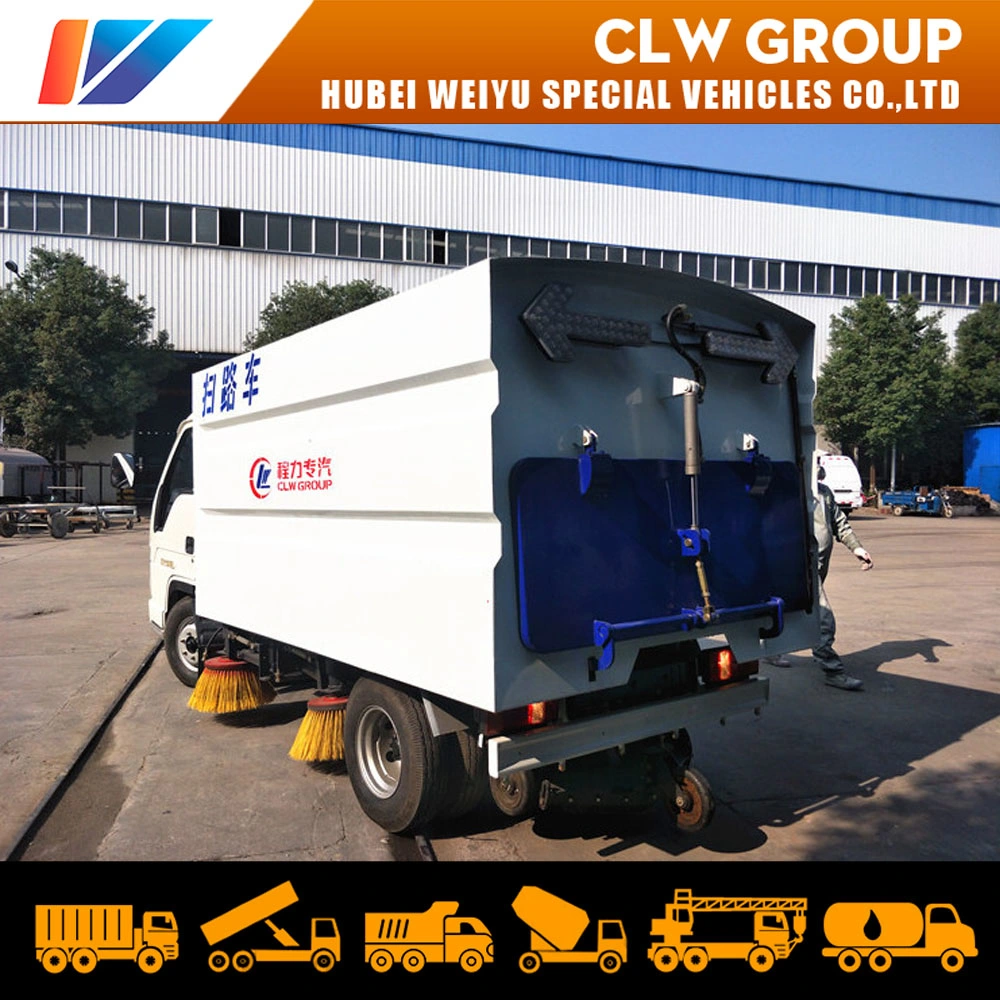

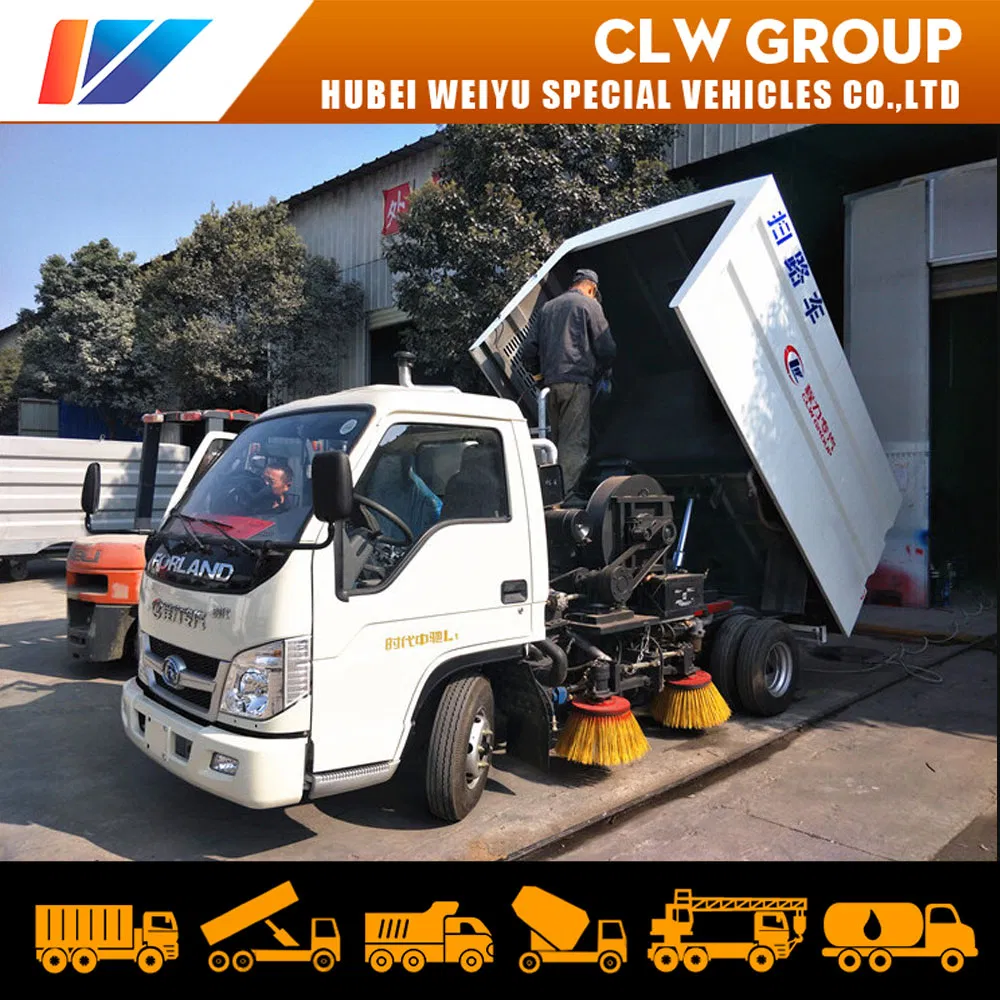

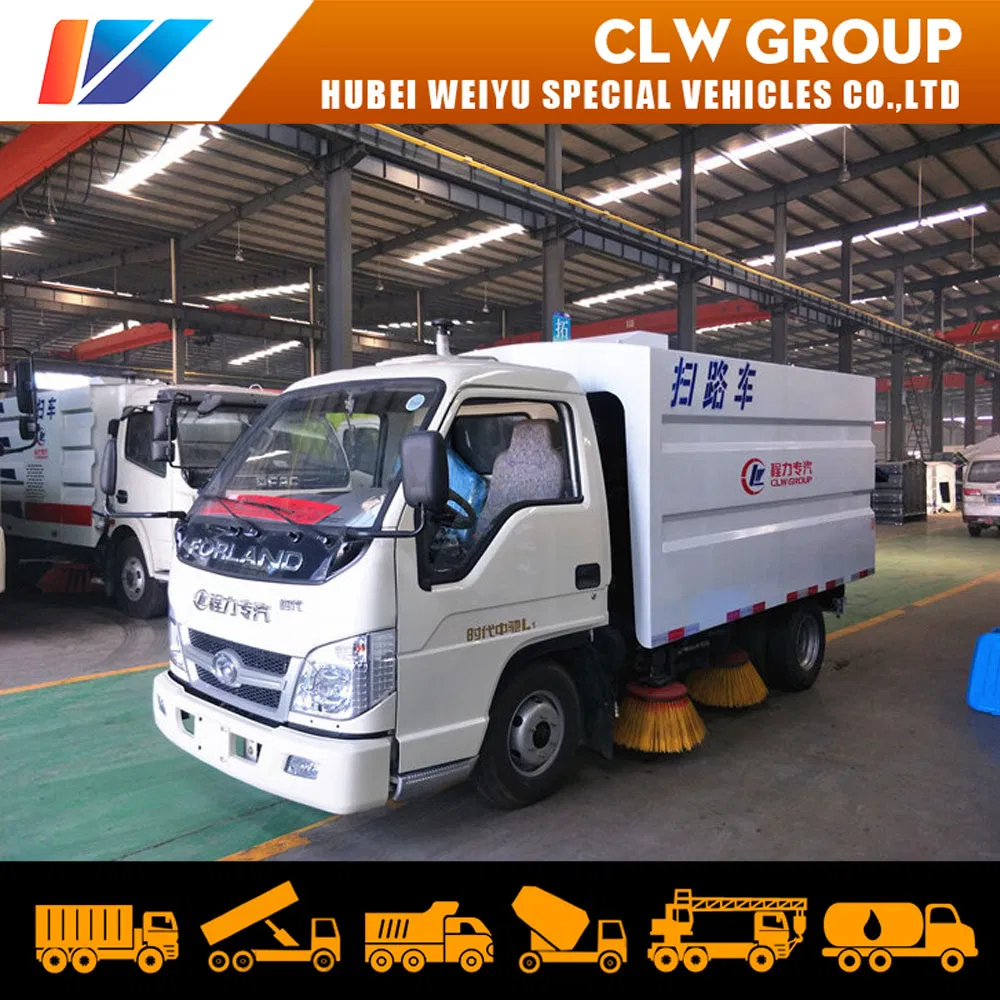

Reference Photos

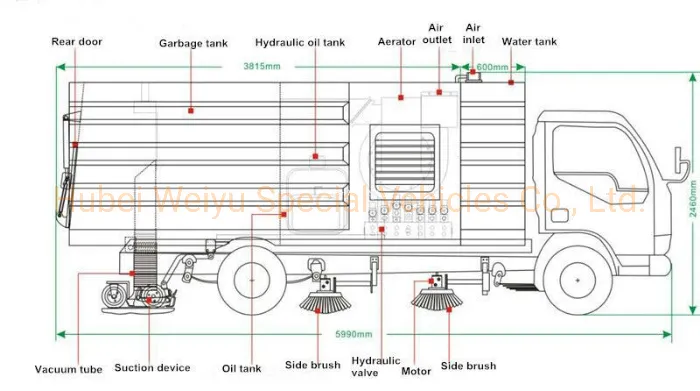

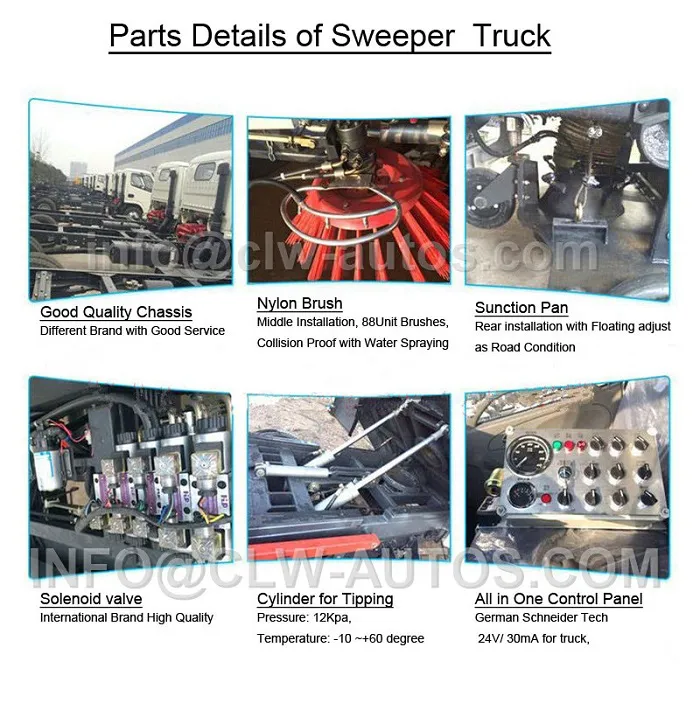

Main Structure & Components

Certifications & Quality

❓ Frequently Asked Questions

What is the material of the water and dust tanks?

Both the water tank (0.8 Cbm) and the dust tank (1.7 Cbm) are made of high-quality Stainless Steel 304 for maximum durability and corrosion resistance.

What is the maximum cleaning capacity of this truck?

This street sweeper truck can clean up to 40,000 square meters per hour with a maximum sweeping width of 2.8 meters.

Does the truck come with an air-conditioned cabin?

Yes, the single-row cabin is equipped with air conditioning to ensure operator comfort during city cleaning tasks.

What kind of engine powers the sweeping system?

The truck uses an auxiliary engine with 57KW power specifically for the sweeping and suction system, allowing it to operate independently of the main driving engine.

Can the sweeping speed be adjusted?

Yes, the sweeping speed is adjustable between 3 km/h and 20 km/h, depending on the road conditions and cleaning requirements.

What optional configurations are available?

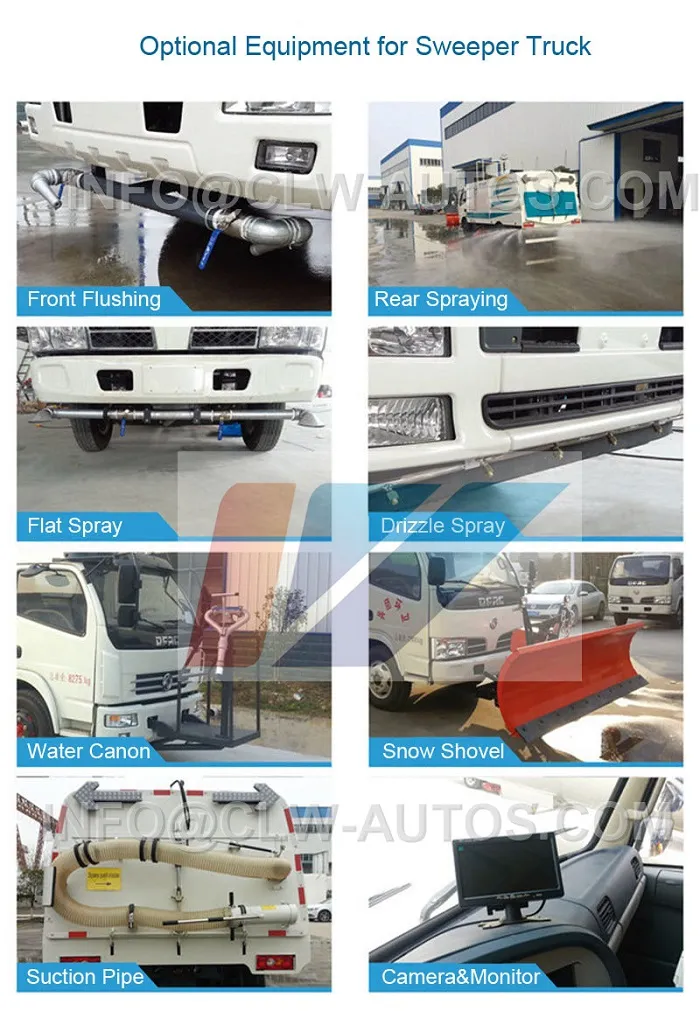

Optional features include front flush, rear sprinkler, side sprayer, self-cleaning dust tank, hose reel with water gun, snow shovel, and reversing image monitoring.
