| Model NO. | DYS1501DF | Type | Sweep and Suck Type |
| Certification | ISO9000, CCC, CE | Transmission | Manual |
| Emission Standard | Euro II/III/V/VI | Fuel Type | Diesel |
| Payload | 15 Ton | Material | Stainless Steel SS201 |
| Condition | New | Product Name | Road Sweeper Truck |
| Chassis Brand | Dongfeng | Drive Type | 4X2 |
| Engine Model | Cummin B210 33 | Max Output | 210 HP |
| Volume | 15 cbm | Dimensions | 8200x2500x3050 mm |

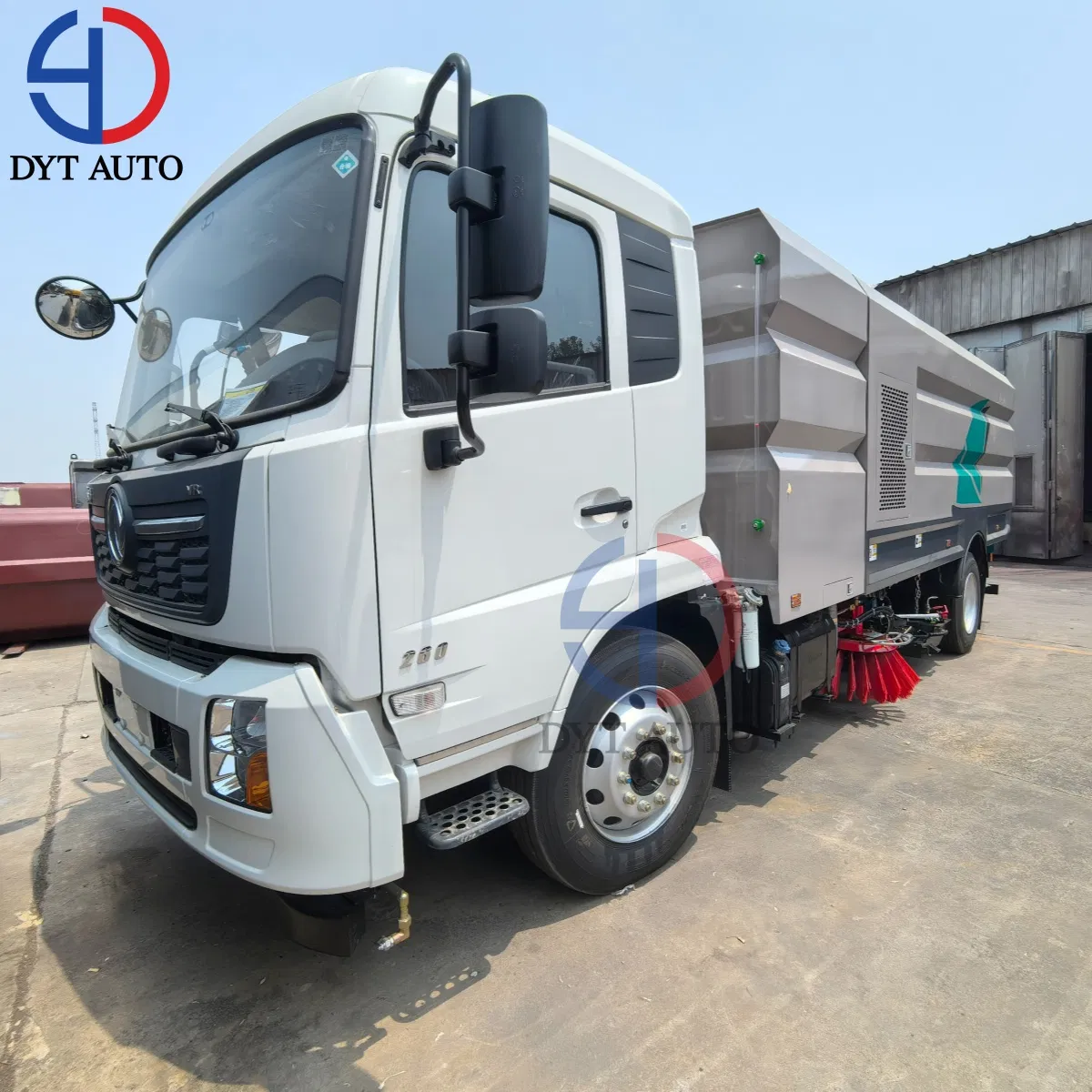

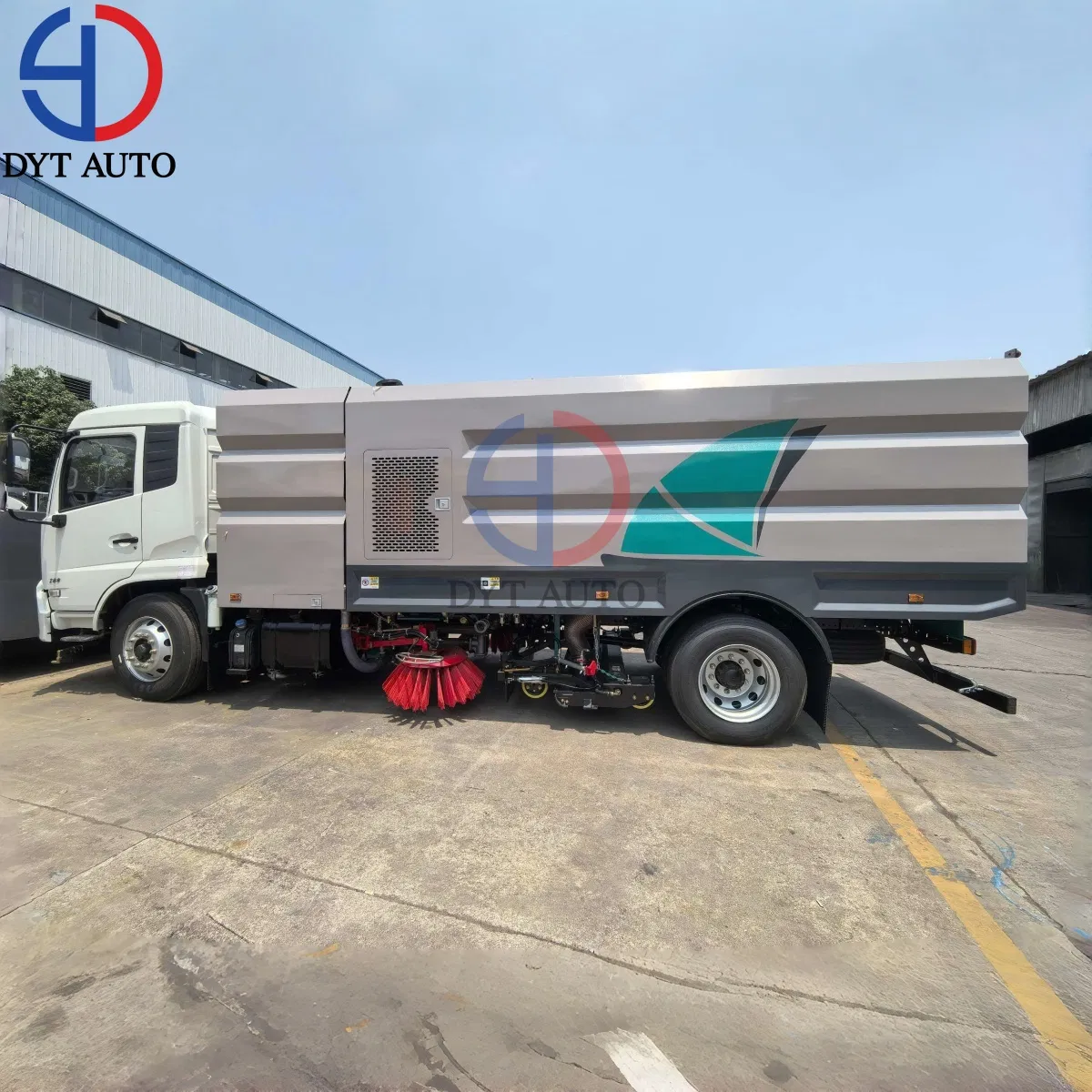

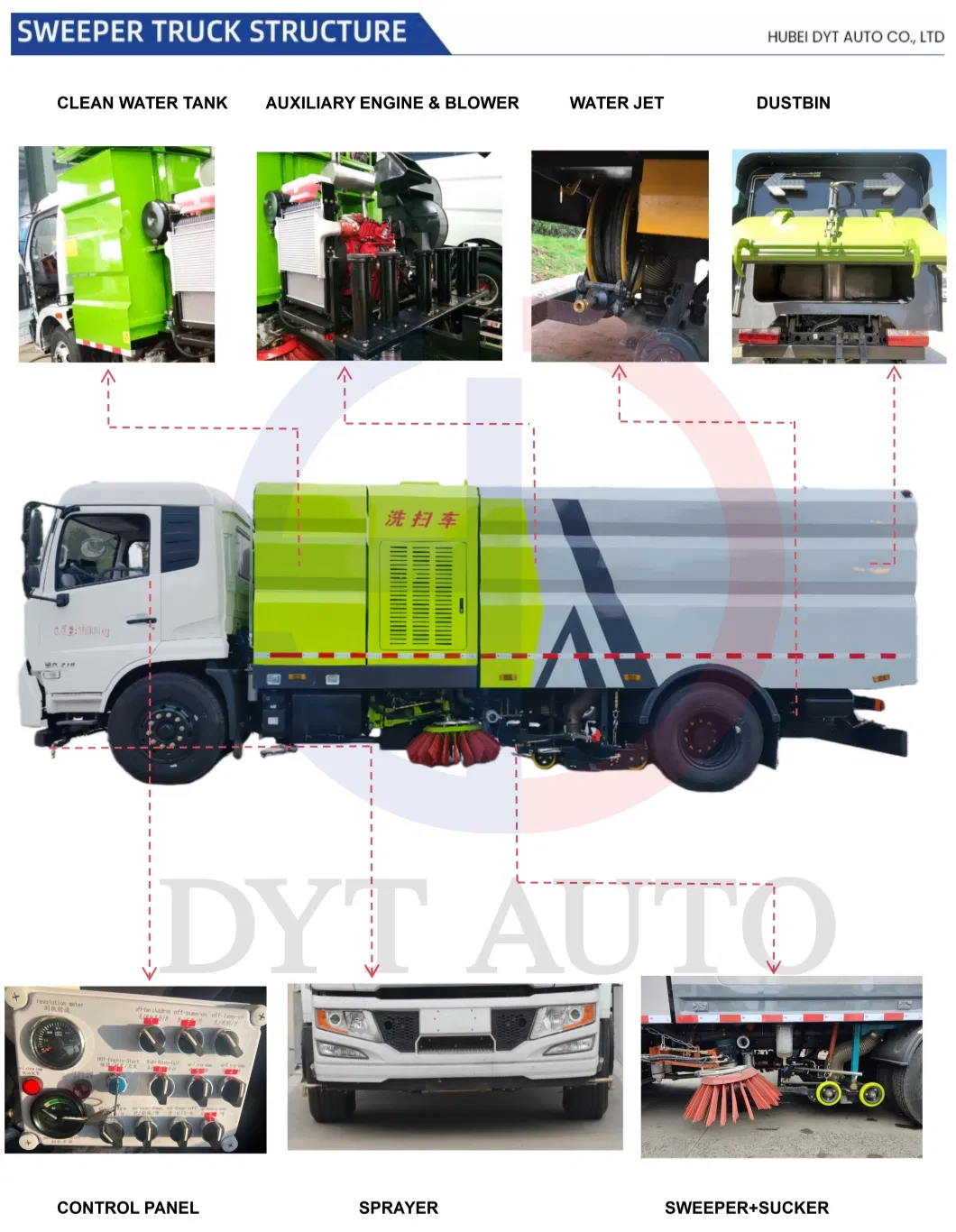

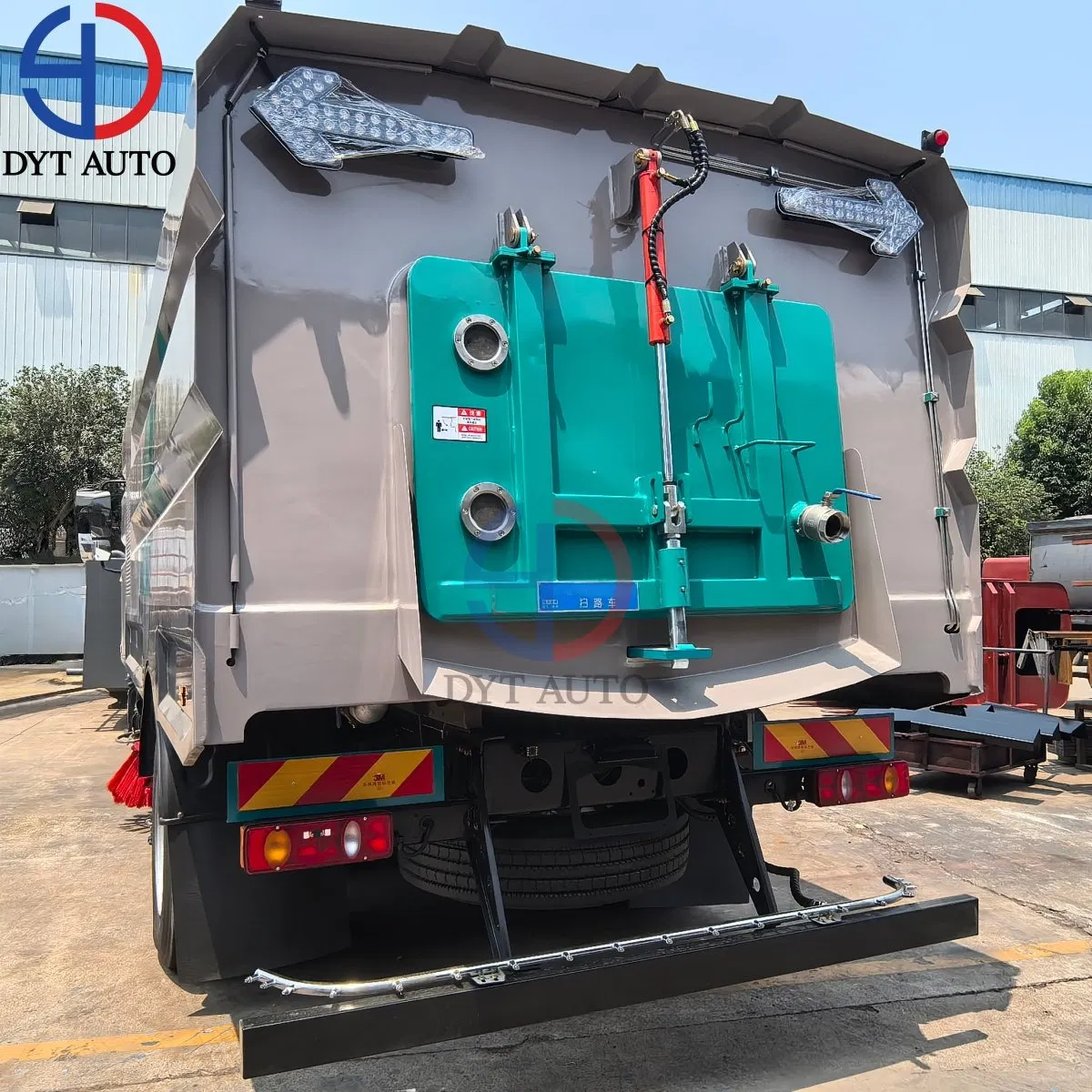

The road sweeper truck adopts the reliable Dongfeng 4x2 chassis with Cummin 210HP diesel engine, which is powerful enough for 15-16cbm sweeper body. The sweeper truck is mainly used for road sweeping and cleaning. The sweeping system mainly consists of clean water tank, dust tank, brush, sucker, auxiliary engine, high-pressure water pump, low pressure water pump, etc.

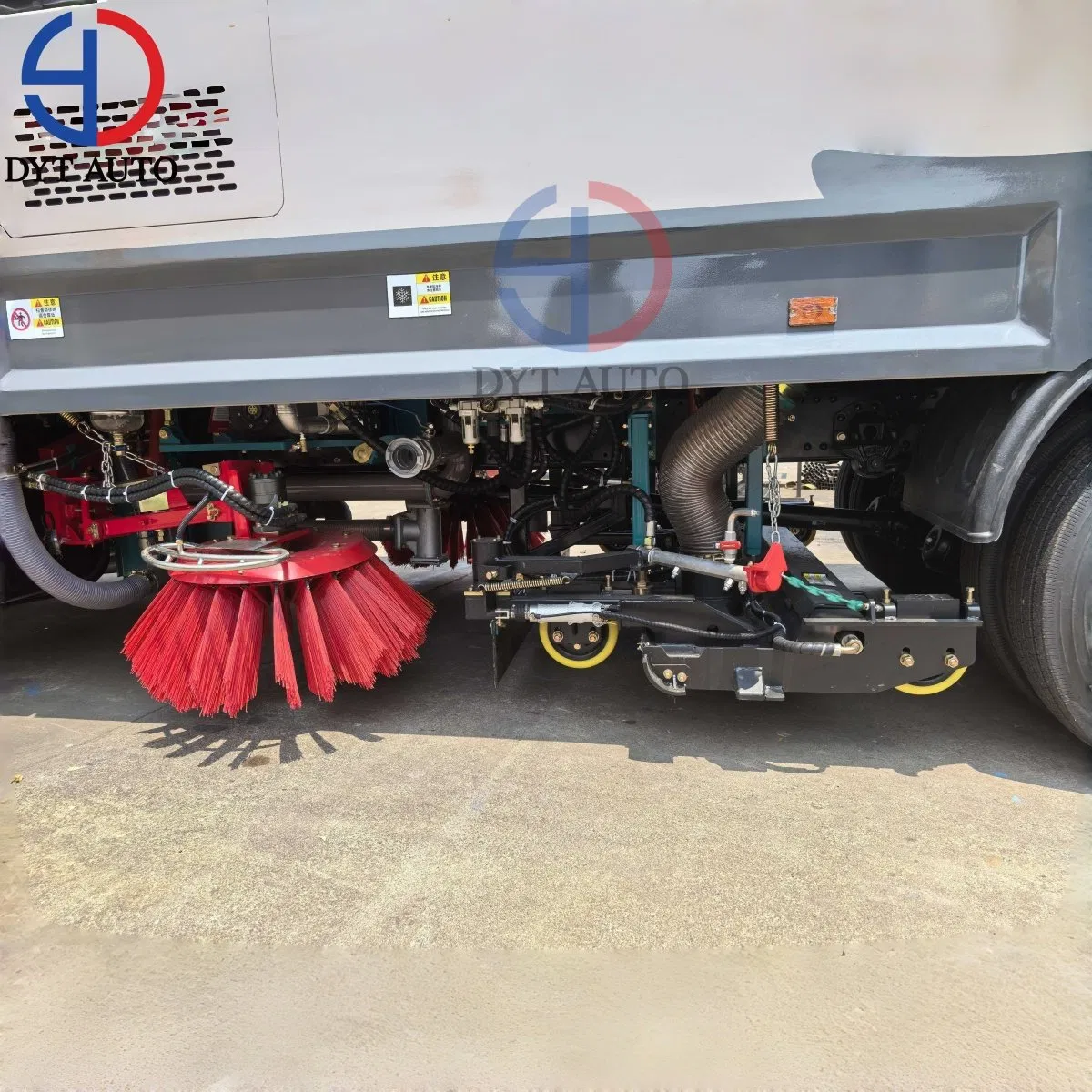

Sweeping Brush: Effectively sweeps road garbage to the front of the suction cup for recycling.
Sucker: Mixed flow of air, garbage, and water is "sucked" into the bin to complete final recycling.
Material: Made of Stainless Steel SS201 for superior anti-rust performance.
Function: Realizes "three-phase separation" of gas, solid, and liquid to prevent blower clogging.
Auxiliary Engine: Provides independent power for the blower, hydraulic system, and water pumps.
Blower: Generates powerful negative pressure suction for the entire cleaning system.
| Vehicle Parameters | |
|---|---|
| Overall Dimensions | 8200x2500x3100 mm |
| Payload Capacity | 15 Ton |
| Cabin | Kingrun one and a half row cab, air conditioning included |
| Wheelbase | 4500 mm |
| Tire Specification | 10.00R20 (6+1 units) |
| Engine Type | 6-cylinders inline, 4-stroke, turbocharged |
| Displacement | 5.9L |
| Gear Box | FAST 8JS85TE-C (8 forward & 1 reverse) |
| Brake System | Air brake, drum brake |
| Axle Load | Front 6Ton / Rear 10Ton |
| Fuel Tank | 160L Steel tank |
| Sweeper Body Parameters | |
| Dust Tank Volume | 7 m³ (Stainless Steel SS201) |
| Water Tank Volume | 8 m³ (Stainless Steel SS201) |
| Max Cleaning Width | 3500 mm |
| Auxiliary Engine | Cummin 170HP |
| High-pressure Pump | PINFL pump |
| Low-pressure Pump | WLOONG pump |
