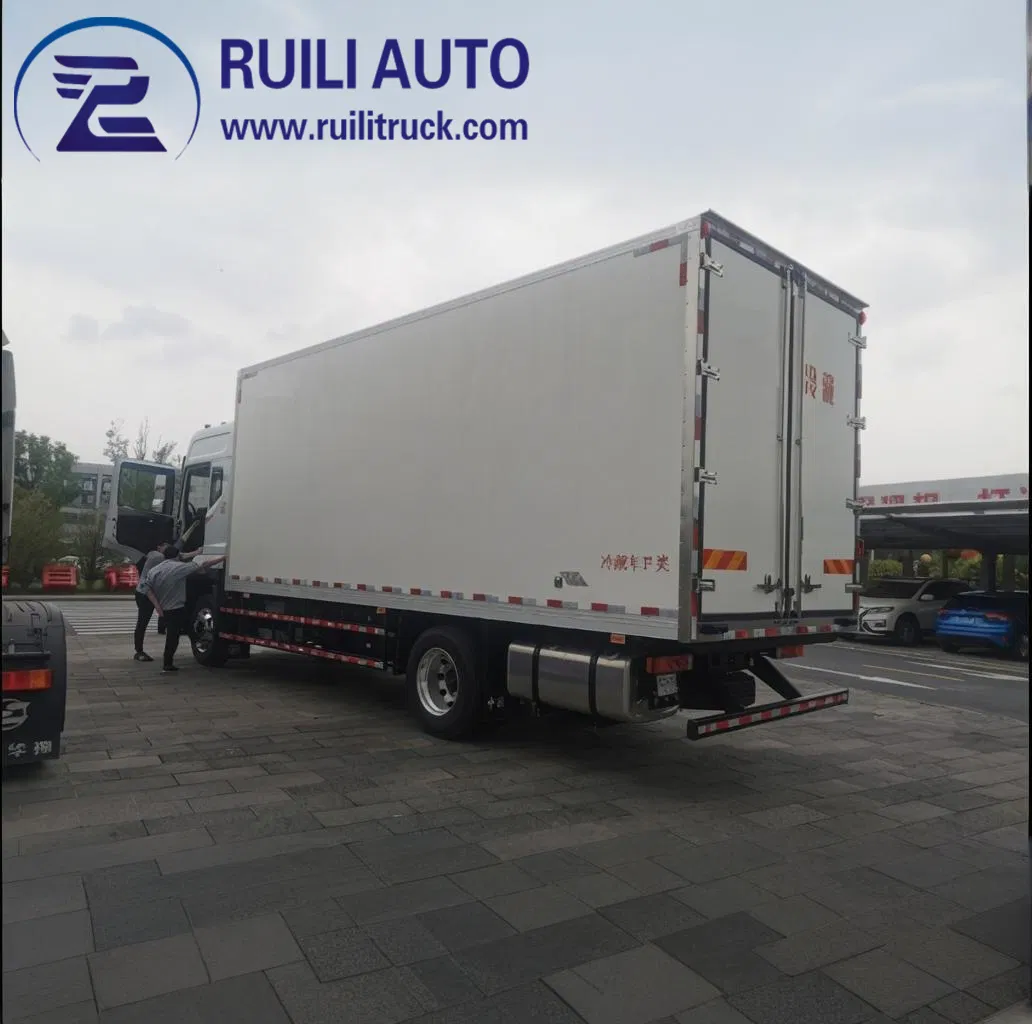

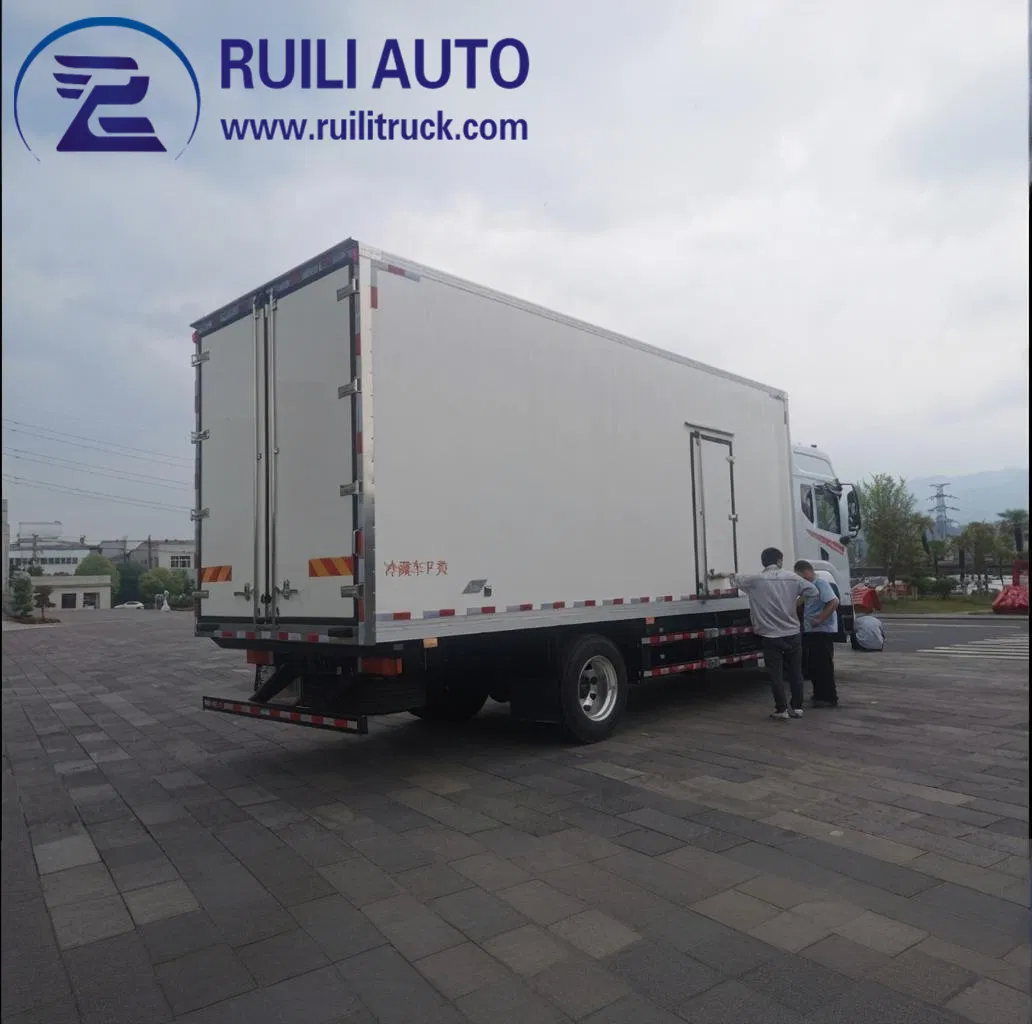

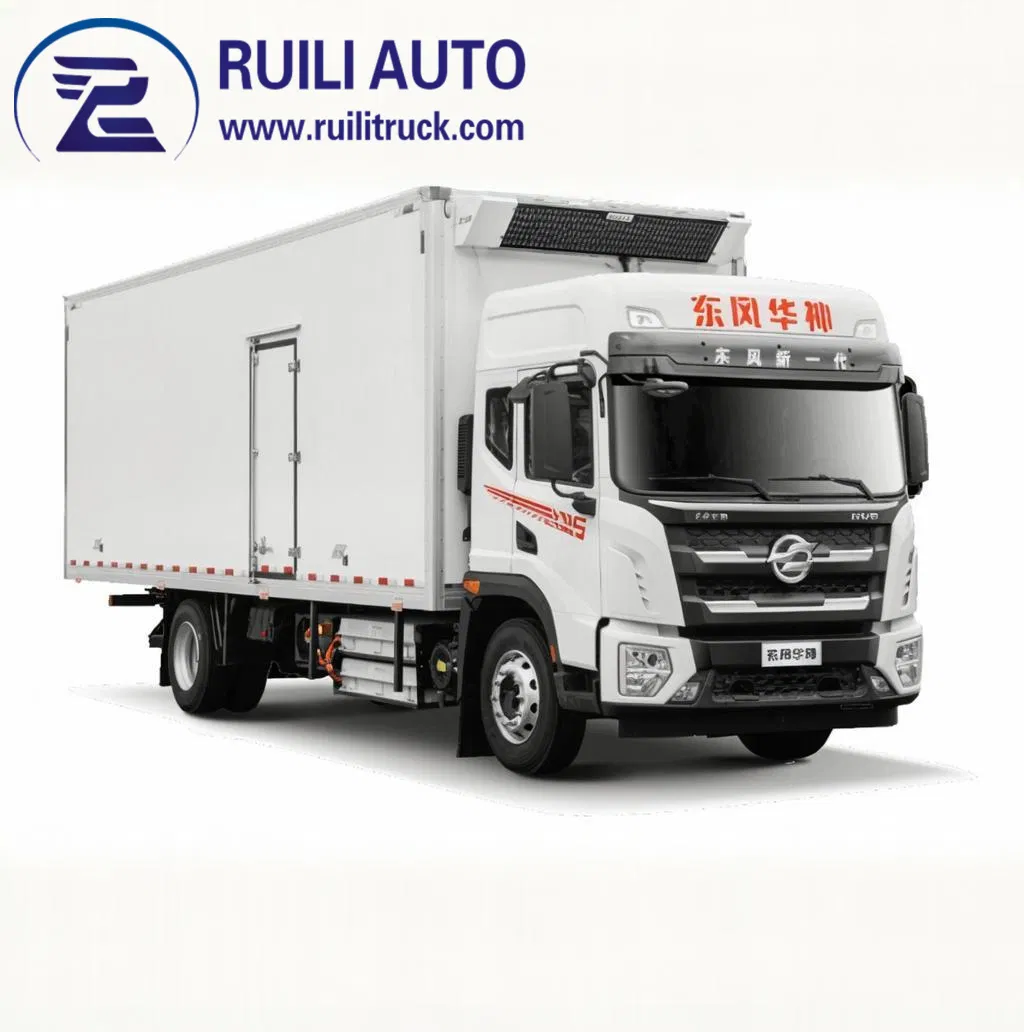

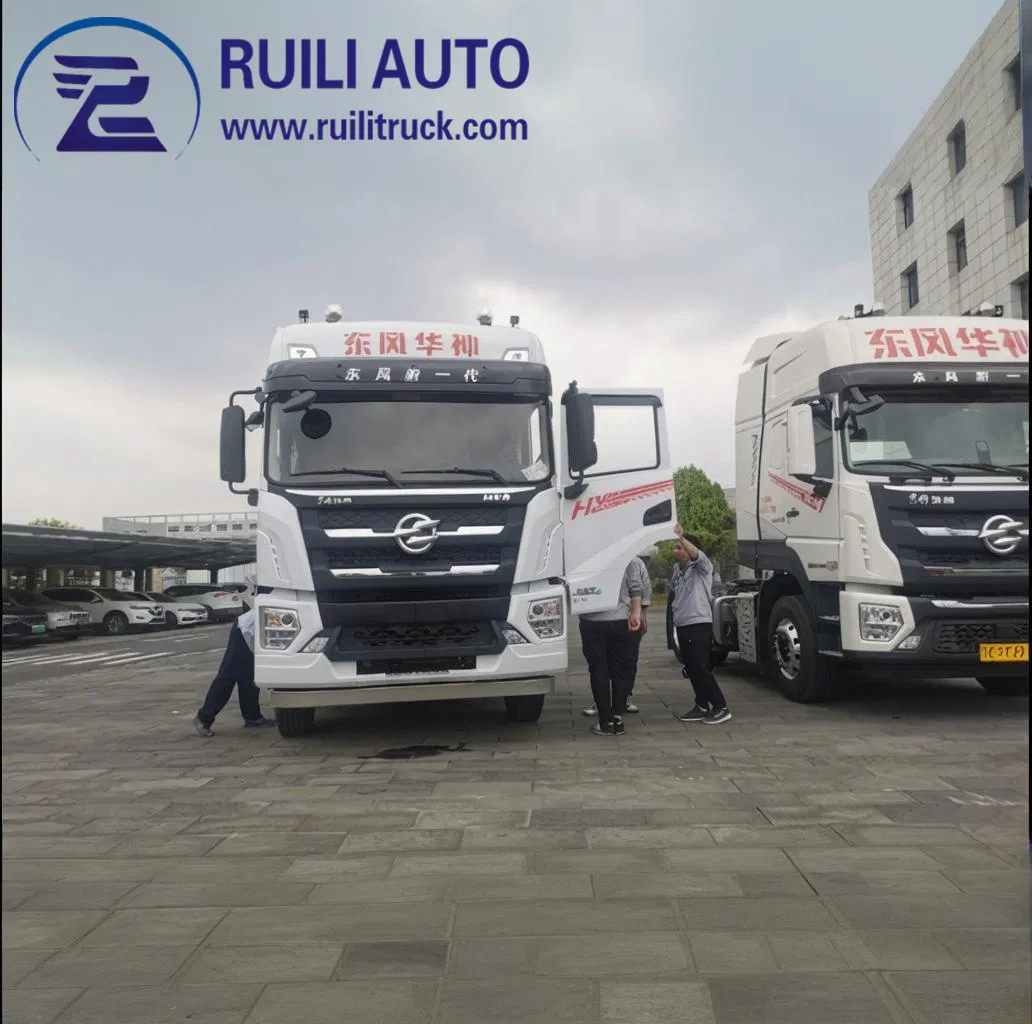

Dongfeng Sinotruk Jmc Refrigerator Refrigerated Van Freezer Chiller Reefer Cargo Truck with Temperature Controlled Unit for Transport Frozen Food Ice Cream Meat

Customization: Available
Warranty: 1 Year
Certification: ISO9000, CCC, TS16949, EPA, EEC, RoHS, CE

Product Description

📊 Basic Information
Model NO.
RLQ6688LCCA28
Payload
10ton 12ton 15ton
Emission Standard
Euro 3
Transmission Type
Manual
Horsepower
251-350hp
Fuel
Diesel
Car Type
Van
Condition
New
Box Material
Fiberglass
Box Size
6800*2430*2500mm
Insulating Layer
8cm Polyurethane Foam
Temperature
-18~0℃
📦 Packaging & Delivery
Package Size
999.50cm * 255.00cm * 390.00cm
Gross Weight
6800.000kg
🚚 Product Description

Dongfeng 6.8M Refrigerator Truck With Thermo King Refrigeration Unit

  • Purpose: Used for transporting frozen fish, meat, chicken, duck, fresh vegetables, and vaccines, etc.
  • Main Parts: High-performance refrigerating unit and intelligent control system.
  • Features: International chassis brands and international refrigerating unit brands available for optional configuration.

Product Specification

Dongfeng Huashen 6.8-meter refrigerated truck, Yuchai 270-horsepower 6-cylinder engine

Vehicle Dimensions
9230*2600*3900mm
Cargo Dimensions
6800*2430*2500mm
Engine
YCS06270-60
Transmission
8JS105TA
Wheelbase
5250mm
Tires
275/80R22.5

Other Features: T712GW high-top double-bed, aluminum alloy air reservoir, 140Ah maintenance-free battery, WABCO valves, VOSS pipelines, LCD instrument, 10-inch central control screen, cruise control, four-point airbag suspension, and 8-way adjustment airbag driver's seat.

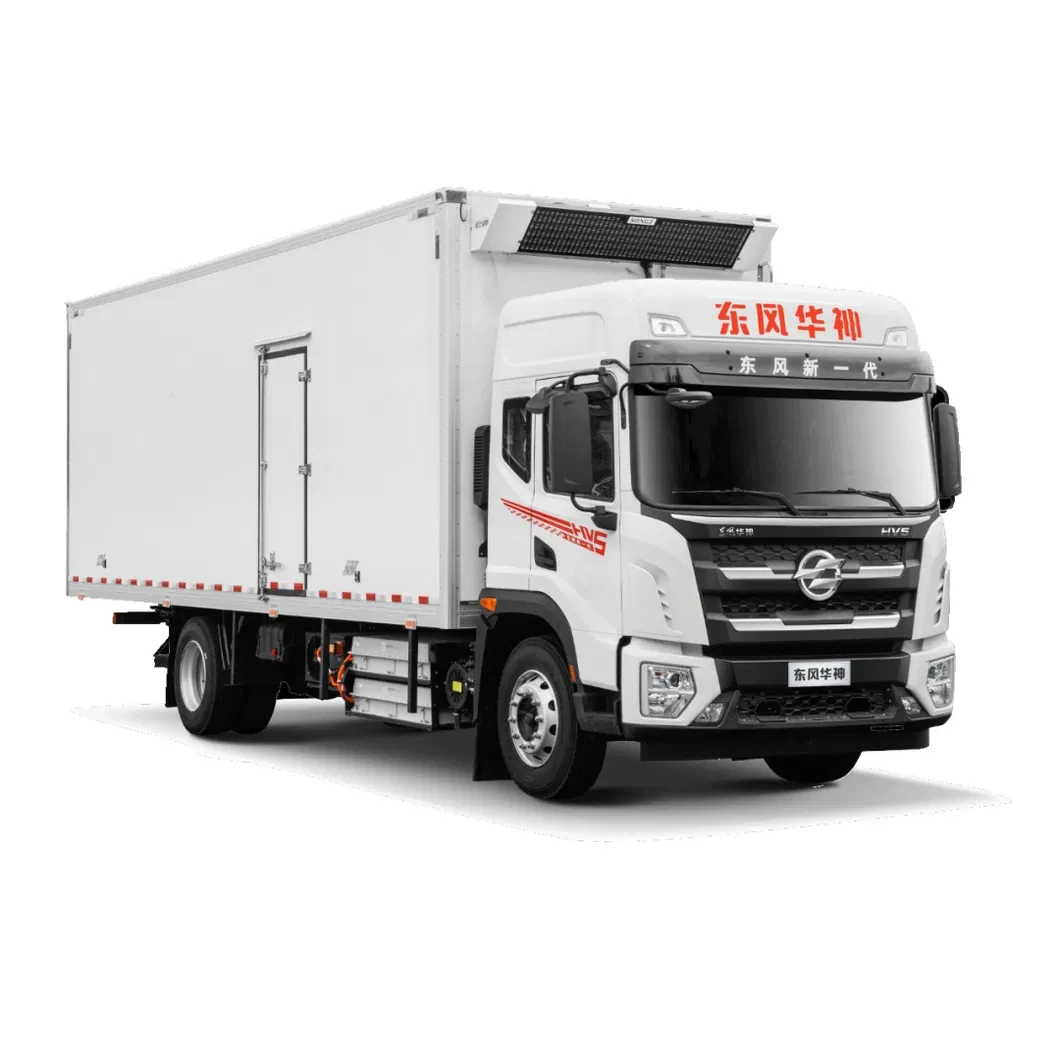

Refrigerator Truck Front

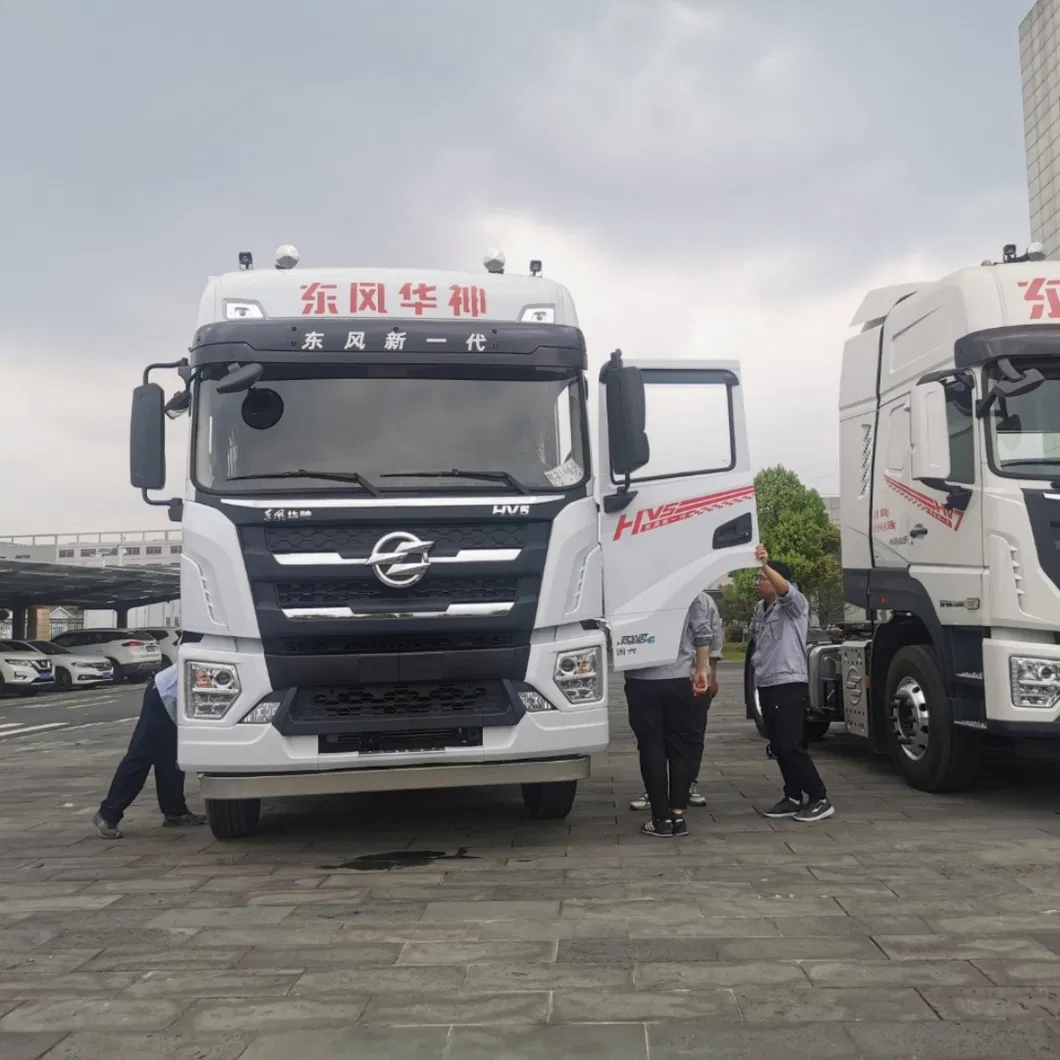

Refrigerator Truck Side

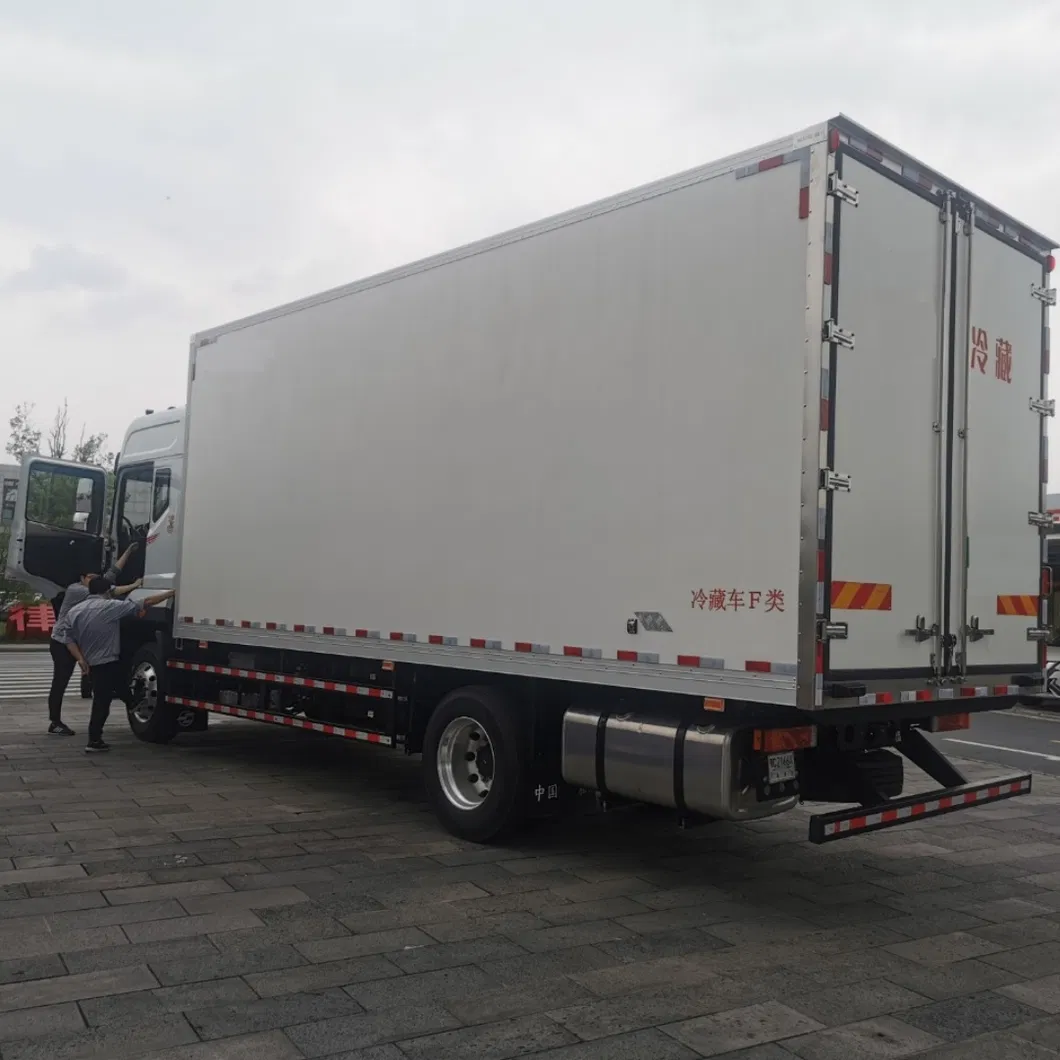

Refrigerator Truck Rear

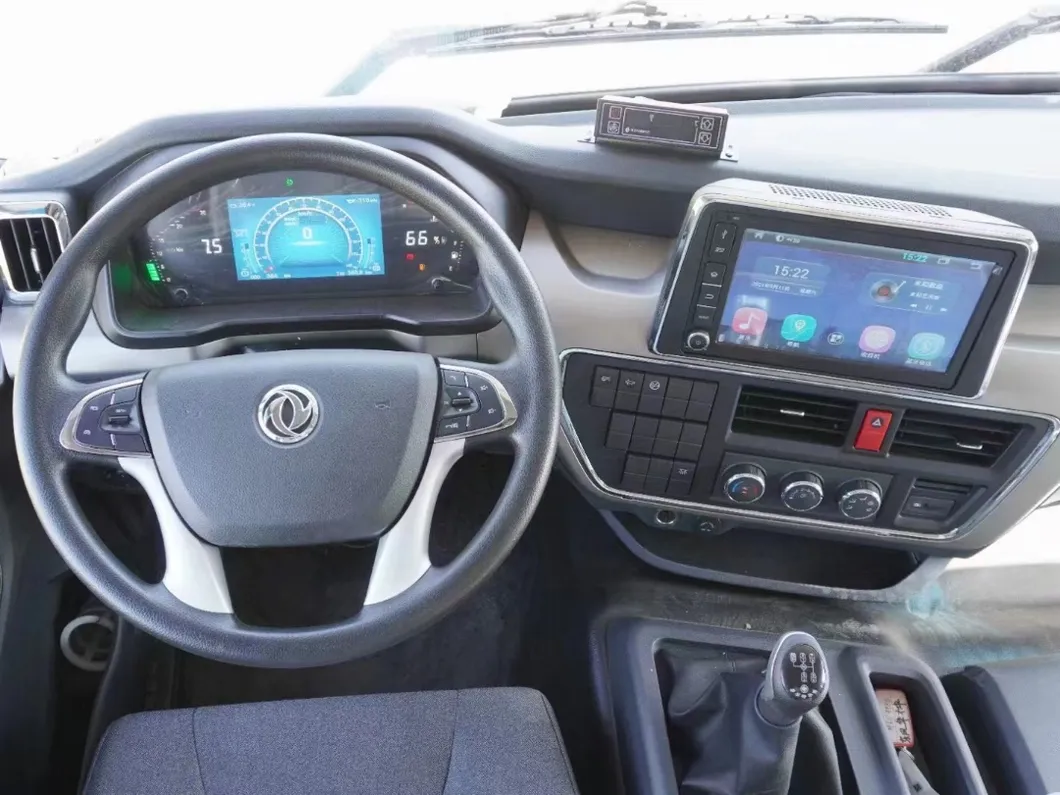

Refrigerator Truck Detail
🛠️ Upper Body Configuration
  • Manufacturing Process: Vacuum adsorption and hydraulic adsorption integrated molding production line, sandwich composite bonding, national A-level thermal insulation standard.
  • Cabin Material: High-quality fiberglass inner/outer walls (anti-oxidation); XPS extruded polystyrene insulation (8cm side/top, 9cm bottom).
  • Accessories: Aluminum alloy edging, stainless steel door locks, hinges, and frames; energy-saving LED interior lighting.
  • Upgraded Features: Electrophoretic paint on auxiliary beam, 30cm anti-collision plate, and five-tooth sealing strips.
📸 Detailed Photos

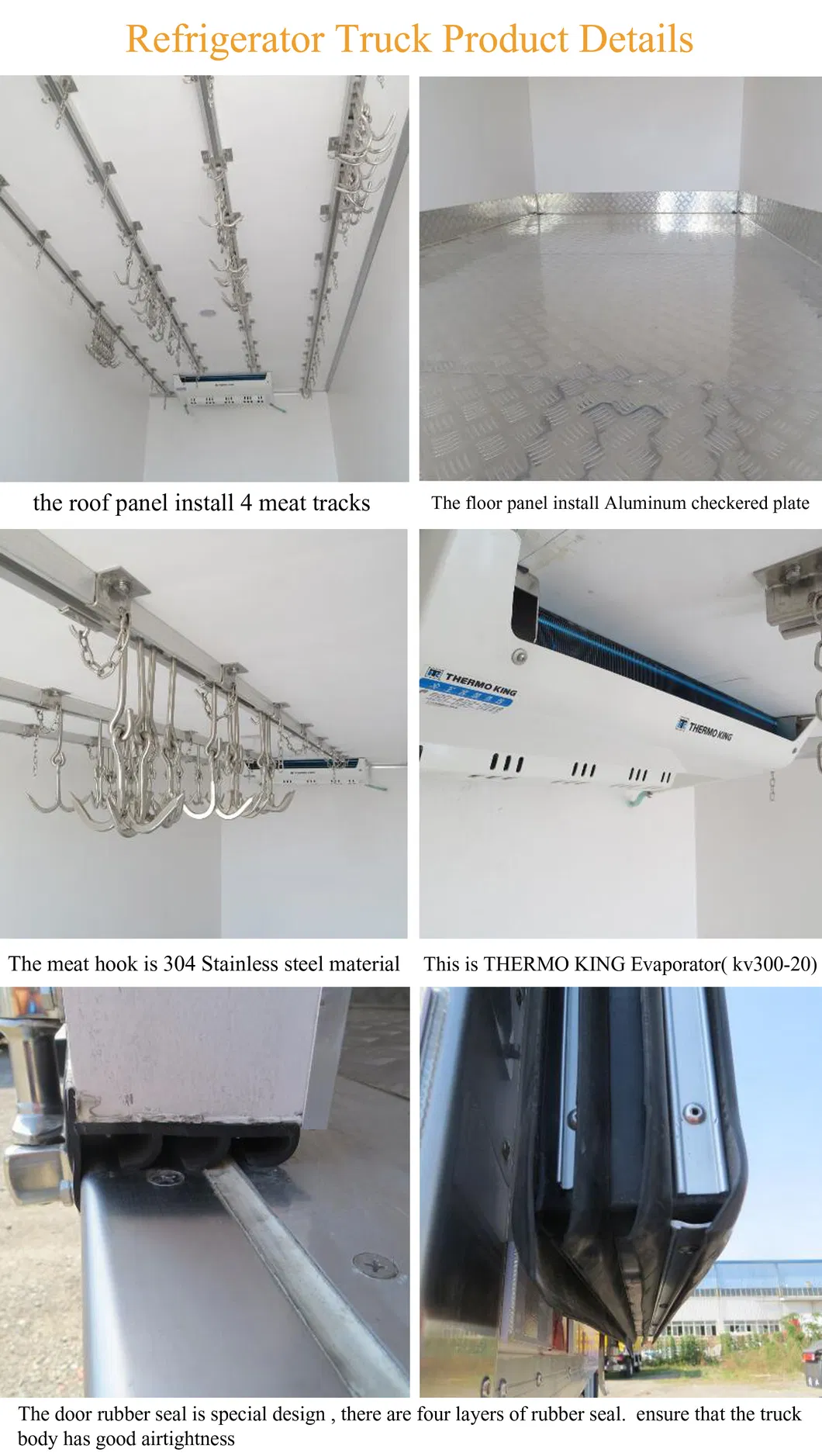

Detailed View 1

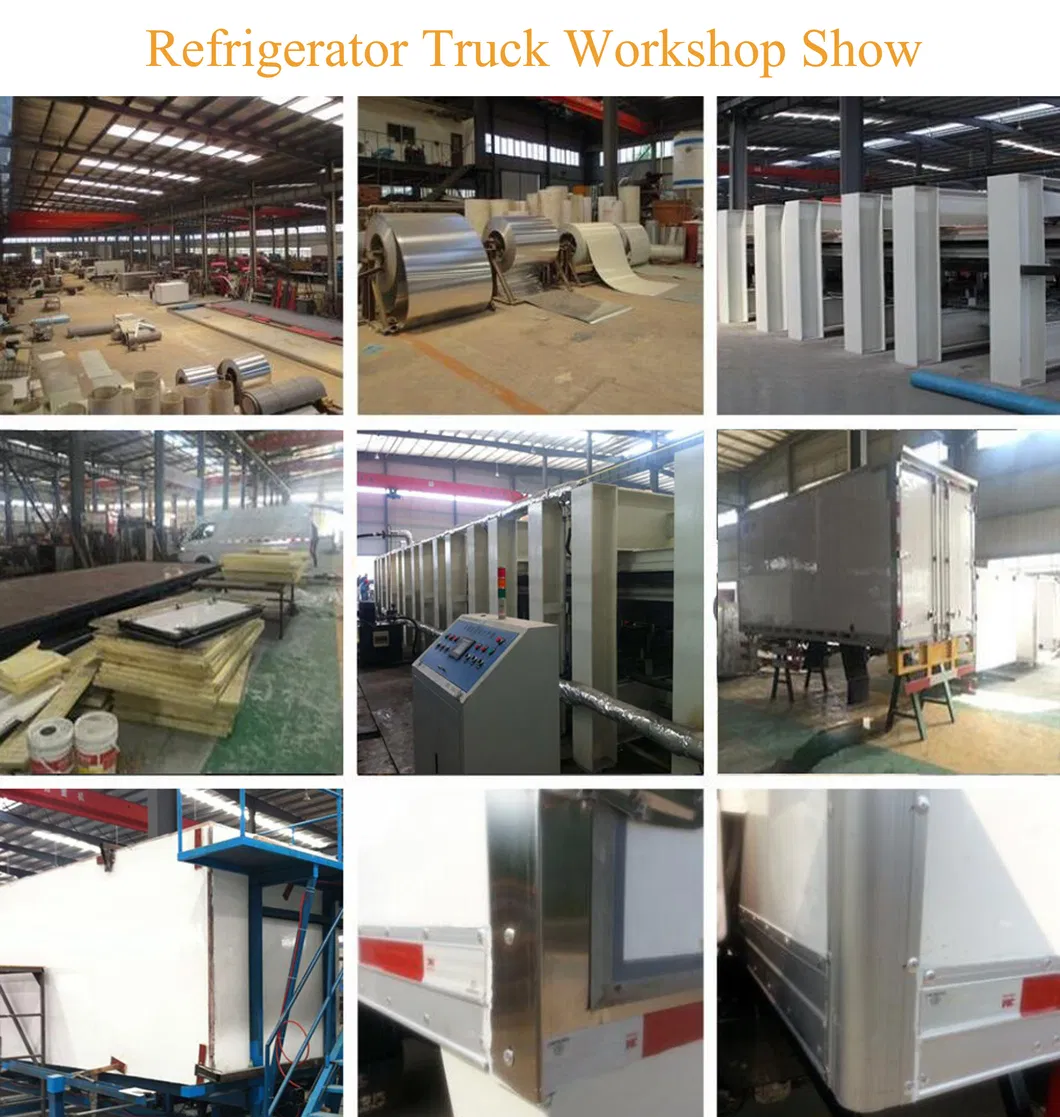

Detailed View 2

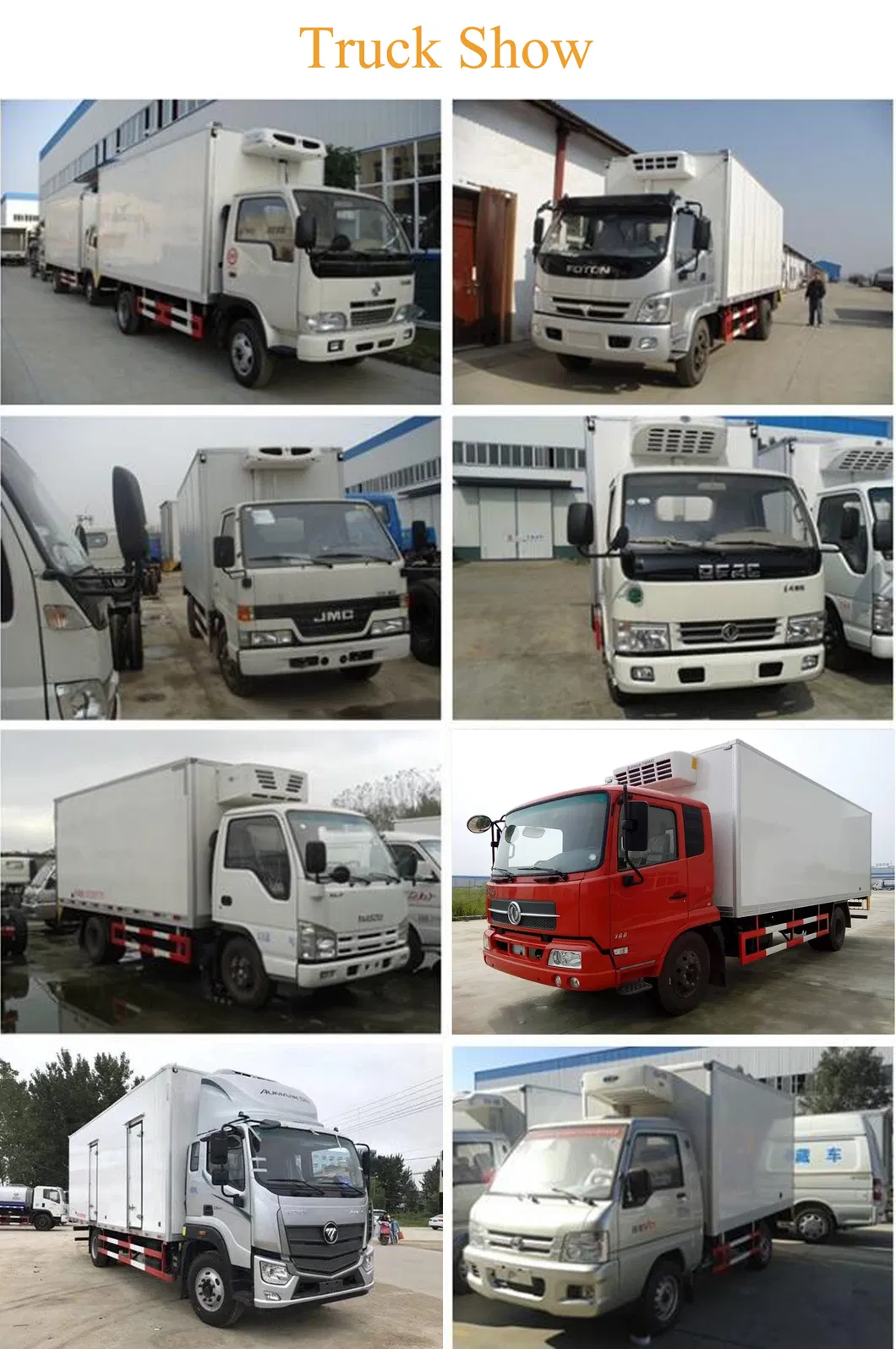

Hot Product Display

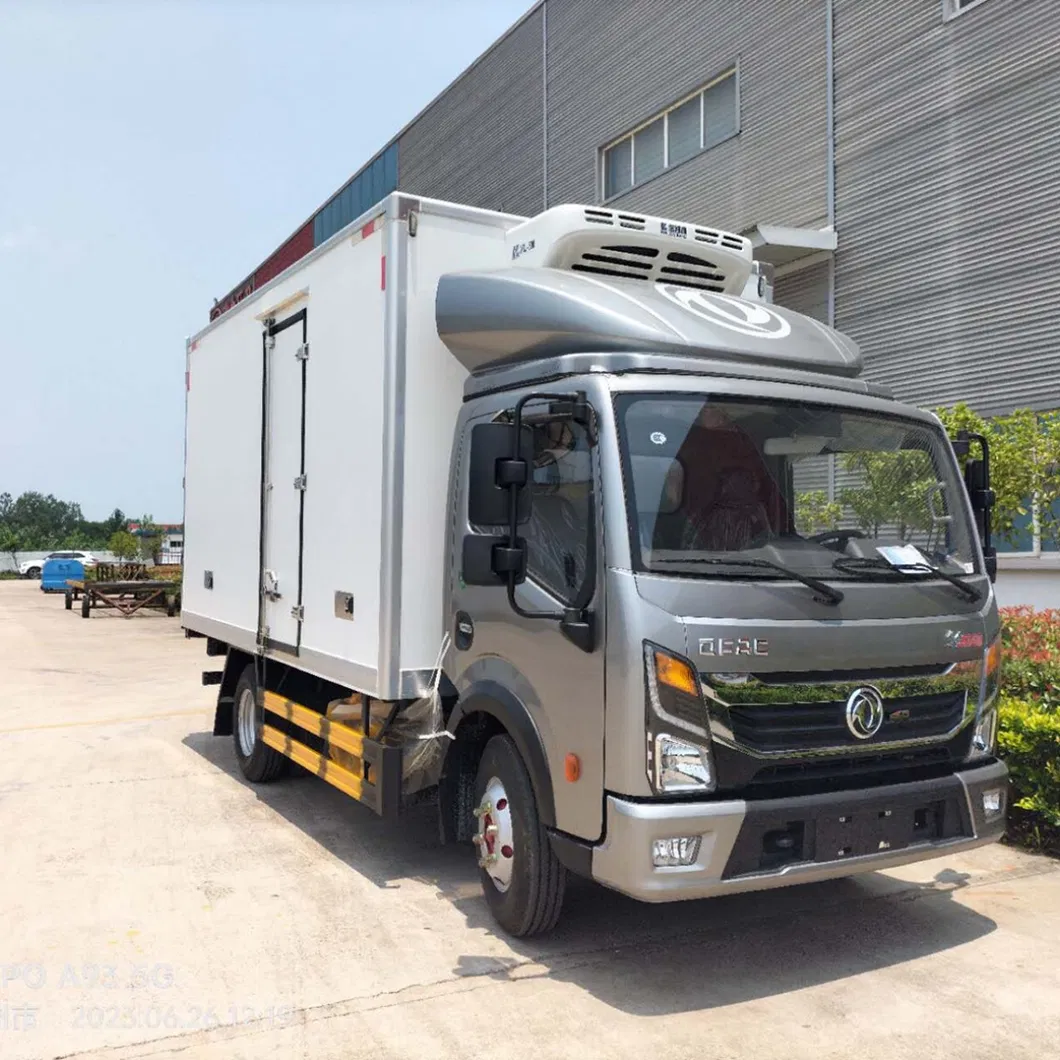

Interior Detail 1

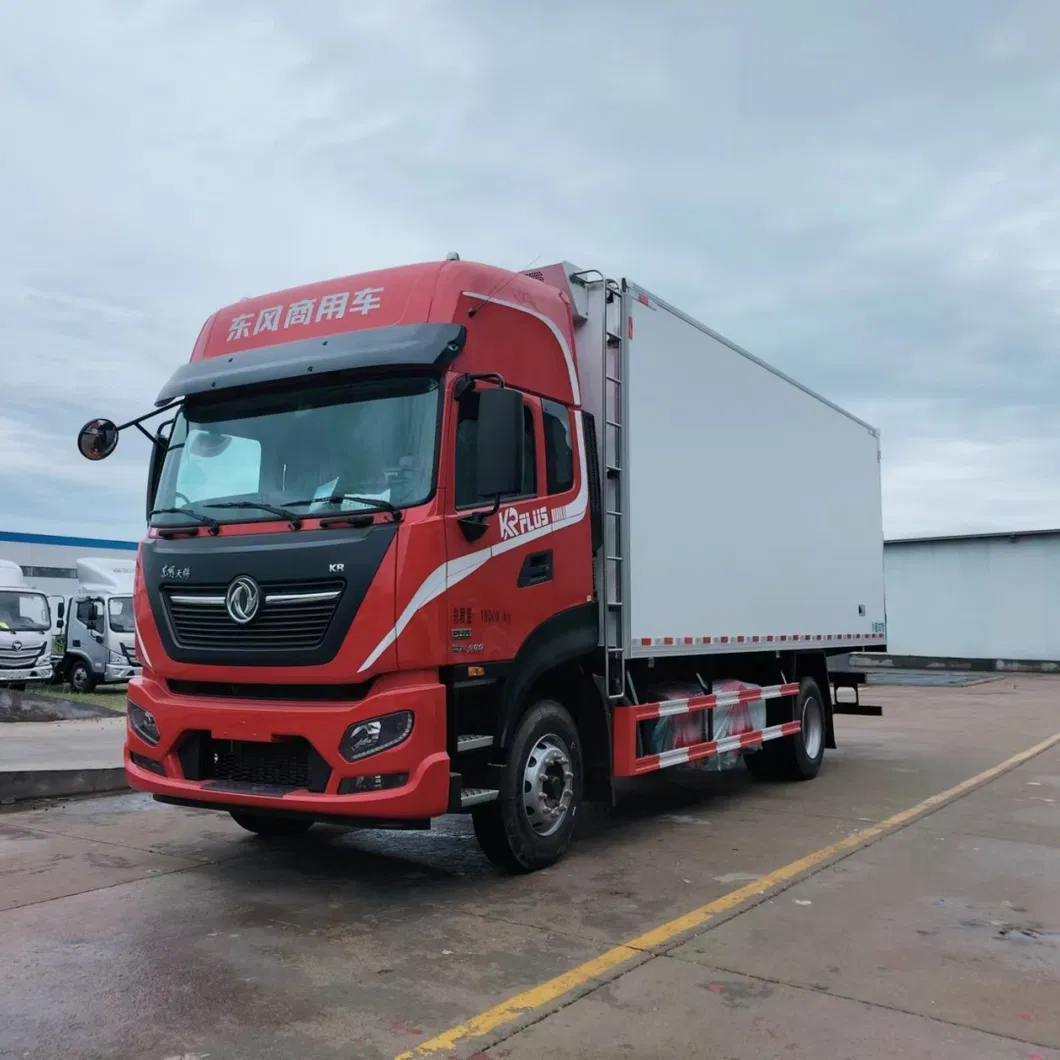

Interior Detail 2
🏢 Company Profile

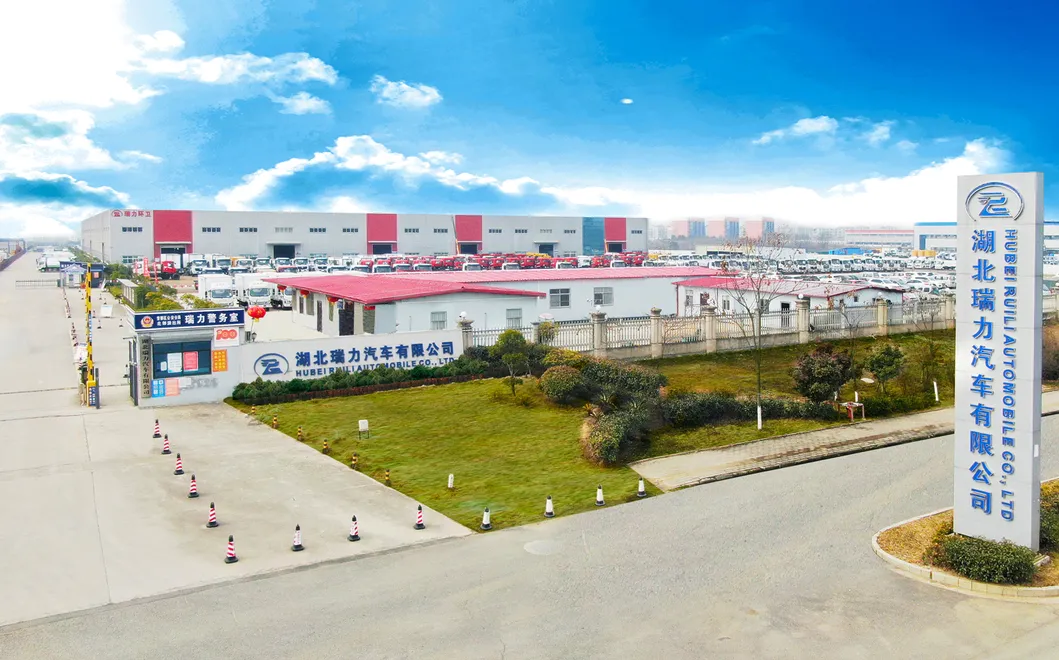

Factory Overview

Our company is a large-scale factory with diverse product lines including dump trucks, sewage suction trucks, aerial work platforms, crane trucks, refrigerated trucks, and more. We possess fully functional manufacturing workshops, electrophoresis facilities, and advanced testing centers. With over 14 utility model patents and a dedicated technical team, we integrate research, development, and vehicle modification.

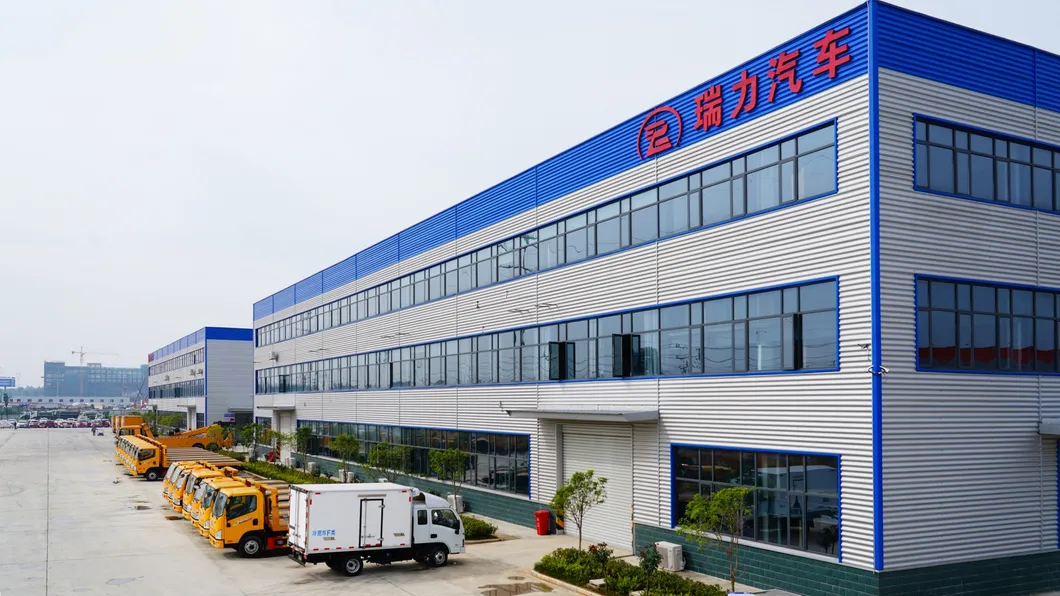

Workshop

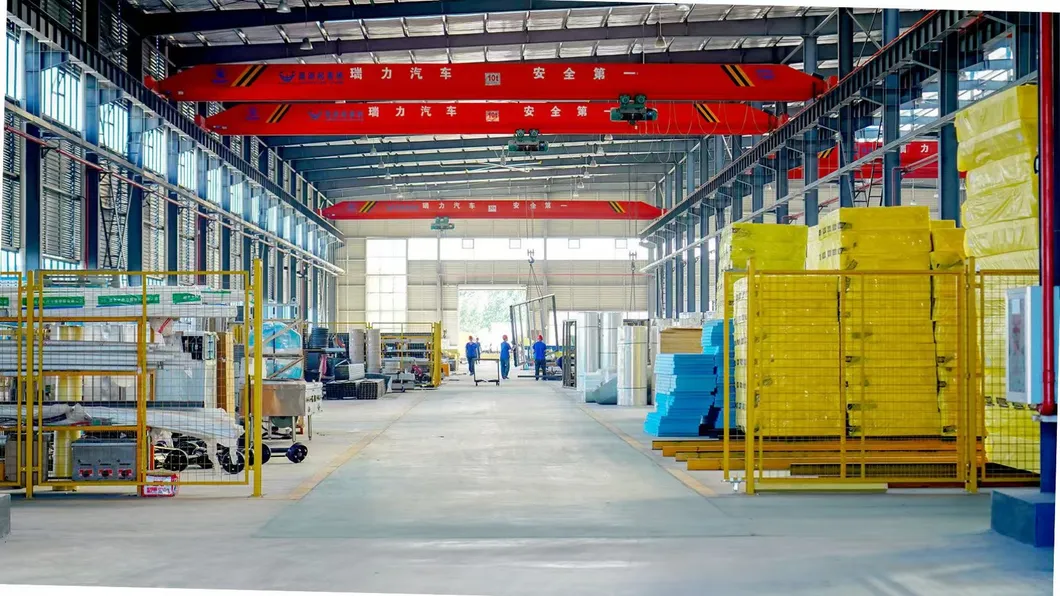

Production Line
🌟 Main Products

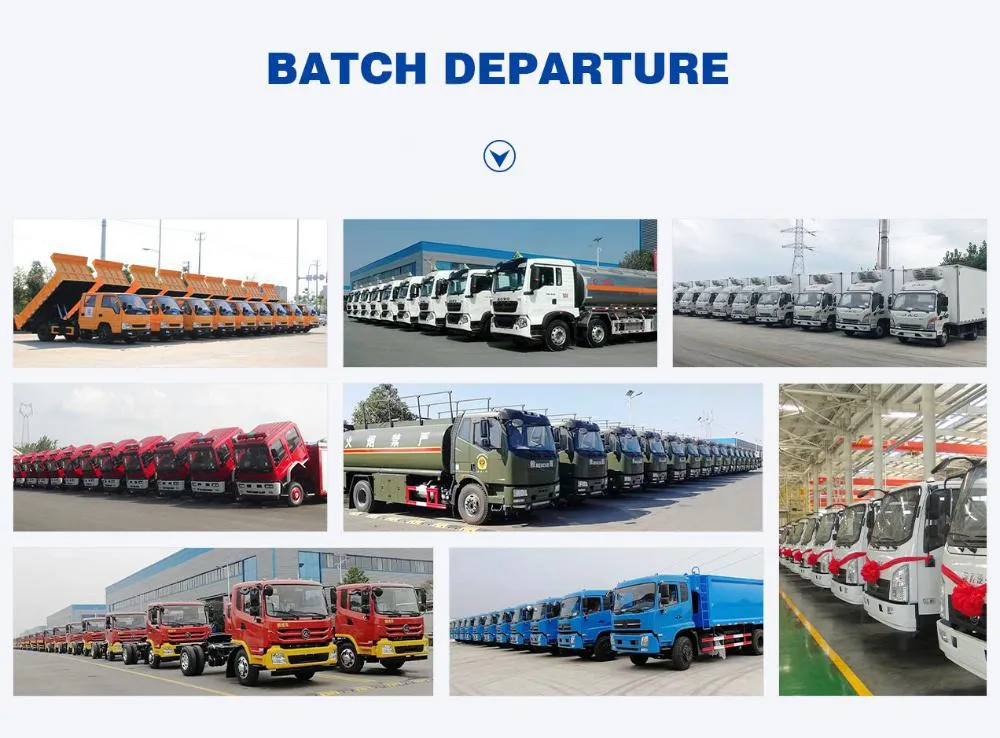

Product Range 1

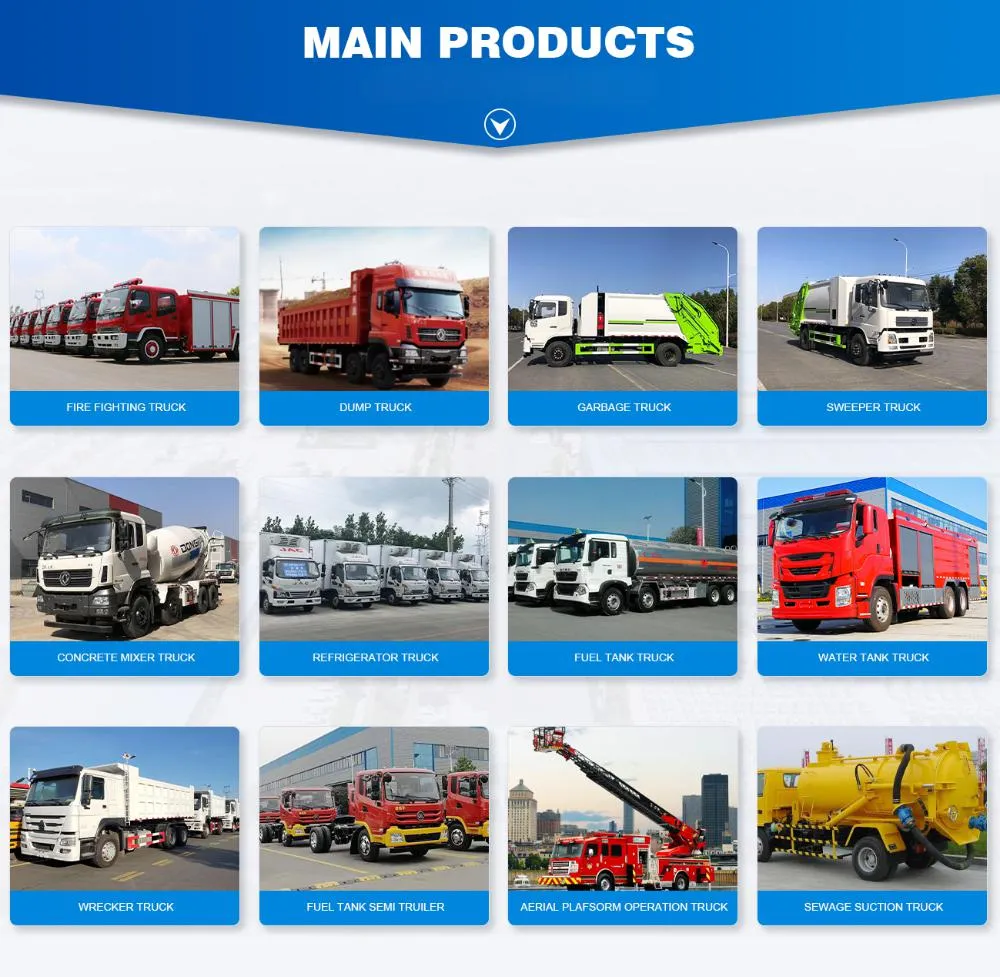

Product Range 2
  • LPG Tank Trucks
  • Water Sprinkler Trucks
  • Truck Mounted Cranes
  • Dump & Tipper Trucks
  • Fire Fighting Vehicles
  • Concrete Mixer Trucks
  • Refrigerated Van Trucks
  • Sewage Suction Trucks
  • High-altitude Operation Trucks
  • Garbage Compactor Trucks
🌍 Exhibition
Exhibition 1
Exhibition 2
Exhibition 3
❓ Frequently Asked Questions
What is the temperature range of the refrigerated box?
The truck is designed to maintain temperatures between -18°C and 0°C, making it suitable for both frozen and chilled goods.
What materials are used for the insulation layer?
We use 8cm thick XPS extruded polystyrene board for side and top panels, and 9cm for the bottom, ensuring A-level thermal insulation.
Can I choose a different refrigeration unit brand?
Yes, we offer various international and domestic refrigeration unit brands as options to meet your specific transport needs.
What is your monthly production capacity?
Our factory has a production capacity of approximately 500 units per month across our various specialized vehicle lines.
Do you provide technical training for the vehicles?
Yes, we provide both online and offline technical guidance and training to ensure your team can operate and maintain the vehicles effectively.
Is customization available for the truck body?
Absolutely. We can customize the bodywork, dimensions, and internal configurations based on specific customer requirements and cargo types.
