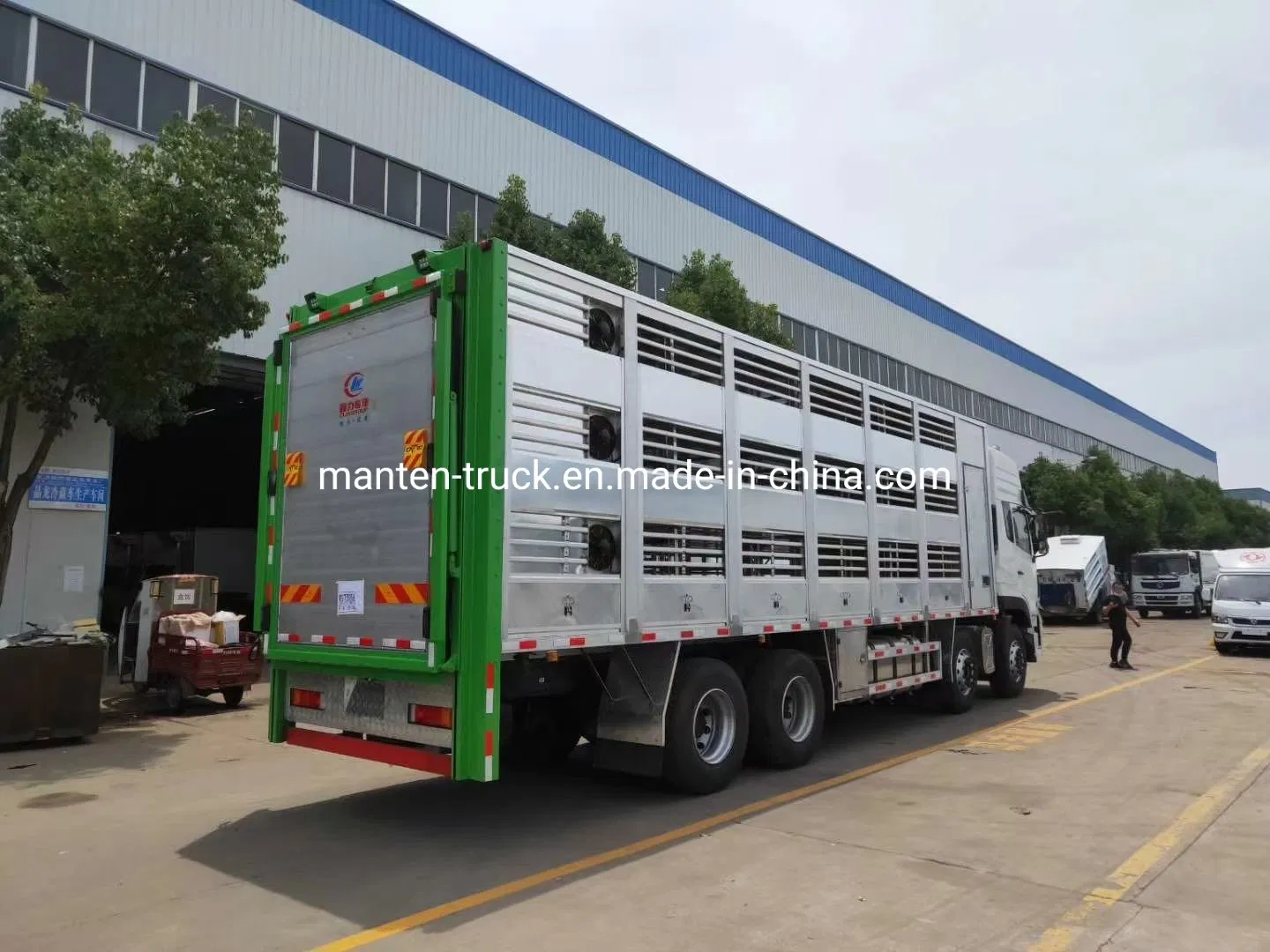

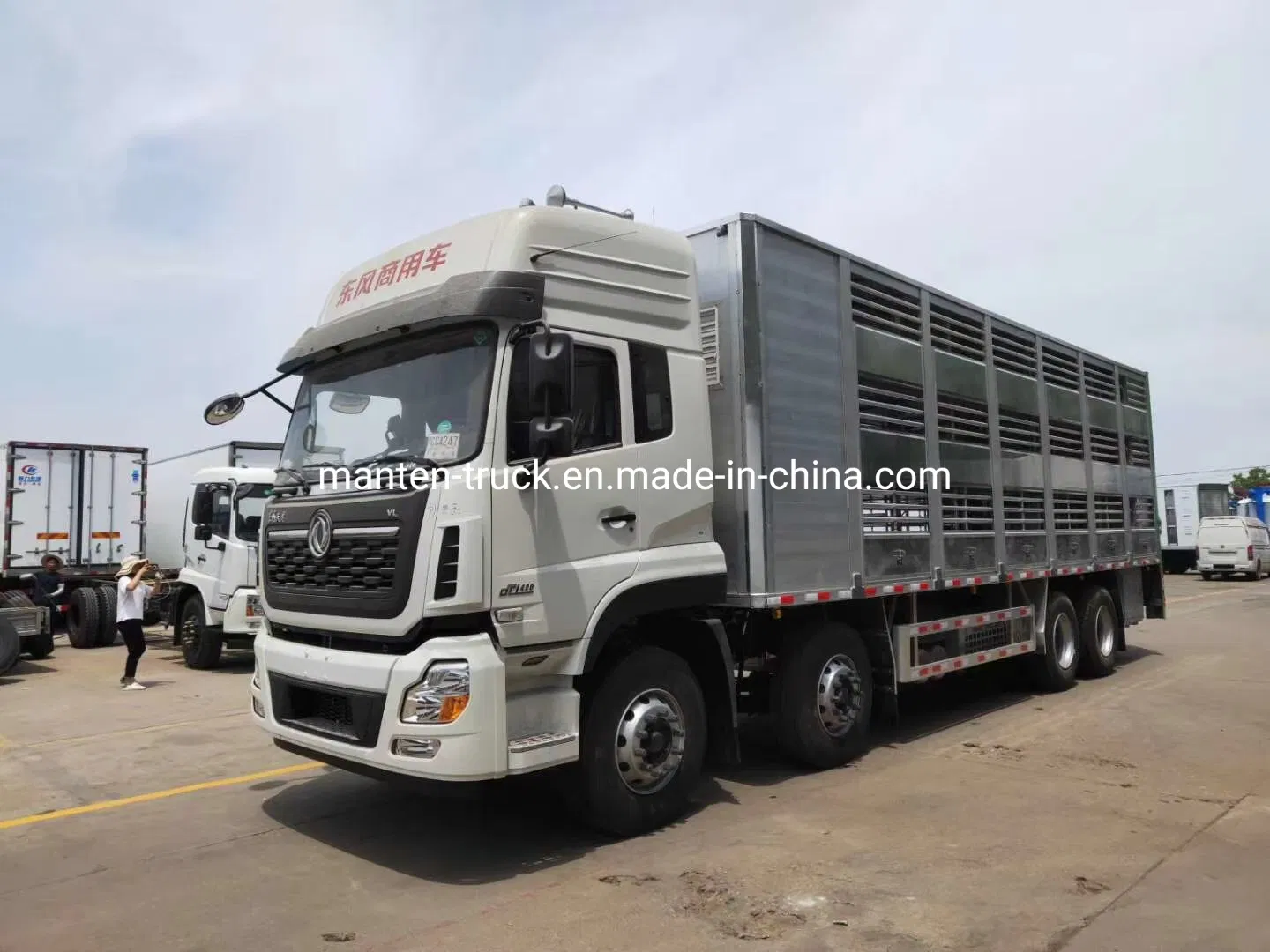

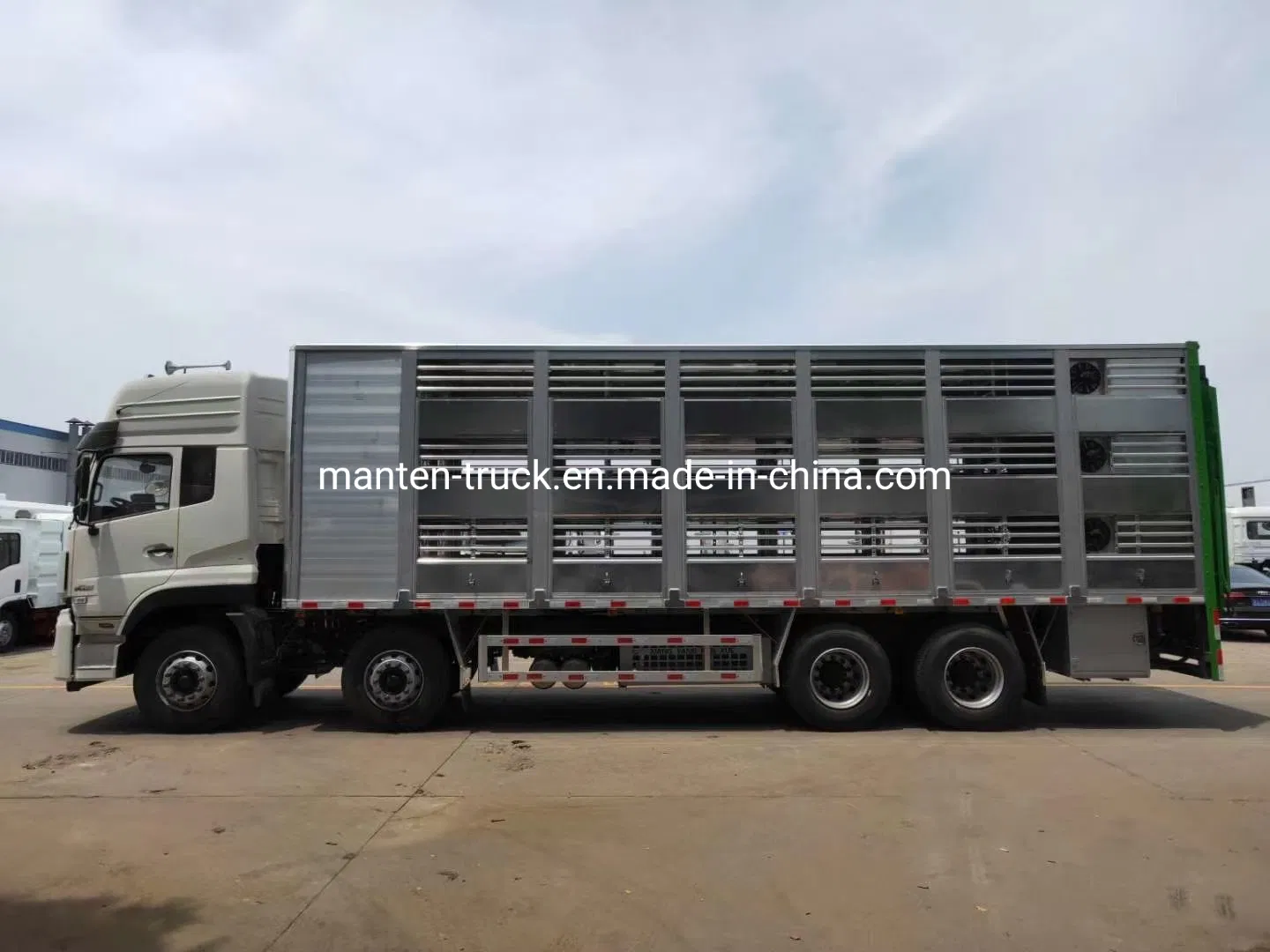

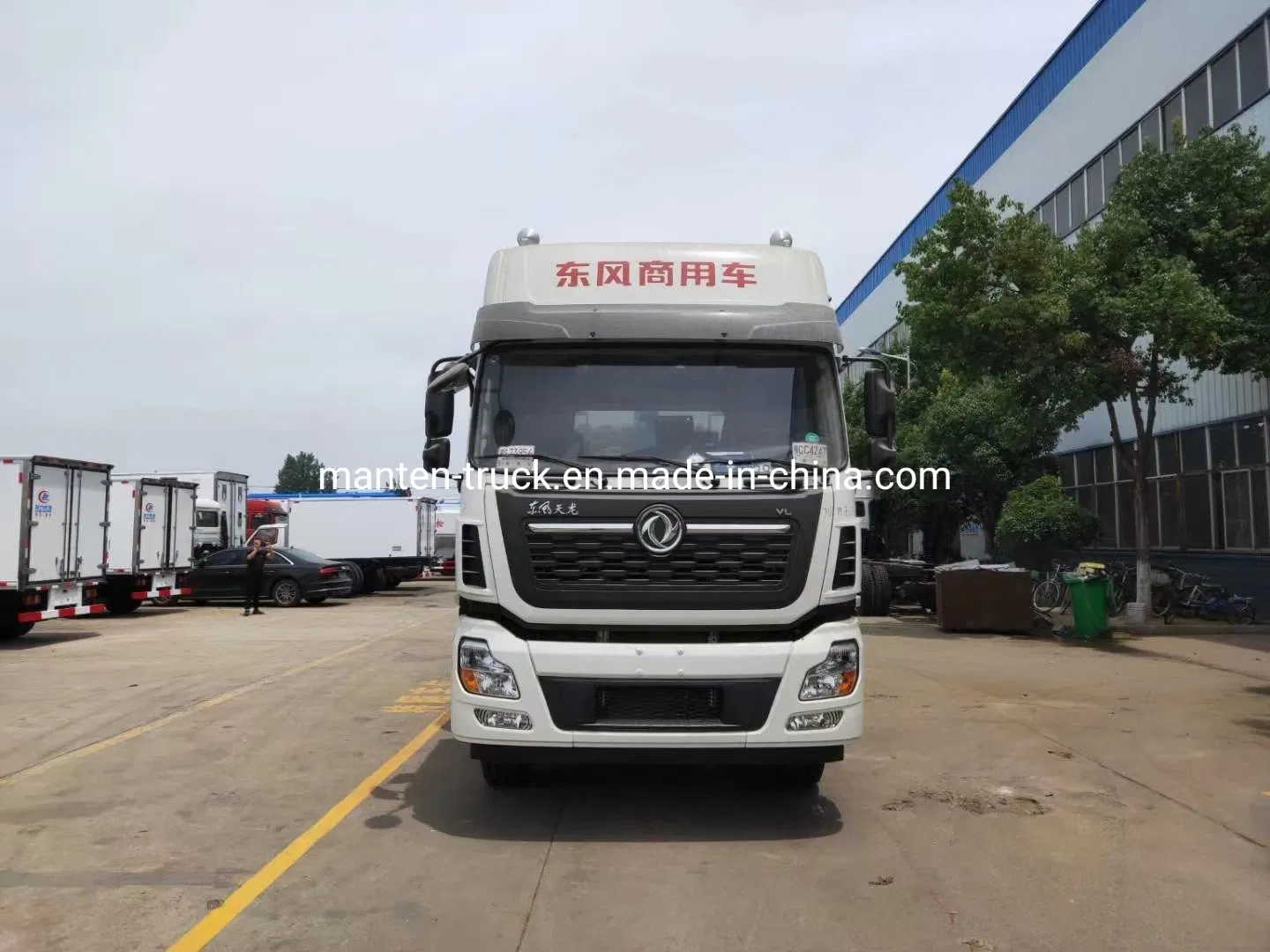

Livestock and poultry transport vehicle refers to the special vehicle specially used for the transport of livestock and poultry, including constant temperature pig transport trucks (aluminum alloy models), warehouse column type vehicles, and chicken seedlings transport units.
Designed to create the most appropriate environment for pigs, calves, chickens, and ducklings, these high-end transport vehicles effectively improve survival rates during long-distance transportation. The box design is clean, hygienic, and easy to maintain.
| Aluminum Alloy Pig Transport Truck Specs | |||
|---|---|---|---|
| General Info | Condition: 100% New | Warranty: 12 Months Basic / 3 Years Service | |
| Chassis | Gross Weight: 31,000 kg | Wheelbase: 1350+4500+1350 mm | Axle Load: 5000/25000 kg |
| Dimensions: 12000×2500×3200 mm | Max Speed: 90 km/h | Tires: 12 + 1 spare (10.00R20) | |
| Drive Type: 8x4 | Cab: 3 Seats with A/C | Gearbox: Manual, 10F + 2R | |
| Approach/Departure: 32°/18° | Overhang (F/R): 1450/1720 mm | ||
| Engine | Fuel: Diesel | Max Power: 231 kw | Horsepower: 315 HP |
| Displacement: 6494 ml | Cylinders: 6 | Torque: 500 N.m | |
| Intake: Water cooled | Emission: Euro 5 | ||
| Body | Tank Capacity: 25 Tons | Material: Carbon Steel / Aluminum | Thickness: 4mm - 5mm |
The truck is driven directly into the ship and secured. Best protection against rust and damage.
Lifted by crane onto the vessel deck. A cost-effective solution for large units.
Truck is loaded into a standard container. Suitable for smaller models.
