Best Price Top Brand Fast Deliver 37m Concrete Pump Truck Syg5260thb 370c-10

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Info.

Model NO.

SYG5260THB 370C-10

Type

Concrete Pump

Productivity

160m³/H

Certification

ISO9001: 2000, CE

Weight

26500kg

Vertical Reach

36.5m

Horizontal Reach

31.8m

Specification

11250x2550x3850mm

Condition

New

Origin

China

Product Description

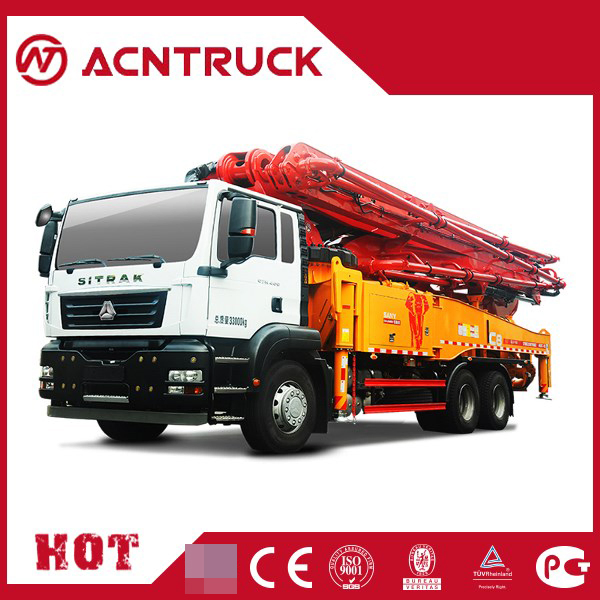

37m Vertical Reach 160m3/h Concrete Pump Truck SYG5260THB 370C-10

Energy-saving

With cycle times of up to 29 per minute (at 12MPa), pump efficiency is increased up to 25% while fuel consumption is decreased by up to 10%.

Safety

Our C8 series truck mounted concrete pump exemplifies precise, rigorous manufacturing philosophy and uncompromising focus on safety.

Wear Resistant

The highly wear resistant parts improve efficiency and reduce down time significantly during heavy-duty operations.

Self-diagnosis

Continually monitors more than 200 aspects of the system. Faults are displayed on the monitor, reducing troubleshooting time by 70%.

Product Parameters

SPECIFICATIONS FOR SYM5230THB
Engine	Displacement	L	7.684
Engine	Gross Power	Kw	194
Performance	Operating weight	Kg	23000
	Fuel capacity	L	400
	Max. Speed Forward	Km/h	85
Hydraulic	Hydraulic system	KPa	50.1
	Main pump	KN	161
	Rate flow	KN	125

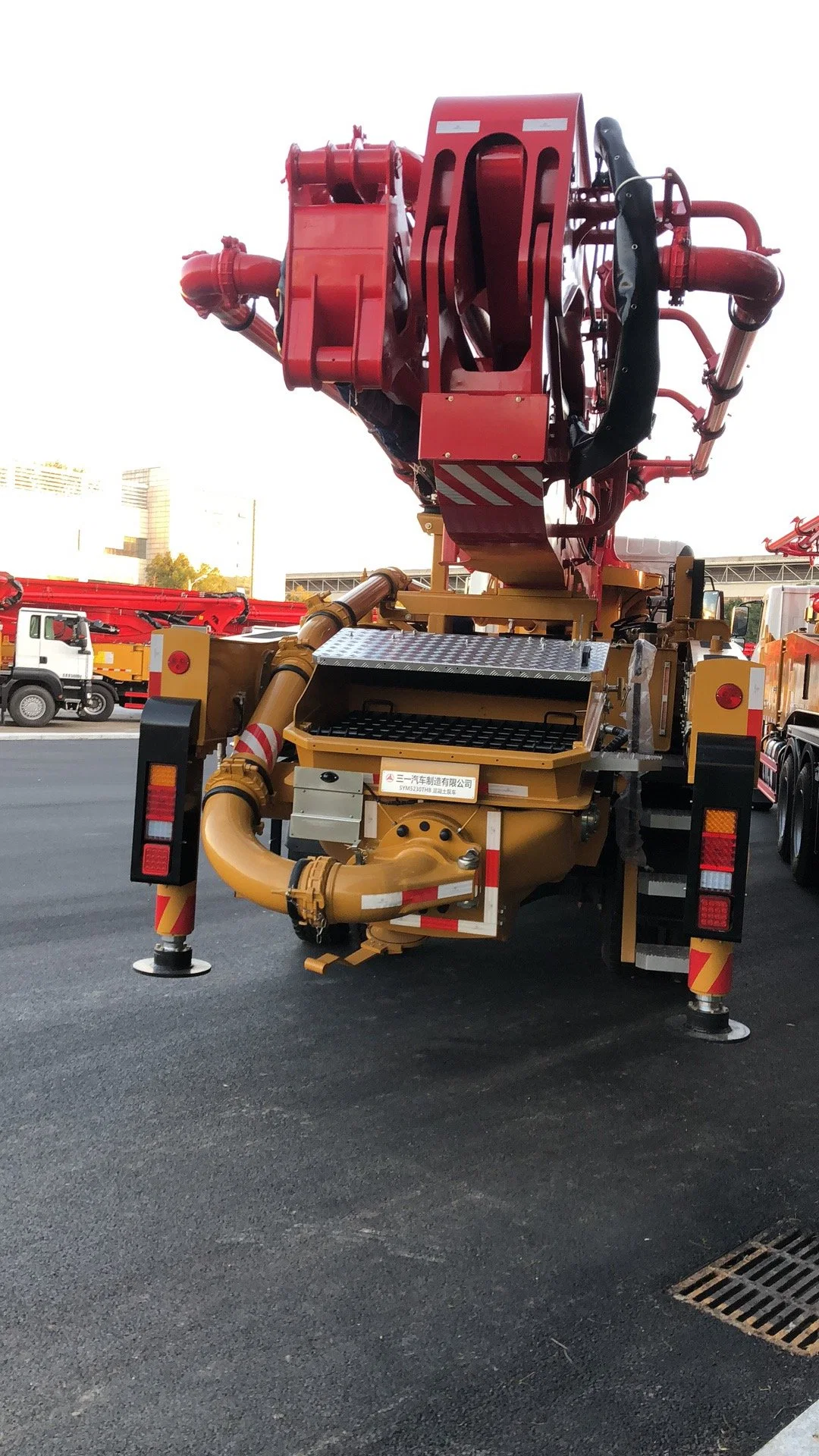

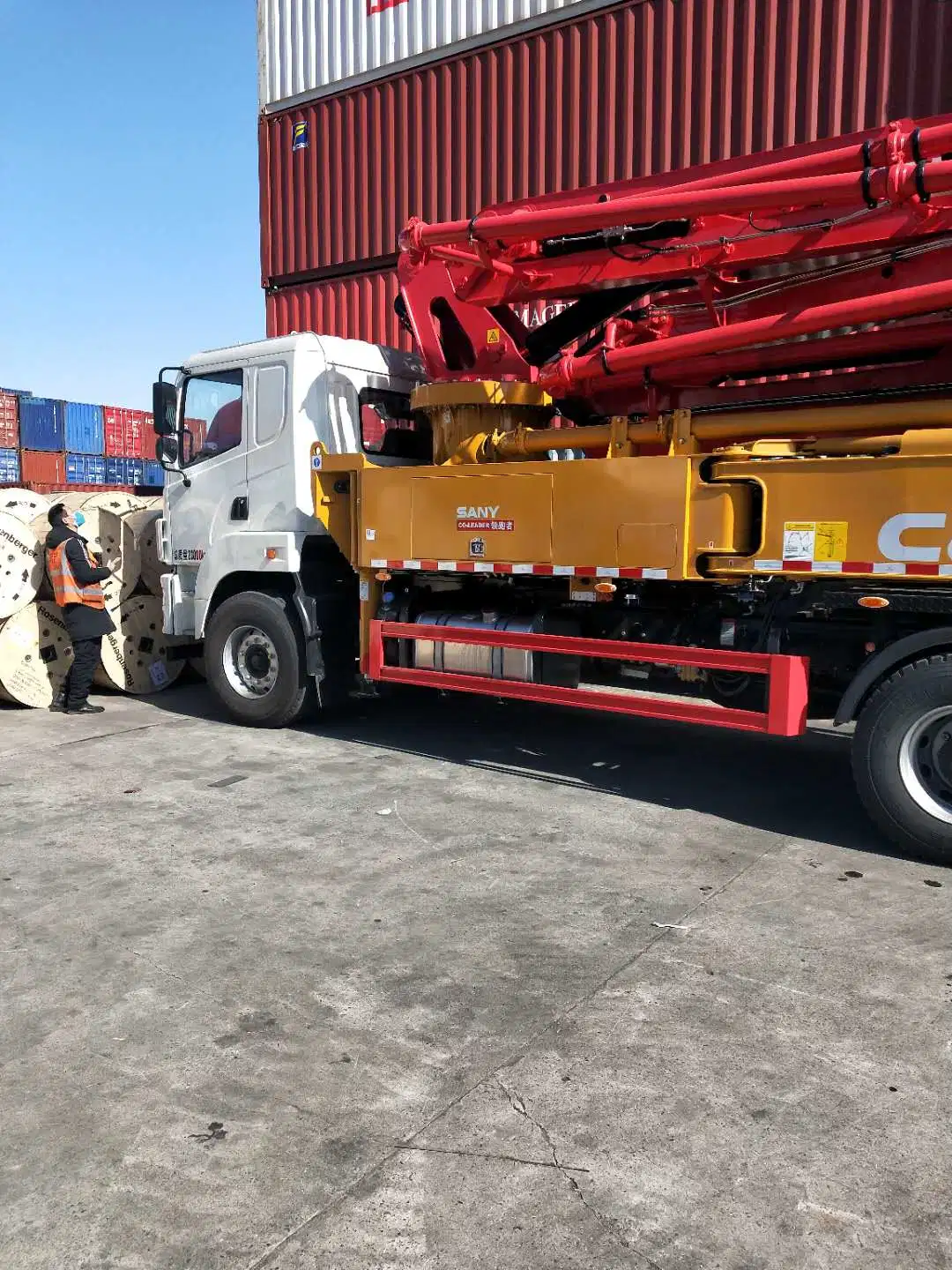

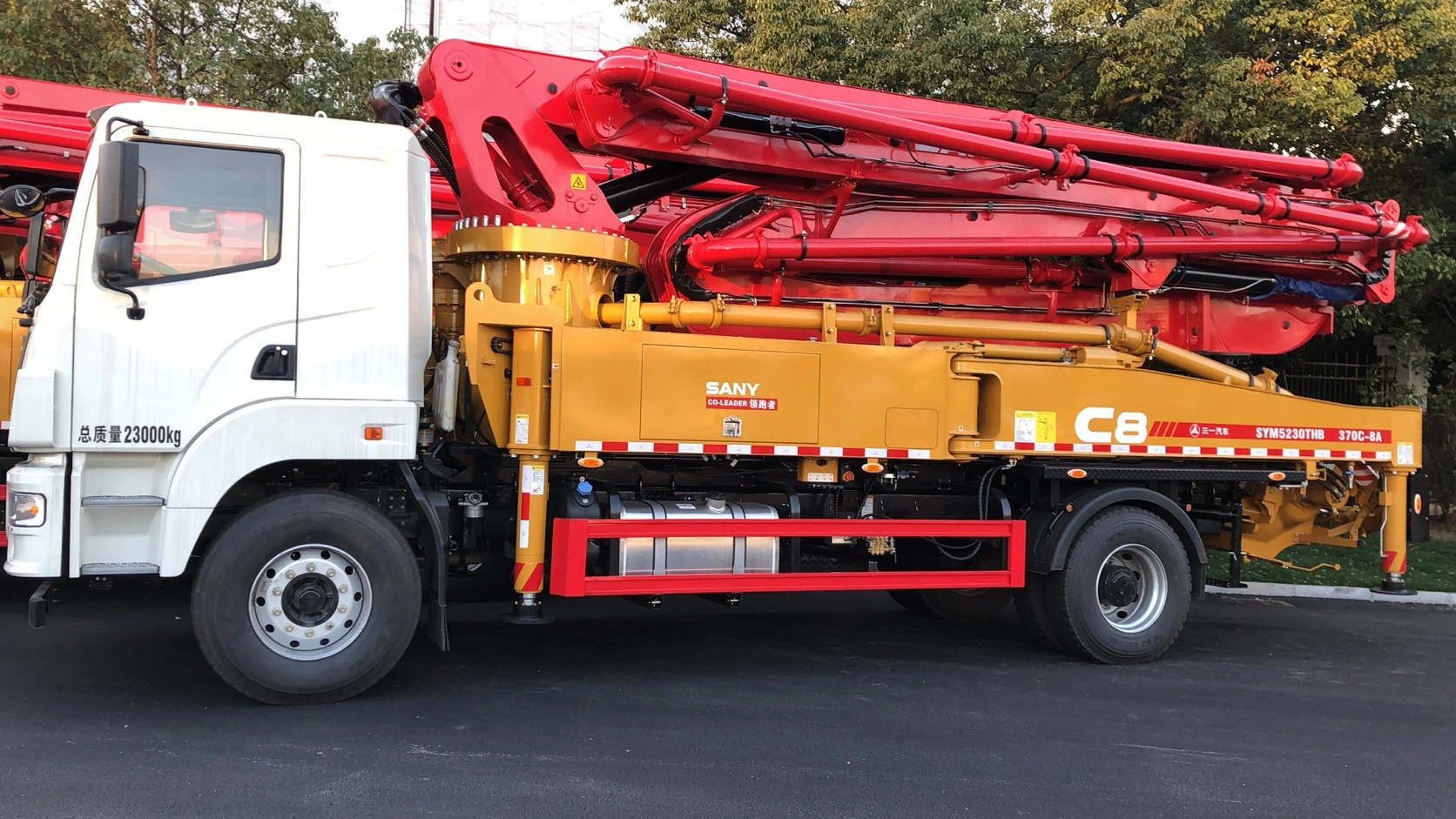

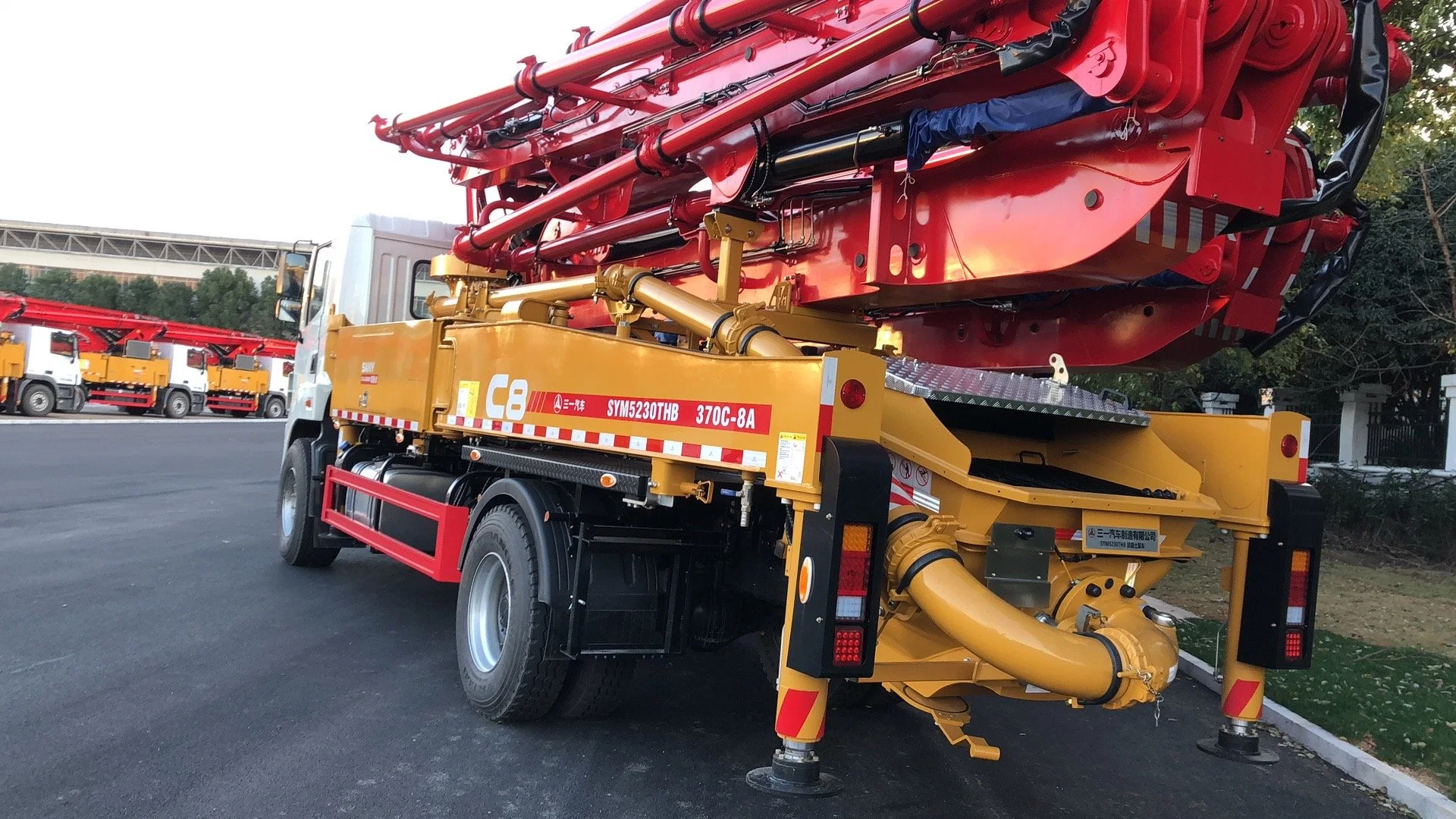

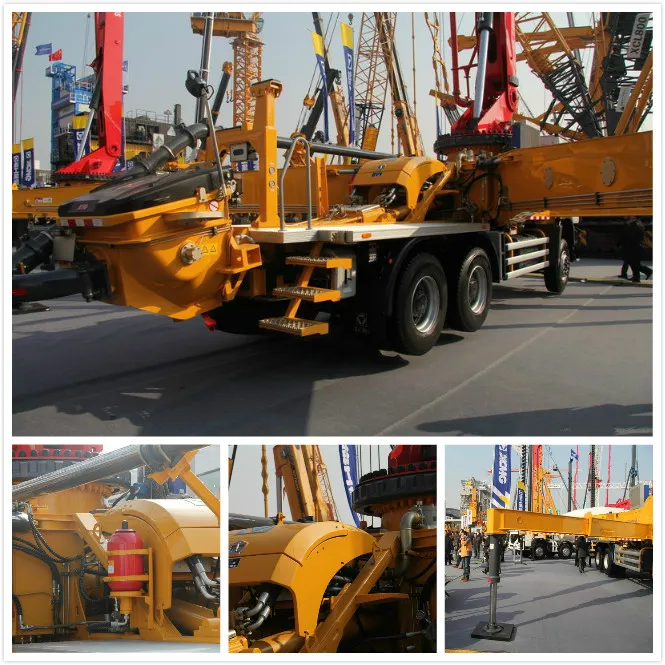

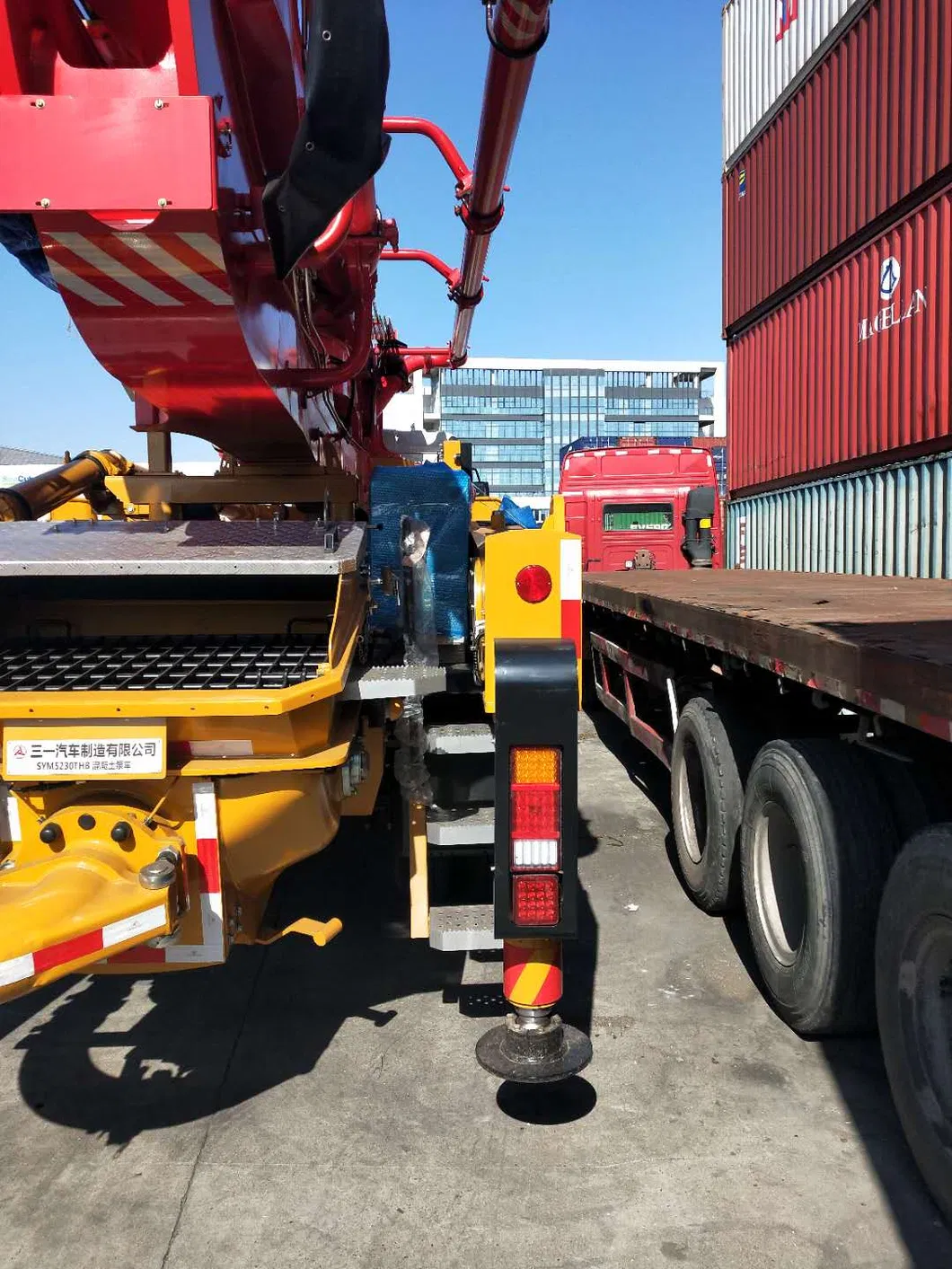

Detailed Photos

Frequently Asked Questions

Q1: What is the maximum vertical reach of the SYG5260THB 370C-10? A: The truck mounted concrete pump has a maximum vertical reach of 36.5 meters.

Q2: How does the energy-saving technology work? A: It utilizes cycle times up to 29 per minute at 12MPa, increasing pump efficiency by 25% while reducing fuel consumption by approximately 10%.

Q3: What are the productivity capabilities of this model? A: This model offers a high productivity rate of up to 160m³/h.

Q4: What is the benefit of the self-diagnosis technology? A: It monitors over 200 system aspects in real-time, displaying faults on a monitor to reduce troubleshooting time by up to 70%.

Q5: Is this equipment certified for international standards? A: Yes, it is certified with ISO9001: 2000 and CE standards, ensuring global safety and quality compliance.

Q6: What type of machining process does this pump use? A: It operates using a professional hydraulic cylinder-type machining process for maximum stability.
