Flex Truck
1 / 5

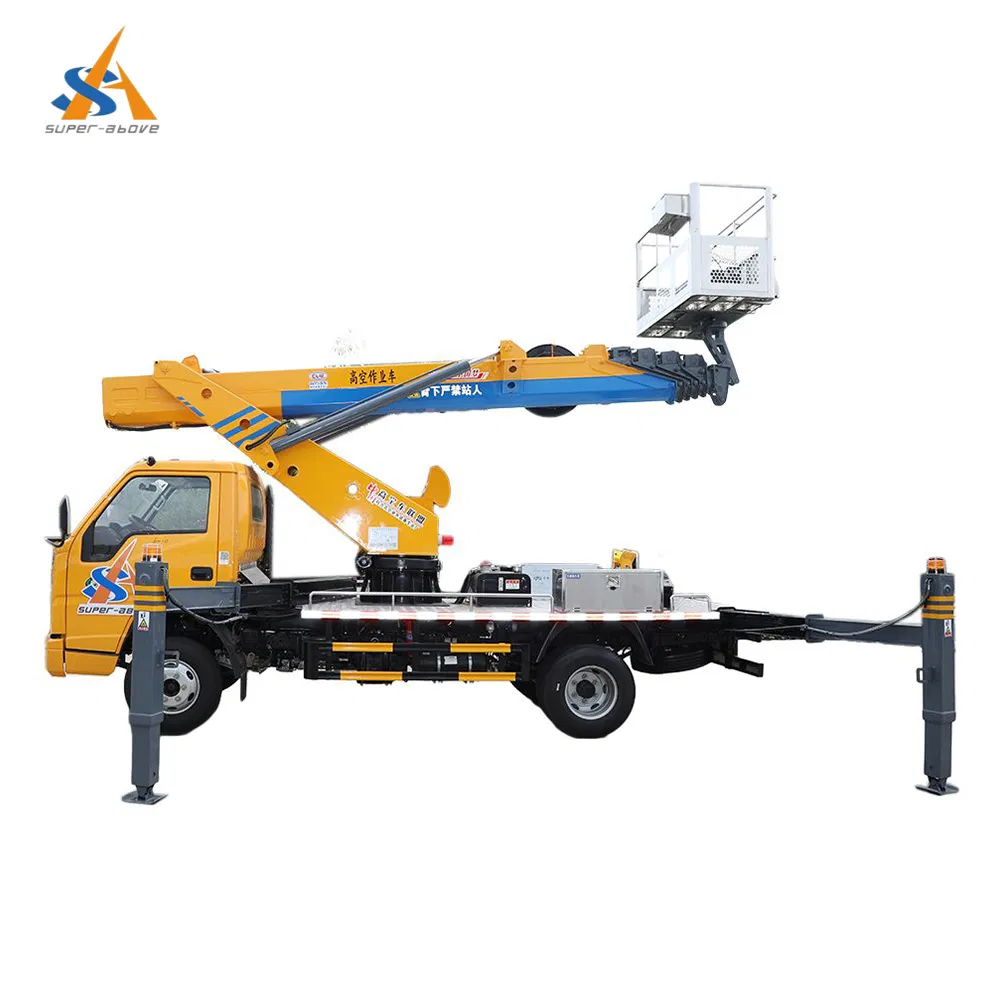

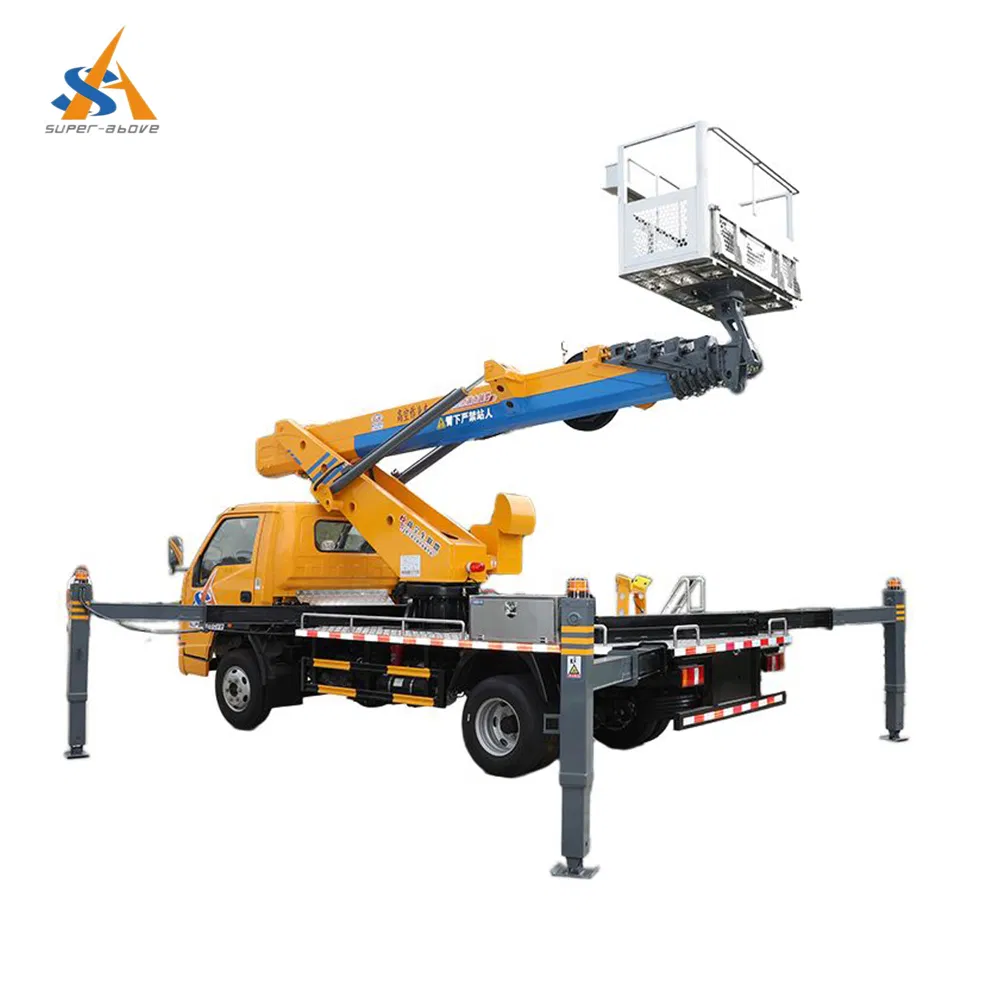

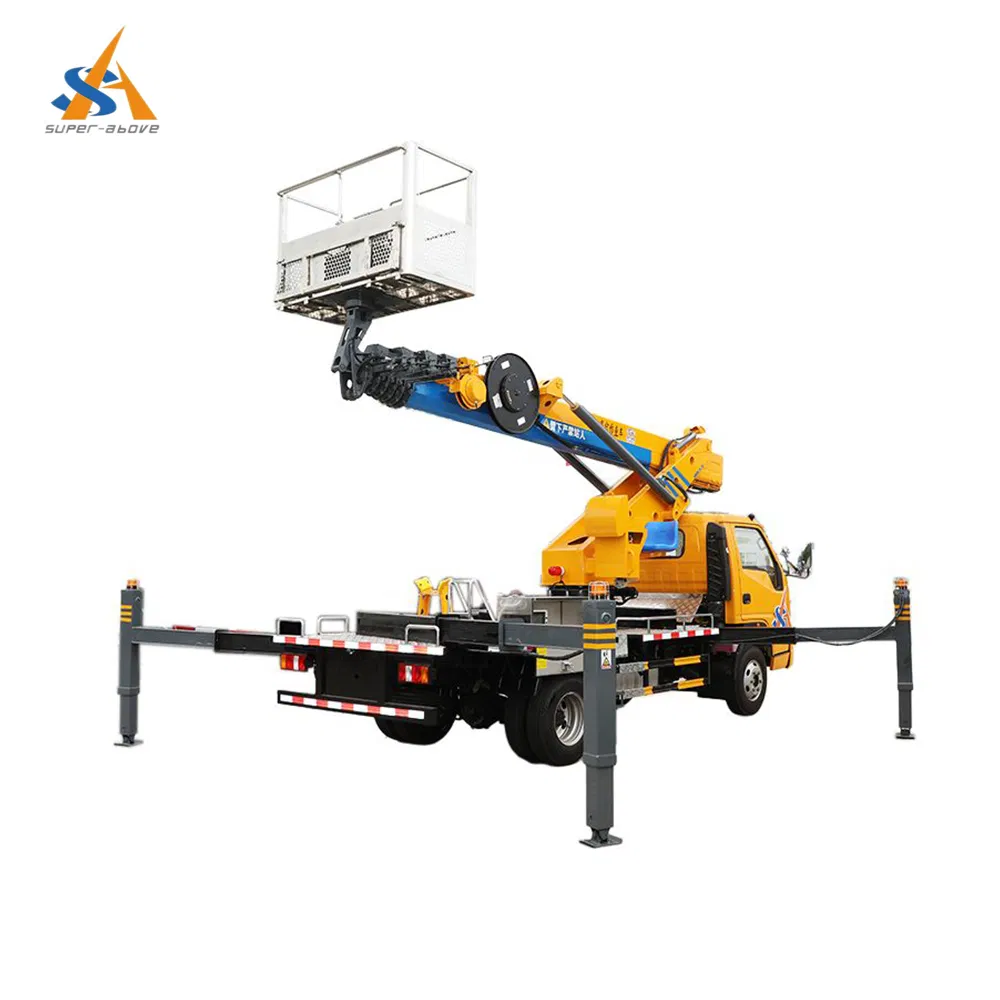

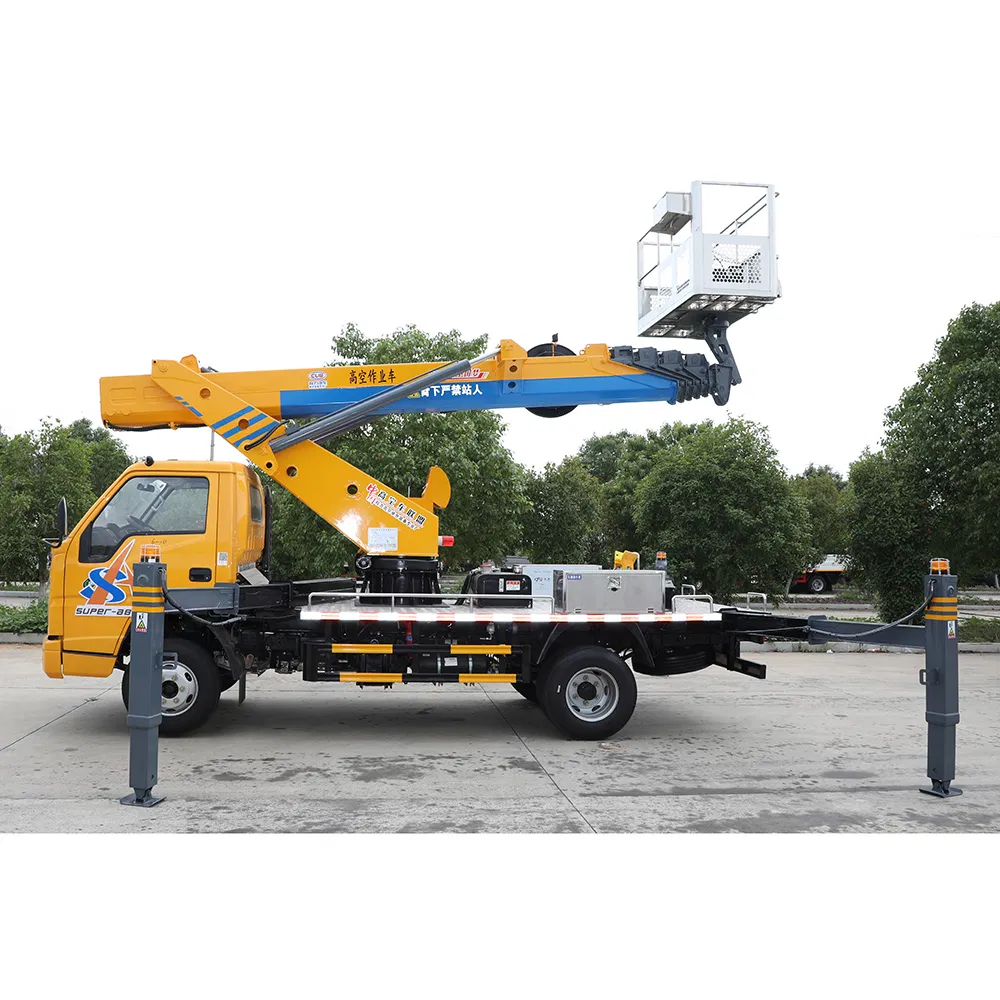

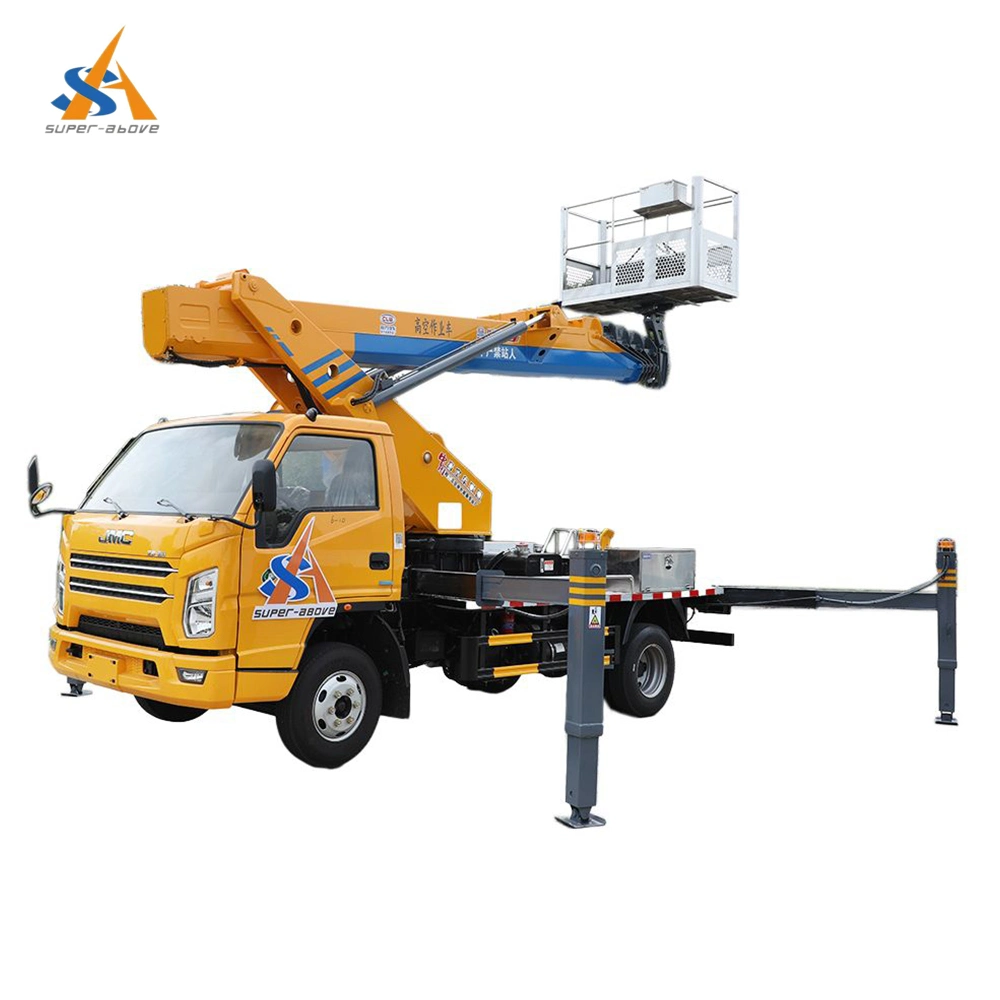

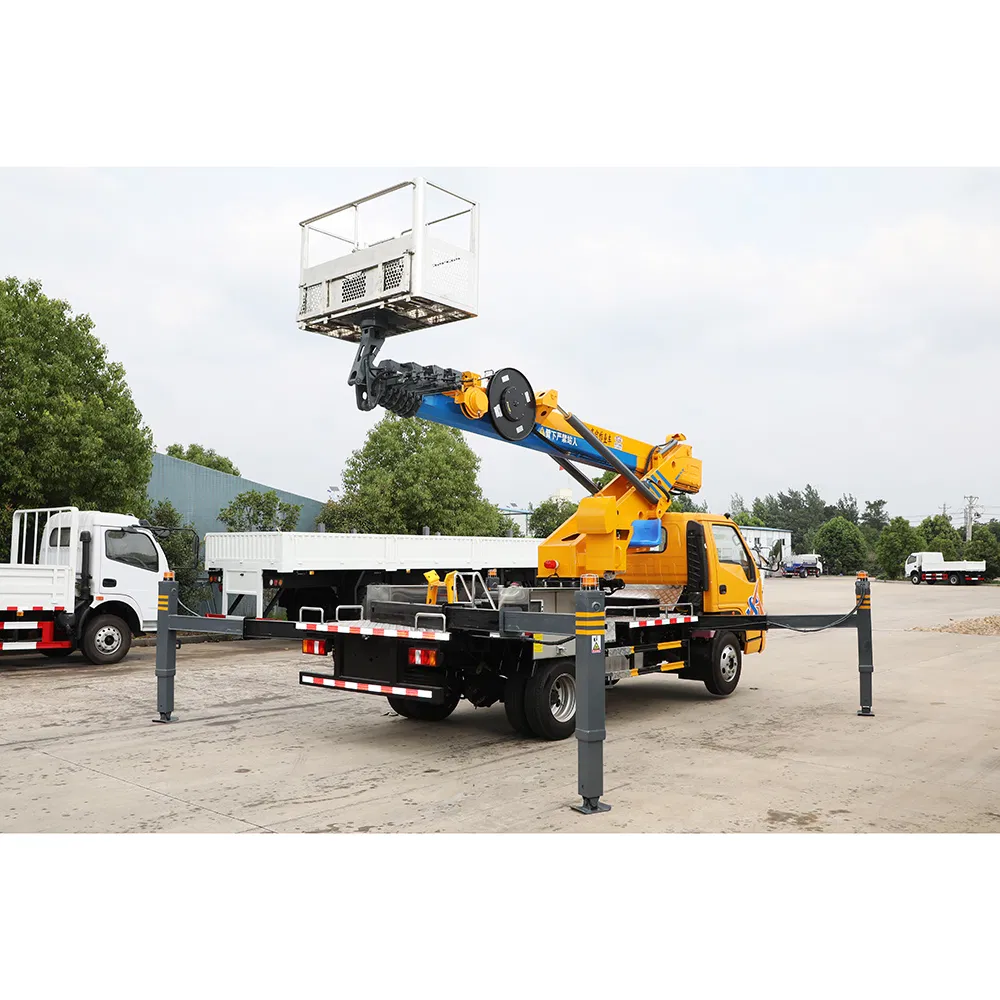

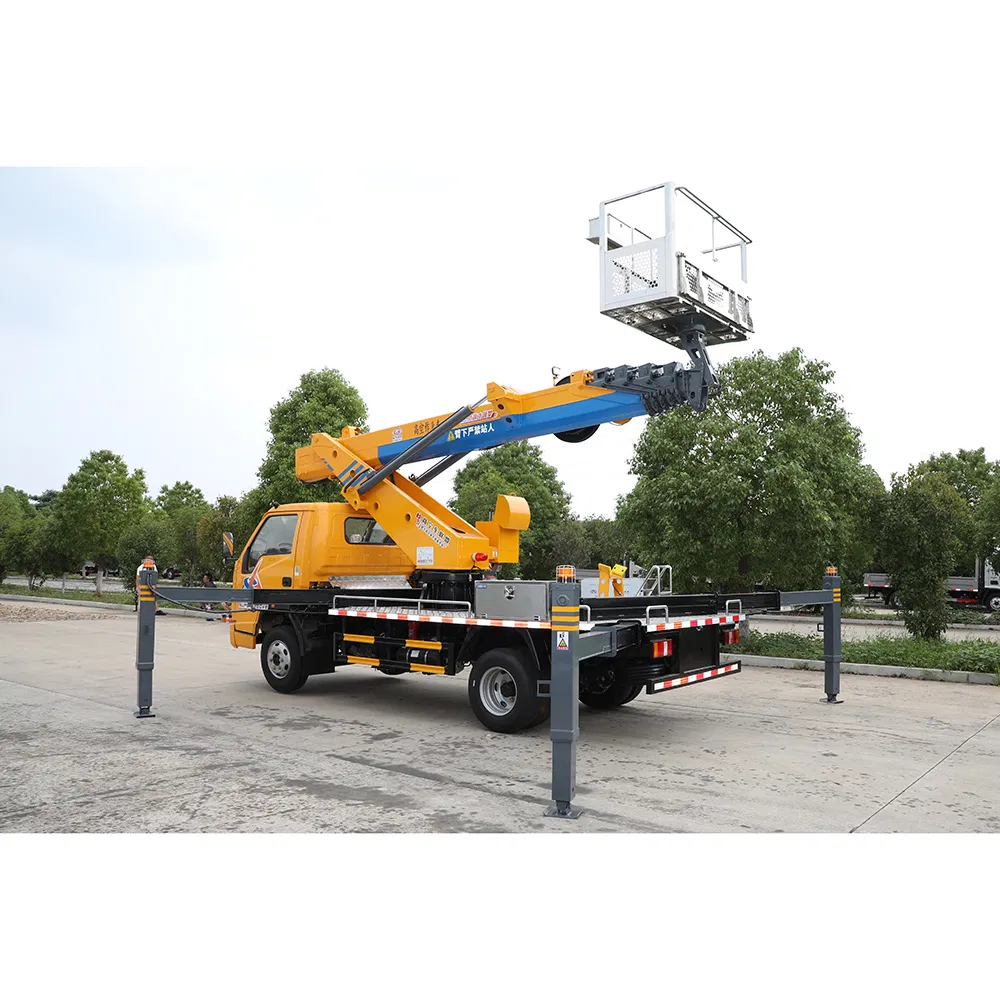

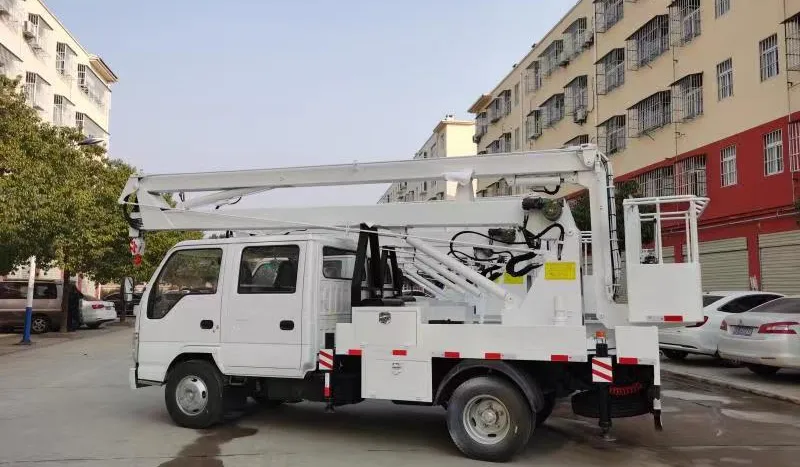

Aerial platform operation truck is special purposed truck of transporting workers and equipment to operating in the high aerial. It could reach the different demand of maintenance streetlight, traffic light, garden operation, communication operation, signboard setting/cleaning and other high aerial works.
| Vehicle Description | Details | |
|---|---|---|
| Overall dimensions | 5995*1990*3000mm | |
| GVW / Curb weight | 4495kg / 4365kg | |
| Chassis brand | Dongfeng, howo, schaman, jac | |
| Traction type | 4X2 | |
| Arm Specification | Model | 3-section folding arm |
| Max working radium | 5-12m | |
| Max working height | 6-28m | |

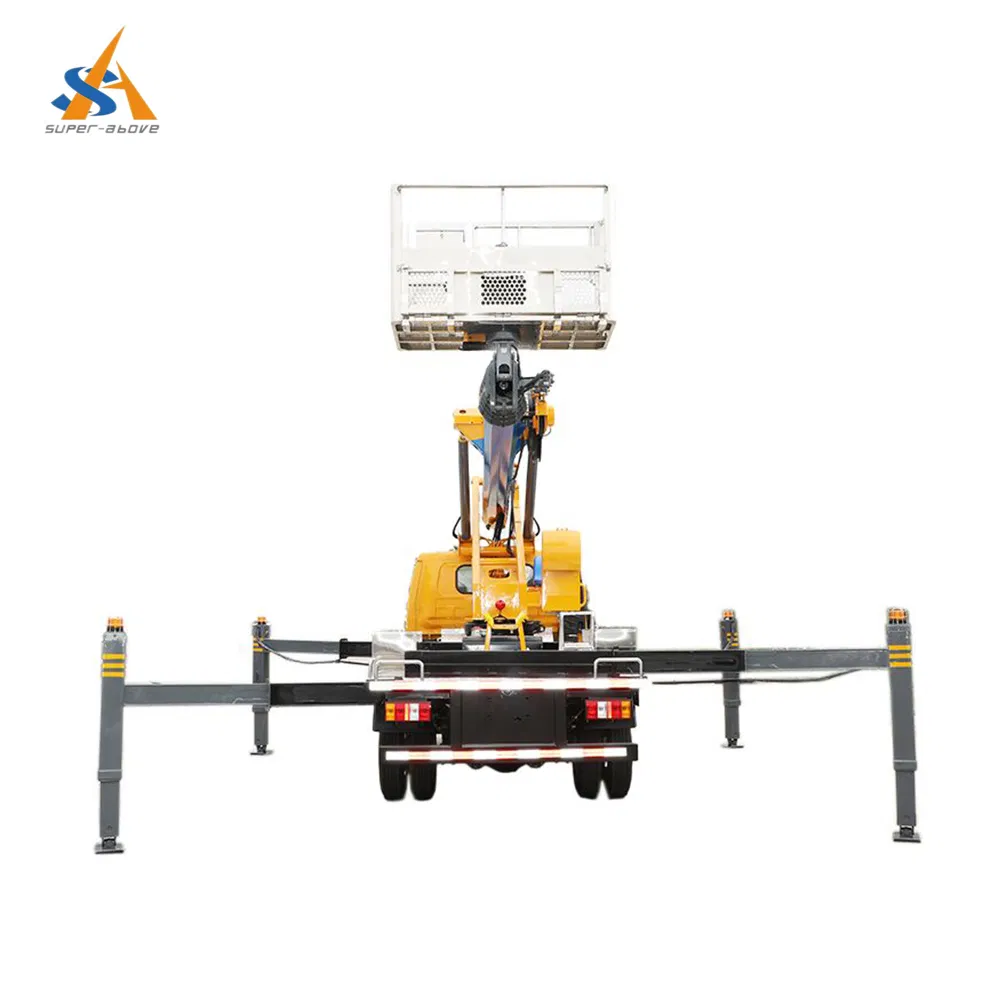

| Landing leg | Type | H-type |
| Span (Long/Trans) | 2430mm / 1670-2780mm | |
| Hanging basket | Rated load | ≤200kg |
| Dimension | 1080×610×1100mm | |
| Engine | Model | 4KH1-TCG40 |
| Emission / Output | Euro 4 / 88kw | |
| Horse power | 120hp | |
