Overview
Basic Specifications
Model:SXF5360GXFJX120/F-Attack
Type:Rescue
Certification:ISO9000, CCC, CE
Volume:＞10000L
Emission:Euro V
Transmission:Automatic
Payload:39t
Fuel:Diesel
Drive:6X6
Horsepower:＞450hp
Capacity:12000L Water, 1500L Foam
Water Pump:100L/S @ 10bar
Packaging & Delivery
Package Size:1200cm * 300cm * 400cm
Gross Weight:16000.00kg
Product Description

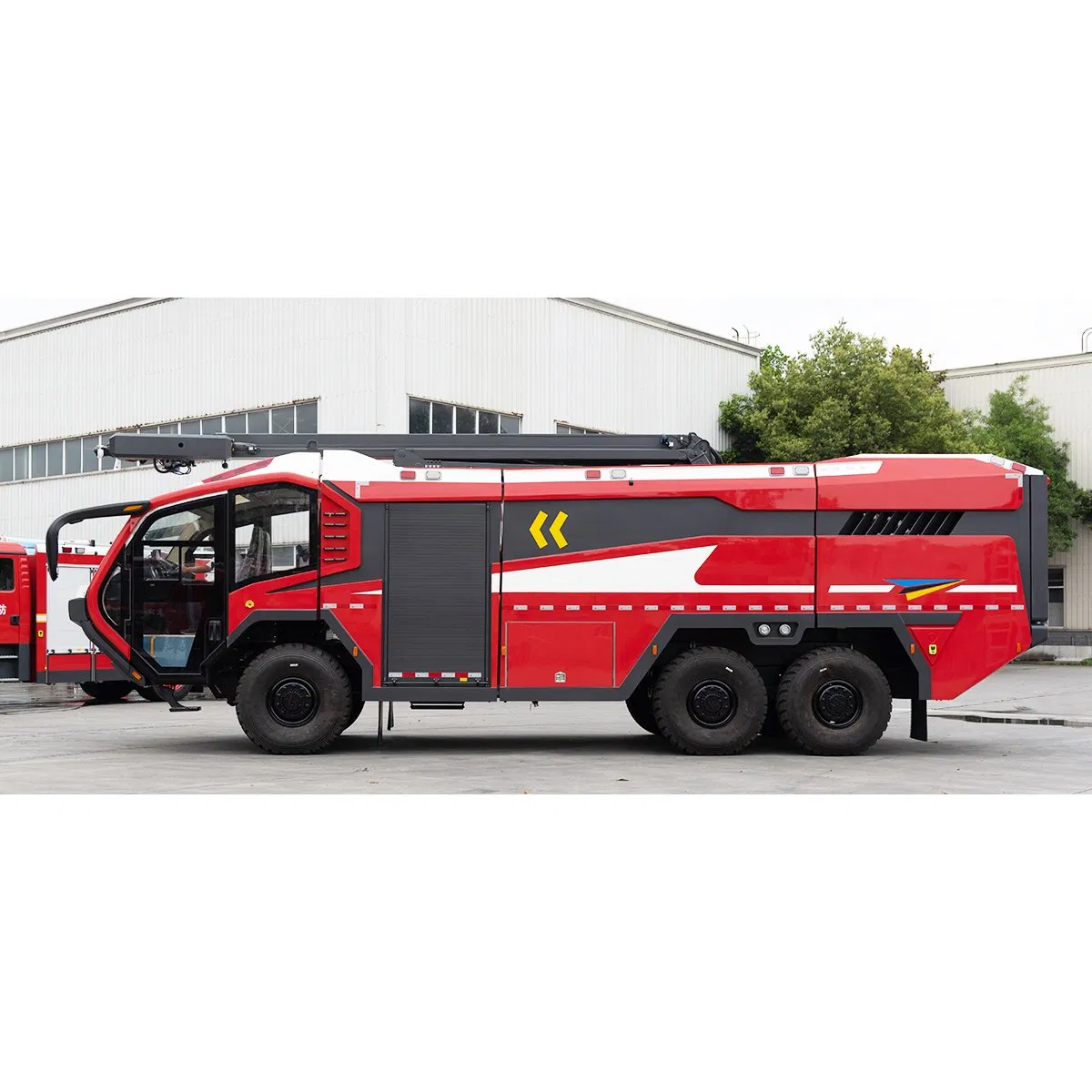

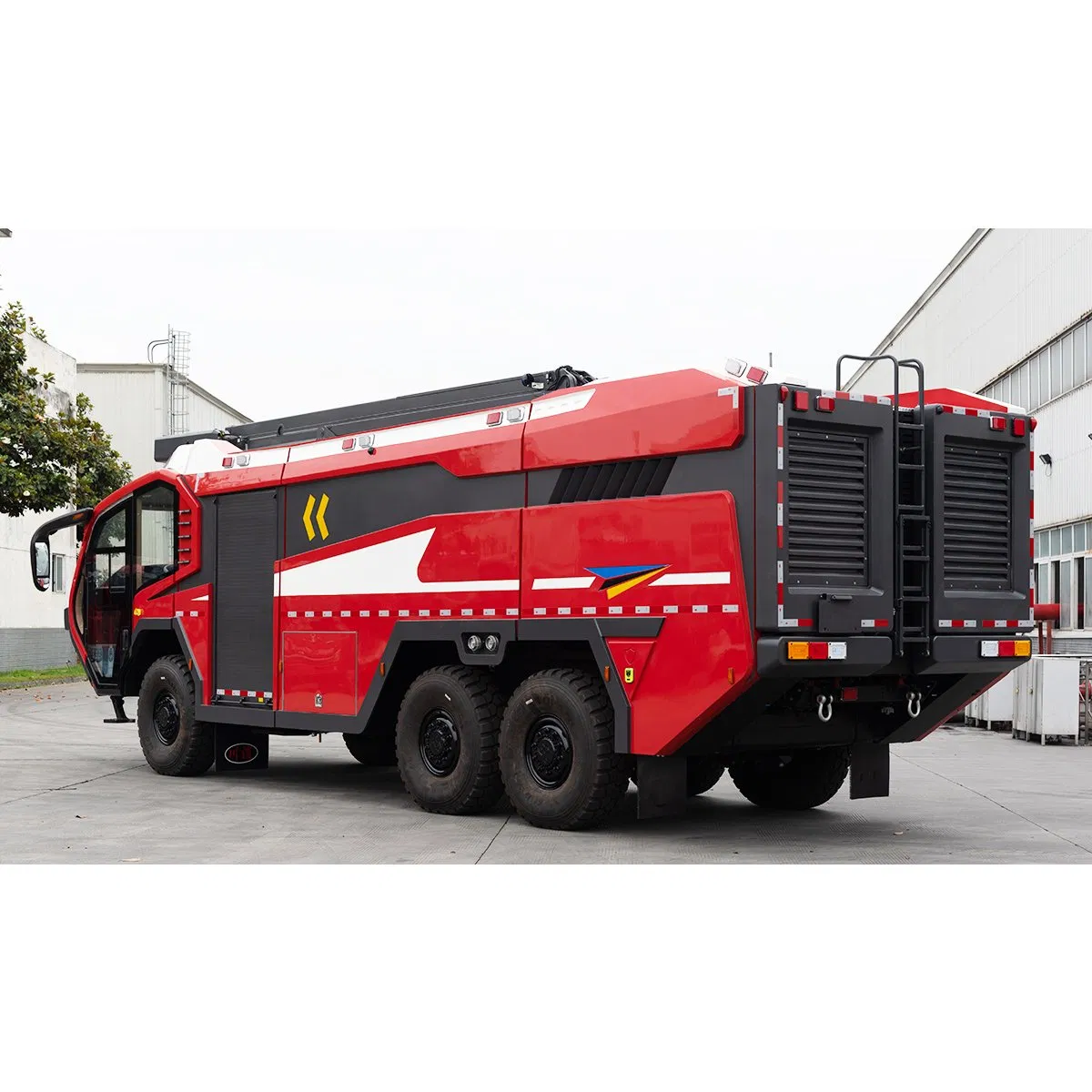

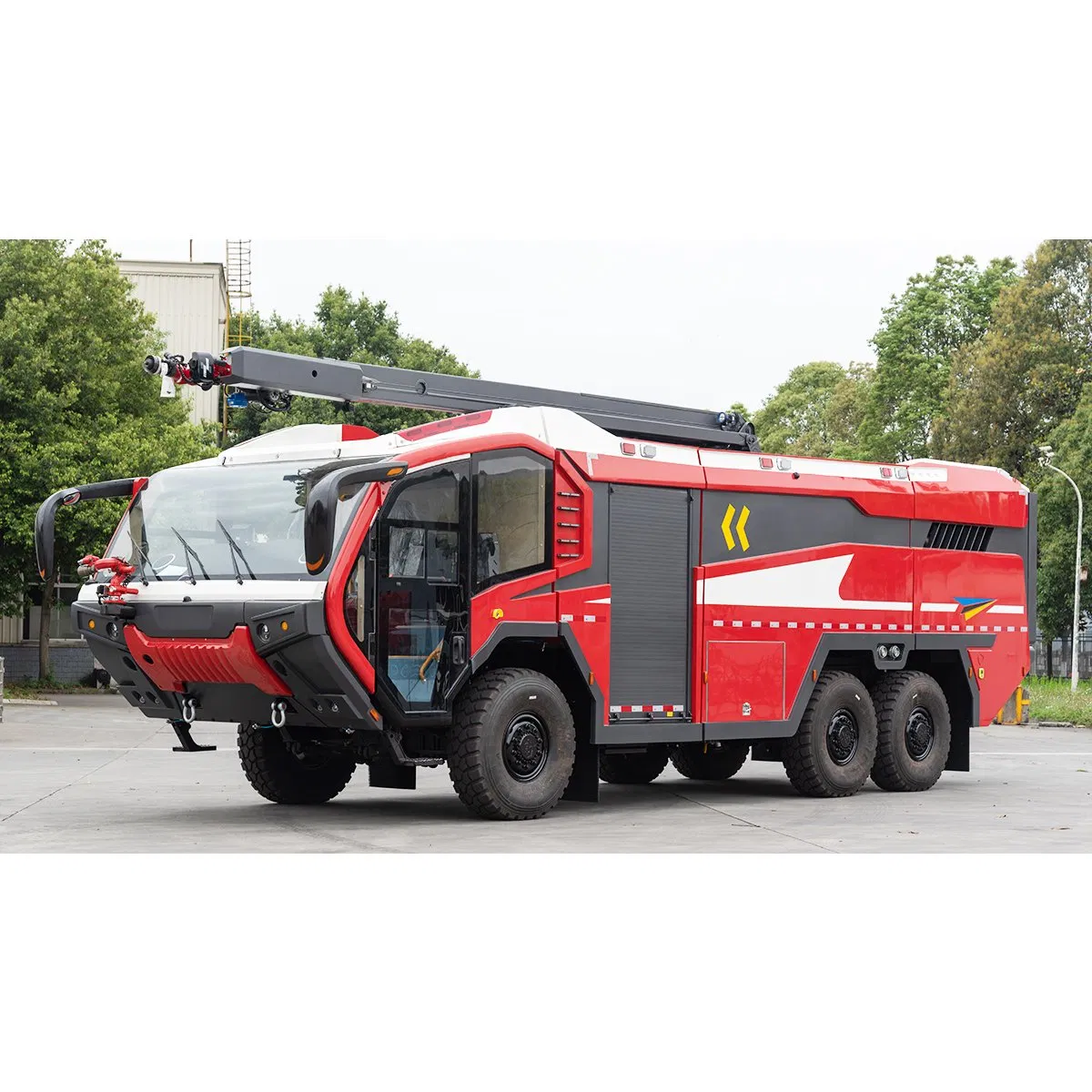

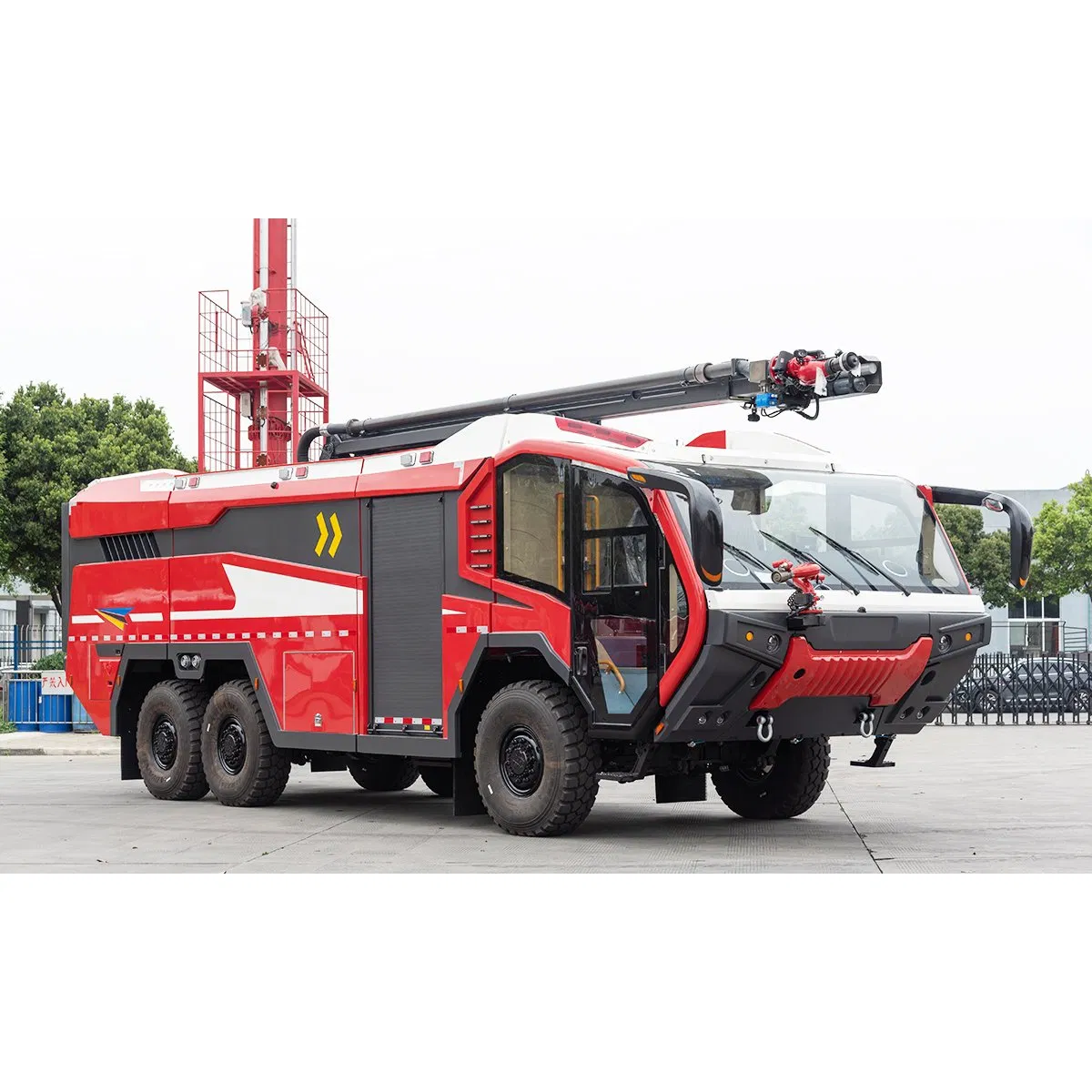

Airport Fire Truck
This vehicle is a special fire-fighting vehicle for the airport. It has strong power and excellent road passing ability. It can arrive safely and quickly for fire-fighting and rescue operations.
| No. |
Main Items |
Technical Parameters |
| 2.1 | Model | SXF5360GXFJX120/F-Attack |
| 2.2 | Overall Dimension | 11700mm×3000mm×3850mm |
| 2.3 | Full Load Weight | 39000kgs |
| 2.4 | Crew Capacity | 5 (include driver) |
| 2.5 | Max. Speed | 115km/h |
| 2.6 | Fire pump flow | 100L/s @ 10bar |
| 2.7 | Fire monitor | Front 20L/s, Roof 80L/s |
Chassis Specifications
- Drive type: 6*6
- Wheelbase: 4800mm+1400mm
- Rated power: 566(kW/rpm)
- Engine type: V8
Superstructure & Cabin
| Cabin | Structure | Single row cabin with 2 doors |
| Seats | 5 seats with 3-point safety belt |
| Compartment | Material | High-strength aluminum alloy profiles |
| Design | Aluminum alloy welded structure. Roof railing with LED light. |
| Electrical | Warning Light | Long-row warning light and siren mounted above cabin |
| Lighting | LED lights mounted on both sides and roof |
Fire Extinguishing System
Fire Pump
Flow Rate: 100L/s @ 10bar | Suction Height: 7m | Priming Time: ≤80s
Fire Monitor
Flow Rate: 80L/s @ 10bar | Shoot Range: Water ≥ 80m, Foam ≥ 75m | Control: Electric Remote
Liquid Tank
Capacity: 12000L water, 1500L foam | Material: Never Rust PP composite material
Dry Powder System
Dry powder volume: 250kg

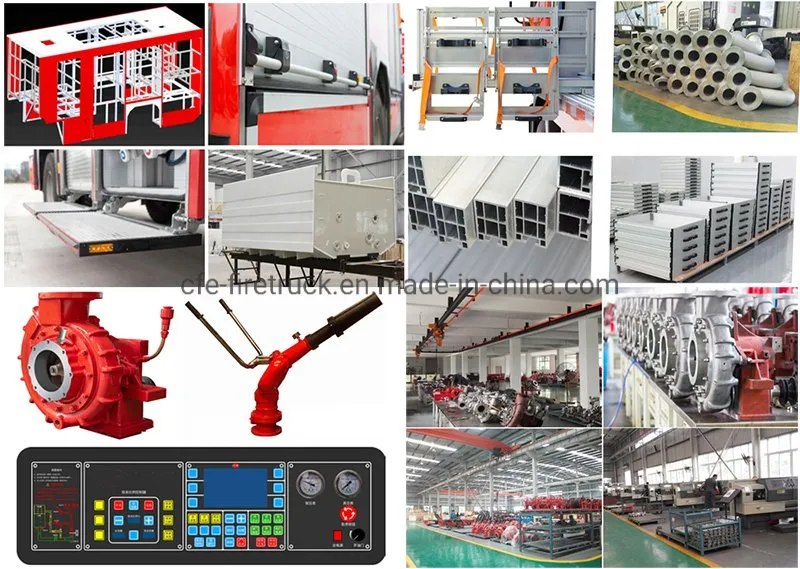

Technical & Process Advantages
1. Complete Aluminum Compartment
Uses high-quality aluminum alloy profile with patented welded frame technology. High strength, corrosion resistance, and light weight.
2. High-Quality PP Composite Liquid Tank
Special polymer composite material that never rusts. High impact and low temperature resistance.
3. Modular Control System
PLC intelligent program design with waterproof/dustproof IP56 protection level.
4. Modular Standard Parts
All key components use modular design to ensure the best quality and universal compatibility.
Frequently Asked Questions
Q: What is the maximum speed of this airport fire truck?
A: The vehicle can reach a maximum speed of 115 km/h, allowing for rapid response in emergency situations.
Q: What is the total liquid capacity of the tanks?
A: The truck is equipped with a high-capacity system holding 12,000L of water and 1,500L of foam.
Q: Does the truck handle corrosion well?
A: Yes, the compartment is made of high-strength aluminum alloy and the liquid tanks use PP composite materials, both of which are rust-proof.
Q: What type of engine and drive system does it use?
A: It features a powerful V8 engine with a 6x6 drive system for superior off-road and heavy-duty performance.
Q: Is the fire monitor controlled manually?
A: The fire monitors are equipped with electric remote control for safe and precise operation from within the cabin or via a terminal.
Q: How many people can the cabin hold?
A: The cabin is a double-cab design that can comfortably accommodate 5 crew members, including the driver.
