| Model NO. | HPM5180GXF | Type | Tanker / Foam Fire Truck |
| Certification | ISO9000, CCC, CE | Volume | 5001-7000L |
| Emission Standard | Euro 3 - Euro 6 | Transmission | Manual |
| Payload | 20T | Fuel | Diesel |
| Drive Wheel | 4×2 | Horsepower | 150-250hp |
| Truck Brand | Isuzu | Color | Red, White, Yellow, or Custom |
| Tank Material | Carbon Steel / Stainless Steel | Fire Pump | CB10/40 |

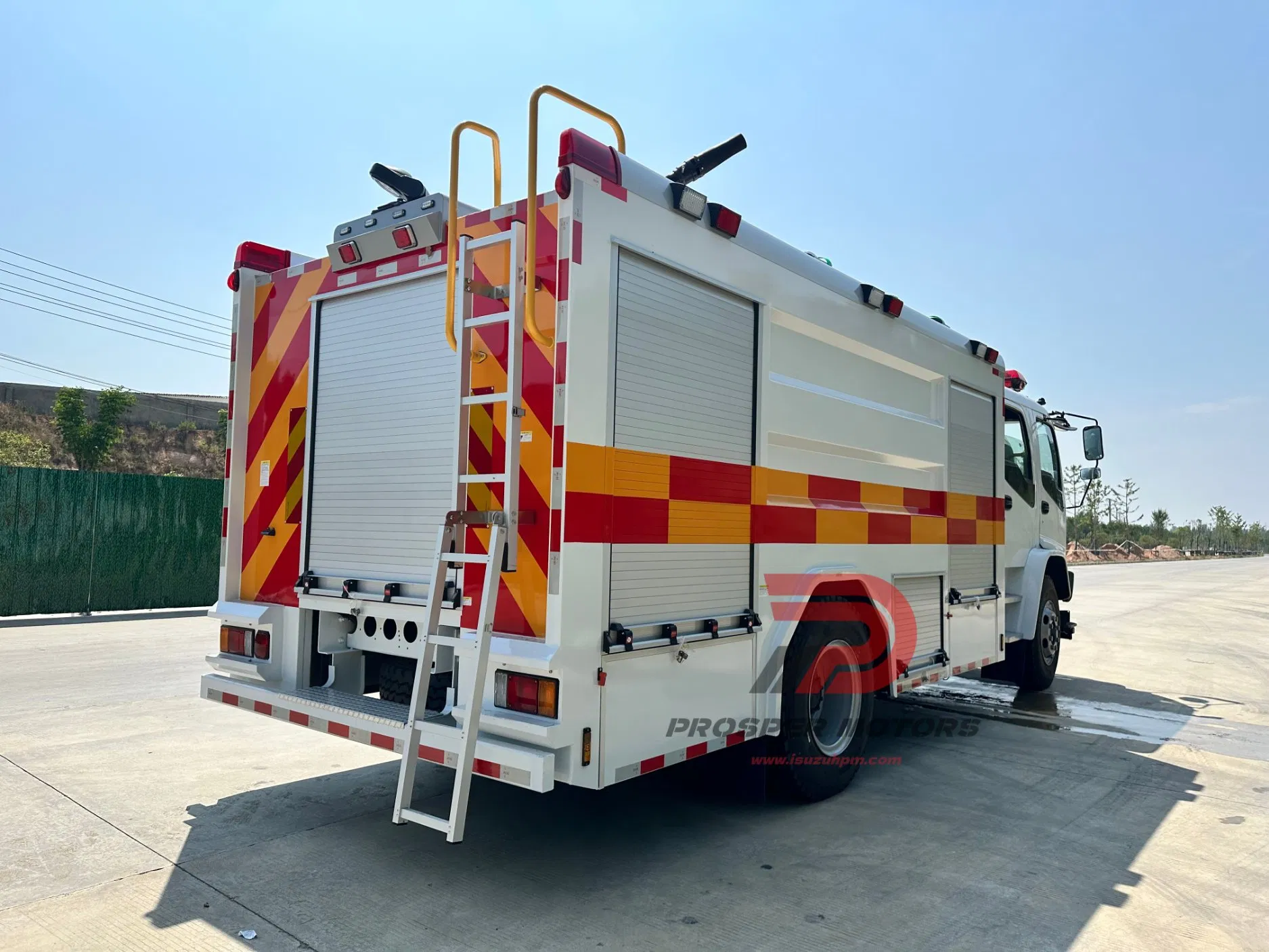

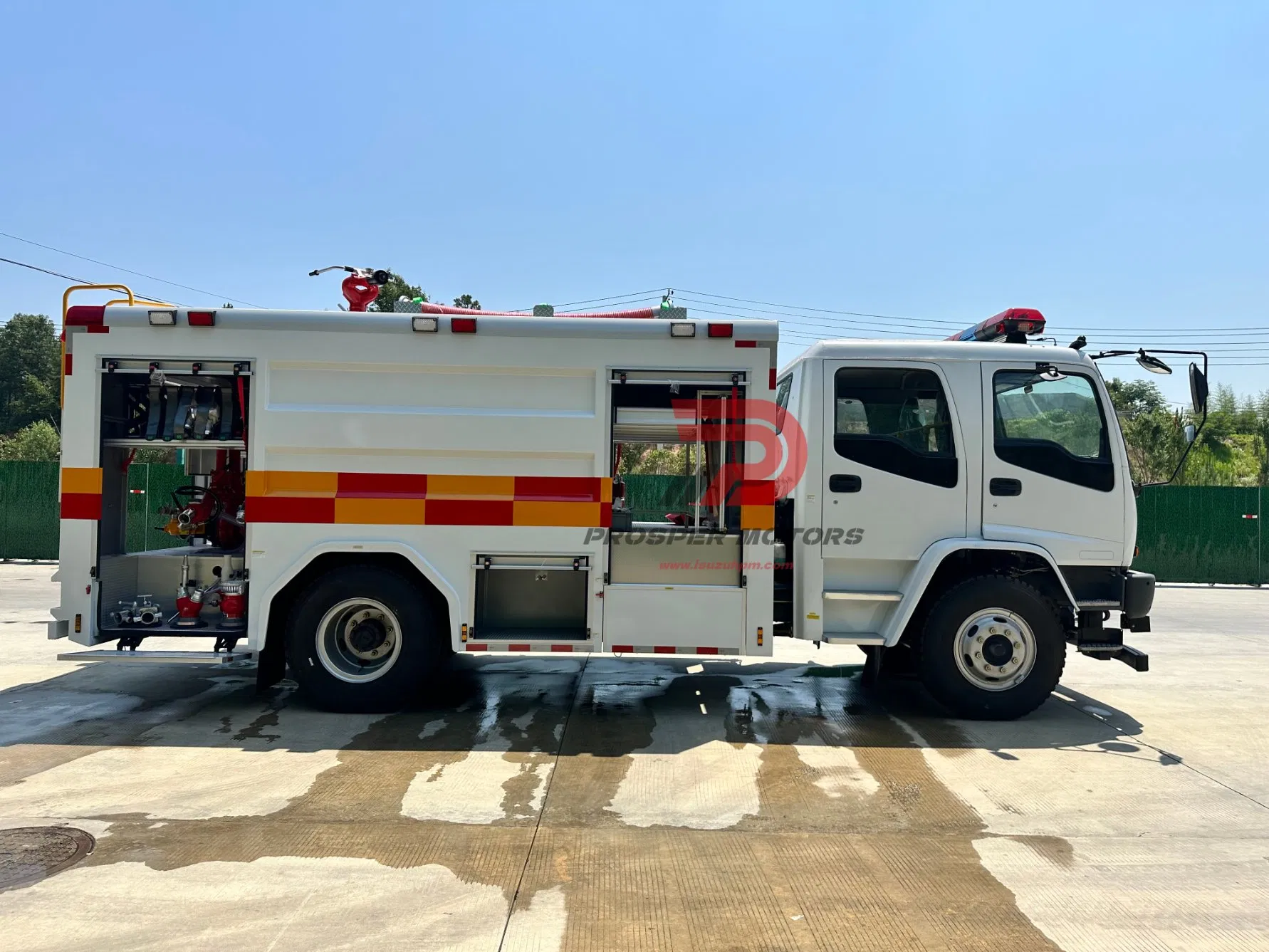

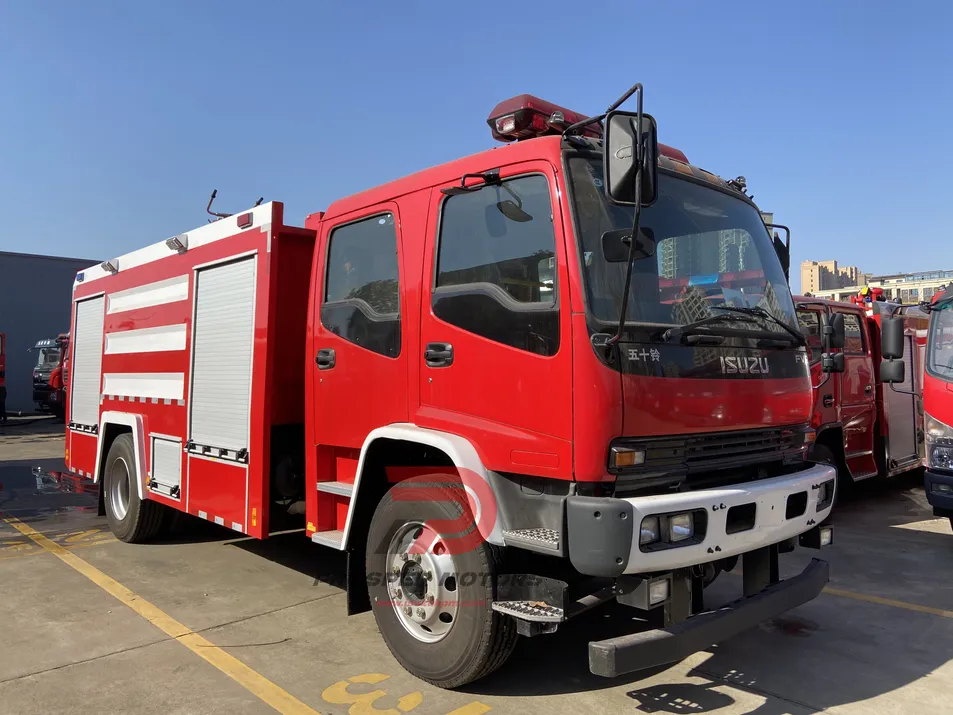

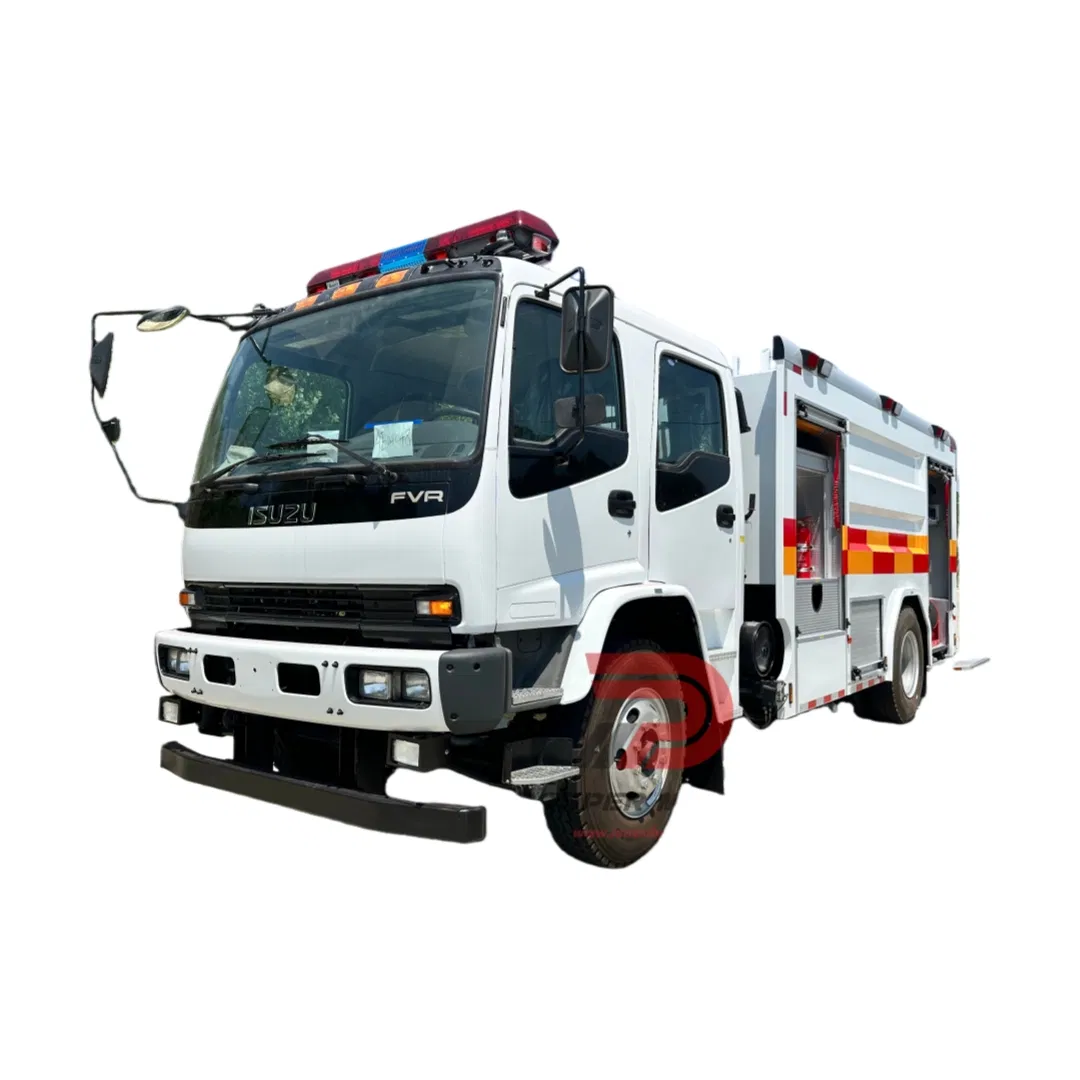

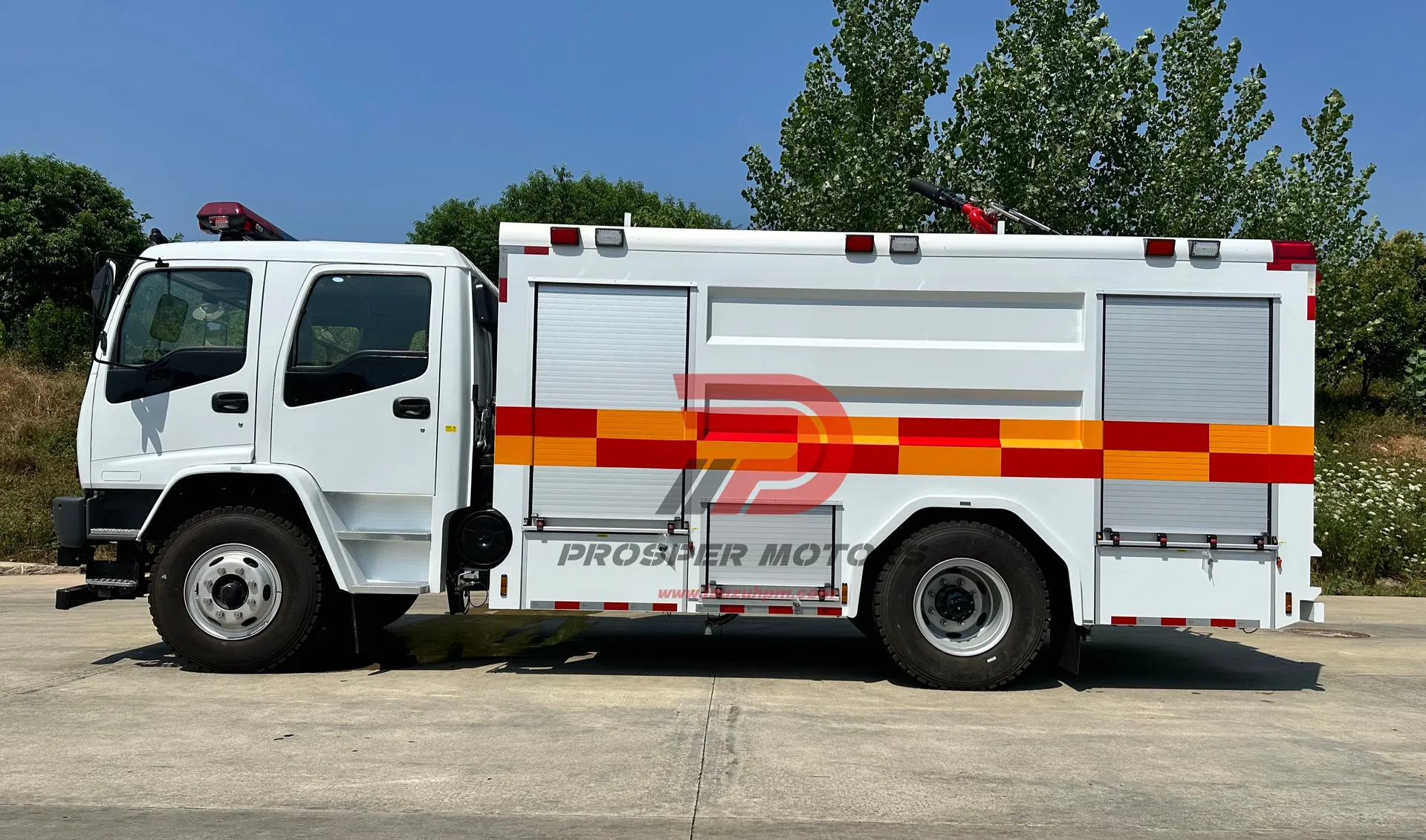

The Isuzu FVR foam fire truck stands as a robust and efficient solution in modern firefighting, expertly engineered to tackle challenging blazes. This foam tender combines the reliable performance of a proven commercial chassis with specialized fire suppression technology, making it a preferred choice for industrial and municipal fire brigades worldwide.

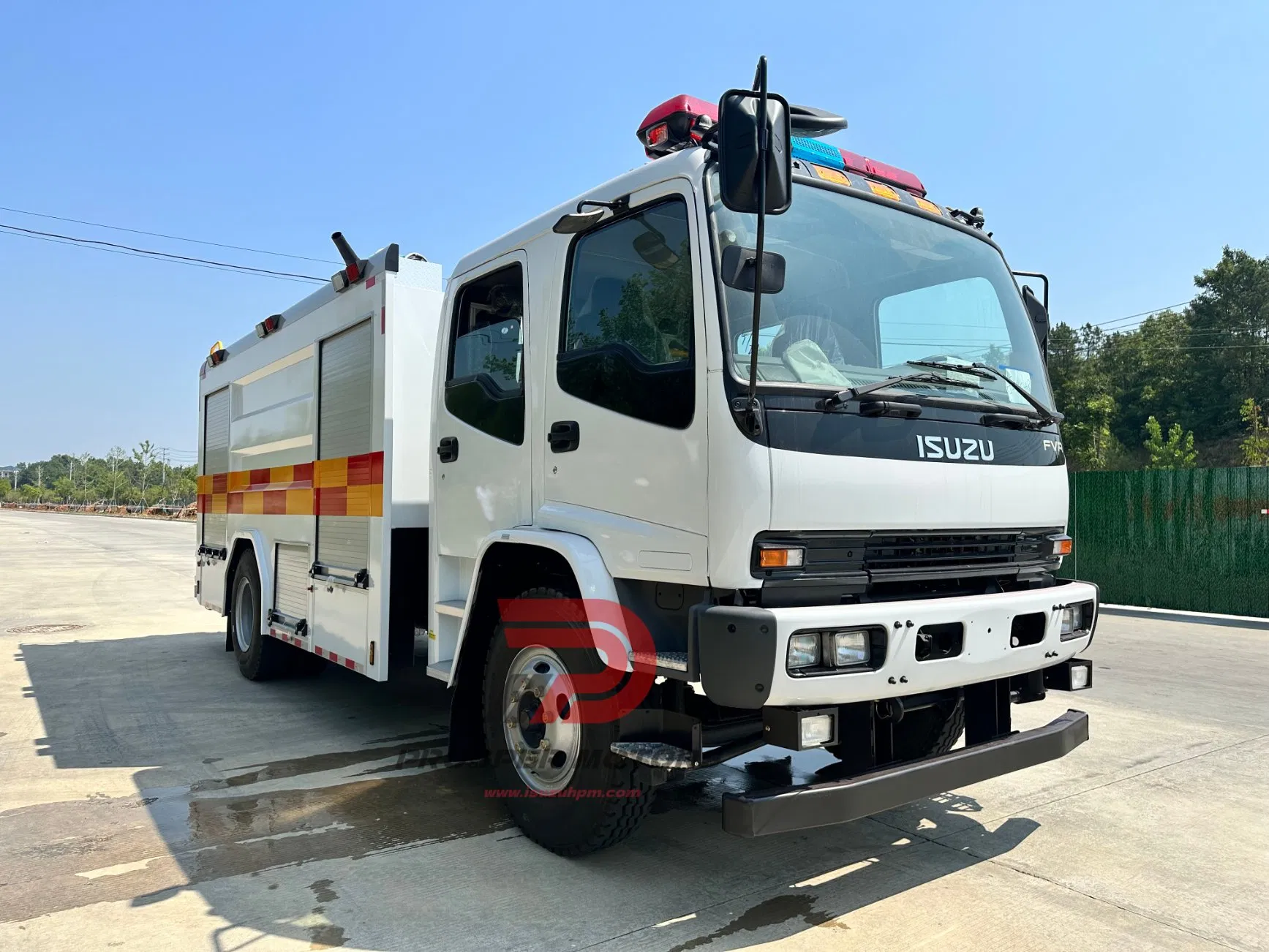

Chassis and Cab: Built on the robust Isuzu FVR chassis, this fire engine features a durable design with a full-metal, connected double-row cab seating up to 6 personnel. The panoramic curved windshield provides excellent visibility, which is crucial for emergency response.

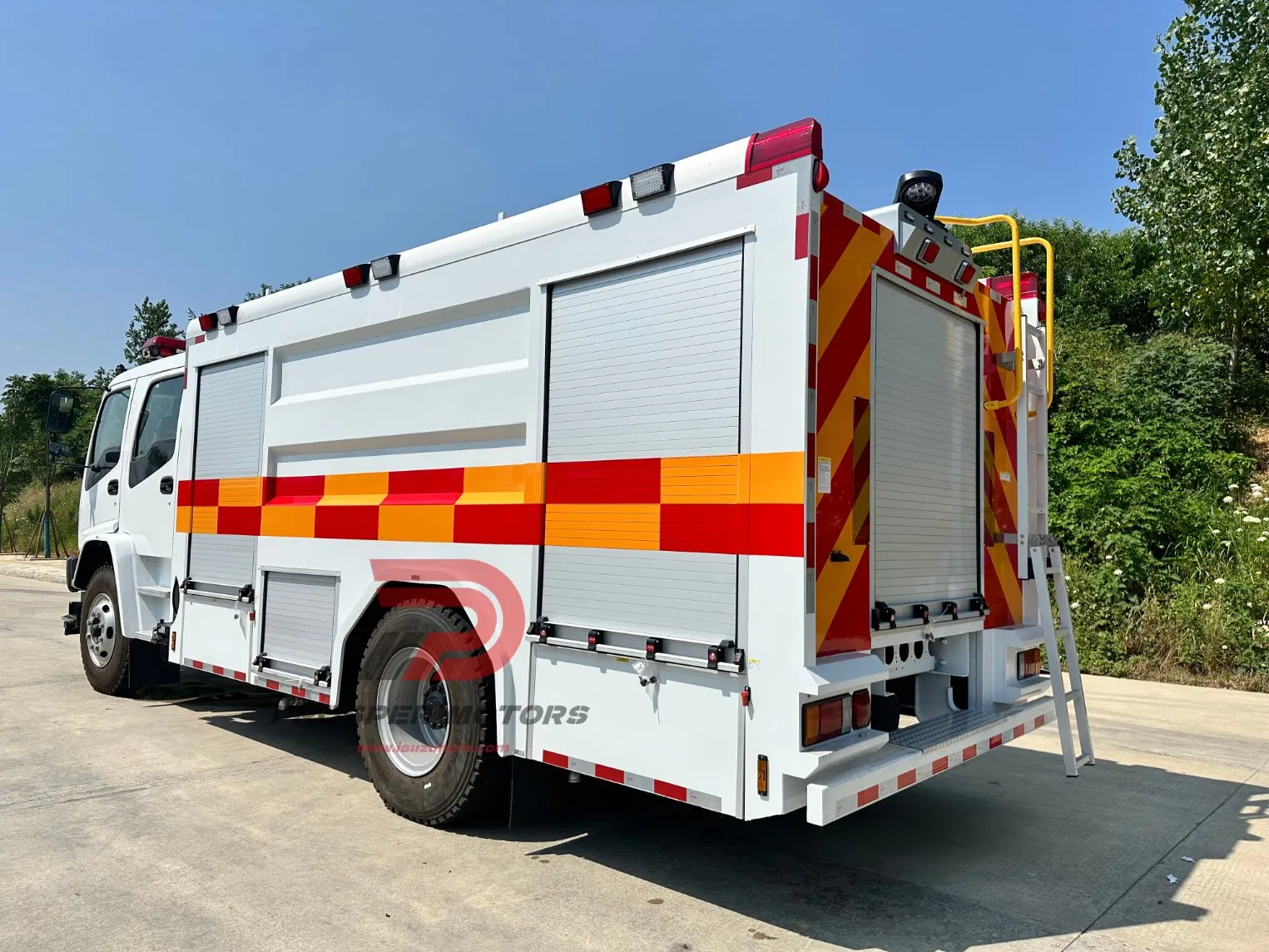

Tank Configuration: The core of this foam fire truck is its pressurized tank system, typically comprising a large 5,000-liter water tank and a dedicated 1,000-liter foam liquid tank. The tank is constructed from high-quality carbon steel with internal wave baffles to minimize liquid surge.
| Chassis Parameters | Fire System Parameters | ||
|---|---|---|---|
| Overall Dimension | 8500x2500x3850mm | Water Tank | 5,000 Liters |
| Engine | ISUZU 6HK1-TC, 240hp | Foam Tank | 1,000 Liters |
| Max Speed | 100km/h | Monitor Range | Water ≥50m, Foam ≥45m |
| Tyre Size | 11.00R20 | Pump Flux | 2400 L/M @ 10bar |

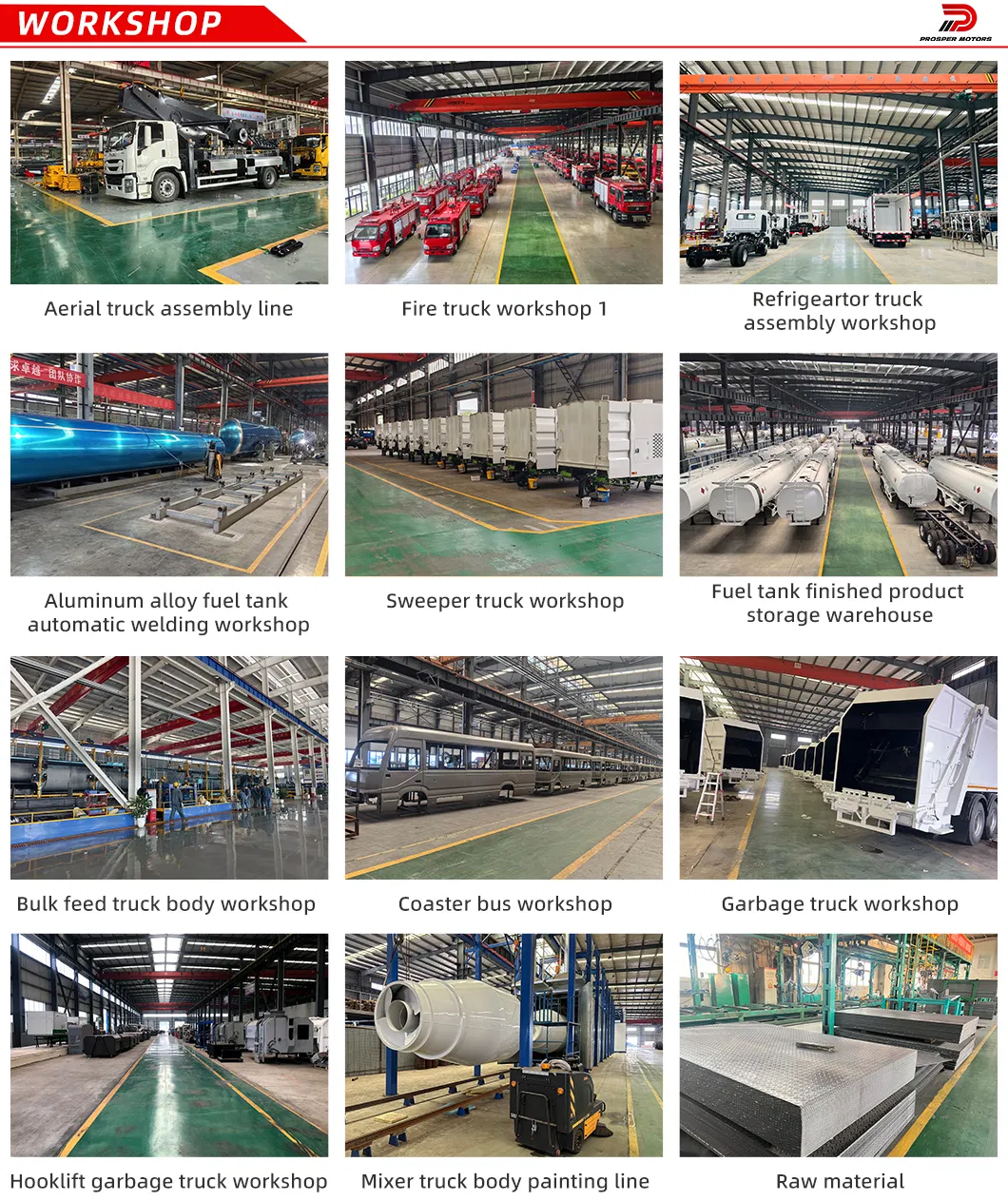

As a professional enterprise integrating R&D, production and sales of special-purpose vehicles, we serve as an authorized special vehicle modification base. We specialize in delivering high-quality, compliant customized commercial vehicles for global customers. Leveraging core chassis technology, we provide integrated "chassis + superstructure" solutions for municipal services, logistics, construction, and emergency response, exporting to 30+ countries across Asia, Africa, and the Middle East.
We offer flexible and secure shipping solutions, including Container Shipping (40HQ and 40FR), Bulk Shipping, and RORO (Roll-on/Roll-off). Our logistics experts recommend the most cost-effective method based on your vehicle type and destination.
