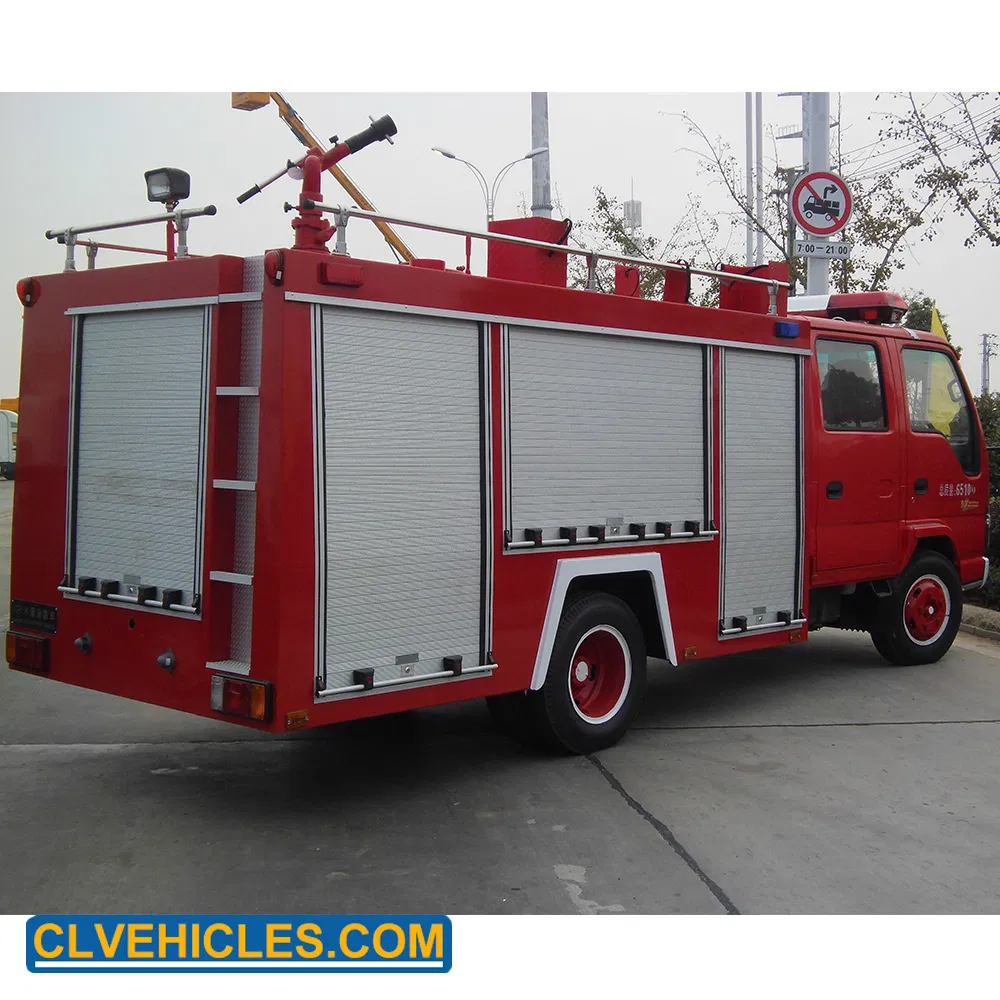

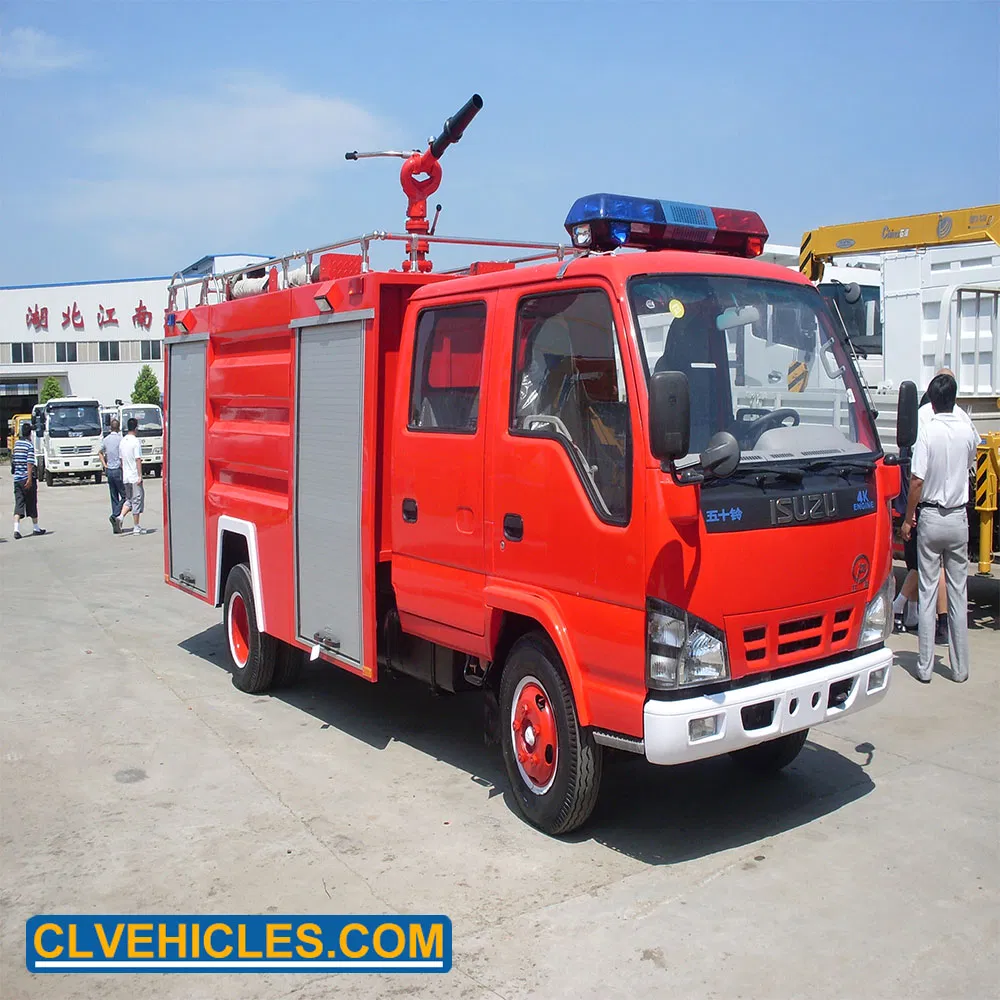

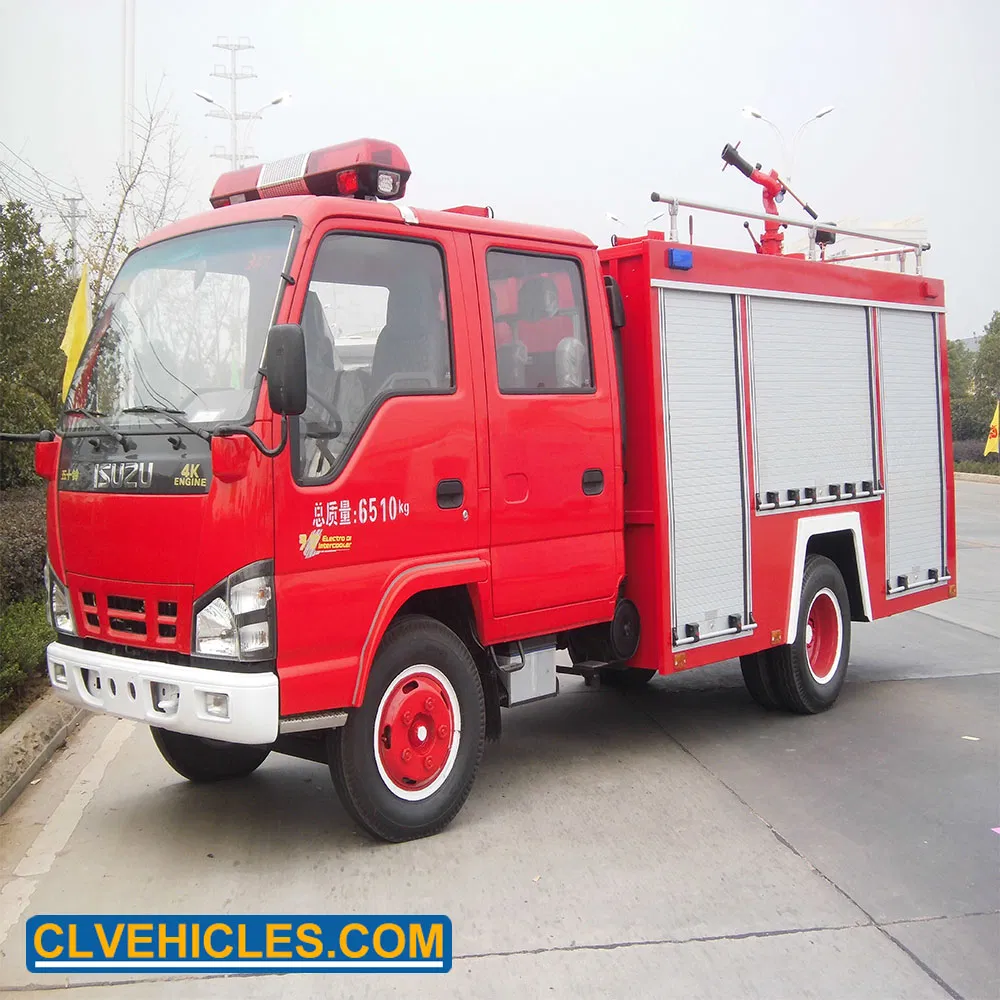

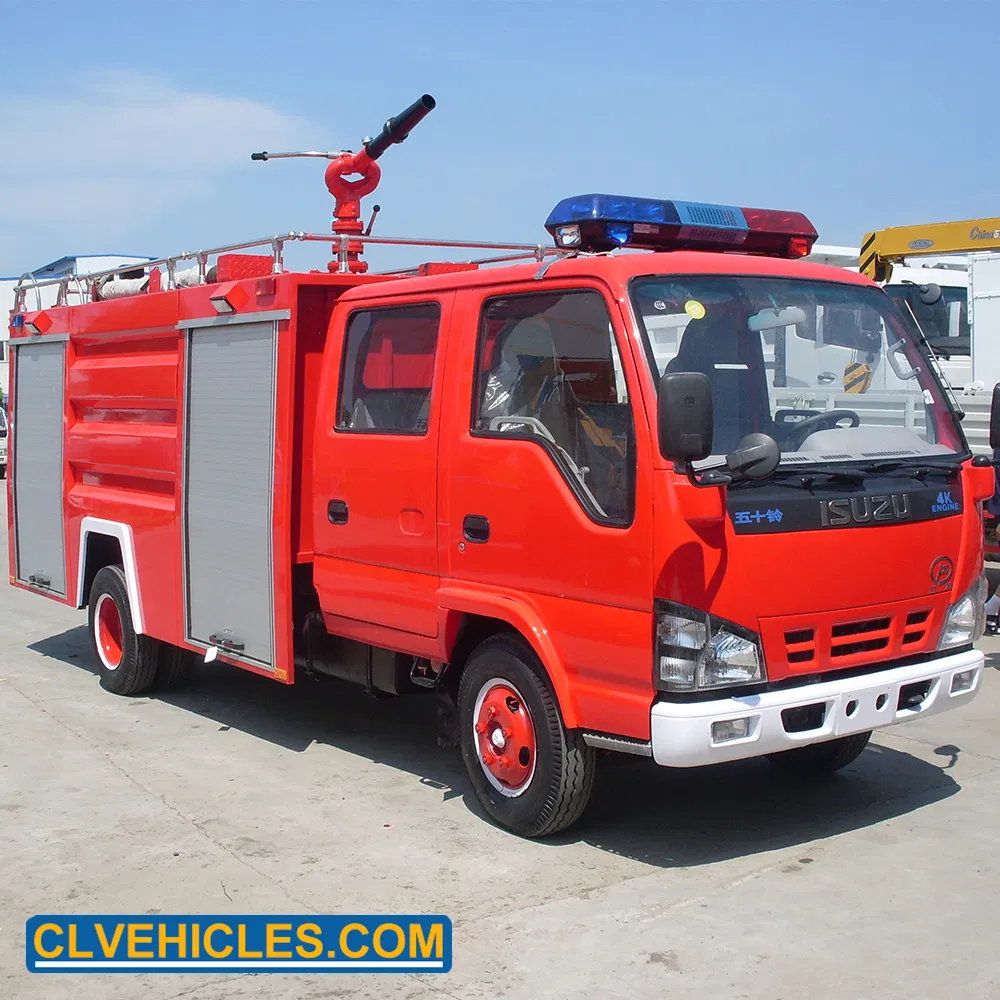

3000L Isuzu Fire Truck Fire Fighting Truck Fire Rescue Truck

Customization: Available
Type: Fire Truck
Certification: ISO9000, CCC, TS16949, EPA, EEC, RoHS, CE

Product Description

📋 Basic Information
Product Name
Isuzu 600p 3000 Liters Fire Fighting Equipment
Volume
<3000L
Emission Standard
Euro 4
Transmission Type
Automatic
Payload
20T
Fuel
Diesel
Drive Wheel
4×2
Horsepower
<150hp
Condition
New
Engine
4kh1-Tcg4o
Tank Capcity
3000L
Fire Pump
CB10/20 Normal Pressure
🚒 Product Description
3000L ISUZU Fire Truck Fire Fighting Truck Fire Rescue Truck
Chassis Specification
CabISUZU 600P CABIN
Driving Type4*2 Left hand driving
Max Speed (km/h)95
Overall dimension (mm)6360*2000*2740
GVW (kg)6530
Wheelbase (mm)3360
Tire6.50-16 (6+1)
Gear boxMSB 5-speed
Engine Model4KH1-TCG4O (Diesel, 120HP)
Displacement2999ml

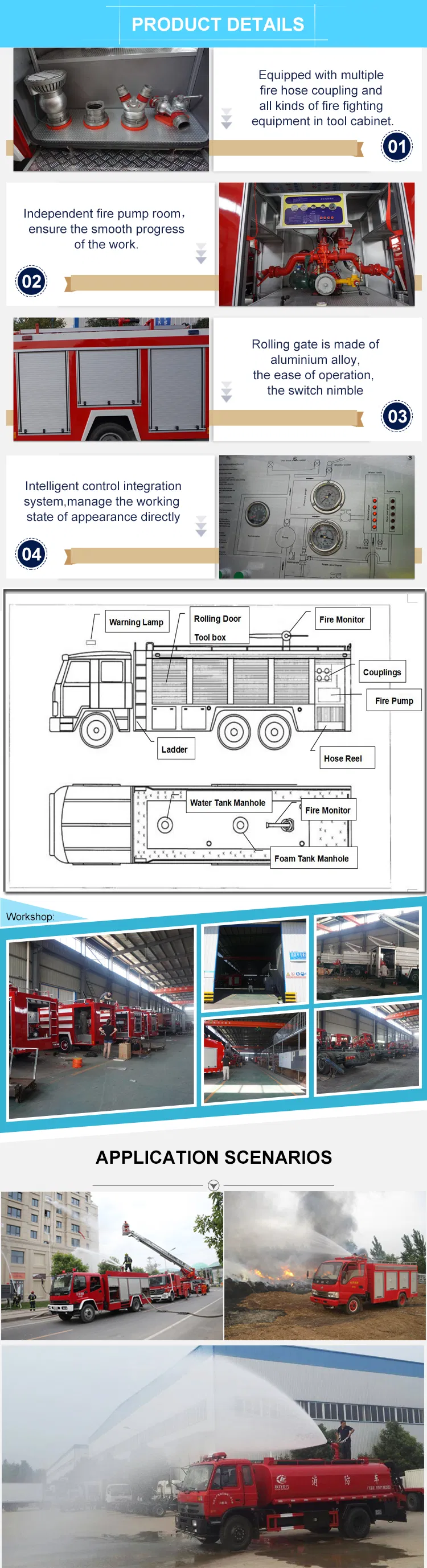

Upper-Body Specification
Tank StructureWelding with inner clapboard
Tank MaterialHigh quality carbon steel plate (anti-rust)
Water Tank Capacity3000L
Equipment BoxTwo-layer clapboard, aluminum embossed inner sheet, safe ladder included
Fire Pump ModelCB10/20 (Flux: 20L/S, Pressure: 1.0Mpa)
Fire Monitor ModelPS20 (Range: Water and Foam)
Drive SystemSandwich PTO (Firefighting while driving)
Operation SystemElectronic control buttons, PTP operation lever, hand accelerator
Cooling SystemMandatory water cooling for PTO protection

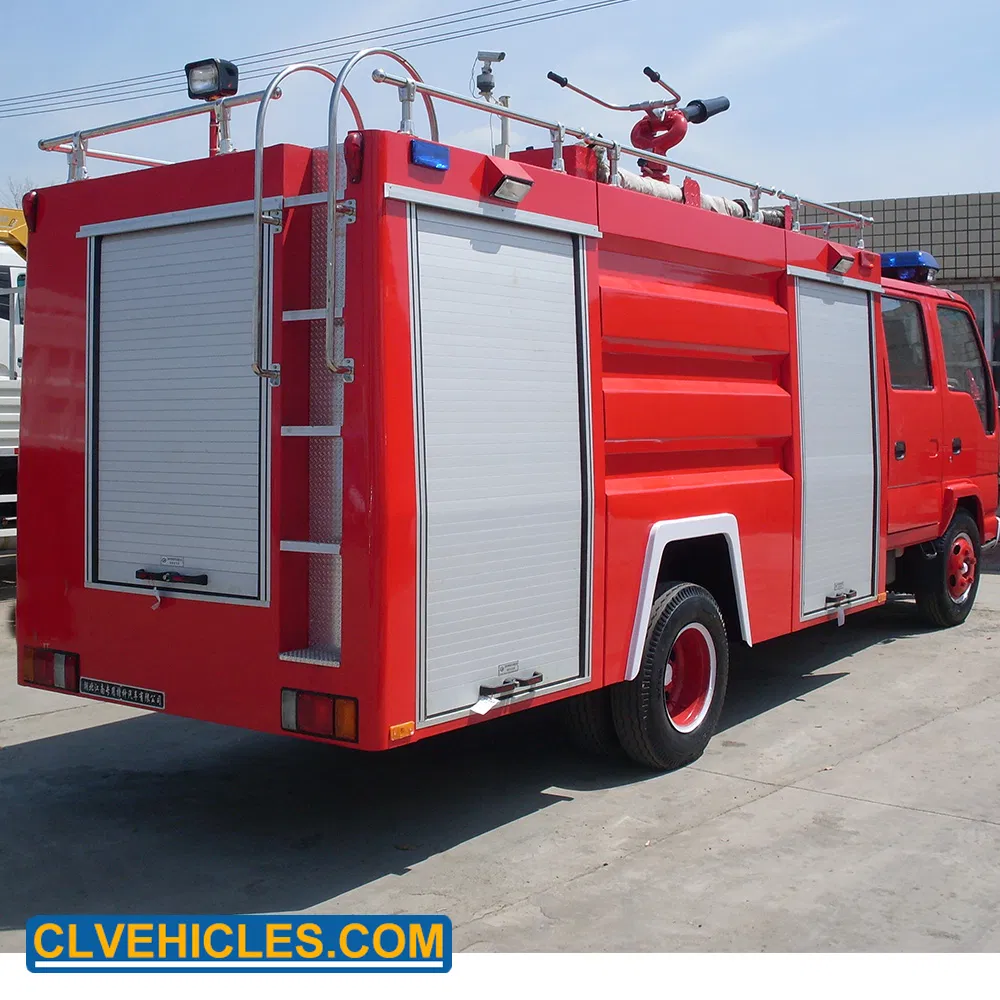

Rolling Shutter DoorAluminum alloy, neatly seal, low noise
📷 Product Gallery
Frequently Asked Questions (FAQ)
What is the capacity of this fire truck's water tank?
This ISUZU fire truck is equipped with a 3000-liter water tank, made of high-quality carbon steel with professional anti-rust treatment.
Can the truck spray water while moving?
Yes, it uses a sandwich Power Take-Off (PTO) system with splashing-type lubrication, allowing the vehicle to fight fires while driving.
What are the main fire fighting components included?
The vehicle features a CB10/20 normal pressure fire pump (20L/S flux) and a PS20 fire monitor for both water and foam applications.
What engine power does the ISUZU 600P chassis provide?
The truck is powered by a 4KH1-TCG4O diesel engine, providing 120HP and a maximum speed of 95 km/h.
How is the equipment stored on the vehicle?

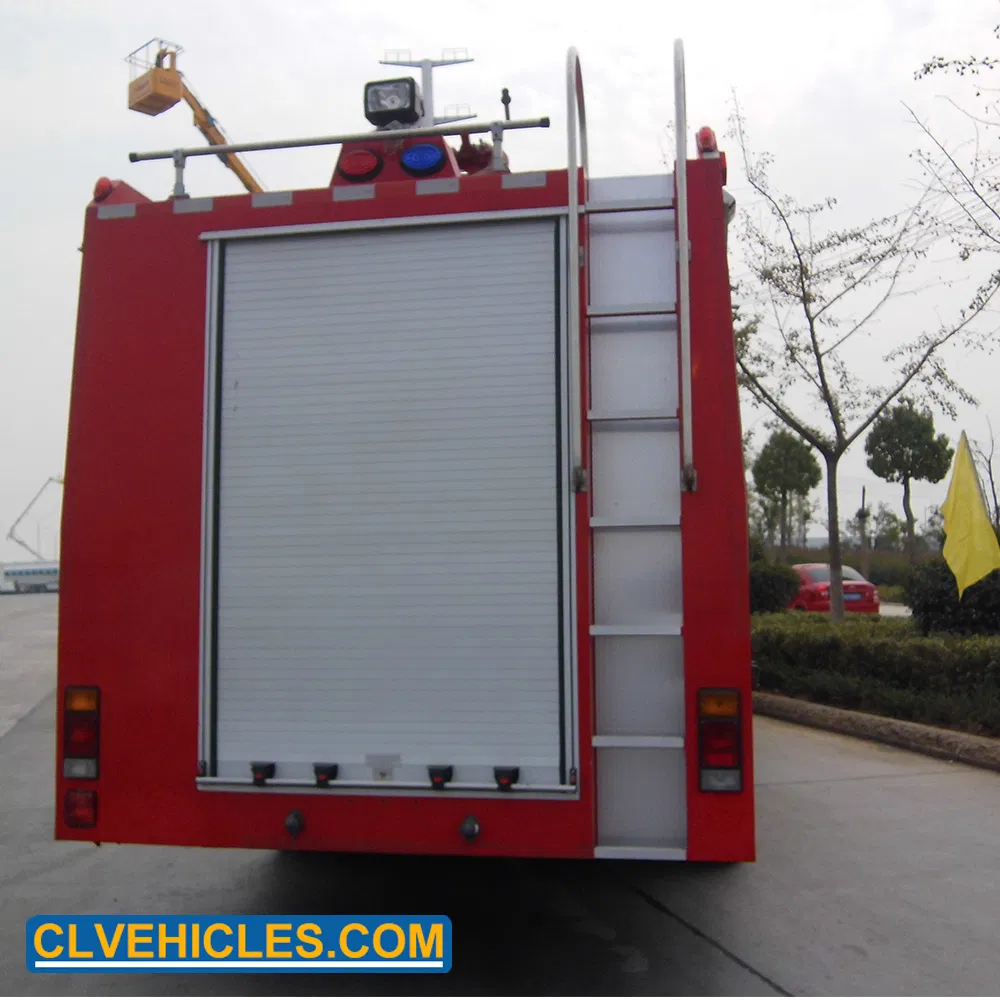

There is a specialized equipment box at the back of the carriage with two-layer clapboards and aluminum alloy rolling shutter doors for safe and organized storage.
What is the drive type and accessibility of this vehicle?
It features a 4x2 left-hand drive configuration with hydraulic steering, making it agile and easy to maneuver in various urban and rural rescue environments.
