6X6 Airport Fire Fighting Truck Water Foam Vehicle Good Quality Specialized Vehicle China Factory

Customization:	Available
After-sales Service:	Global After-Sales Service Network
Warranty:	1 Year

Send Inquiry

Product Description

📋

Basic Specifications

Model NO.

AZG5360GXFJX140/Z6

Type

Rescue

Certification

ISO9000, CCC, CE

Volume

＞10000L

Emission Standard

Euro V

Transmission Type

Automatic

Payload

39t

Drive Wheel

6X6

Horsepower

＞450hp

Total Weight

39000kg

Water Tank

12500L

Foam Tank

1500L

🚒

Product Description

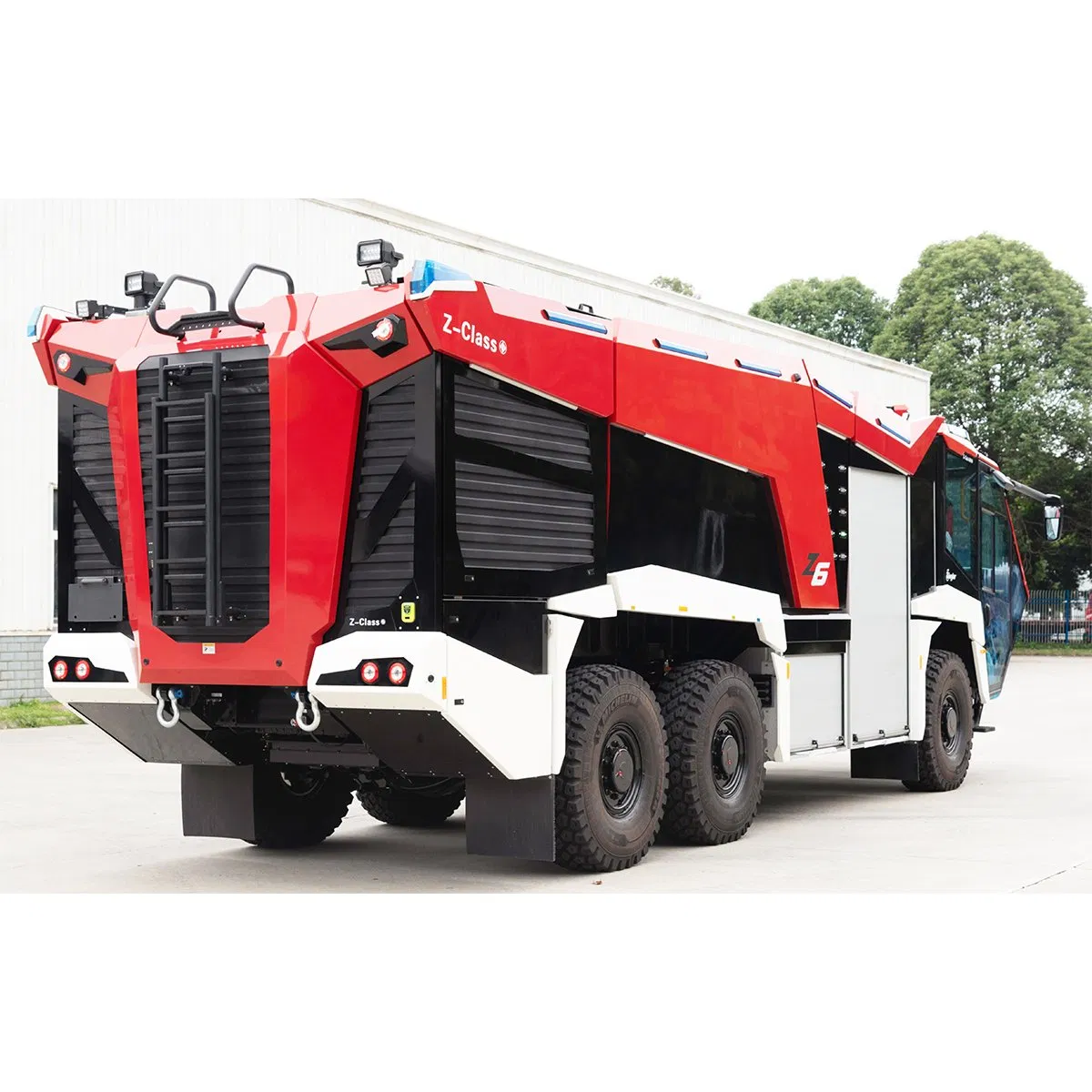

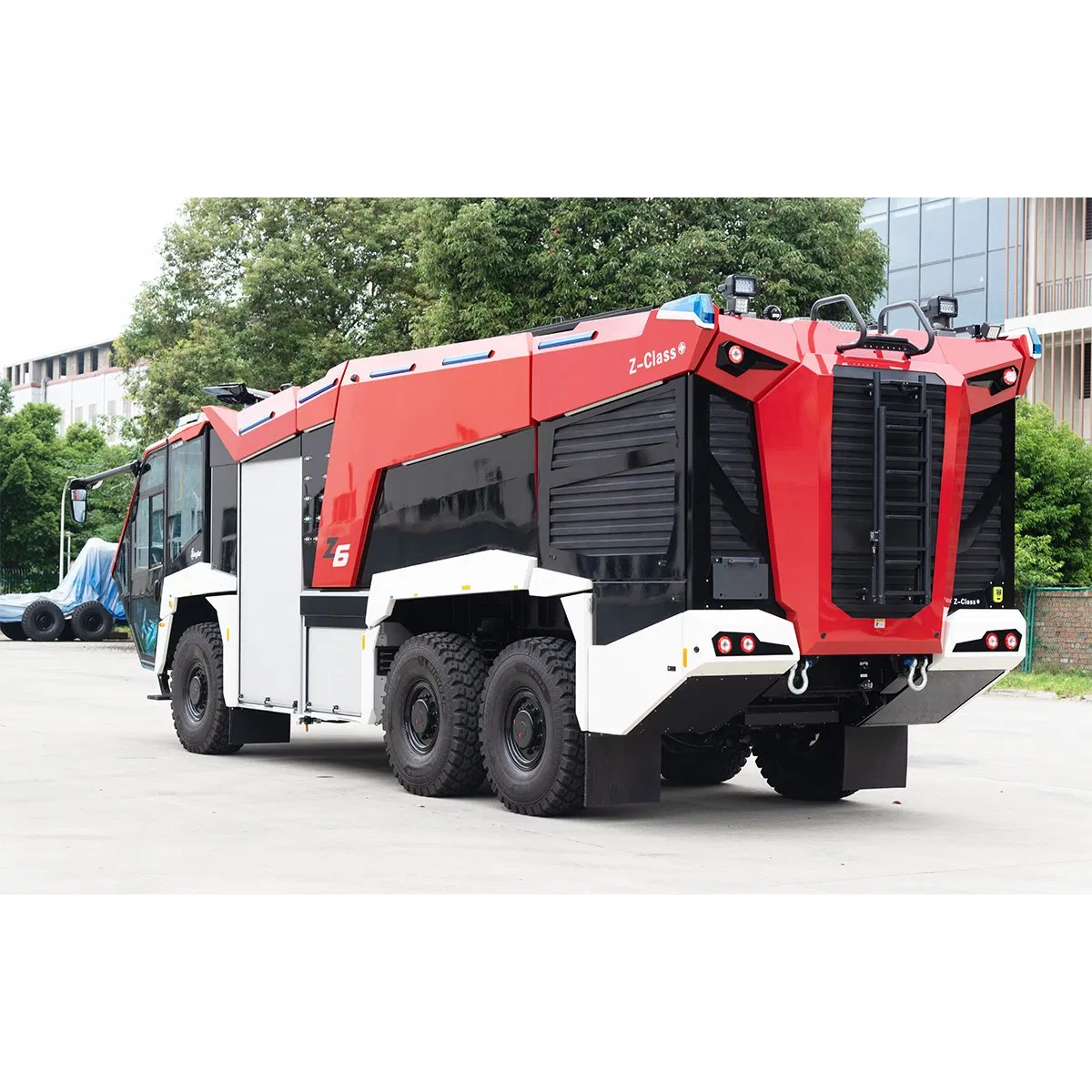

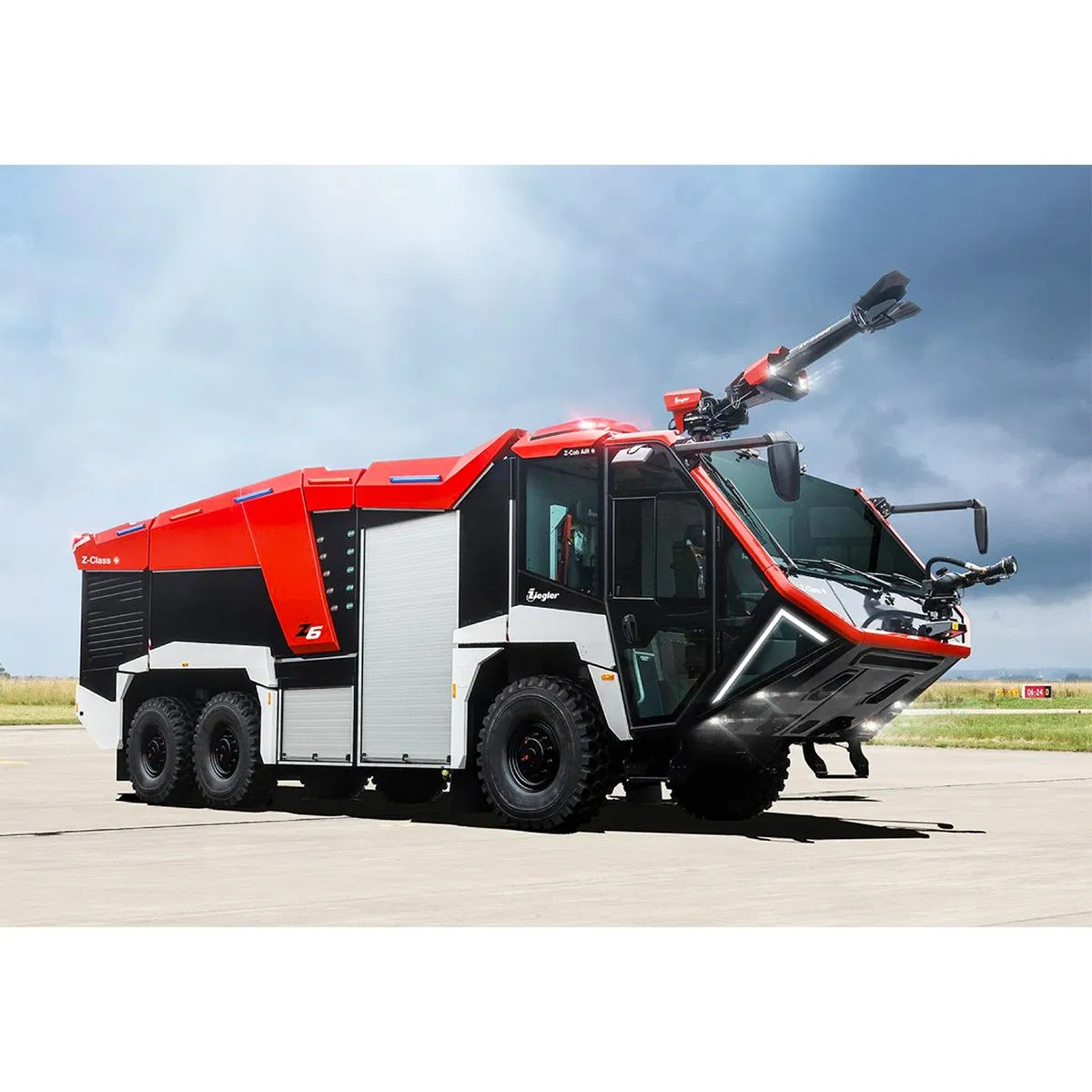

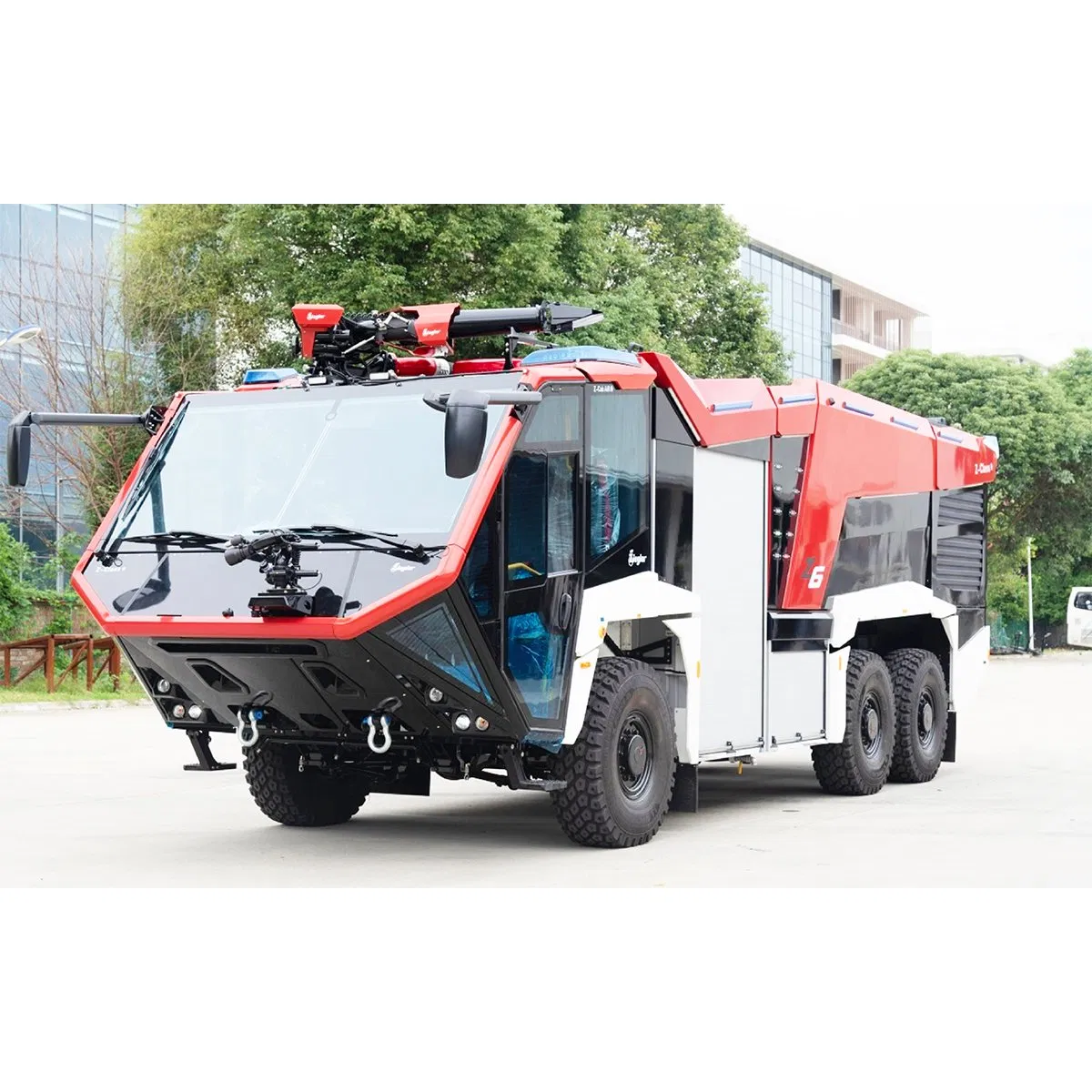

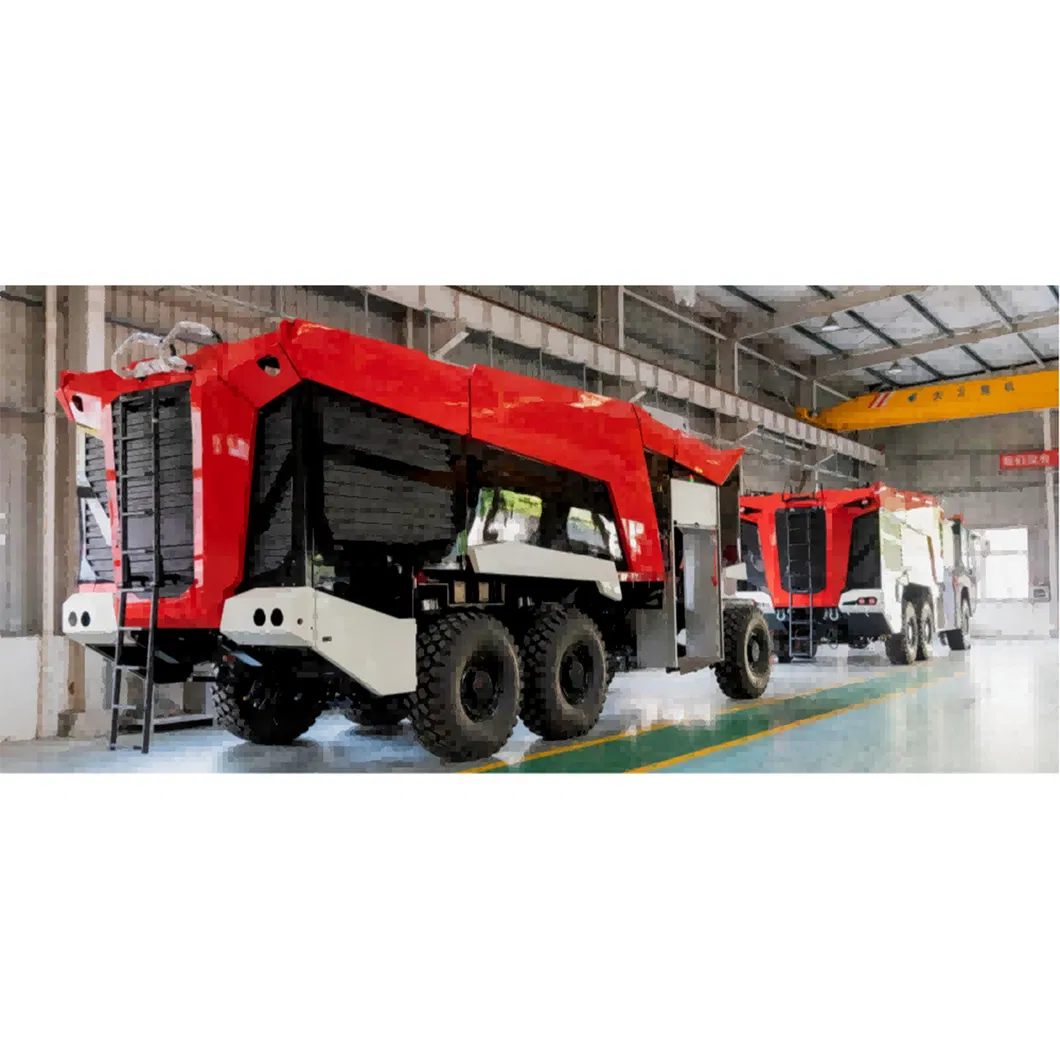

This vehicle is a specialized fire-fighting vehicle designed for airport environments. It features exceptional power and superior road accessibility, ensuring rapid and safe deployment for emergency fire-fighting and rescue operations.

Technical Parameters

Main Items	Technical Specifications
Overall Dimension	11800mm × 3000mm × 3700mm
Full Load Weight	39000kgs
Crew Capacity	4 (including driver)
Max. Speed	120km/h
Pump Flow Rate	10000L/min @ 10bar
Monitor Performance	Front: 65L/s, Roof: 100L/s

Chassis Details

Drive Type: 6*6 High Performance
Engine: V8-cyl. Diesel engine, water-cooled, turbo charged
Rated Power: 566/1800 (kW/rpm)
Gearbox: Continuously Variable Transmission with integrated Power Shift PTO
Fuel Tank: 300L Aluminum tank

🛠️

Superstructure & Equipment

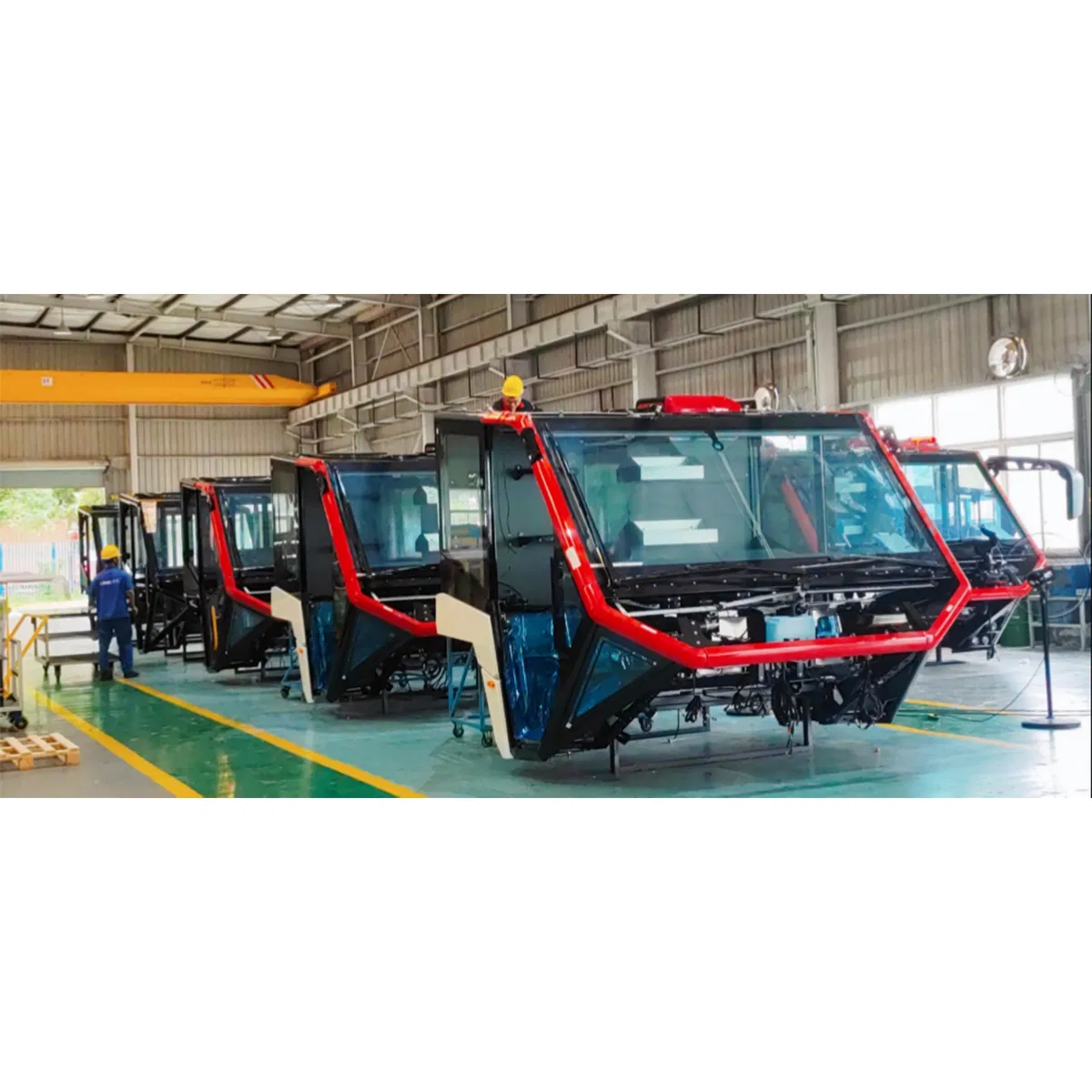

Cabin Structure	Single row with 2 doors, 4 seats with 3-point safety belts

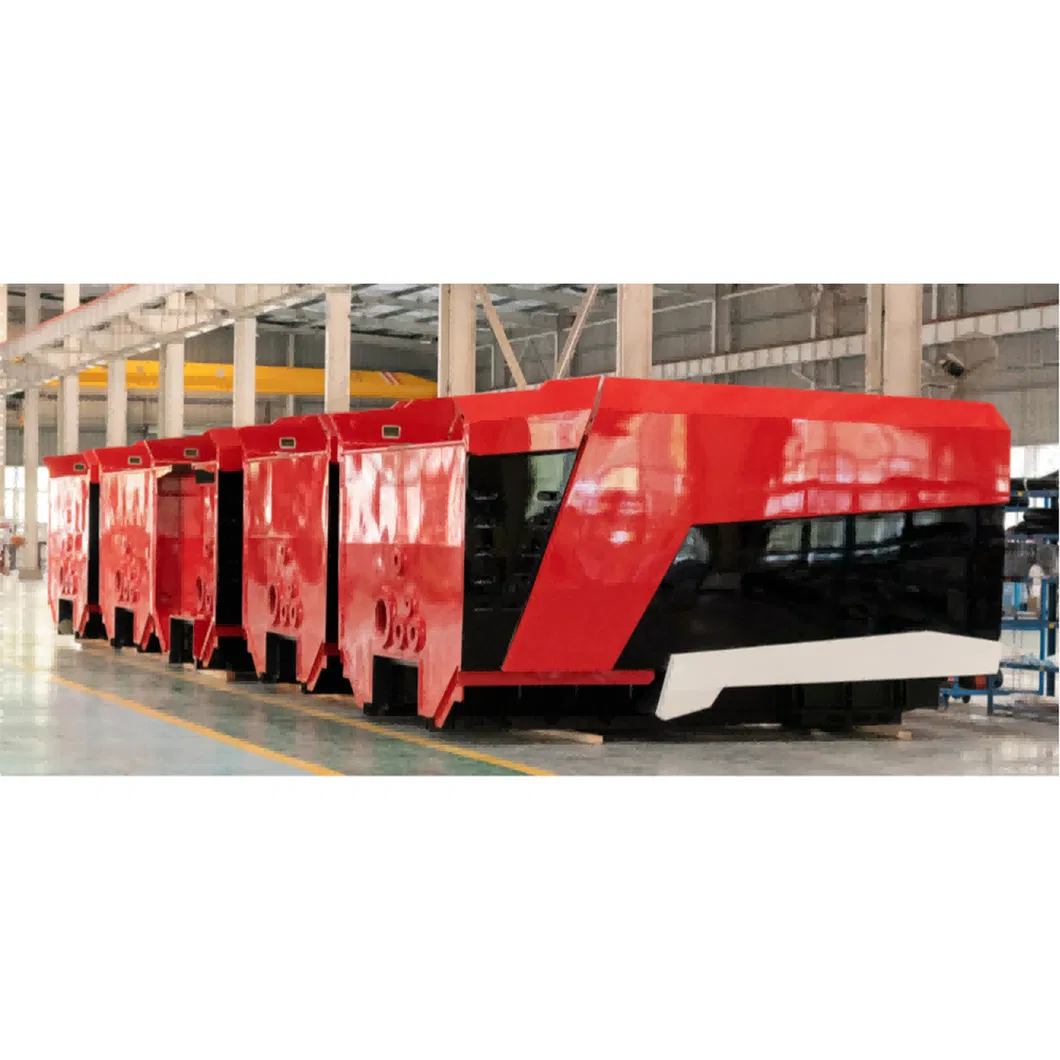

Compartment	High-strength aluminum alloy welded structure with LED lighting
Liquid Tank	PP composite material (Never Rust), 12500L Water + 1500L Foam
Control System	Advanced CANBUS 2.0 technology, wireless operation terminal
